NSN 5960-00-686-8118 MS242334, MS24233-4, M7436512P4
Product Details | ELECTRON TUBE SHIELD
5960-00-686-8118 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: MS242334, MS24233-4, M7436512P4, MILS9372, G63P75583, G63P7558-3, TR66015, TR6-6015, 710645, 7436512P4, 7478041, 747804-1, 3081059P4, 308-1059P4, 4080550015, 4080550-015, 58003345551000, 5800334-5551-000, 5960-00-686-8118, 00-686-8118, 5960006868118, 151110055, 006868118
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-686-8118 | 10195 ( SHIELD, ELECTRON TUBE ) |

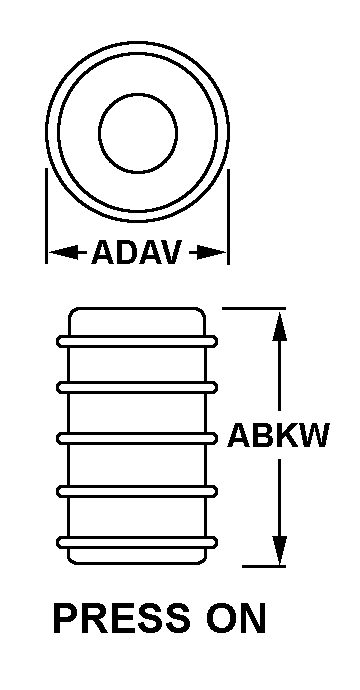

Drawings & Photos | NSN 5960-00-686-8118
Cross Reference | NSN 5960-00-686-8118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 151110055 | 06401 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST |
| 308-1059P4 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 4080550-015 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4080550-015 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 5800334-5551-000 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 710645 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7436512P4 | 24446 | GENERAL ELECTRIC CO |
| 7436512P4 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 747804-1 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| G63P7558-3 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| M7436512P4 | 24446 | GENERAL ELECTRIC CO |
| MILS9372 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24233-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24233-4 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIA INC |
| TR6-6015 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIA INC |
