NSN 5960-00-681-9790 10221, 1022-1, 54B68751
Product Details | ELECTRON TUBE RETAINER
5960-00-681-9790 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 10221, 1022-1, 54B68751, 54B6875-1, 5960-00-681-9790, 00-681-9790, 5960006819790, 006819790
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-681-9790 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-681-9790
Demand History | NSN 5960-00-681-9790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10221 | 2021-09-244 | 1 | LT |
| 10221 | 2012-09-261 | 200 | United States |
| 10221 | 2012-03-75 | 2 | ID |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-681-9790
Related Products | NSN 5960-00-681-9790
Technical Data | NSN 5960-00-681-9790
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |

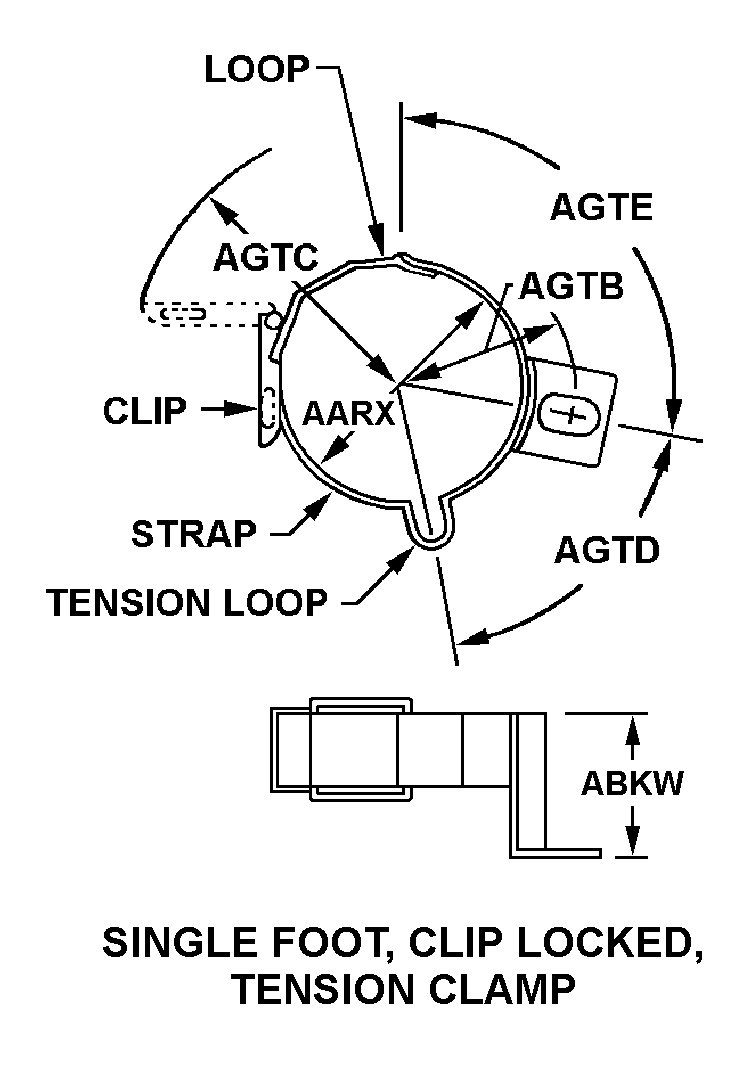

| STYLE DESIGNATOR | 22B SINGLE FOOT, CLIP LOCKED, TENSION CLAMP |
| INSIDE DIAMETER | 1.337 INCHES MINIMUM AND 1.377 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.938 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO END OF EXTENDED CLIP | 1.688 INCHES NOMINAL |
| ANGLE BETWEEN MOUNTING FACILITY AND TENSION LOOP CENTERLINES IN DEG | 170.0 |
| ANGLE BETWEEN MOUNTING FACILITY AND LOOP HINGE CENTERLINES IN DEG | 75.0 |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SLOT SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.188 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT LENGTH | 0.312 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | 1.337 TO 1.377 INCHES |
Restrictions/Controls & Freight Information | NSN 5960-00-681-9790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5960-00-681-9790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
