NSN 5960-00-270-3326 N16C300798866, N16C300798-866, S148F1183D
Product Details | ELECTRON TUBE RETAINER
5960-00-270-3326 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: N16C300798866, N16C300798-866, S148F1183D, S148F1-183D, 612873, 7583084, 8519427, 926C44, 926C-44, 1263, 20021, 200-21, 25564, 2CC25564, 33700854002295, 3370-085400-2295, 5960-00-270-3326, 00-270-3326, 5960002703326, 002703326
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-270-3326 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-270-3326
Demand History | NSN 5960-00-270-3326
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 200-21 | 2022-04-118 | 1 | DIBBS |
| S148F1-183D | 2022-04-118 | 1 | DIBBS |
| 20021 | 2021-02-41 | 50 | United States |
| 1263 | 2011-12-335 | 10 | United States |
| 20021 | 2006-05-131 | 6 | RO |
Cross Reference | NSN 5960-00-270-3326
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1263 | 07387 | BIRTCHER CORP |
| 200-21 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 25564 | 94285 | CANADIAN ARSENALS LTD |
| 2CC25564 | 94285 | CANADIAN ARSENALS LTD |
| 3370-085400-2295 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 612873 | 06650 | BELL AND HOWELL PHILLIPSBURG CO CORPORATE OFFICES |
| 7583084 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8519427 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 926C-44 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| N16C300798-866 | 99993 | DEPARTMENT OF THE NAVY |
| S148F1-183D | 56063 | INTERPLEX NASCAL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-270-3326
Related Products | NSN 5960-00-270-3326
Technical Data | NSN 5960-00-270-3326
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |

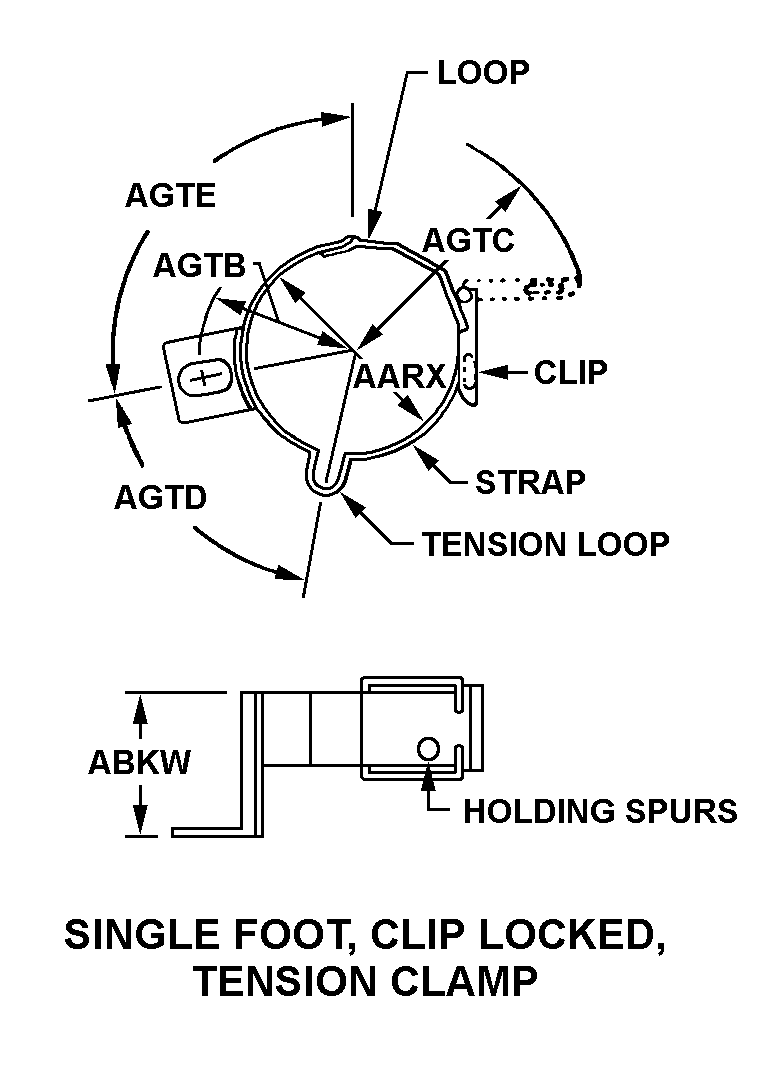

| STYLE DESIGNATOR | 21B SINGLE FOOT, CLIP LOCKED, TENSION CLAMP |
