NSN 5960-00-633-6776 3275261, 3275-261, 00-633-6776
Product Details | ELECTRON TUBE RETAINER
5960-00-633-6776 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 3275261, 3275-261, 5960-00-633-6776, 00-633-6776, 5960006336776, 006336776
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-633-6776 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-633-6776
Cross Reference | NSN 5960-00-633-6776
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3275-261 | 28569 | HICKOK INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-633-6776
Technical Data | NSN 5960-00-633-6776
| Characteristic | Specifications |
|---|---|

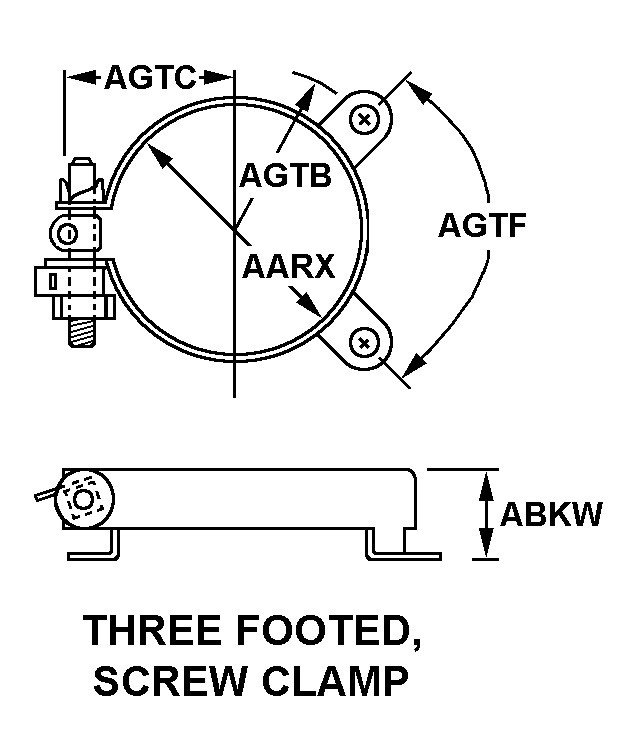

| STYLE DESIGNATOR | 25B THREE FOOTED, SCREW CLAMP |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | 90.0 |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | AN-USM-81 |
Restrictions/Controls & Freight Information | NSN 5960-00-633-6776
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
