NSN 5960-00-272-8570 ML7103065G2, 00-272-8570, 002728570
Product Details | ELECTRON TUBE RETAINER
5960-00-272-8570 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: ML7103065G2, 5960-00-272-8570, 00-272-8570, 5960002728570, 002728570
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-8570 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-272-8570
Cross Reference | NSN 5960-00-272-8570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ML7103065G2 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5960-00-272-8570
Technical Data | NSN 5960-00-272-8570
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PASSIVATE |

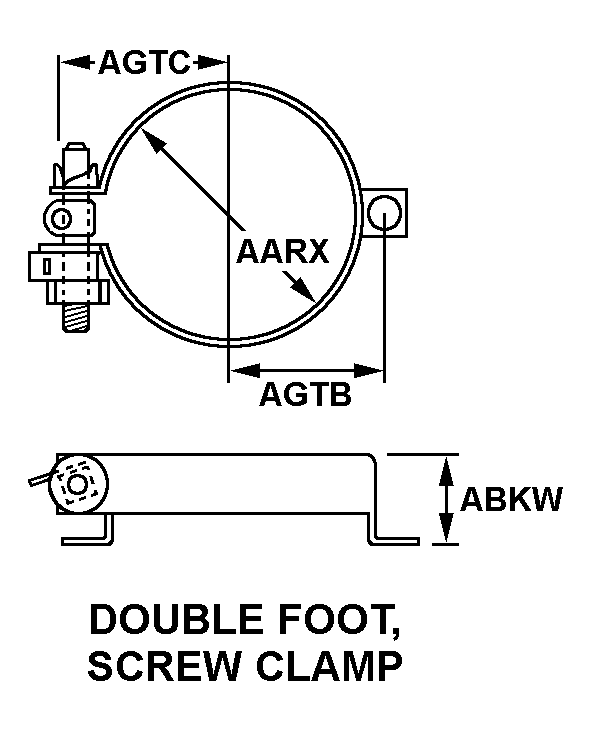

| STYLE DESIGNATOR | 24B DOUBLE FOOT, SCREW CLAMP |
| INSIDE DIAMETER | 1.235 INCHES MINIMUM AND 1.275 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.921 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO MOUNTING FACILITY CENTER AT LOOP TIGHTENING DEVICE | 0.921 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | 1.235 TO 1.275 INCHES |
Restrictions/Controls & Freight Information | NSN 5960-00-272-8570
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
