NSN 5960-00-270-9072 3275145, 3275-145, 00-270-9072
Product Details | ELECTRON TUBE RETAINER
5960-00-270-9072 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 3275145, 3275-145, 5960-00-270-9072, 00-270-9072, 5960002709072, 002709072
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 00-270-9072 | 16182 ( RETAINER, ELECTRON TUBE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-270-9072
Related Products | NSN 5960-00-270-9072
Technical Data | NSN 5960-00-270-9072
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | CHROMATE |

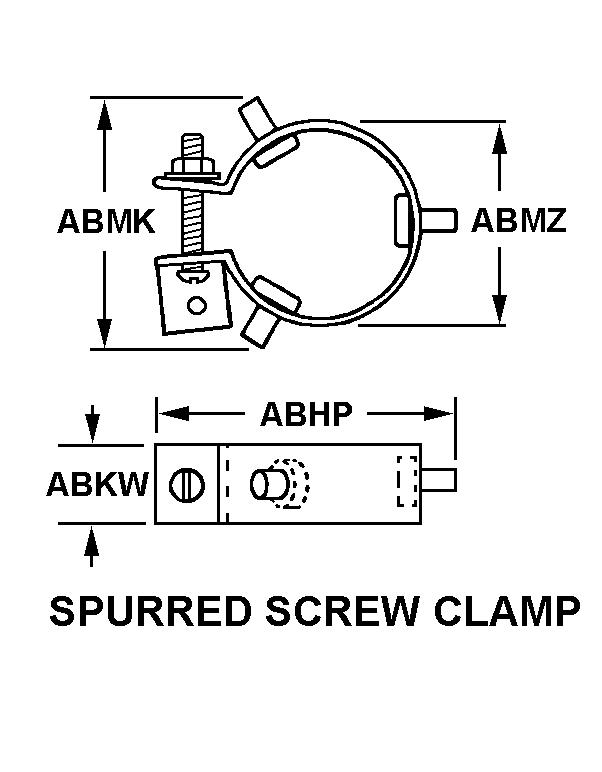

STYLE DESIGNATOR | 47B SPURRED SCREW CLAMP |
OVERALL LENGTH | 2.500 INCHES NOMINAL |
OVERALL HEIGHT | 0.625 INCHES NOMINAL |
OVERALL WIDTH | 2.000 INCHES NOMINAL |
DIAMETER | 1.750 INCHES NOMINAL |
ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
MOUNTING FACILITY TYPE AND QUANTITY | 3 LAG SINGLE MOUNTING FACILITY |
BOLT CIRCLE DIAMETER | ANY ACCEPTABLE SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
Restrictions/Controls & Freight Information | NSN 5960-00-270-9072
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Category | Code | Description |
---|---|---|
No Freight Information |
