Product Details | ELECTRON TUBE RETAINER
5960-00-269-3023 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Part Alternates: 32113561, 32114620, 926F26, 926F-26, 5960-00-269-3023, 00-269-3023, 5960002693023, 002693023
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-269-3023 | 16182 ( RETAINER, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-269-3023
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-269-3023
Related Products | NSN 5960-00-269-3023
Technical Data | NSN 5960-00-269-3023
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |

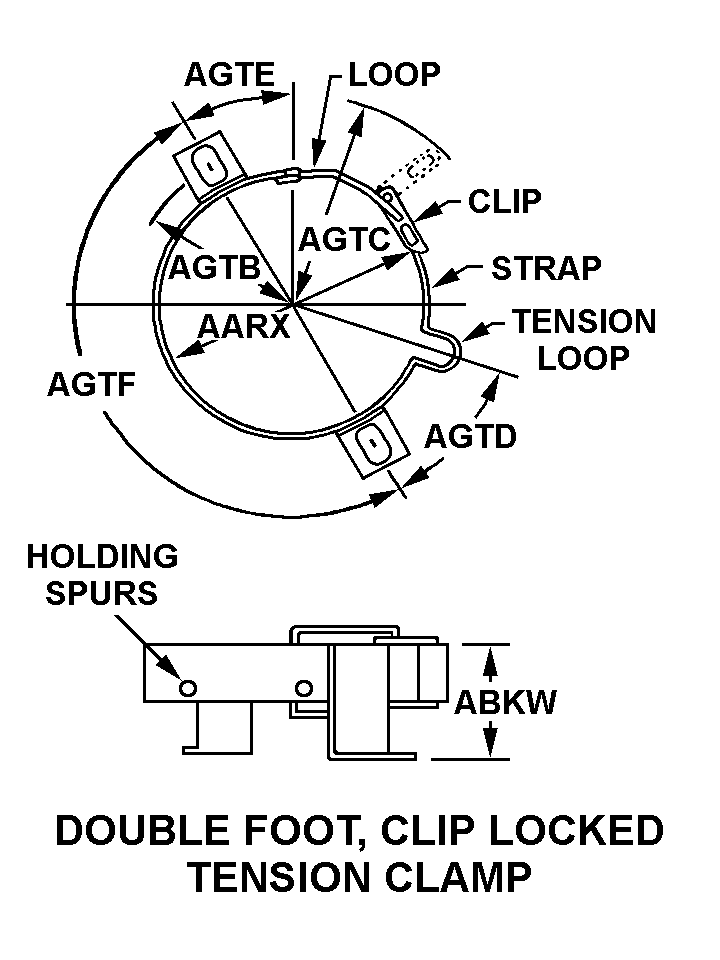

| STYLE DESIGNATOR | 23B DOUBLE FOOT, CLIP LOCKED TENSION CLAMP |
| INSIDE DIAMETER | 1.445 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.922 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.000 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO END OF EXTENDED CLIP | 1.578 INCHES NOMINAL |
| ANGLE BETWEEN MOUNTING FACILITY AND TENSION LOOP CENTERLINES IN DEG | 40.0 |
| ANGLE BETWEEN MOUNTING FACILITY AND LOOP HINGE CENTERLINES IN DEG | 180.0 |
| ANGLE BETWEEN ADJACENT MOUNTING FACILITIES IN DEG | ANY ACCEPTABLE |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | 1.445 TO 1.500 INCHES |
