NSN 5955-01-435-3858 C0238A2S0, C0238A-2S-0, 01-435-3858
Product Details | QUARTZ CRYSTAL UNIT
5955-01-435-3858 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: C0238A2S0, C0238A-2S-0, 5955-01-435-3858, 01-435-3858, 5955014353858, 014353858
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 AUG 1996 | 01-435-3858 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-435-3858
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-01-435-3858
Technical Data | NSN 5955-01-435-3858
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 16.576 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.005 TO 0.005 |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 50.0 NOMINAL |
| DRIVE LEVEL RATING | 5.0 MILLIWATTS NOMINAL |

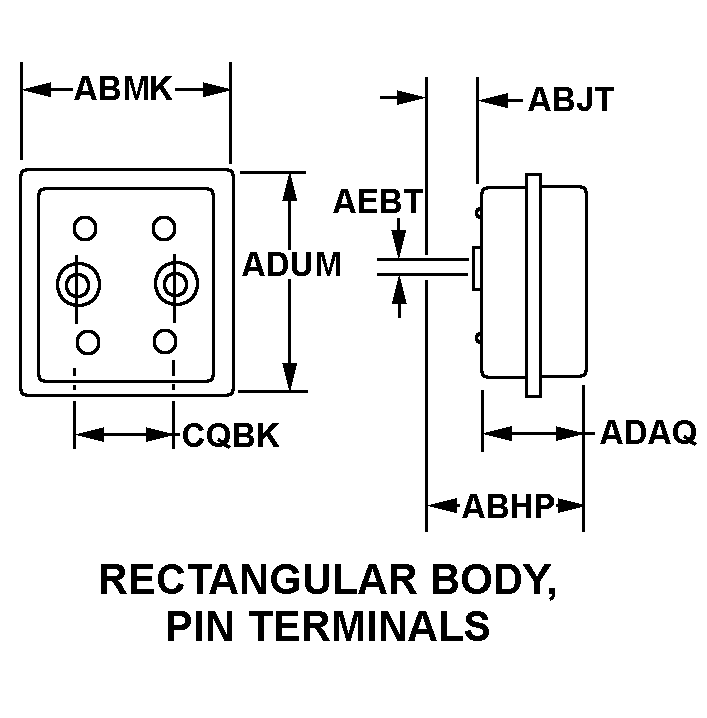

| STYLE DESIGNATOR | 36 RECTANGULAR BODY, PIN TERMINALS |
