NSN 5955-01-280-3336 CX-1V-32.768KHX, CX1V32768KHX, CX1V32768KHZA
Product Details | QUARTZ CRYSTAL UNIT
5955-01-280-3336 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: CX-1V-32.768KHX, CX1V32768KHX, CX1V32768KHZA, CX1V32-768KHZA, 1019911D00, 43769, 5955-01-280-3336, 01-280-3336, 5955012803336, 012803336
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUN 1988 | 01-280-3336 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-280-3336
Demand History | NSN 5955-01-280-3336
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5955-01-280-3336 | 2014-10-293 | 92 | DIBBS |
| 5955-01-280-3336 | 2014-10-281 | 92 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-280-3336
Related Products | NSN 5955-01-280-3336
Technical Data | NSN 5955-01-280-3336
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 9.0 NOMINAL |
| SHUNT CAPACITANCE IN PICOFARADS | 1.4 NOMINAL |
| SPECIFIED FREQUENCY | 32.768 KILOHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.003 TO 0.003 |
| OPERATING TEMP RANGE | -40.0 TO 85.0 DEG CELSIUS |
| DRIVE LEVEL RATING | 1.0 MICROWATTS MAXIMUM |

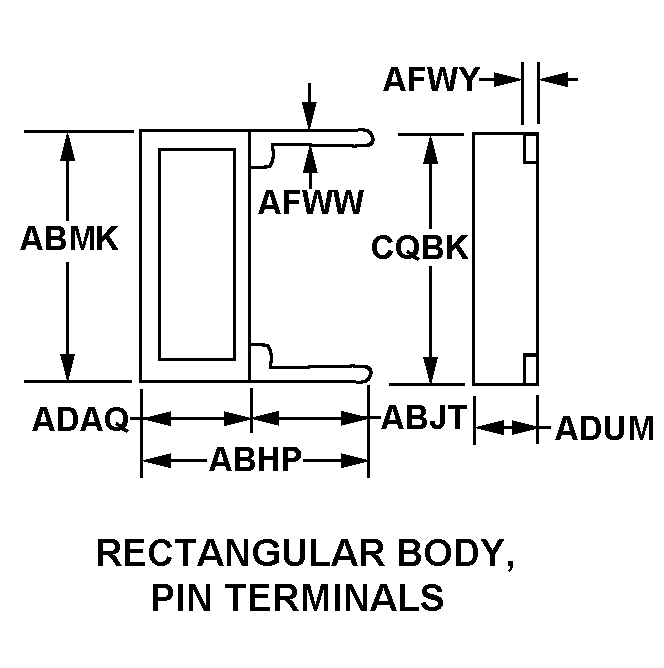

| STYLE DESIGNATOR | 48 RECTANGULAR BODY, PIN TERMINALS |
| OVERALL LENGTH | 0.320 INCHES NOMINAL |
| OVERALL WIDTH | 0.330 INCHES MAXIMUM |
| BODY LENGTH | 0.155 INCHES NOMINAL |
| OVERALL THICKNESS | 0.080 INCHES MAXIMUM |
| TERMINAL WIDTH | 0.040 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.300 INCHES NOMINAL |
| HOLDER COVER MATERIAL | CERAMIC |
| SPECIAL FEATURES | HERMETICALLY SEALED |
