NSN 5955-01-316-0982 CX1H512KHZC, 04101560, 0410-1560
Product Details | QUARTZ CRYSTAL UNIT
5955-01-316-0982 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: CX1H512KHZC, 04101560, 0410-1560, 5955-01-316-0982, 01-316-0982, 5955013160982, 013160982
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 MAR 1990 | 01-316-0982 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-316-0982
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-316-0982
Related Products | NSN 5955-01-316-0982
Technical Data | NSN 5955-01-316-0982
| Characteristic | Specifications |
|---|---|
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 512.000 KILOHERTZ |
| OPERATING TEMP RANGE | -40.0 TO 85.0 DEG CELSIUS |
| DRIVE LEVEL RATING | 0.001 MILLIWATTS NOMINAL |

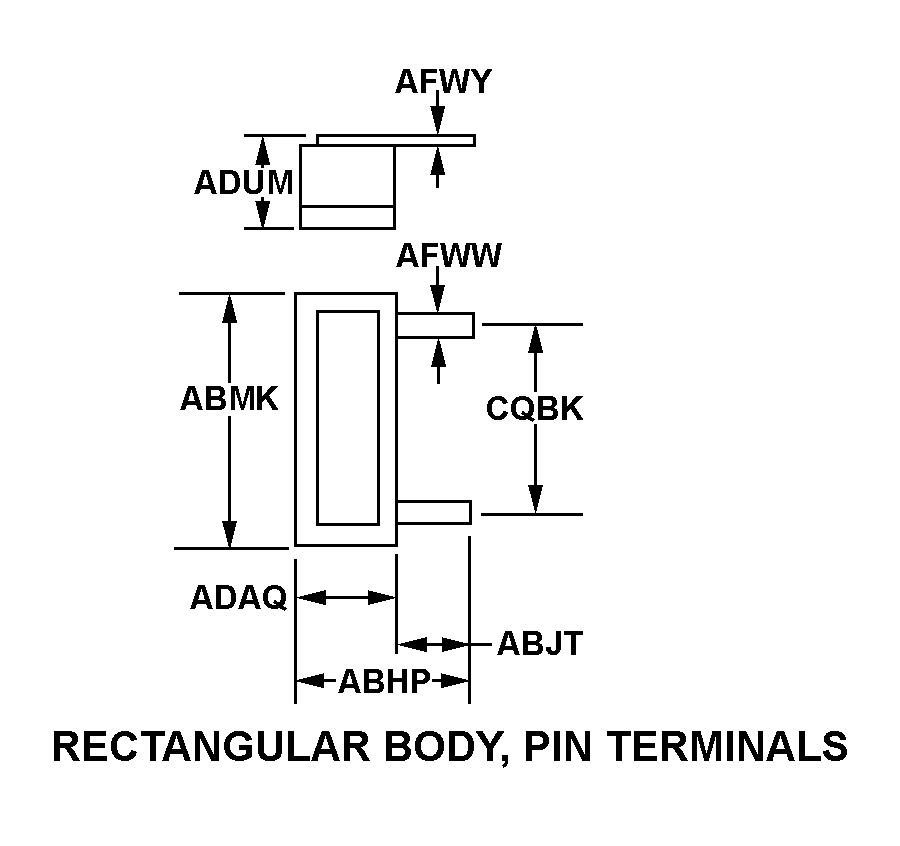

| STYLE DESIGNATOR | 46 RECTANGULAR BODY, PIN TERMINALS |
| OVERALL LENGTH | 0.656 INCHES NOMINAL |
| TERMINAL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.312 INCHES NOMINAL |
| BODY LENGTH | 0.156 INCHES NOMINAL |
| OVERALL THICKNESS | 0.062 INCHES NOMINAL |
| HOLDER COVER MATERIAL | CERAMIC |
| SPECIFICATION/STANDARD DATA | 28480-0410-1560 MANUFACTURERS SPECIFICATION CONTROL |
Restrictions/Controls & Freight Information | NSN 5955-01-316-0982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5955-01-316-0982
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
