NSN 5955-01-300-2270 NE 18A-2, NE18A2, R1636-6-BA-6.0M
Product Details | QUARTZ CRYSTAL UNIT
5955-01-300-2270 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: NE 18A-2, NE18A2, R1636-6-BA-6.0M, R16366BA60M, 04100730, 0410-0730, 5955-01-300-2270, 01-300-2270, 5955013002270, 013002270
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAY 1989 | 01-300-2270 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-300-2270
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5955-01-300-2270
Technical Data | NSN 5955-01-300-2270
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 25.0 NOMINAL |
| SPECIFIED FREQUENCY | 6.000 MEGAHERTZ |
| OPERATING TEMP RANGE | 0.0 TO 70.0 DEG CELSIUS |

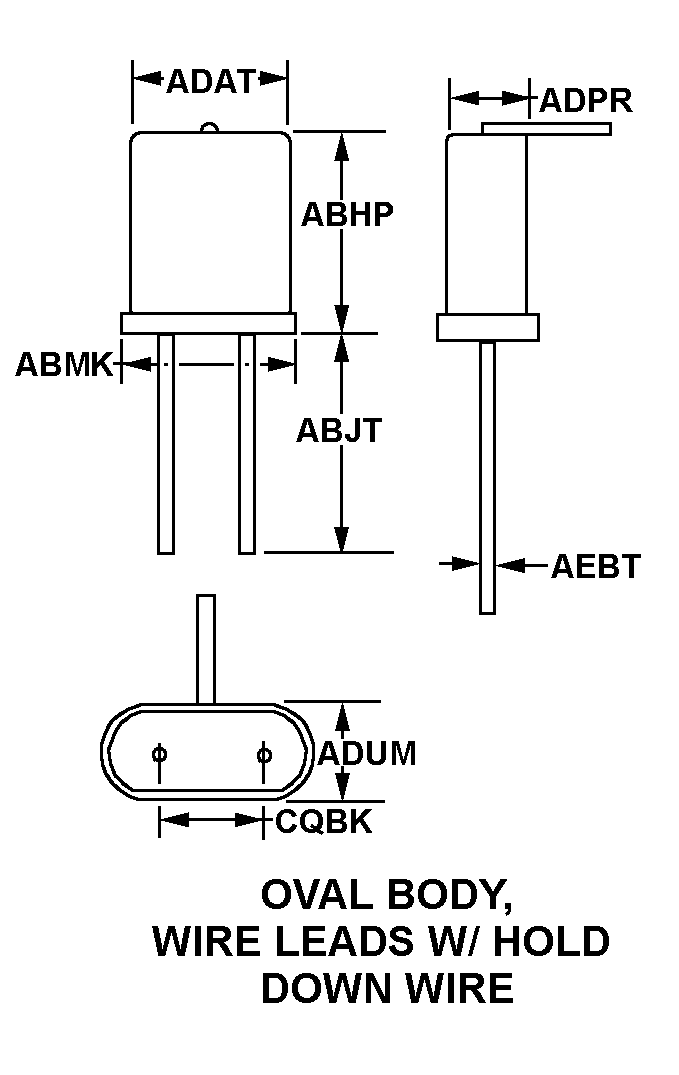

| STYLE DESIGNATOR | 34 OVAL BODY, WIRE LEADS W/HOLD DOWN WIRE |
| OVERALL LENGTH | 0.530 INCHES NOMINAL |
| TERMINAL LENGTH | 0.510 INCHES NOMINAL |
| OVERALL WIDTH | 0.458 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5955-01-300-2270
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
