Product Details | QUARTZ CRYSTAL UNIT
5955-01-298-8881 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 134945R4916B, 13-49-45R4916-B, 5955-01-298-8881, 01-298-8881, 5955012988881, 012988881
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 APR 1989 | 01-298-8881 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-298-8881
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-298-8881
Related Products | NSN 5955-01-298-8881
Technical Data | NSN 5955-01-298-8881
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 45.4916 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.0005 TO 0.0005 |
| OPERATING TEMP RANGE | 50.0 TO 90.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 50.0 NOMINAL |
| DRIVE LEVEL RATING | 2.5 MILLIWATTS NOMINAL |

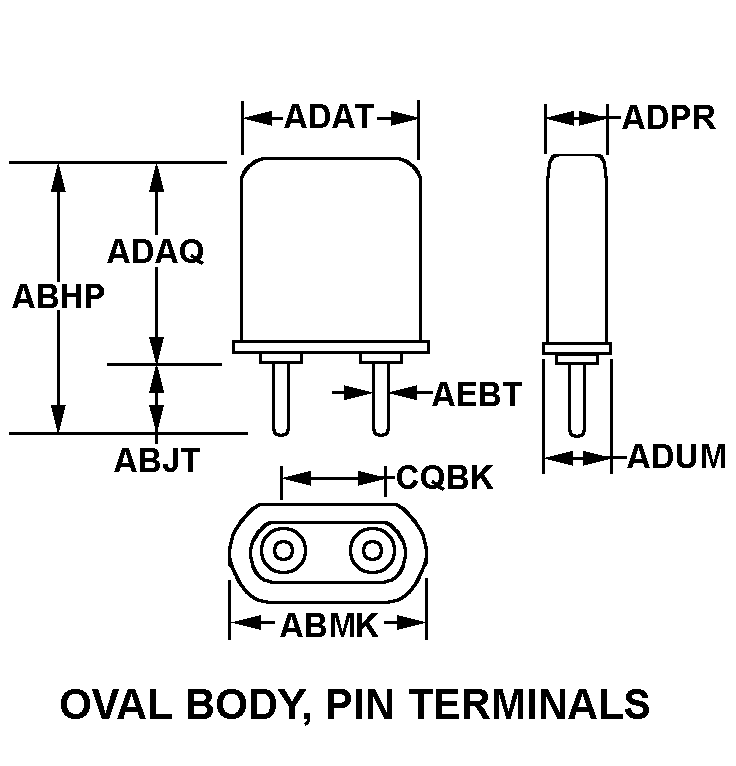

| STYLE DESIGNATOR | 15 OVAL BODY, PIN TERMINALS |
| OVERALL LENGTH | 0.753 INCHES NOMINAL |
| TERMINAL LENGTH | 0.238 INCHES NOMINAL |
| OVERALL WIDTH | 0.418 INCHES NOMINAL |
| BODY LENGTH | 0.515 INCHES NOMINAL |
| BODY THICKNESS | 0.147 INCHES NOMINAL |
| OVERALL THICKNESS | 0.160 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.040 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.192 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL |
| SPECIAL FEATURES | PART TIED WITH TAPE CONFORMING TO MIL-T-713,TYPE P,CLASS 2; LOOP SHALL BE APPROX. 1.5 IN LONG |
| MANUFACTURERS CODE | 00724 |
| MFR SOURCE CONTROLLING REFERENCE | 13-49-45R4916-B |
