NSN 5955-01-182-8863 VM6-5-406.95KHZ, VM6540695KHZ, 2865W15P001
Product Details | QUARTZ CRYSTAL UNIT
5955-01-182-8863 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: VM6-5-406.95KHZ, VM6540695KHZ, 2865W15P001, 5955-01-182-8863, 01-182-8863, 5955011828863, 011828863
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1984 | 01-182-8863 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-182-8863
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-182-8863
Related Products | NSN 5955-01-182-8863
Technical Data | NSN 5955-01-182-8863
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 7.0 MAXIMUM |
| SPECIFIED FREQUENCY | 406.950 KILOHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.010 TO 0.010 |
| OPERATING TEMP RANGE | -20.0 TO 70.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 20.0 NOMINAL |
| DRIVE LEVEL RATING | 5.0 MILLIWATTS MAXIMUM |

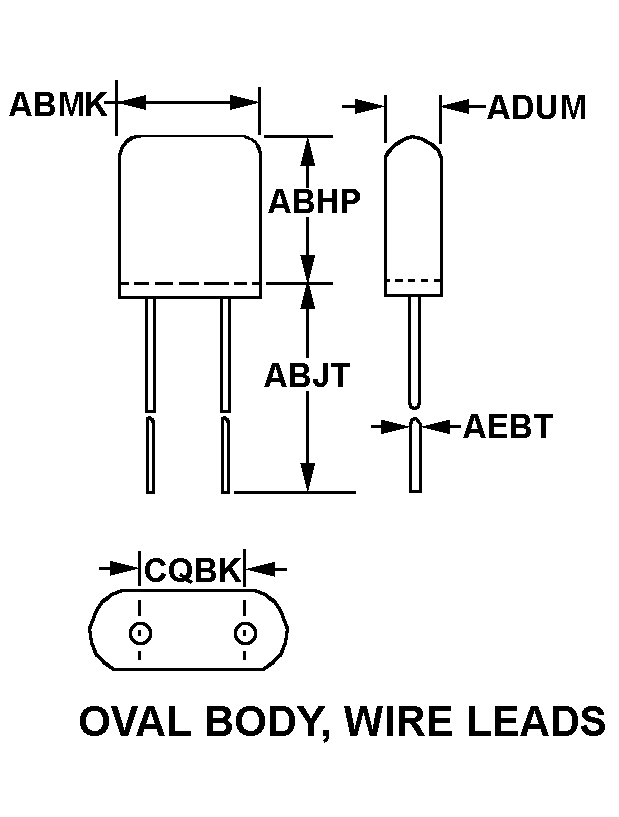

| STYLE DESIGNATOR | 4 OVAL BODY, WIRE LEADS |
| OVERALL LENGTH | 0.530 INCHES NOMINAL |
| TERMINAL LENGTH | 0.500 INCHES MINIMUM |
| OVERALL WIDTH | 0.435 INCHES NOMINAL |
| OVERALL THICKNESS | 0.183 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.017 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.192 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL |
