NSN 5955-01-157-9607 3140909-105.8100, 3140909-105.810000MHZ, 3140909-105.8100MHZ
Product Details | QUARTZ CRYSTAL UNIT
5955-01-157-9607 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 3140909-105.8100, 3140909-105.810000MHZ, 3140909-105.8100MHZ, 31409091058100, 3140909105810000MHZ, 31409091058100MHZ, 77C712692P013, 77C712692P13, 5955-01-157-9607, 01-157-9607, 5955011579607, 011579607
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUL 1983 | 01-157-9607 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-157-9607
Cross Reference | NSN 5955-01-157-9607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3140909-105.8100 | 00136 | VECTRON INTERNATIONAL, INC. |
| 3140909-105.8100 | 74306 | PIEZO CRYSTAL CO |
| 3140909-105.810000MHZ | 74306 | PIEZO CRYSTAL CO |
| 3140909-105.8100MHZ | 00136 | VECTRON INTERNATIONAL, INC. |
| 77C712692P013 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 77C712692P13 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-157-9607
Related Products | NSN 5955-01-157-9607
Technical Data | NSN 5955-01-157-9607
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FIFTH OVERTONE |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 5.0 MAXIMUM |
| SPECIFIED FREQUENCY | 105.810 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.001 TO 0.001 |
| OPERATING TEMP RANGE | 0.0 TO 70.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 80.0 MAXIMUM |
| DRIVE LEVEL RATING | 1.0 MILLIWATTS NOMINAL |

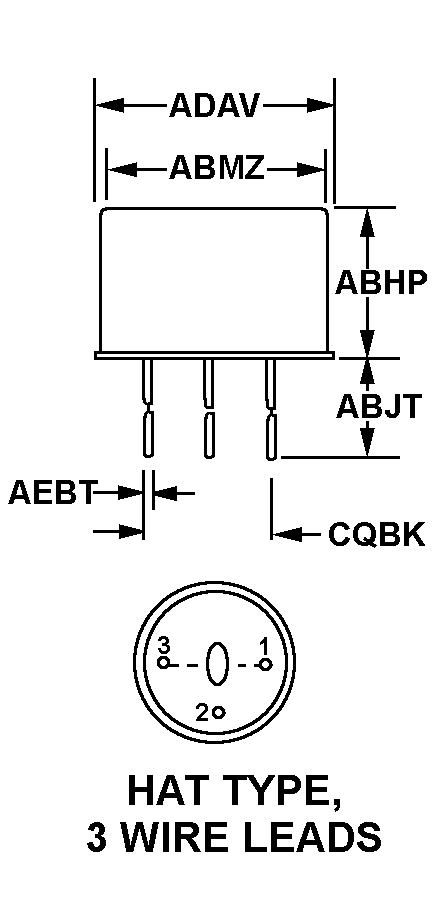

| STYLE DESIGNATOR | 26 HAT TYPE, 3 WIRE LEADS |
| OVERALL LENGTH | 0.259 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.600 INCHES MINIMUM |
| DIAMETER | 0.318 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.408 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.016 INCHES MINIMUM AND 0.020 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.197 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| HOLDER COVER MATERIAL | METAL |
| III END ITEM IDENTIFICATION | 5840-01-141-4378 |
Restrictions/Controls & Freight Information | NSN 5955-01-157-9607
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5955-01-157-9607
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
