NSN 5955-01-024-1954 3310932, 331093-2, 9292
Product Details | QUARTZ CRYSTAL UNIT
5955-01-024-1954 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 3310932, 331093-2, 9292, 92-9-2, 5955-01-024-1954, 01-024-1954, 5955010241954, 010241954
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JUL 1976 | 01-024-1954 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-024-1954
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-024-1954
Related Products | NSN 5955-01-024-1954
Technical Data | NSN 5955-01-024-1954
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | ANTIRESONANCE |
| LOAD CAPACITANCE IN PICOFARADS | 29.5 MINIMUM AND 30.5 MAXIMUM |
| SHUNT CAPACITANCE IN PICOFARADS | 7.0 MAXIMUM |
| SPECIFIED FREQUENCY | 11.0345 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.005 TO 0.005 |
| OPERATING TEMP RANGE | -55.0 TO 105.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 25.0 MAXIMUM |
| DRIVE LEVEL RATING | 4.0 MILLIWATTS MINIMUM AND 6.0 MILLIWATTS MAXIMUM |

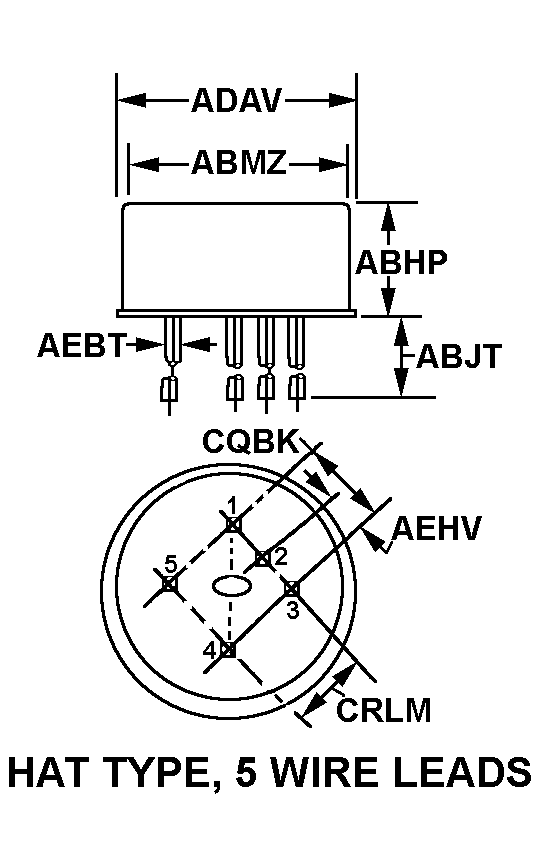

| STYLE DESIGNATOR | 25 HAT TYPE, 5 WIRE LEADS |
| OVERALL LENGTH | 0.260 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.281 INCHES MINIMUM |
| DIAMETER | 0.515 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.560 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.017 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL CENTERS | 0.100 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.200 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN TERMINALS | ANY ACCEPTABLE |
| HOLDER COVER MATERIAL | METAL |
