NSN 5955-01-014-7960 912001-003, 01-014-7960, 912001003

5955-01-014-7960 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.

Part Alternates: 912001-003, 5955-01-014-7960, 01-014-7960, 5955010147960, 912001003, 010147960

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 JAN 1976	01-014-7960	00196 ( CRYSTAL UNIT, QUARTZ )

Part Number	Cage Code	Manufacturer
912001-003	49374	TEGAM, INC.
912001-003	88869	EATON CORP ELECTRONIC INSTRUMENTATION DIV

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5955-01-014-7960

Compare

5955-01-014-7961, 5955-01-014-7962, 5955-01-014-7963, 5955-01-014-7964, 5955-01-014-7965

Characteristic	Specifications
CIRCUIT RESONANCE	SERIES RESONANCE
SPECIFIED FREQUENCY	3.800 MEGAHERTZ
FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT	-0.005 TO 0.005
OPERATING TEMP RANGE	5.0 TO 65.0 DEG CELSIUS
EQUIVALENT RESISTANCE VALUE IN OHMS	50.0 MAXIMUM

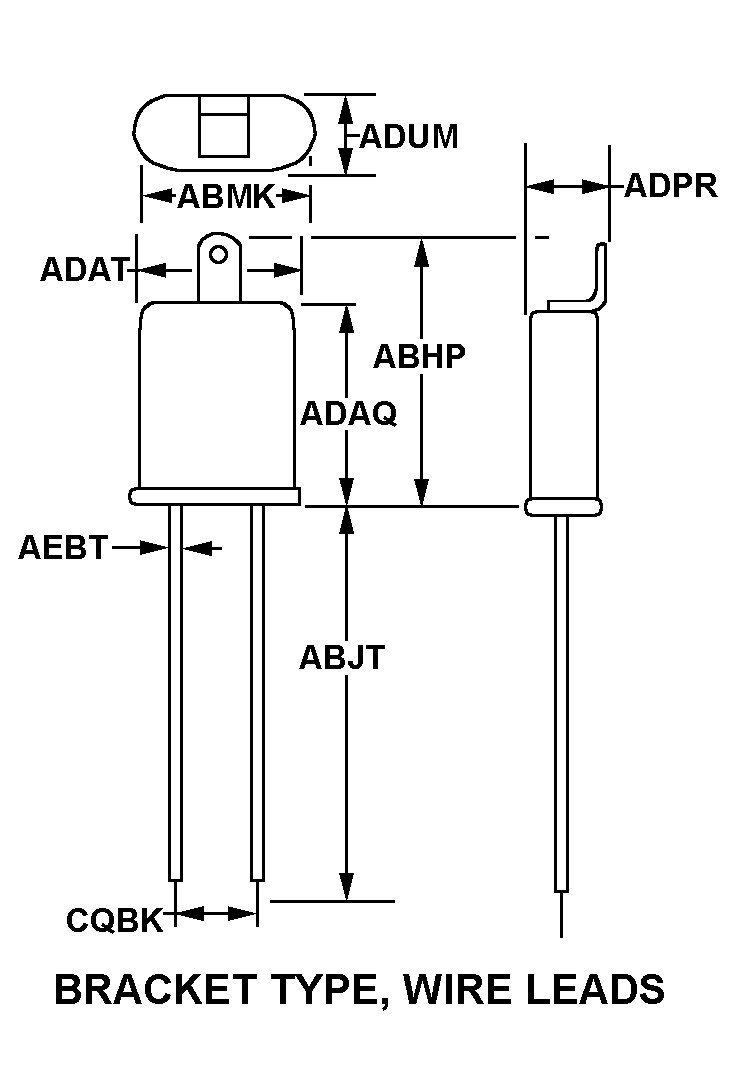

STYLE DESIGNATOR	28 BRACKET TYPE, WIRE LEADS
OVERALL LENGTH	2.015 INCHES NOMINAL
TERMINAL LENGTH	1.250 INCHES MINIMUM
OVERALL WIDTH	0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM
BODY LENGTH	0.755 INCHES MINIMUM AND 0.775 INCHES MAXIMUM
OVERALL THICKNESS	0.333 INCHES MINIMUM AND 0.353 INCHES MAXIMUM
TERMINAL DIAMETER	0.028 INCHES MINIMUM AND 0.032 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS	0.478 INCHES MINIMUM AND 0.494 INCHES MAXIMUM
HOLDER COVER MATERIAL	METAL

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063025	SEMICONDUCTORS/DEVICES NOI ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
