NSN 5955-01-010-1873 CR-24/U, CR-24/U34.776000MHZ, CR24U
Product Details | QUARTZ CRYSTAL UNIT
5955-01-010-1873 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: CR-24/U, CR-24/U34.776000MHZ, CR24U, CR24U34776000MHZ, MIL-C-3098/6, MILC30986, 5955-01-010-1873, 01-010-1873, 5955010101873, 010101873
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 SEP 1975 | 01-010-1873 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-01-010-1873
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-01-010-1873
Related Products | NSN 5955-01-010-1873
Technical Data | NSN 5955-01-010-1873
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FIFTH OVERTONE |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 7.0 MAXIMUM |
| SPECIFIED FREQUENCY | 34.776 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.005 TO 0.005 |
| OPERATING TEMP RANGE | -40.0 TO 90.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 75.0 MAXIMUM |
| DRIVE LEVEL RATING | 1.6 MILLIWATTS MINIMUM AND 2.4 MILLIWATTS MAXIMUM |

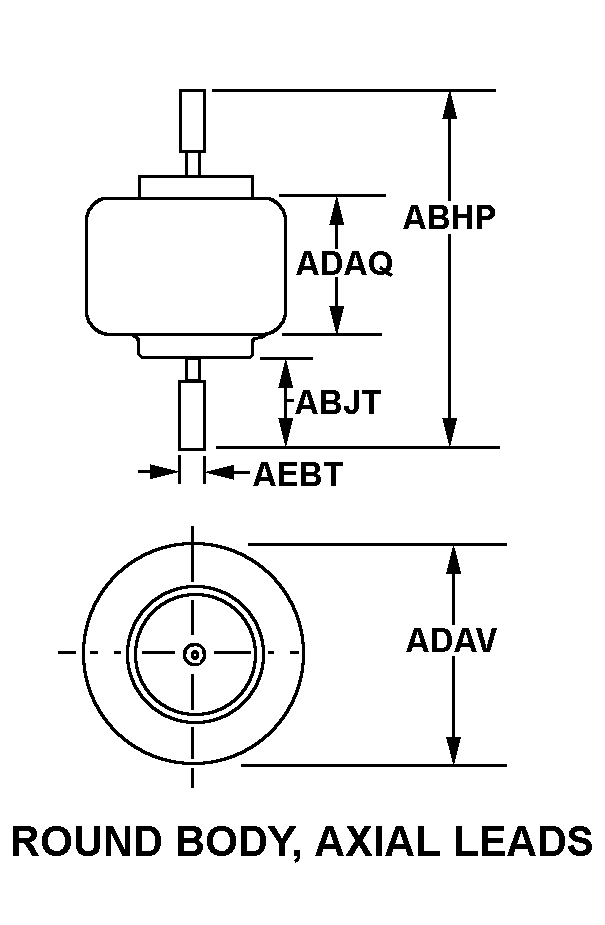

| STYLE DESIGNATOR | 9 ROUND BODY, AXIAL LEADS |
| OVERALL LENGTH | 1.020 INCHES MINIMUM AND 1.090 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| BODY LENGTH | 0.540 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.553 INCHES MINIMUM AND 0.563 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| HOLDER COVER MATERIAL | METAL |
| TEST DATA DOCUMENT | 81349-MILC3098 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MILC3098/6 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CR-24/U34.776000MHZ |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-3098/6 |
