NSN 5955-00-953-1295 2897020010, 289-7020-010, 2897020010REVA
Product Details | QUARTZ CRYSTAL UNIT
5955-00-953-1295 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 2897020010, 289-7020-010, 2897020010REVA, 289-7020-010REVA, 5955-00-953-1295, 00-953-1295, 5955009531295, 009531295
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAY 1966 | 00-953-1295 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-00-953-1295
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-953-1295
Related Products | NSN 5955-00-953-1295
Technical Data | NSN 5955-00-953-1295
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 6.0 MAXIMUM |
| SPECIFIED FREQUENCY | 299.990 KILOHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.002 TO 0.002 |
| OPERATING TEMP RANGE | -40.0 TO 85.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 3000.0 NOMINAL |
| DRIVE LEVEL RATING | 0.1 MILLIWATTS NOMINAL AND 0.08 MILLIWATTS MINIMUM AND 0.12 MILLIWATTS MAXIMUM |

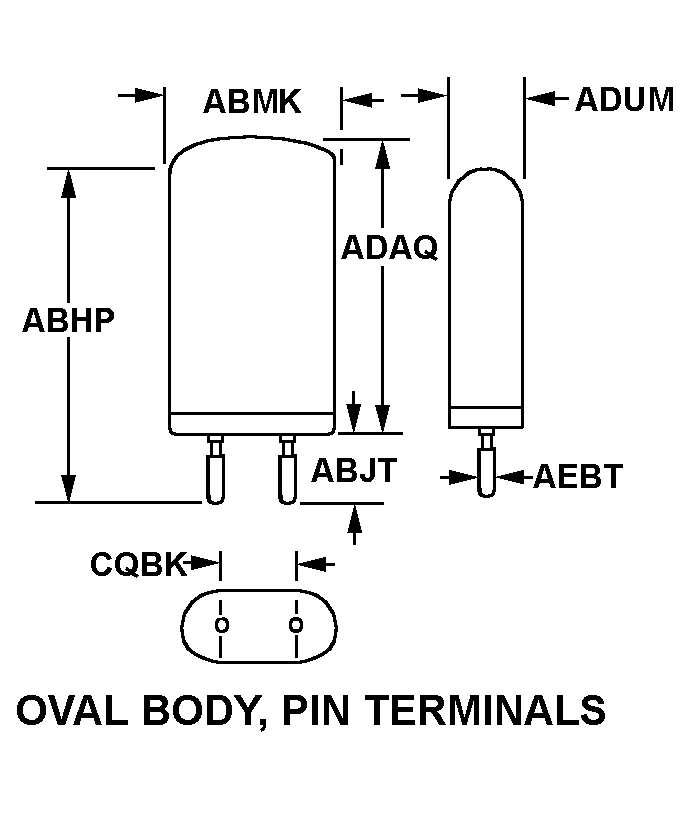

| STYLE DESIGNATOR | 2 OVAL BODY, PIN TERMINALS |
| OVERALL LENGTH | 1.023 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.248 INCHES MAXIMUM |
| OVERALL WIDTH | 0.725 INCHES MAXIMUM |
| BODY LENGTH | 0.775 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.317 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.050 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.486 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL |
