NSN 5955-00-824-3743 289-6939-00, 2896939000, 289-6939-000
Product Details | QUARTZ CRYSTAL UNIT
5955-00-824-3743 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 289-6939-00, 2896939000, 289-6939-000, 5955-00-824-3743, 00-824-3743, 5955008243743, 289693900, 008243743
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1967 | 00-824-3743 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-00-824-3743
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-824-3743
Related Products | NSN 5955-00-824-3743
Technical Data | NSN 5955-00-824-3743
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 308.000 KILOHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.0005 TO 0.0005 |
| OPERATING TEMP RANGE | -0.0 TO 60.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 1000.0 NOMINAL |
| DRIVE LEVEL RATING | 2.0 MILLIWATTS NOMINAL AND 1.6 MILLIWATTS MINIMUM AND 2.4 MILLIWATTS MAXIMUM |

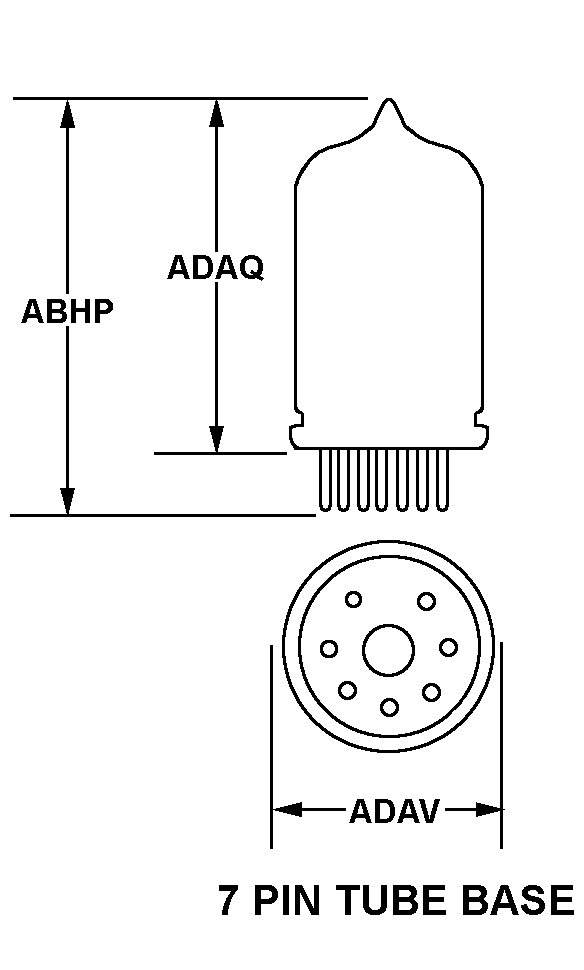

| STYLE DESIGNATOR | 12 7 PIN TUBE BASE |
| OVERALL LENGTH | 1.876 INCHES NOMINAL |
| BODY LENGTH | 1.313 INCHES NOMINAL |
| OVERALL DIAMETER | 0.875 INCHES NOMINAL |
| HOLDER COVER MATERIAL | GLASS |
