NSN 5955-00-812-7637 158-0007-00, 00-812-7637, 158000700
Product Details | QUARTZ CRYSTAL UNIT
5955-00-812-7637 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Part Alternates: 158-0007-00, 5955-00-812-7637, 00-812-7637, 5955008127637, 158000700, 008127637
Electrical and Electronic Equipment Components | Oscillators and Piezoelectric Crystals
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-812-7637 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
Drawings & Photos | NSN 5955-00-812-7637
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5955-00-812-7637
Related Products | NSN 5955-00-812-7637
Technical Data | NSN 5955-00-812-7637
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FUNDAMENTAL |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SPECIFIED FREQUENCY | 1.000 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | -0.002 TO 0.002 |
| OPERATING TEMP RANGE | 70.0 TO 80.0 DEG CELSIUS |
| CONTROLLED REFERENCE TEMP | 75.0 DEG CELSIUS |
| FREQUENCY TOLERANCE AT REFERENCE TEMP IN PERCENT | ANY ACCEPTABLE |
| FREQUENCY STABILITY IN PERCENT | ANY ACCEPTABLE |
| OPERABLE TEMP RANGE | -25.0 TO 50.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | ANY ACCEPTABLE |
| DRIVE LEVEL RATING | 10.0 MILLIWATTS NOMINAL |

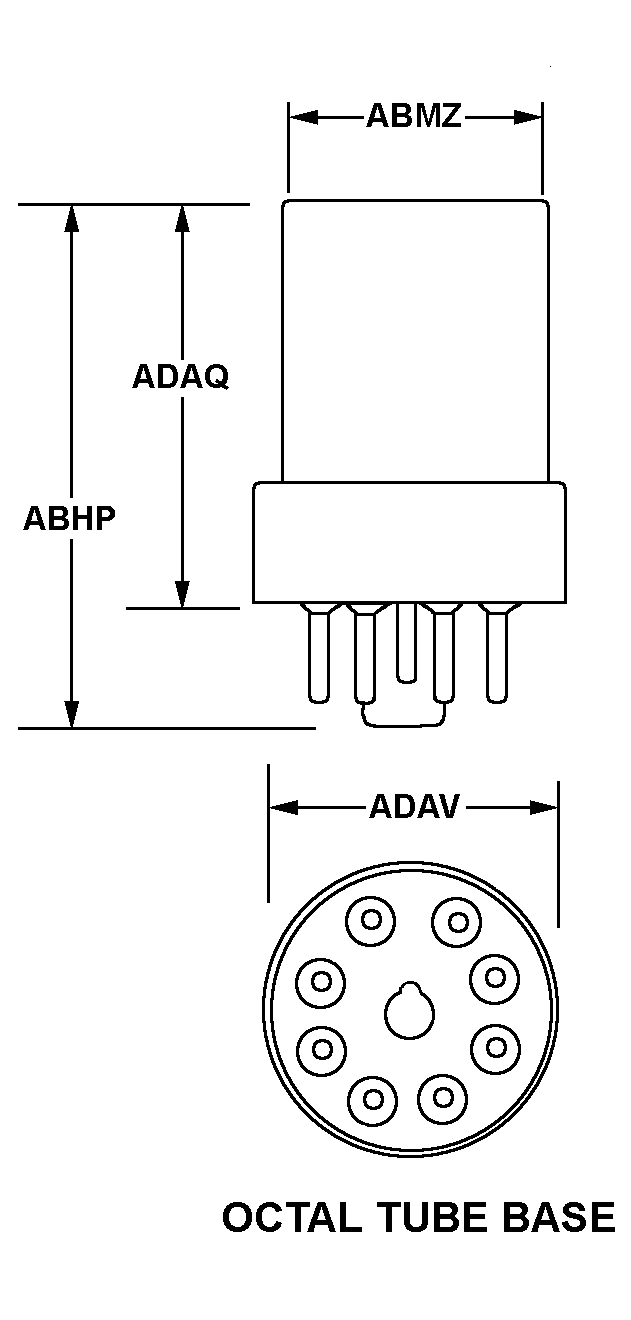

| STYLE DESIGNATOR | 6 OCTAL TUBE BASE |
| OVERALL LENGTH | 2.175 INCHES NOMINAL |
| DIAMETER | 1.250 INCHES NOMINAL |
| BODY LENGTH | 1.650 INCHES NOMINAL |
| OVERALL DIAMETER | 1.200 INCHES NOMINAL |
| HOLDER COVER MATERIAL | METAL |
