NSN 5950-01-450-0845 11472165-1, 808816, 01-450-0845
Product Details | ELECTRICAL COIL
5950-01-450-0845 An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reactance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes FILTER (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see SUPPRESSOR, PARASITIC..
Part Alternates: 11472165-1, 808816, 5950-01-450-0845, 01-450-0845, 5950014500845, 114721651, 014500845
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 OCT 1997 | 01-450-0845 | 32494 ( COIL, ELECTRICAL ) |
Drawings & Photos | NSN 5950-01-450-0845

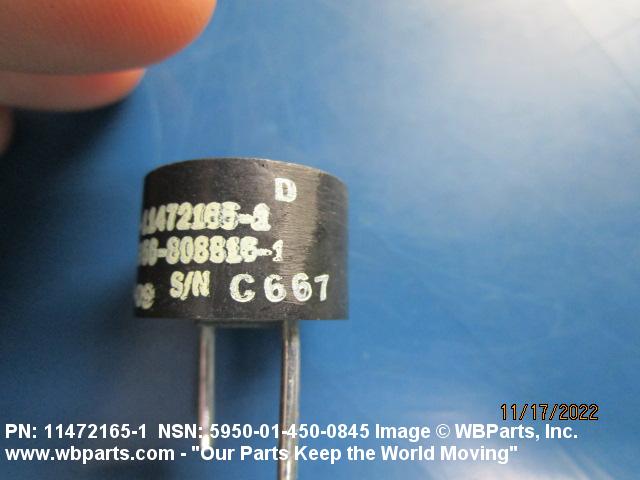

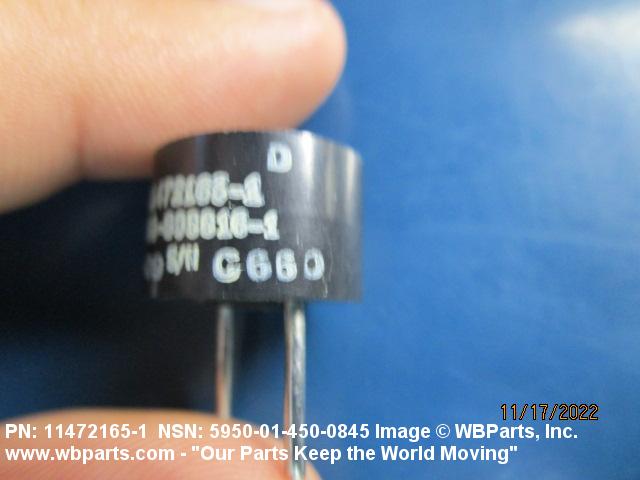

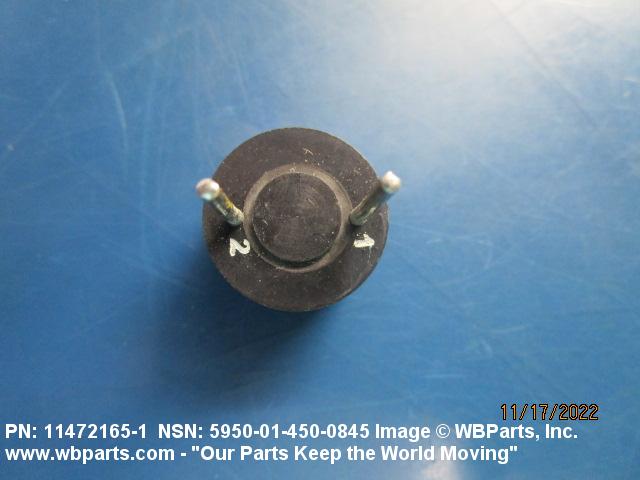

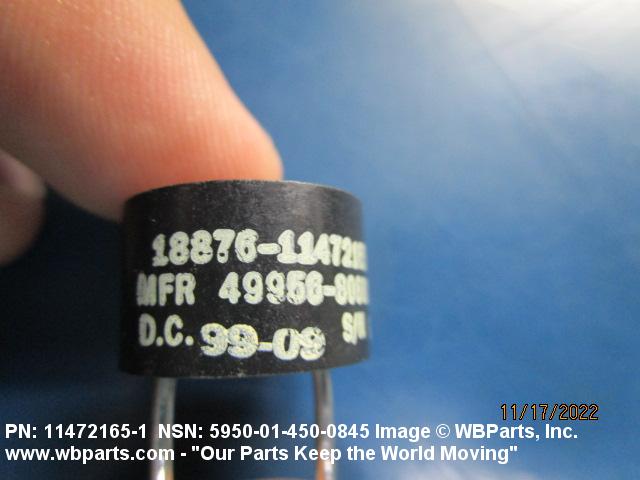

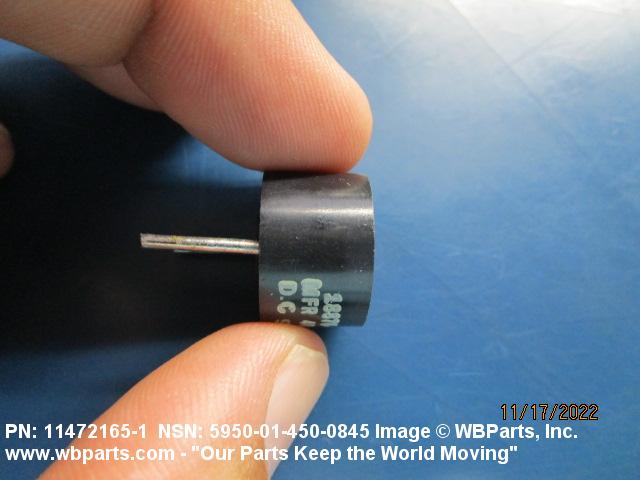

Demand History | NSN 5950-01-450-0845
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-01-450-0845 | 2023-10-285 | 3 | US |
| 808816 | 2023-09-260 | 1 | DIBBS |
| 808816 | 2023-09-260 | 2 | DIBBS |
| 5950-01-450-0845 | 2022-10-277 | 2 | United States |
| 808816 | 2022-06-156 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-01-450-0845
Technical Data | NSN 5950-01-450-0845
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| RATING METHOD | ELECTRICAL SINGLE COMPONENT SINGLE WINDING |
| WINDING OPERATING CURRENT | 7.5 AMPERES AC NOMINAL SINGLE COMPONENT SINGLE WINDING |
| INDUCTANCE RATING | 3.60 MICROHENRIES MINIMUM AND 4.40 MICROHENRIES MAXIMUM SINGLE COMPONENT SINGLE WINDING |
| MOUNTING METHOD | TERMINAL SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |

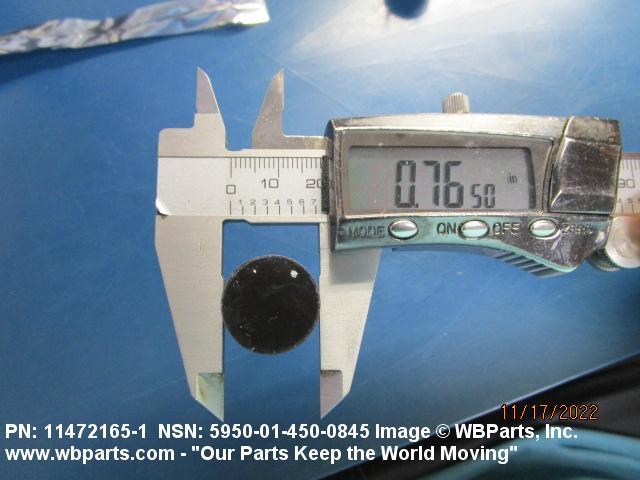

| OVERALL LENGTH | 1.000 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.780 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5950-01-450-0845
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
