NSN 5950-00-735-2521 15D2162, 15D21G002, 15D21G2

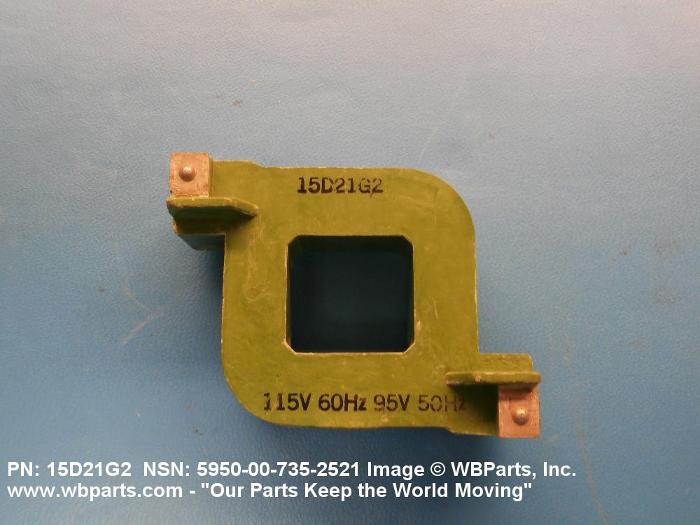

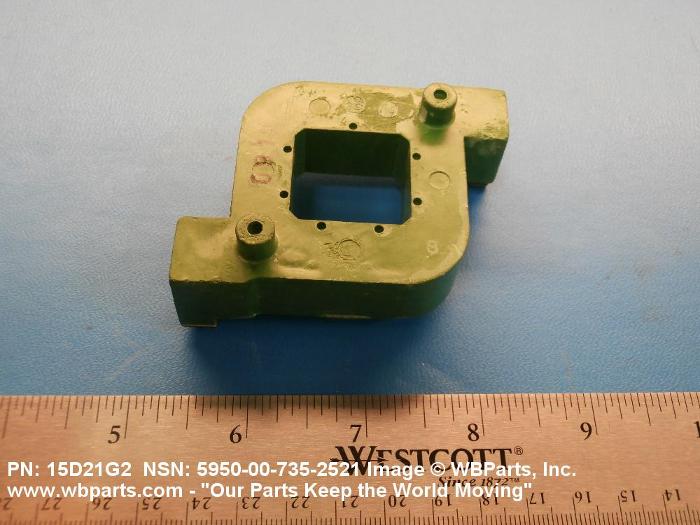

Product Details | ELECTRICAL COIL
5950-00-735-2521 An item generally consisting of one or more turns of wire or similar conductive material (in special cases it may be considered as a partial turn). It is specifically designed to concentrate magnetic flux generated by the flow of an electric current, to induce in itself an electromotive force, and to add or subtract inductive reactance in a circuit. It may include tuning devices, integral resistors and capacitors; however, excludes FILTER (as modified). For coils wound on resistors which are designed to be inserted into the circuit of a radio frequency stage to suppress high frequency parasitic oscillations, see SUPPRESSOR, PARASITIC..
Part Alternates: 15D2162, 15D21G002, 15D21G2, 5950-00-735-2521, 00-735-2521, 5950007352521, 007352521
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-735-2521 | 32494 ( COIL, ELECTRICAL ) |
Drawings & Photos | NSN 5950-00-735-2521
Demand History | NSN 5950-00-735-2521
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-735-2521 | 2018-12-361 | 5 | DIBBS |
| 5950-00-735-2521 | 2018-10-284 | 18 | DIBBS |
| 5950-00-735-2521 | 2018-06-162 | 38 | DIBBS |
| 5950-00-735-2521 | 2018-05-151 | 38 | DIBBS |
| 5950-00-735-2521 | 2018-01-07 | 9 | DIBBS |
| 5950-00-735-2521 | 2017-10-296 | 9 | DIBBS |
| 5950-00-735-2521 | 2017-10-283 | 9 | DIBBS |
| 5950-00-735-2521 | 2014-09-259 | 1 | United States |
| 5950-00-735-2521 | 2012-08-233 | 2 | United States |
| 5950-00-735-2521 | 2010-12-347 | 6 | DIBBS |
| 5950-00-735-2521 | 2010-04-102 | 6 | DIBBS |
| 5950-00-735-2521 | 2008-11-317 | 6 | DIBBS |
| 5950-00-735-2521 | 2007-01-26 | 3 | DIBBS |
Cross Reference | NSN 5950-00-735-2521
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15D2162 | 24446 | GENERAL ELECTRIC CO |
| 15D21G002 | 02295 | GENERAL ELECTRIC CO GENERAL PURPOSE CONTROL DEPT |
| 15D21G002 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 15D21G002 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| 15D21G2 | 02295 | GENERAL ELECTRIC CO GENERAL PURPOSE CONTROL DEPT |
| 15D21G2 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
