NSN 5950-00-560-7432 E1221, FS5607432, FS5607-432
Product Details | RADIO FREQUENCY TRANSFORMER
5950-00-560-7432 An item having either a single tapped winding (autotransformer type), or two or more windings designed to furnish inductive reactance and/or transfer electrical energy in circuits by means of a magnetic field. It is so designed that its entire intended range of operations is above 20 Kilohertz (Kilocycles). The minimum value may extend into the audio frequency range (below 20 Kilohertz). It may include integral capacitors, coils, resistors, and adjustable tuning cores. For items having only two active terminals see COIL, RADIO FREQUENCY. Includes types having windings which may be moved with respect to each other. Excludes TRANSFORMER, DISCRIMINATOR.
Part Alternates: E1221, FS5607432, FS5607-432, PEI8282, 12678341, 1267834-1, 44338, 5950-00-560-7432, 00-560-7432, 5950005607432, 005607432
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-560-7432 | 00777 ( TRANSFORMER, RADIO FREQUENCY ) |

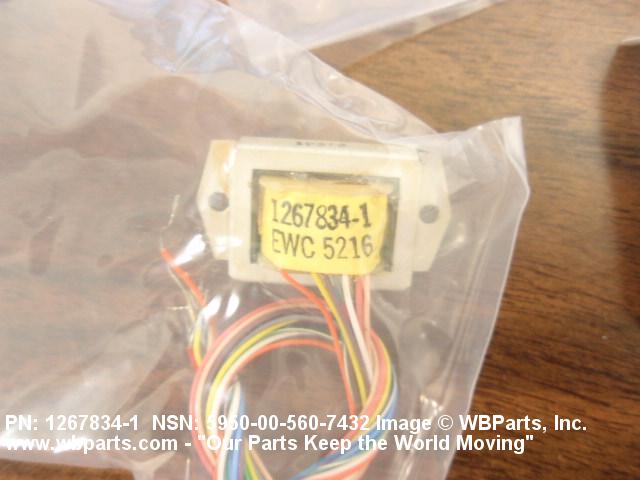

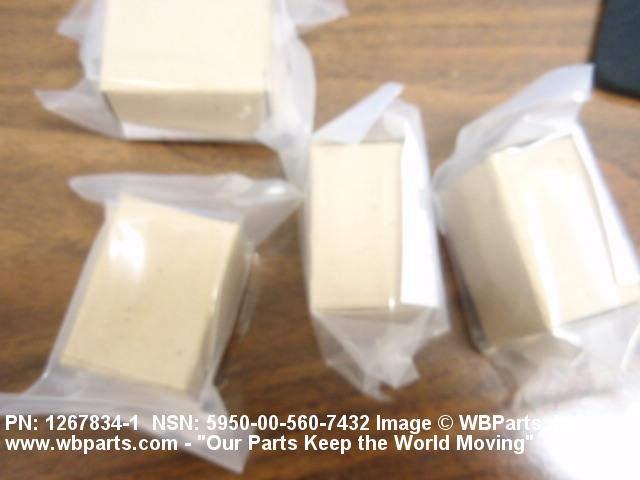

Drawings & Photos | NSN 5950-00-560-7432
Demand History | NSN 5950-00-560-7432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5950-00-560-7432 | 2010-09-250 | 4 | Spain |
Cross Reference | NSN 5950-00-560-7432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1267834-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 1267834-1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 44338 | 22558 | COAST/ADVANCED CHIP MAGNETICS, INC. DBA COAST/A C M |
| E1221 | 51181 | KEYTRONICS, INC. DIV API TECHNOLOGIES - EIS DIVISION |
| FS5607-432 | 56662 | FREQUENCY SELECTIVE NETWORKS INC |
| PEI8282 | 13483 | PRECISION ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5950-00-560-7432
Technical Data | NSN 5950-00-560-7432
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 14 WIRE LEAD |
| RATING METHOD | WINDING TURNS SINGLE COMPONENT SINGLE PRIMARY WINDING TURNS SINGLE COMPONENT ALL SECONDARY |
| TURN QUANTITY | 1750 SINGLE COMPONENT SINGLE PRIMARY 610 SINGLE COMPONENT ALL SECONDARY |
| WINDING CONDUCTOR SIZE | 0.00280 INCHES AMERICAN WIRE GAGE SINGLE COMPONENT SINGLE PRIMARY 0.00280 INCHES AMERICAN WIRE GAGE SINGLE COMPONENT ALL SECONDARY |
| COIL FORM TYPE | SOLID SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY AND 6 SECONDARY SINGLE COMPONENT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 2 SINGLE GROUP |
| MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM SINGLE GROUP |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY HEIGHT | 0.906 INCHES MAXIMUM |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 1.531 INCHES NOMINAL |
| FEATURES PROVIDED | COLOR CODED LEAD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | ONE PRIMARY WINDING AND SIX SECONDARY WINDINGS |
Restrictions/Controls & Freight Information | NSN 5950-00-560-7432
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063420 | TRANSFORMERS,NOI,OR TRANSFORMER PAR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 595 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5950-00-560-7432
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
