NSN 5950-00-052-8270 EP35142, 51200, 5-1200
Product Details | POWER AUTOTRANSFORMER TRANSFORMER
5950-00-052-8270 A transformer which incorporates the primary and secondary functions into a single winding, which is common to both input and output circuits, and is designed to change the relationship of volts and amperes between the entire winding and its taps. Includes multiple winding transformers of like design and items in which a variation of the turns ratio or inductive ratio of inductive coupling is accomplished by connection to fixed terminals. Also, includes items having a provision for mechanically changing the turns ratio in progressive increments, by means of a shaft, voltage taps, ratio adjuster, or devices of similar design. Excludes TRANSFORMER (1), POWER; TRANSFORMER (1), PULSE.20259500022Coils and Transformers61200044Transformers: Distribution and Power Station
Part Alternates: EP35142, 51200, 5-1200, 5950-00-052-8270, 00-052-8270, 5950000528270, 000528270
Electrical and Electronic Equipment Components | Coils and Transformers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-052-8270 | 36166 ( TRANSFORMER, POWER AUTOTRANSFORMER ) |

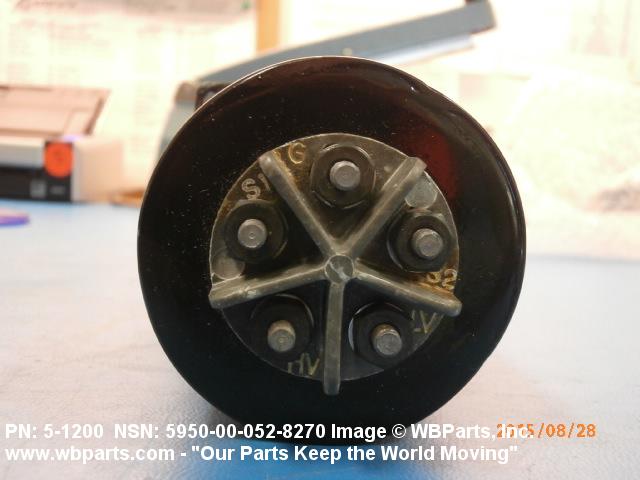

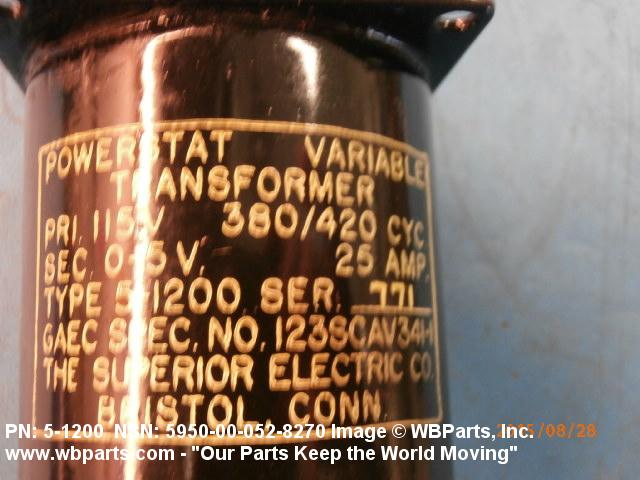

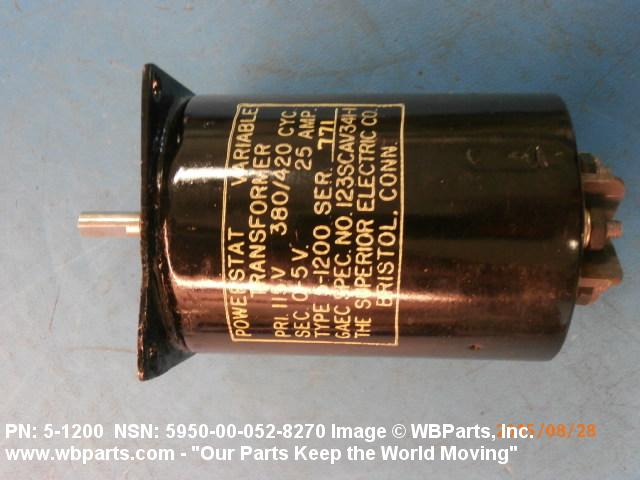

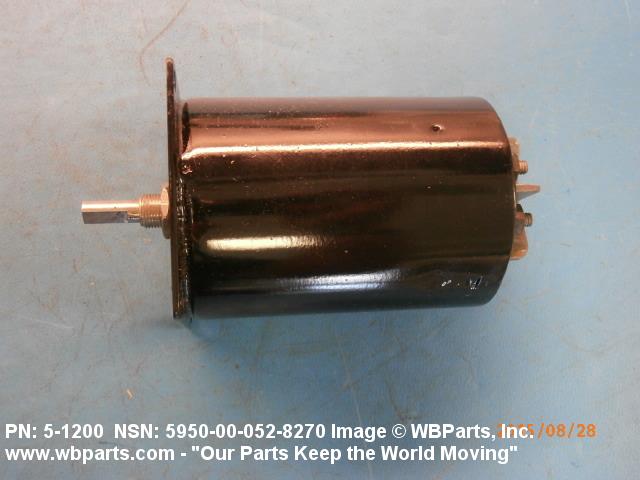

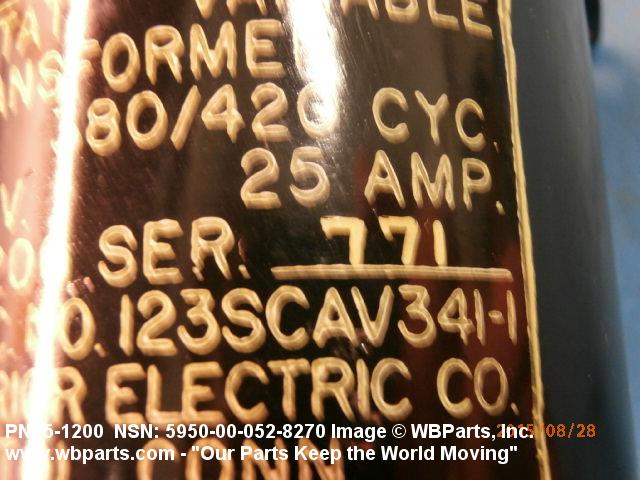

Drawings & Photos | NSN 5950-00-052-8270
Demand History | NSN 5950-00-052-8270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5-1200 | 2023-11-309 | 9 | DIBBS |
| 5-1200 | 2023-10-299 | 1 | DIBBS |
| 5-1200 | 2023-10-288 | 1 | DIBBS |
| 5-1200 | 2023-09-248 | 1 | DIBBS |
| 5-1200 | 2023-08-236 | 1 | DIBBS |
| 5-1200 | 2023-06-163 | 2 | DIBBS |
| 5-1200 | 2023-05-151 | 2 | DIBBS |
| 5-1200 | 2023-01-09 | 9 | DIBBS |
| EP35142 | 2023-01-09 | 9 | DIBBS |
| 5-1200 | 2022-12-362 | 9 | DIBBS |
| EP35142 | 2022-12-362 | 9 | DIBBS |
| 5-1200 | 2022-12-339 | 1 | DIBBS |
| EP35142 | 2022-12-339 | 1 | DIBBS |
| 5-1200 | 2022-08-220 | 11 | DIBBS |
| EP35142 | 2022-08-220 | 11 | DIBBS |
| 5-1200 | 2022-07-209 | 11 | DIBBS |
| EP35142 | 2022-07-209 | 11 | DIBBS |
| 5-1200 | 2022-03-79 | 8 | DIBBS |
| EP35142 | 2022-03-79 | 8 | DIBBS |
| 5-1200 | 2021-12-339 | 3 | DIBBS |
| EP35142 | 2021-12-339 | 3 | DIBBS |
| 5-1200 | 2021-09-256 | 3 | DIBBS |
| EP35142 | 2021-09-256 | 3 | DIBBS |
| 5-1200 | 2021-08-243 | 3 | DIBBS |
| EP35142 | 2021-08-243 | 3 | DIBBS |
| 5-1200 | 2021-08-227 | 10 | DIBBS |
| EP35142 | 2021-08-227 | 10 | DIBBS |
| 5-1200 | 2021-05-129 | 6 | DIBBS |
| EP35142 | 2021-05-129 | 6 | DIBBS |
| 5-1200 | 2021-02-56 | 6 | DIBBS |
| EP35142 | 2021-02-56 | 6 | DIBBS |
| 5-1200 | 2020-04-107 | 9 | DIBBS |
| EP35142 | 2020-04-107 | 9 | DIBBS |
| 5-1200 | 2020-03-89 | 9 | DIBBS |
| EP35142 | 2020-03-89 | 9 | DIBBS |
| 5-1200 | 2020-03-83 | 3 | DIBBS |
| EP35142 | 2020-03-83 | 3 | DIBBS |
| 5-1200 | 2020-03-72 | 3 | DIBBS |
| EP35142 | 2020-03-72 | 3 | DIBBS |
| 5950-00-052-8270 | 2018-03-67 | 18 | DIBBS |
| 5950-00-052-8270 | 2017-12-362 | 5 | DIBBS |
| 5950-00-052-8270 | 2017-09-263 | 8 | DIBBS |
| 5950-00-052-8270 | 2017-06-180 | 7 | DIBBS |
| 5950-00-052-8270 | 2017-04-109 | 4 | DIBBS |
| 5950-00-052-8270 | 2017-03-61 | 6 | DIBBS |
| 5950-00-052-8270 | 2016-11-308 | 7 | DIBBS |
| 5950-00-052-8270 | 2016-05-138 | 2 | DIBBS |
| 5950-00-052-8270 | 2016-05-122 | 2 | DIBBS |
| 5950-00-052-8270 | 2016-04-94 | 2 | DIBBS |
| 5950-00-052-8270 | 2016-03-63 | 2 | DIBBS |
| 5950-00-052-8270 | 2016-02-40 | 2 | DIBBS |
| 5950-00-052-8270 | 2015-08-226 | 1 | United States |
| 5950-00-052-8270 | 2015-01-22 | 3 | DIBBS |
| 5950-00-052-8270 | 2015-01-11 | 3 | DIBBS |
| 5950-00-052-8270 | 2014-04-104 | 6 | DIBBS |
| 5950-00-052-8270 | 2014-04-93 | 6 | DIBBS |
| 5950-00-052-8270 | 2014-03-86 | 4 | DIBBS |
| 5950-00-052-8270 | 2014-03-71 | 4 | DIBBS |
| 5950-00-052-8270 | 2014-02-51 | 2 | DIBBS |
| 5950-00-052-8270 | 2014-02-41 | 2 | DIBBS |
| 5950-00-052-8270 | 2014-01-26 | 2 | DIBBS |
| 5950-00-052-8270 | 2014-01-16 | 1 | US |
| 5950-00-052-8270 | 2013-10-281 | 2 | DIBBS |
| 5950-00-052-8270 | 2011-01-13 | 4 | DIBBS |
| 5950-00-052-8270 | 2010-12-337 | 4 | DIBBS |
| 5950-00-052-8270 | 2010-09-250 | 11 | DIBBS |
| 5950-00-052-8270 | 2010-07-211 | 4 | DIBBS |
| 5950-00-052-8270 | 2010-07-183 | 5 | DIBBS |
| 5950-00-052-8270 | 2010-04-113 | 3 | DIBBS |
| 5950-00-052-8270 | 2010-03-63 | 8 | DIBBS |
| 5950-00-052-8270 | 2009-04-106 | 2 | DIBBS |
| 5950-00-052-8270 | 2008-06-156 | 5 | DIBBS |
| 5950-00-052-8270 | 2008-04-102 | 11 | DIBBS |
| 5950-00-052-8270 | 2006-07-184 | 3 | DIBBS |
| 5950-00-052-8270 | 2006-06-177 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5950-00-052-8270
Related Products | NSN 5950-00-052-8270
Technical Data | NSN 5950-00-052-8270
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 3 THREADED STUD |
| WINDING OPERATING VOLTAGE | 115.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY INPUT 0.00 AC VOLTS MINIMUM AND 5.00 AC VOLTS MAXIMUM SINGLE COMPONENT SINGLE PRIMARY OUTPUT |
| WINDING OPERATING CURRENT | 25.0 AMPERES AC MAXIMUM SINGLE COMPONENT SINGLE PRIMARY OUTPUT |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL SINGLE COMPONENT |
| WINDING FUNCTION AND QUANTITY | 1 PRIMARY, VARIABLE AUTOTRANSFORMER TYPE SINGLE COMPONENT |
| INPUT-OUTPUT PHASE RELATIONSHIP | SINGLE PHASE TO SINGLE PHASE SINGLE COMPONENT |
| MOUNTING METHOD | THREADED HOLE SINGLE GROUP |
| MOUNTING FACILITY QUANTITY | 4 SINGLE GROUP |
| THREAD SERIES DESIGNATOR | UNEF SINGLE GROUP |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE GROUP |
| THREAD QUANTITY PER INCH | 32 SINGLE GROUP |
| (NON-CORE DATA) THREAD CLASS | 2B SINGLE GROUP |
| (NON-CORE DATA) THREAD DIRECTION | RIGHT-HAND SINGLE GROUP |

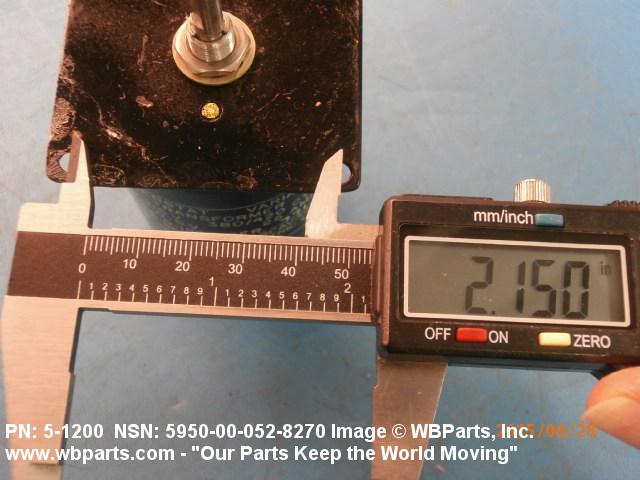

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.125 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.125 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| INCLOSURE TYPE | FULLY INCLOSED |

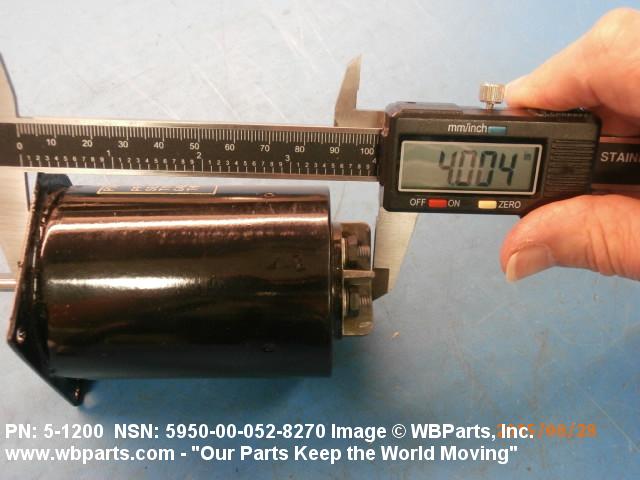

| BODY LENGTH | 2.500 INCHES NOMINAL |
