Product Details | ELECTROMAGNETIC RELAY
5945-01-594-6431 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: CA0045, 1241141113, 124-114111-3, 5945-01-594-6431, 01-594-6431, 5945015946431, 015946431
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 APR 2011 | 01-594-6431 | 32512 ( RELAY, ELECTROMAGNETIC ) |

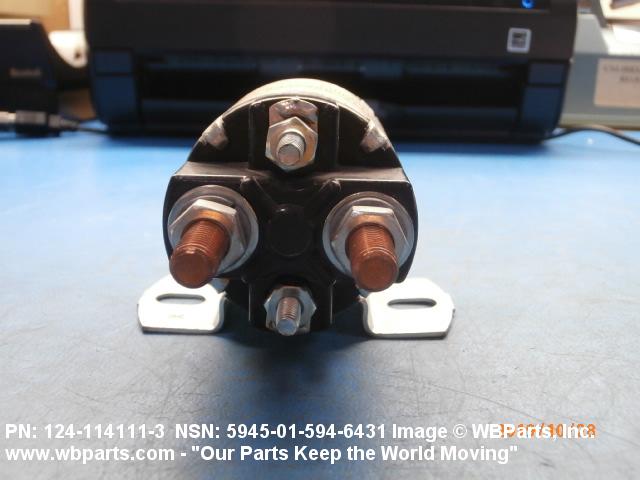

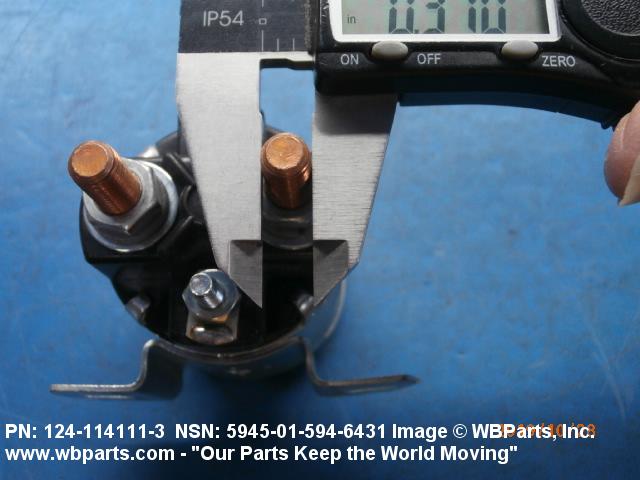

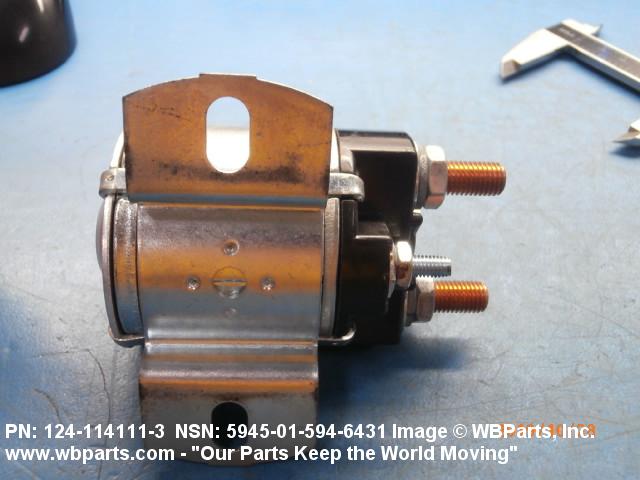

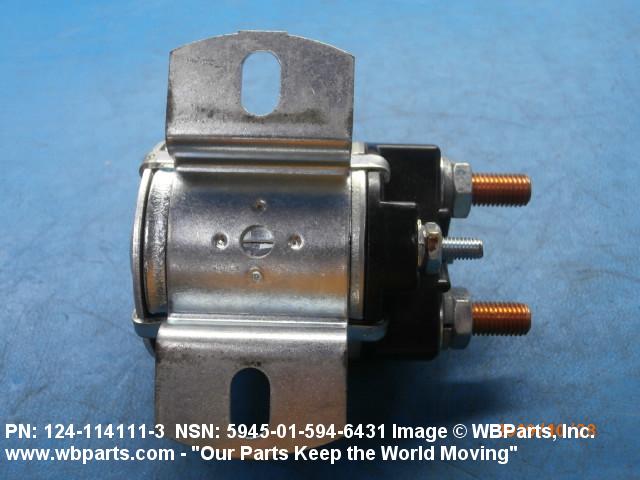

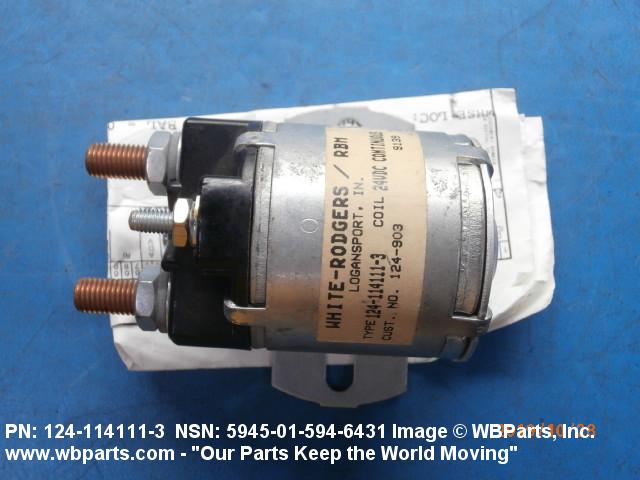

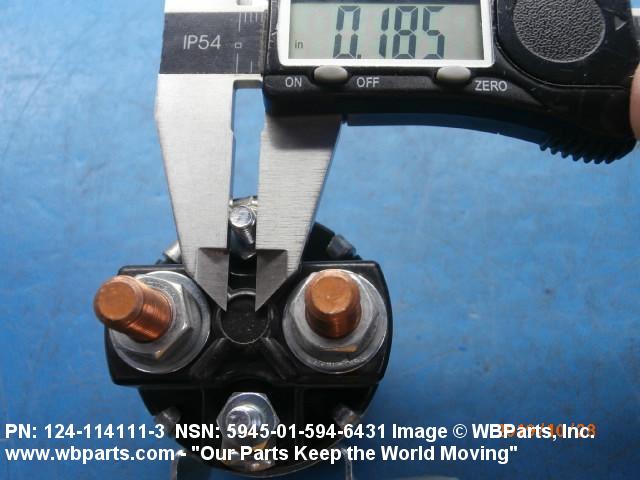

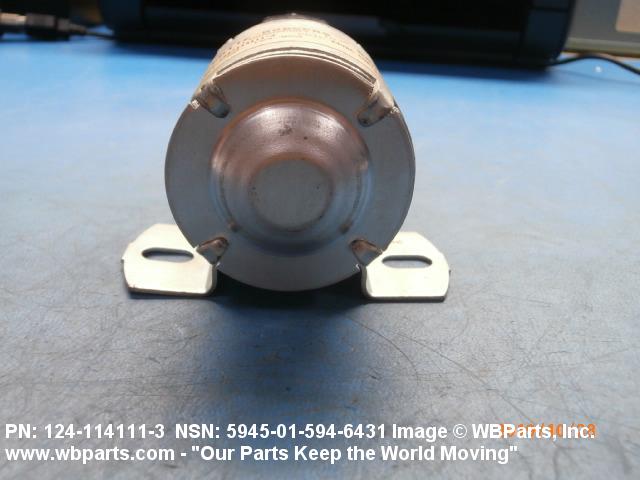

Drawings & Photos | NSN 5945-01-594-6431
Demand History | NSN 5945-01-594-6431
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-594-6431 | 2020-02-34 | 2 | US |
| 5945-01-594-6431 | 2019-10-290 | 1 | United States |
| 1241141113 | 2018-01-01 | 1 | Australia |
| 1241141113 | 2017-08-227 | 1 | Australia |
| 1241141113 | 2014-10-279 | 1 | UM |
| 1241141113 | 2013-03-71 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-594-6431
Technical Data | NSN 5945-01-594-6431

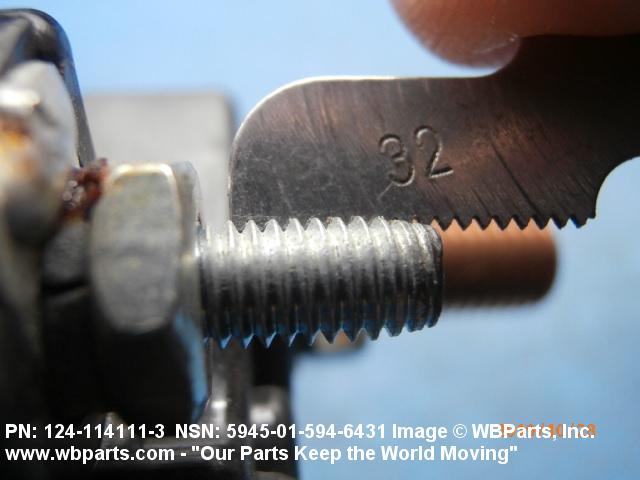

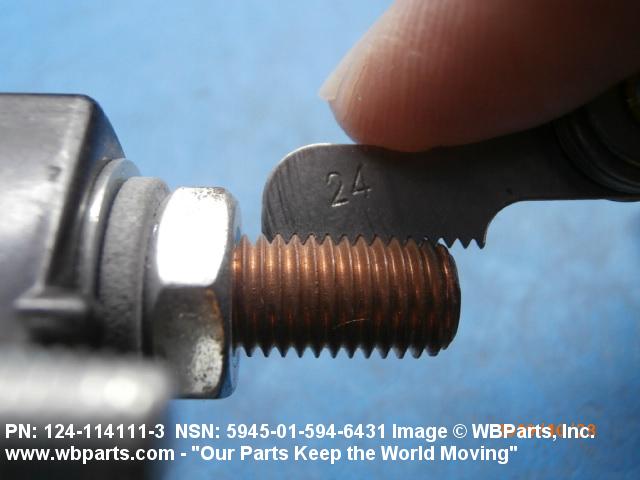

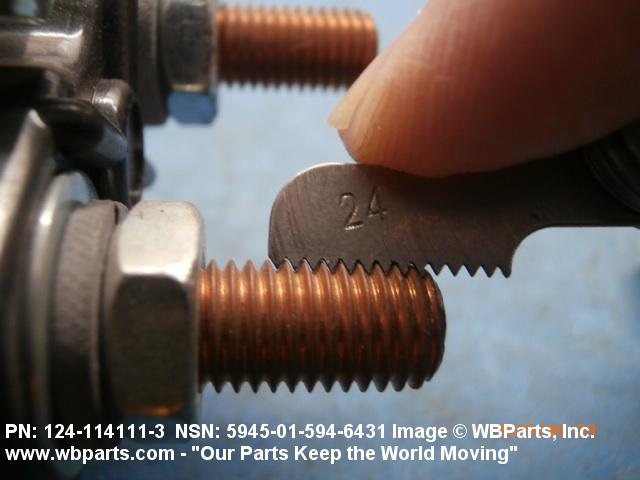

| Characteristic | Specifications |
|---|---|
| COIL QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 24.0 VOLTS DC 25 DEG CELSIUS ALL WINDINGS |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD CONTACTS |
| DUTY TYPE | CONTINUOUS |

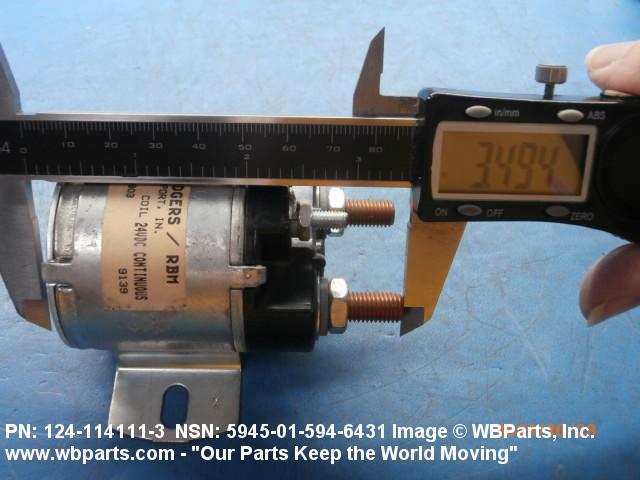

| OVERALL LENGTH | 3.619 INCHES MAXIMUM |
