Product Details | ELECTROMAGNETIC RELAY

5945-01-585-0542 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: 1SAR 501 020 R0001, 1SAR501020R0001, 5945-01-585-0542, 01-585-0542, 5945015850542, 015850542

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG) NSN Assign. NIIN
59 14 MAY 2010 01-585-0542

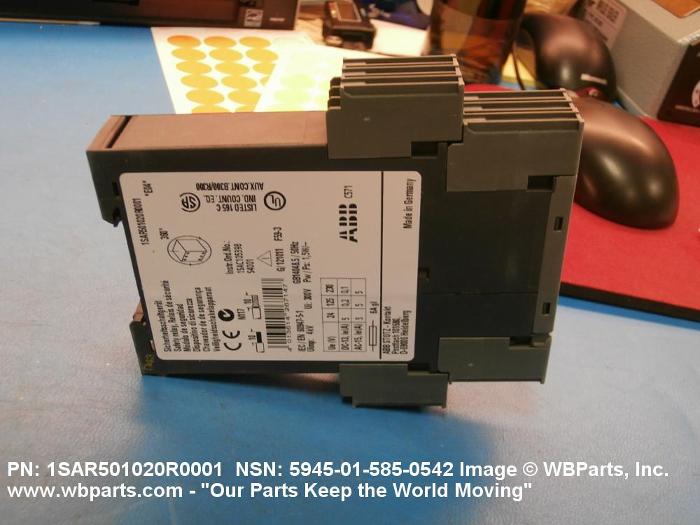

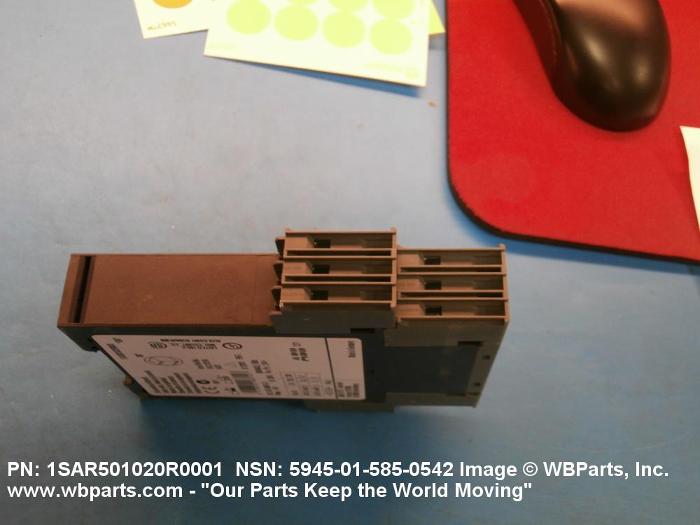

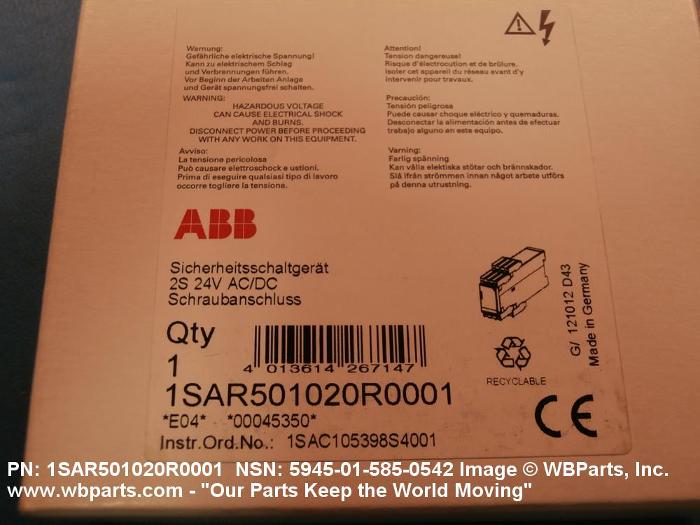

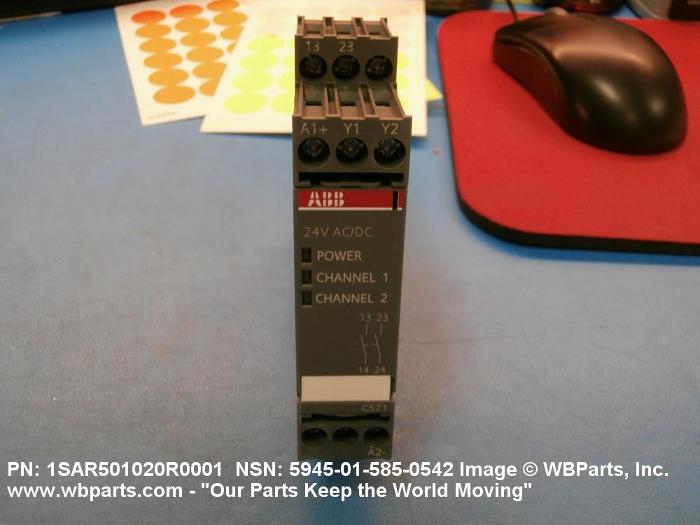

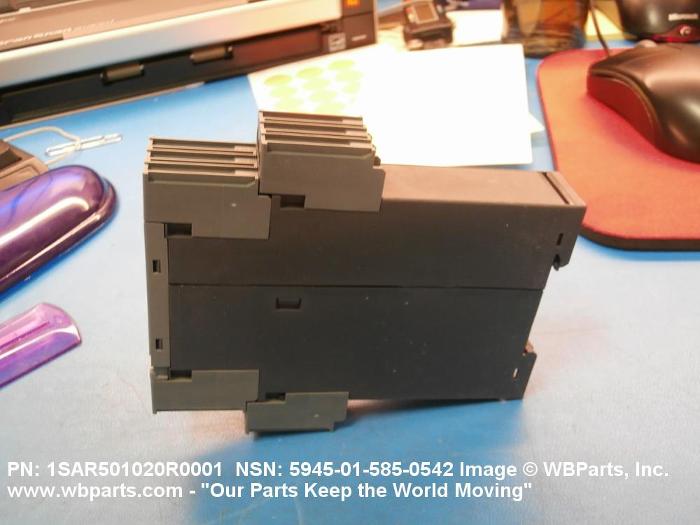

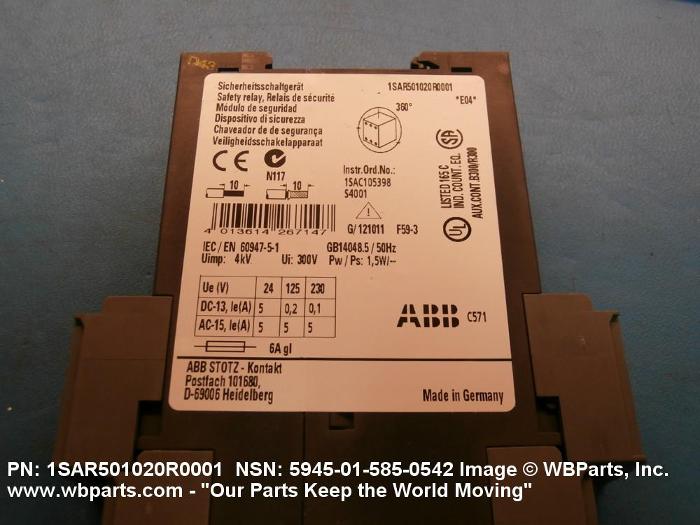

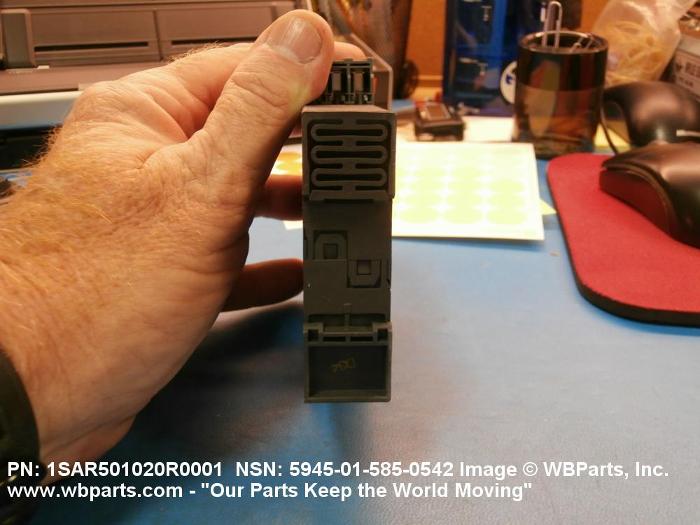

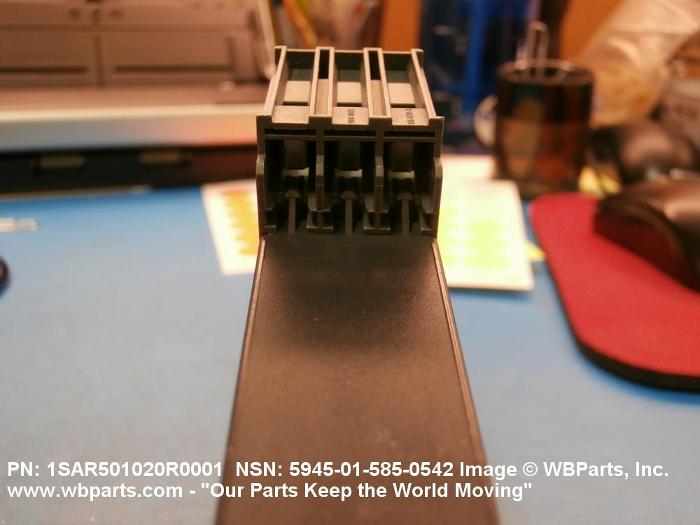

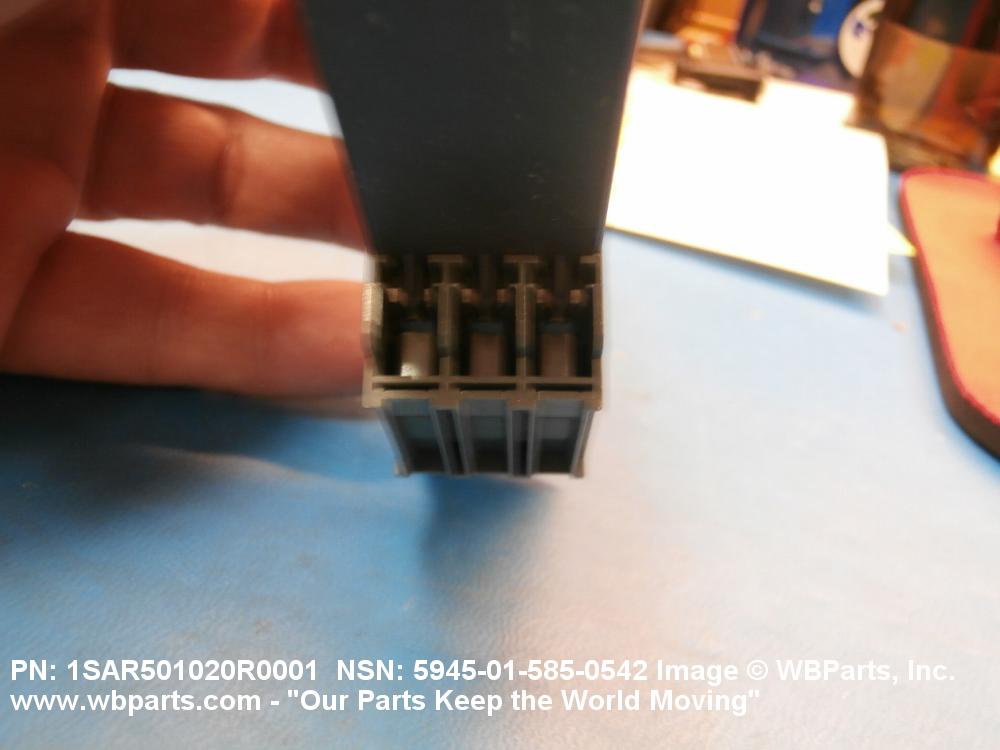

Drawings & Photos | NSN 5945-01-585-0542


Demand History | NSN 5945-01-585-0542

Part Number Request Date QTY Origin
5945-01-585-0542 2013-01-23 1 Denmark

Cross Reference | NSN 5945-01-585-0542

Part Number Cage Code Manufacturer
1SAR 501 020 R0001 63225 GEC ALSTHOM INTL INC ENTRELEC DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-585-0542

Technical Data | NSN 5945-01-585-0542

Characteristic Specifications
END ITEM IDENTIFICATION AIRCRAFT APPLICATIONS
SPECIAL FEATURES LIMIT SWITCH C571 EMERGENCY STOP 2 N.O. CONTACTS

Restrictions/Controls & Freight Information | NSN 5945-01-585-0542

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
