Product Details | ELECTROMAGNETIC RELAY
5945-01-461-9953 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: MS2774316, MS27743-16, M83536/33-002L, M8353633002L, MILPRF6106, MIL-PRF-6106, MIL-PRF-83536/33, MILPRF8353633, 5945-01-461-9953, 01-461-9953, 5945014619953, 014619953
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JAN 1999 | 01-461-9953 | 32512 ( RELAY, ELECTROMAGNETIC ) |

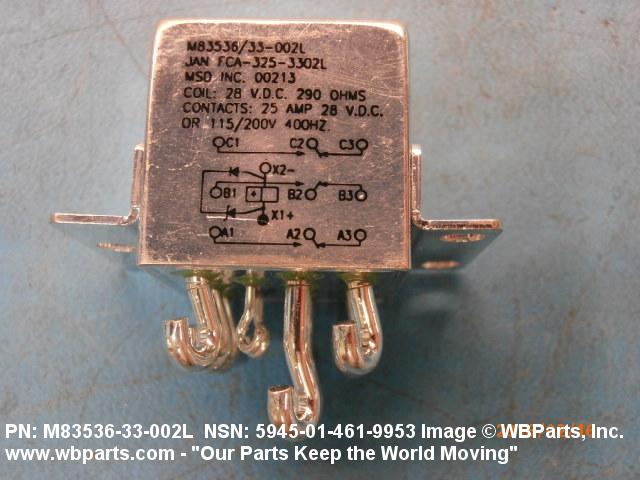

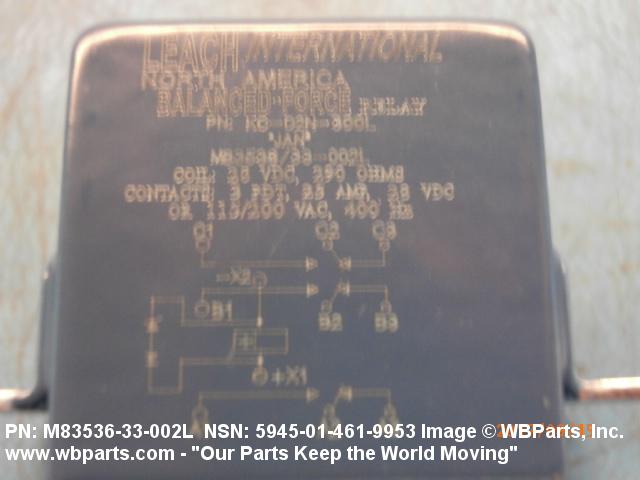

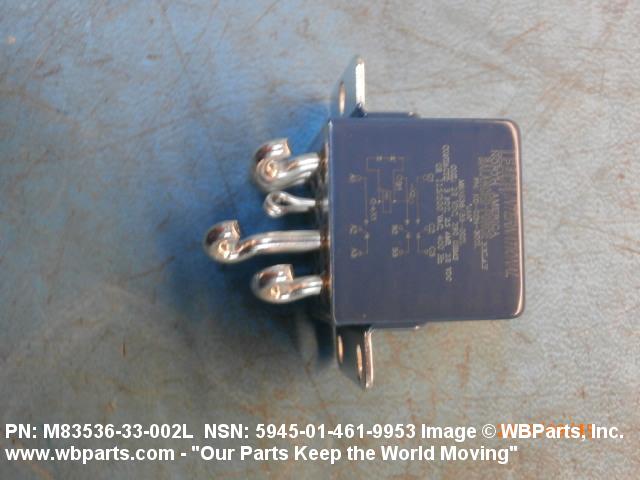

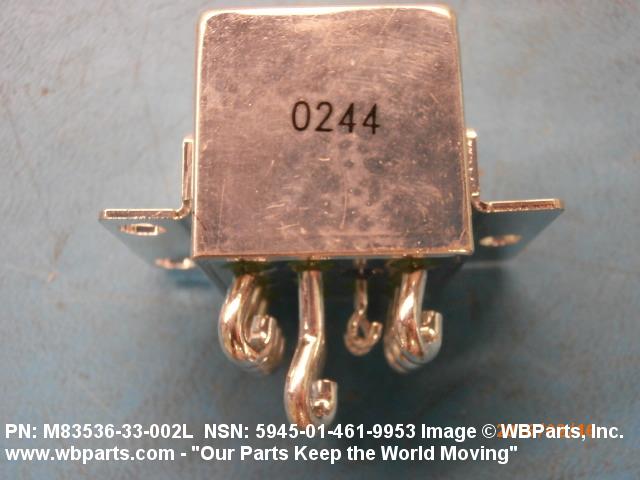

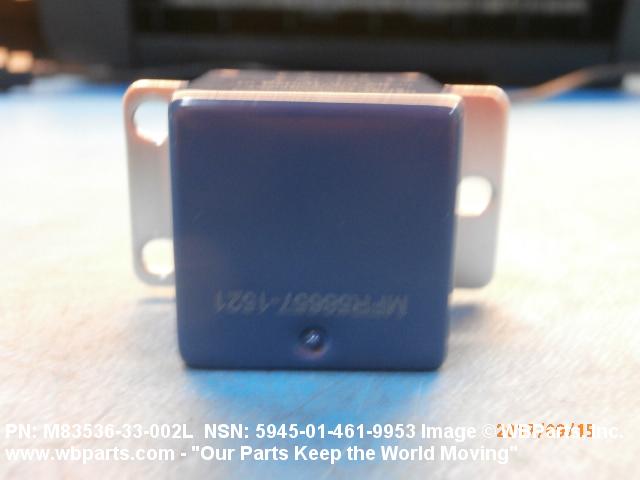

Drawings & Photos | NSN 5945-01-461-9953
Demand History | NSN 5945-01-461-9953
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-461-9953 | 2023-11-328 | 319 | DIBBS |
| 5945-01-461-9953 | 2023-11-316 | 319 | DIBBS |
| M8353633002L | 2023-04-111 | 600 | Taiwan |
| 5945-01-461-9953 | 2023-01-03 | 61 | South Korea |
| 5945-01-461-9953 | 2022-11-331 | 133 | DIBBS |
| 5945-01-461-9953 | 2022-11-311 | 50 | KR |
| 5945-01-461-9953 | 2022-08-234 | 94 | DIBBS |
| 5945-01-461-9953 | 2022-07-192 | 67 | DIBBS |
| 5945-01-461-9953 | 2022-06-153 | 94 | DIBBS |
| 5945-01-461-9953 | 2022-03-83 | 67 | DIBBS |
| 5945-01-461-9953 | 2022-01-11 | 54 | KR |
| MS2774316 | 2022-01-10 | 54 | KR |
| 5945-01-461-9953 | 2022-01-10 | 54 | KR |
| 5945-01-461-9953 | 2021-08-223 | 105 | United States |
| 5945-01-461-9953 | 2017-08-235 | 2 | Pakistan |
| 5945-01-461-9953 | 2017-04-98 | 5 | PK |
| 5945-01-461-9953 | 2016-07-189 | 153 | DIBBS |
| M8353633002L | 2016-05-139 | 6 | United States |
| 5945-01-461-9953 | 2016-05-139 | 66 | DIBBS |
| M8353633002L | 2016-02-41 | 2 | us |
| 5945-01-461-9953 | 2013-01-31 | 216 | DIBBS |
| 5945-01-461-9953 | 2013-01-16 | 261 | DIBBS |
| 5945-01-461-9953 | 2012-07-207 | 48 | DIBBS |
| 5945-01-461-9953 | 2012-02-40 | 30 | DIBBS |
| 5945-01-461-9953 | 2011-07-211 | 39 | DIBBS |
| 5945-01-461-9953 | 2011-06-173 | 48 | DIBBS |
| 5945-01-461-9953 | 2011-02-55 | 38 | DIBBS |
| M8353633002L | 2010-06-152 | 47 | Taiwan |
| M8353633002L | 2010-02-35 | 75 | France |
| 5945-01-461-9953 | 2008-12-357 | 162 | DIBBS |
| 5945-01-461-9953 | 2007-11-318 | 84 | DIBBS |
| 5945-01-461-9953 | 2007-05-127 | 9 | DIBBS |
| 5945-01-461-9953 | 2007-03-89 | 41 | DIBBS |
Cross Reference | NSN 5945-01-461-9953
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M83536/33-002L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-6106 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-83536/33 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27743-16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-461-9953
Related Products | NSN 5945-01-461-9953
Technical Data | NSN 5945-01-461-9953

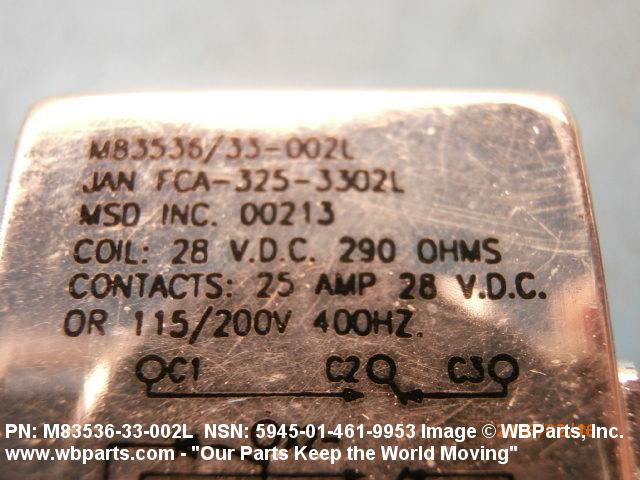

| Characteristic | Specifications |
|---|---|
| PILE-UP MAIN CONTACT FORM ARRANGEMENT | 3C |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.0 AMPERES AC RESISTIVE LOAD 12.0 AMPERES DC AND 15.0 AMPERES AC INDUCTIVE LOAD 5.0 AMPERES AC LAMP LOAD 10.0 AMPERES AC MOTOR LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 13.5 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |

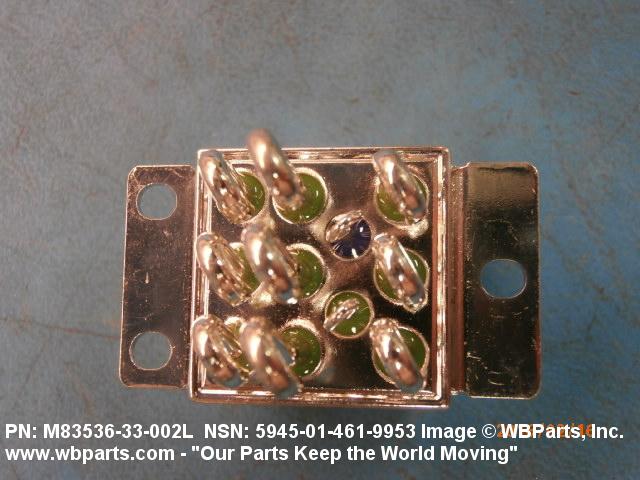

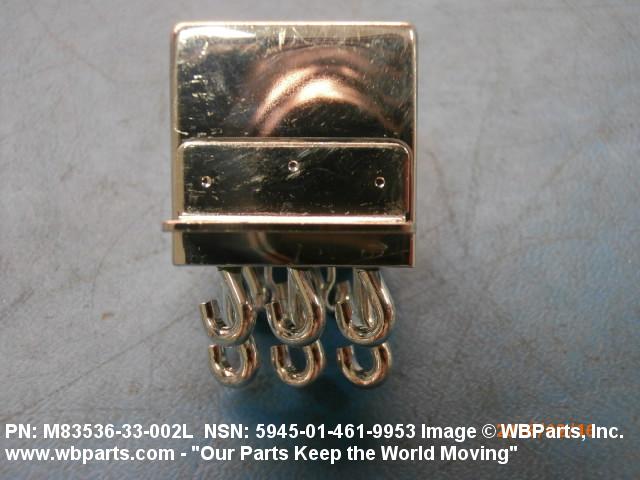

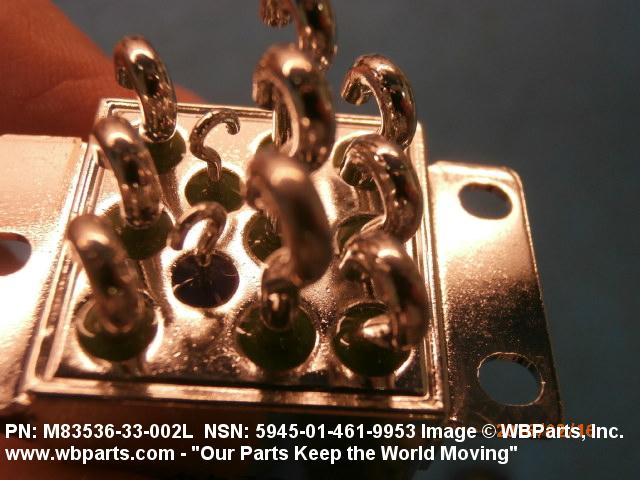

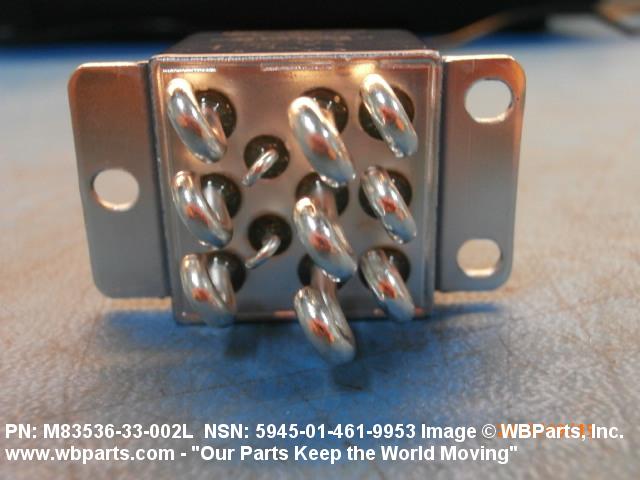

| TERMINAL TYPE AND QUANTITY | 9 WIRE HOOK CONTACTS |
| DUTY TYPE | CONTINUOUS |

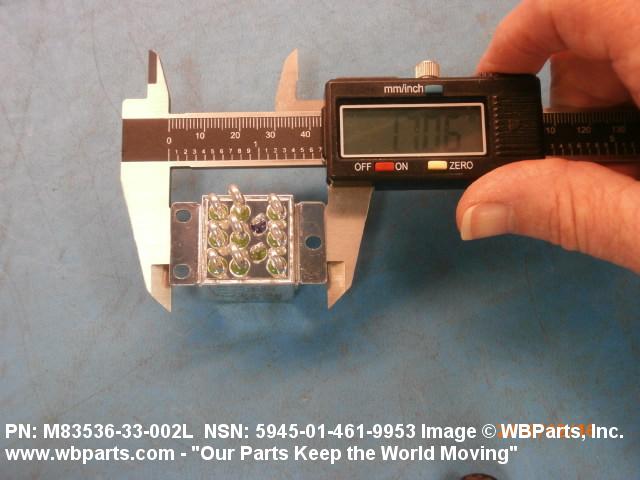

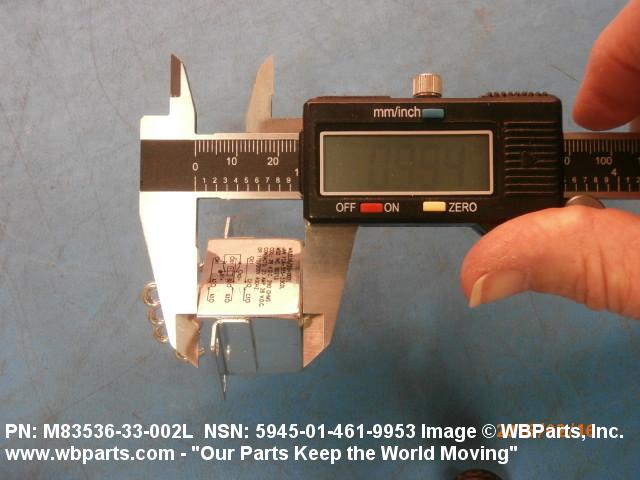

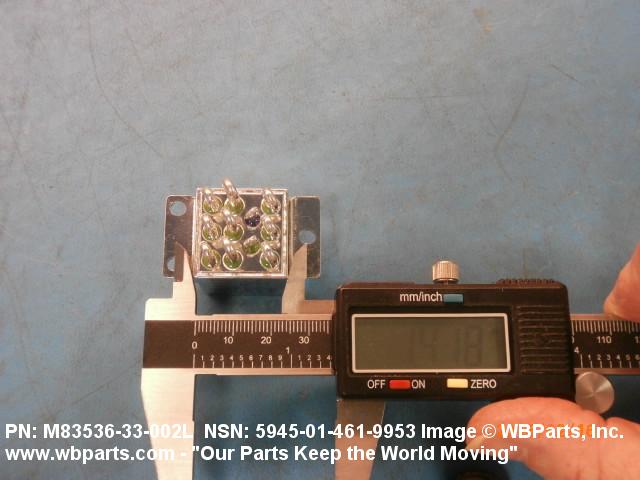

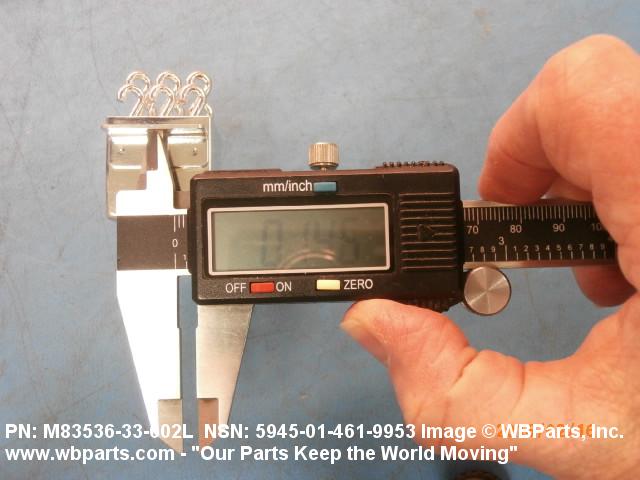

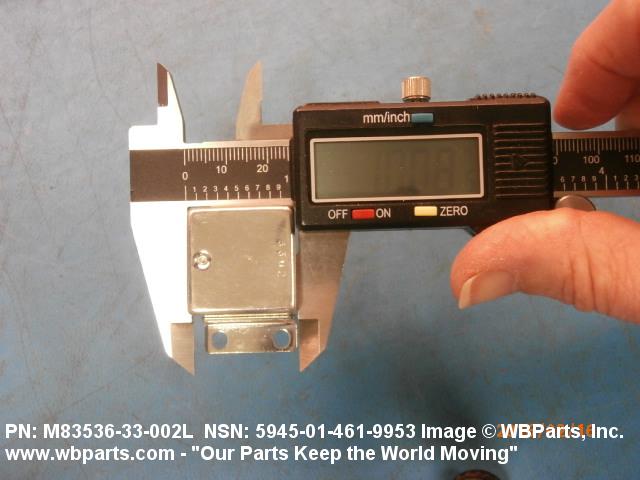

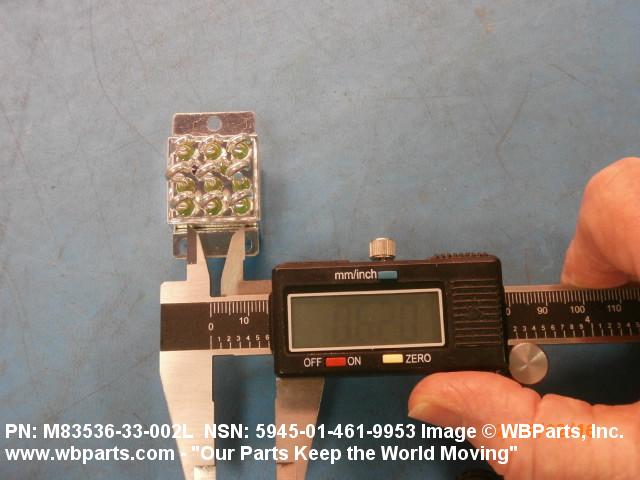

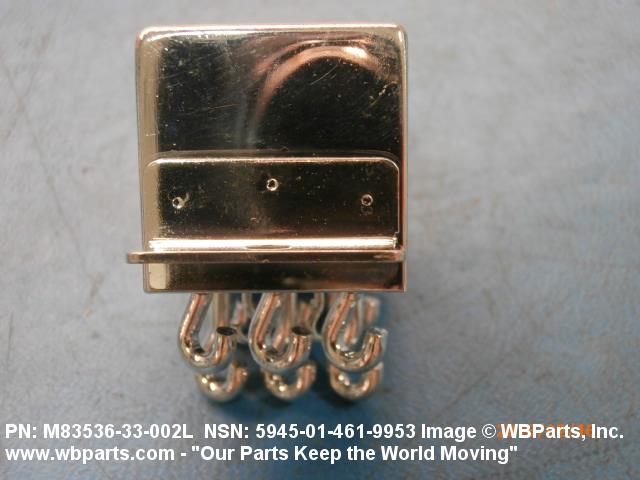

| OVERALL LENGTH | 1.718 INCHES MAXIMUM |
| OVERALL WIDTH | 1.025 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.010 INCHES MAXIMUM |
| MOUNTING FACILITY PATTERN | TRIANGLE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.396 INCHES MINIMUM AND 1.446 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE | 0.312 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | COIL VOLTAGE SUPPRESSION |
| SPECIAL FEATURES | 3PDT, 25 AMP (RESISTIVE), HERMETICALLY SEALED, 28 VDC COIL, 3% FAILURE RATE, RAISED VERTICAL FLANGE MOUNT, RELAY |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-83536/33 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83536/33-002L |
