Product Details | ELECTRICAL SOLENOID

5945-01-327-9229 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.

Part Alternates: 0D19485B, 5945-01-327-9229, 01-327-9229, 5945013279229, 013279229

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG) NSN Assign. NIIN
59 24 OCT 1990 01-327-9229

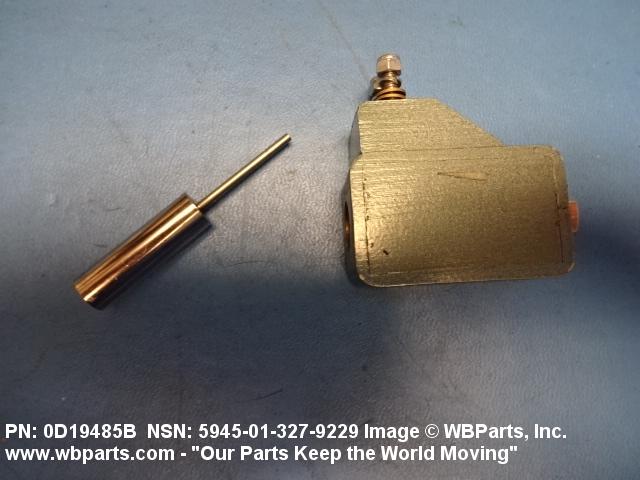

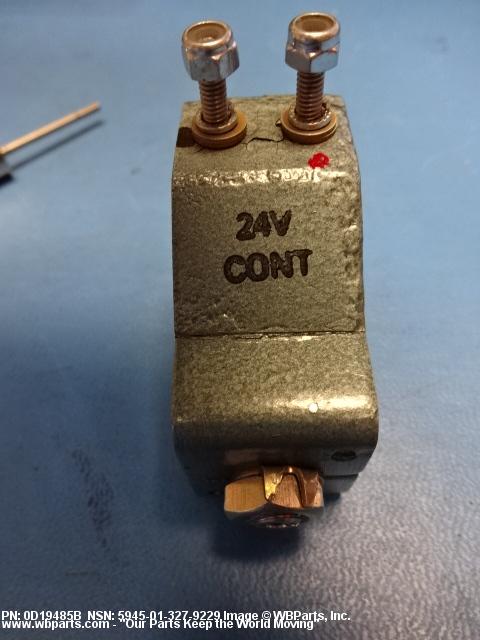

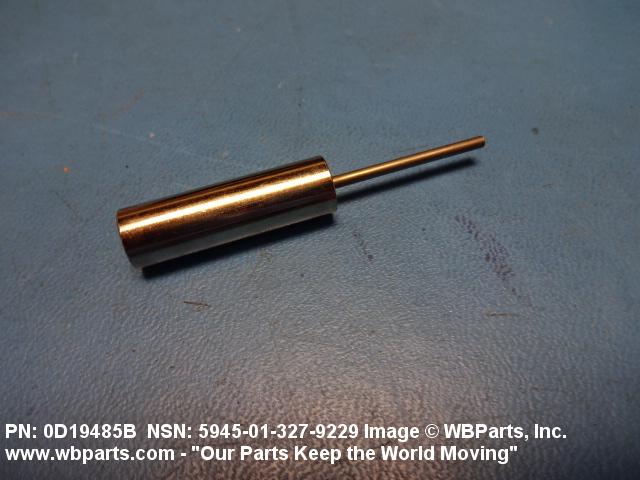

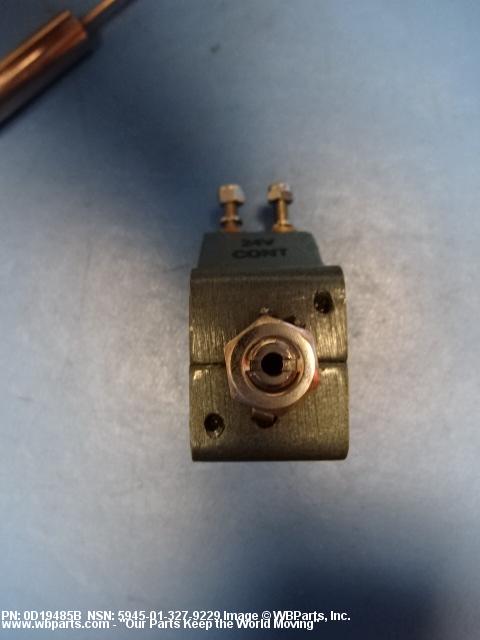

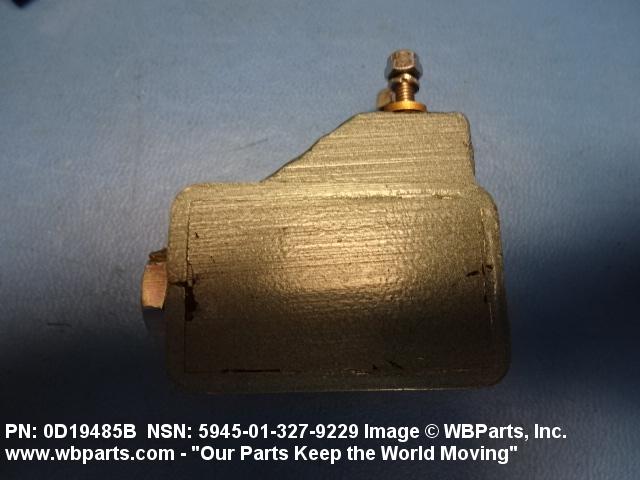

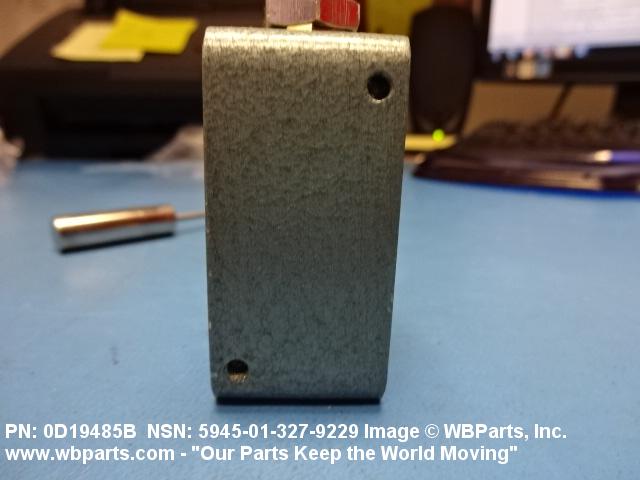

Drawings & Photos | NSN 5945-01-327-9229


Demand History | NSN 5945-01-327-9229

Part Number Request Date QTY Origin
5945-01-327-9229 2017-03-67 1 United States
5945-01-327-9229 2016-12-355 6 DIBBS
5945-01-327-9229 2016-12-340 6 DIBBS
5945-01-327-9229 2016-09-263 1 DIBBS
5945-01-327-9229 2016-09-252 1 DIBBS
5945-01-327-9229 2016-08-224 1 DIBBS
5945-01-327-9229 2016-07-213 1 DIBBS
5945-01-327-9229 2009-05-144 1 DIBBS

Cross Reference | NSN 5945-01-327-9229

Part Number Cage Code Manufacturer
0D19485B 1GN08 ESE, INC. DBA E S COMPONENTS COMPANY
0D19485B K8098 MAN DIESEL & TURBO LTD
0D19485B U1476 PAXMAN DIESELS LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-327-9229

Restrictions/Controls & Freight Information | NSN 5945-01-327-9229

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Category Code Description
NMF Description 063100 SOLENOIDS/PARTS W/WO ARMATURES
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 72D unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5945-01-327-9229

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
