NSN 5945-00-264-4174 DR18128A, DR-18128A, P515A57V12
Product Details | ELECTRICAL SOLENOID
5945-00-264-4174 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: DR18128A, DR-18128A, P515A57V12, P515-A57V12, 1118128, 4504365R1, 5945-00-264-4174, 00-264-4174, 5945002644174, 002644174
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-264-4174 | 00310 ( SOLENOID, ELECTRICAL ) |

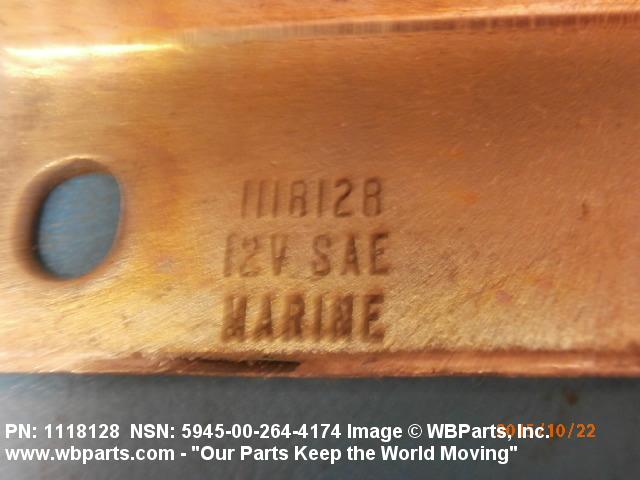

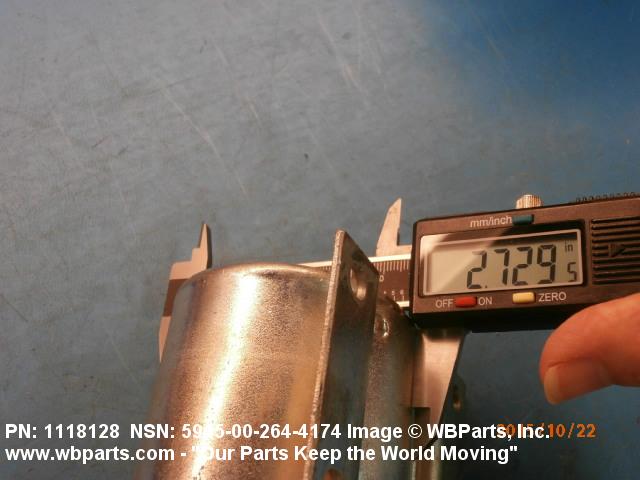

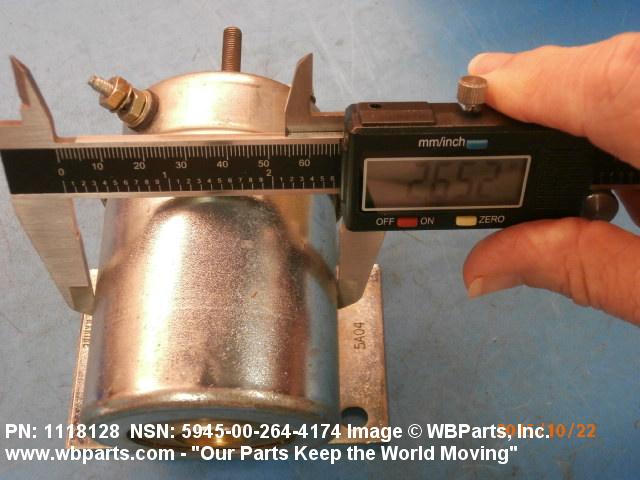

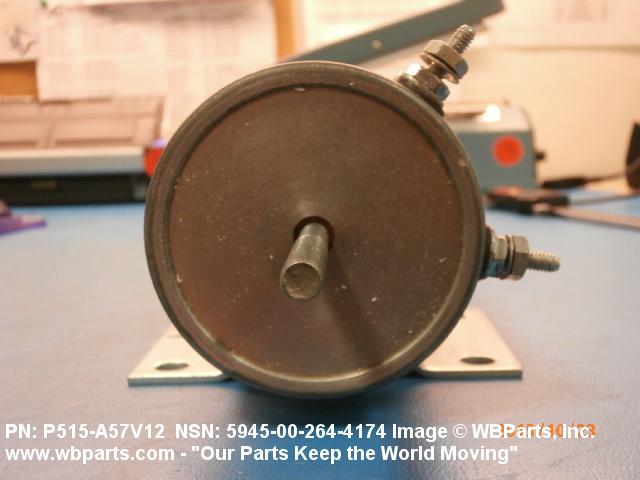

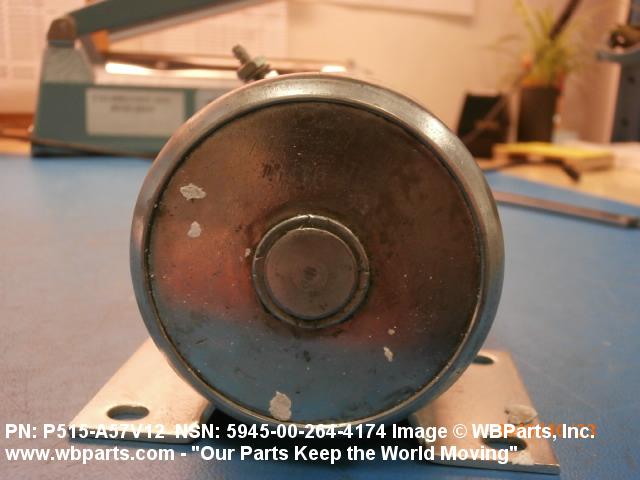

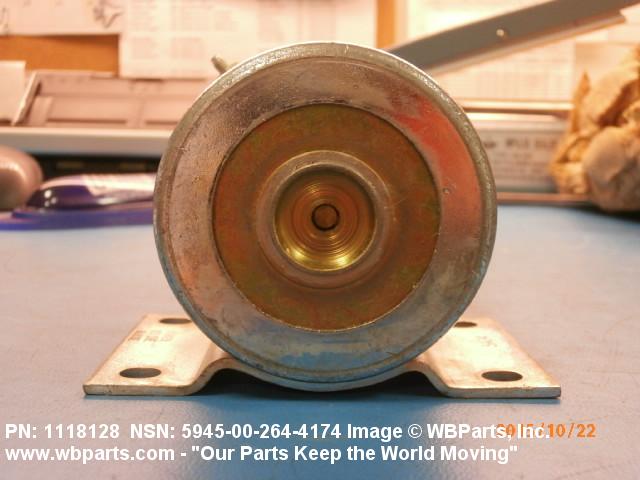

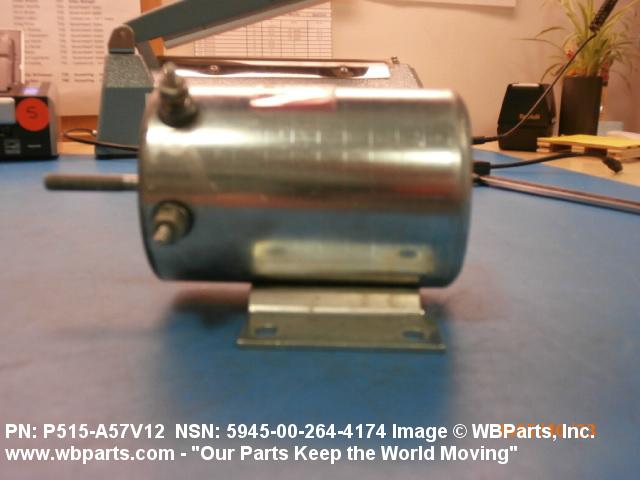

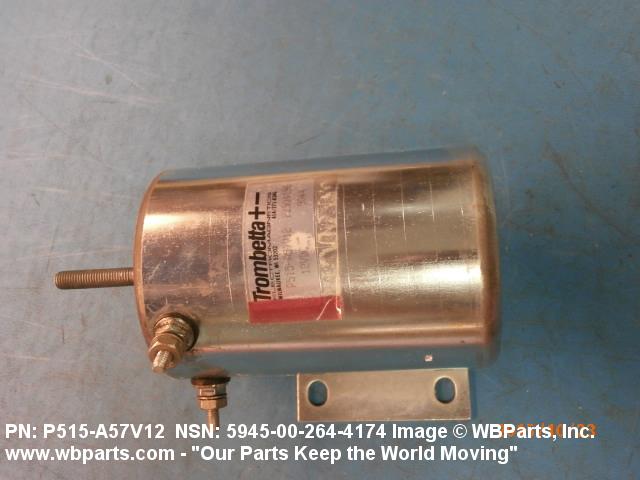

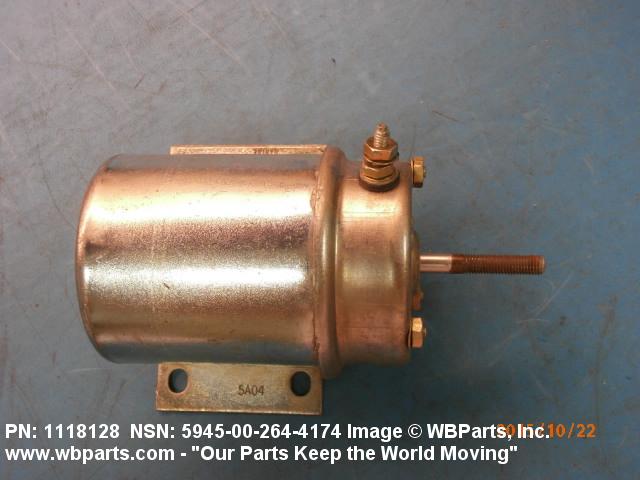

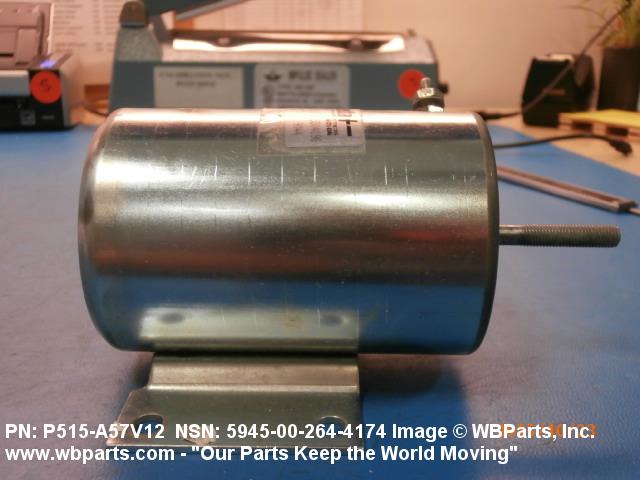

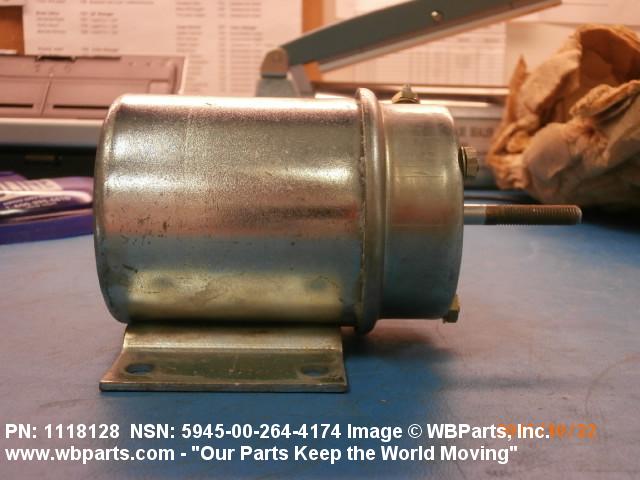

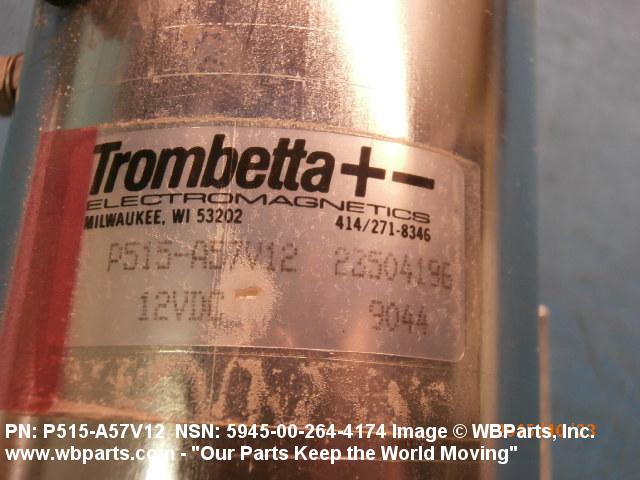

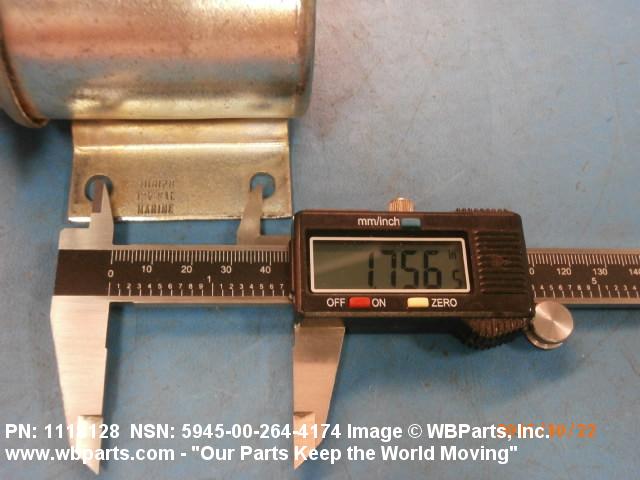

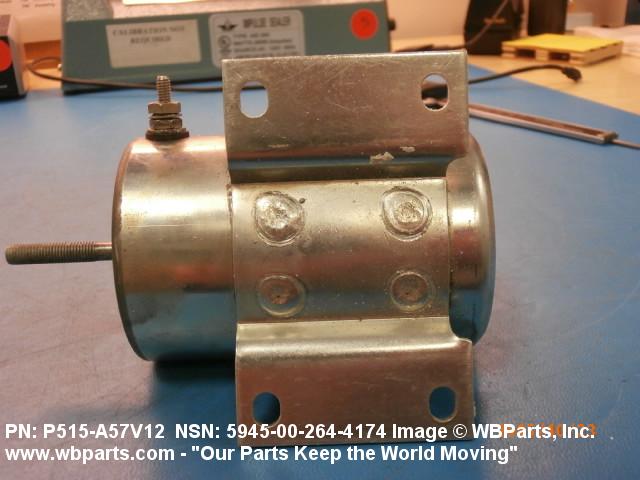

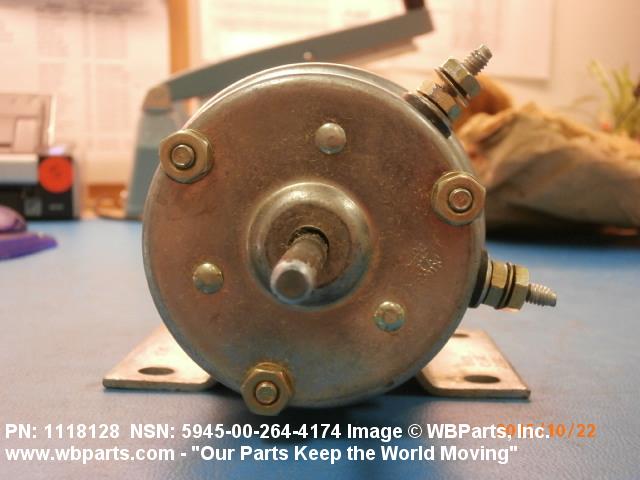

Drawings & Photos | NSN 5945-00-264-4174
Demand History | NSN 5945-00-264-4174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4504365R1 | 2024-03-85 | 104 | DIBBS |
| P515-A57V12 | 2024-03-85 | 104 | DIBBS |
| 4504365R1 | 2024-03-74 | 104 | DIBBS |
| P515-A57V12 | 2024-03-74 | 104 | DIBBS |
| 4504365R1 | 2024-01-16 | 49 | DIBBS |
| P515-A57V12 | 2024-01-16 | 49 | DIBBS |
| 5945-00-264-4174 | 2022-05-124 | 1 | TW |
| 5945-00-264-4174 | 2018-11-308 | 70 | DIBBS |
| 5945-00-264-4174 | 2016-12-340 | 14 | US |
| 5945-00-264-4174 | 2015-09-273 | 2 | United States |
| 5945-00-264-4174 | 2015-07-209 | 2 | United States |
| 5945-00-264-4174 | 2015-04-103 | 2 | United States |
| 5945-00-264-4174 | 2015-04-97 | 91 | DIBBS |
| 5945-00-264-4174 | 2013-12-339 | 69 | DIBBS |
| 5945-00-264-4174 | 2013-05-122 | 66 | DIBBS |
| 5945-00-264-4174 | 2013-04-107 | 66 | DIBBS |
| 1118128 | 2012-08-235 | 1 | TW |
| 5945-00-264-4174 | 2012-04-121 | 2 | US |
| 5945-00-264-4174 | 2012-01-20 | 79 | DIBBS |
| 5945-00-264-4174 | 2009-02-50 | 34 | DIBBS |
| 5945-00-264-4174 | 2008-05-136 | 56 | DIBBS |
| 5945-00-264-4174 | 2008-05-127 | 52 | DIBBS |
| 5945-00-264-4174 | 2008-03-88 | 2 | DIBBS |
| 5945-00-264-4174 | 2008-01-10 | 21 | DIBBS |
| 5945-00-264-4174 | 2007-08-228 | 97 | DIBBS |
| 5945-00-264-4174 | 2007-07-187 | 141 | DIBBS |
| 5945-00-264-4174 | 2007-05-134 | 53 | DIBBS |
| P515A57V12 | 2007-04-108 | 1 | US |
| P515A57V12 | 2006-05-151 | 17 | United States |
Cross Reference | NSN 5945-00-264-4174
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1118128 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1118128 | 1LW55 | REMY, INC. |
| 1118128 | 22852 | SPALLA INC |
| 1118128 | 24617 | GENERAL MOTORS CORP |
| 1118128 | 61928 | GENERAL MOTORS CORP AC-DELCO DIV |
| 1118128 | 72582 | MTU AMERICA INC. |
| 1118128 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 4504365R1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| DR-18128A | 5Y113 | ARLET MFG INC |
| P515-A57V12 | 88136 | TROMBETTA CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-264-4174
Related Products | NSN 5945-00-264-4174
Technical Data | NSN 5945-00-264-4174
| Characteristic | Specifications |
|---|---|
| BODY LENGTH | 2.359 INCHES NOMINAL |

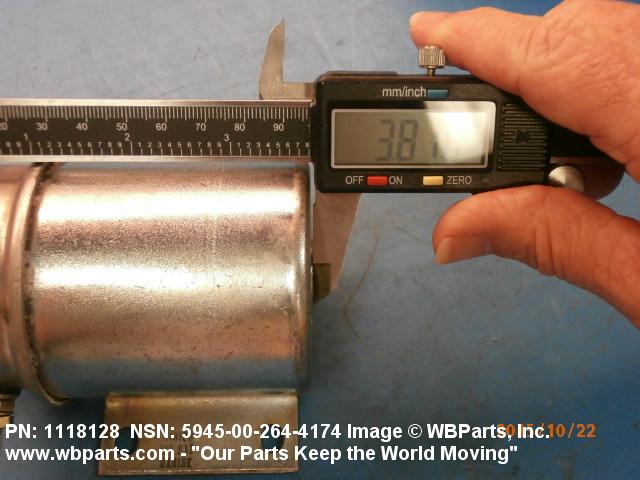

| BODY WIDTH | 3.813 INCHES NOMINAL |
| BODY HEIGHT | 2.906 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 12.0 DC MAXIMUM |
| CURRENT RATING | 8.9 AMPERES NOMINAL |
| ELECTRIC POWER RATING | ANY ACCEPTABLE |
| ELECTRICAL RESISTANCE | ANY ACCEPTABLE |
| ACTUATOR STROKE TYPE | PULL AND PUSH |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.500 INCHES |
| POWER TAKEOFF CONNECTION TYPE | EXTERNAL THREADS |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SLOT |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |

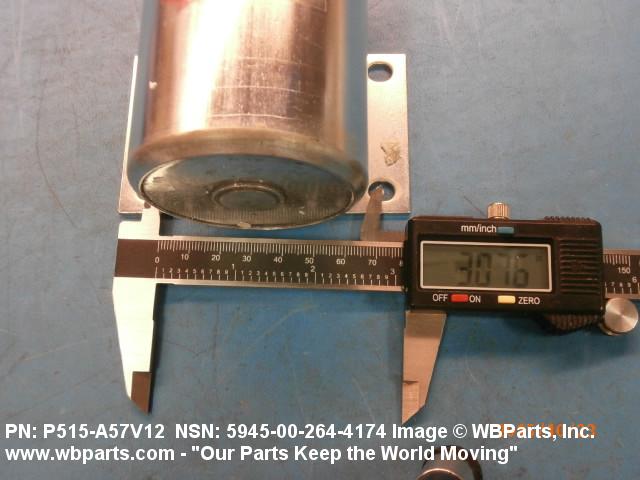

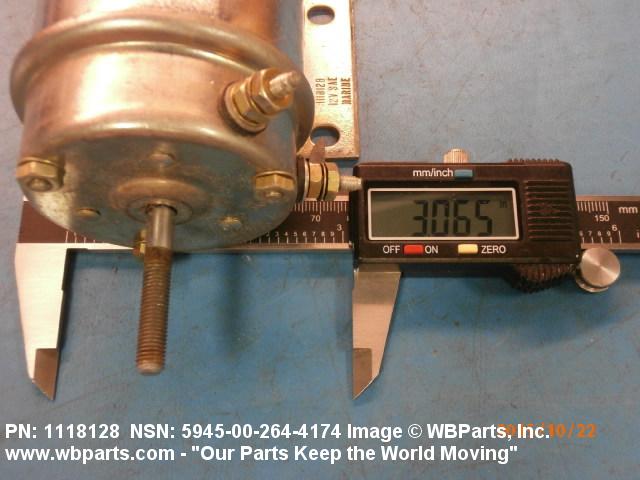

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.063 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.750 INCHES NOMINAL |

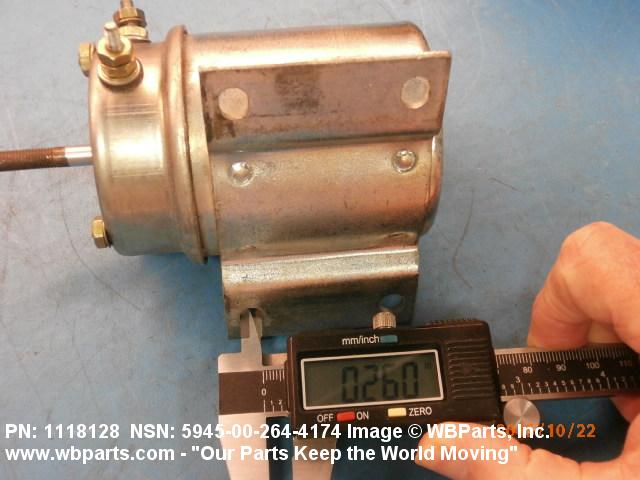

| MOUNTING SLOT WIDTH | 0.266 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF POWER TAKEOFF FACILITY STUD |

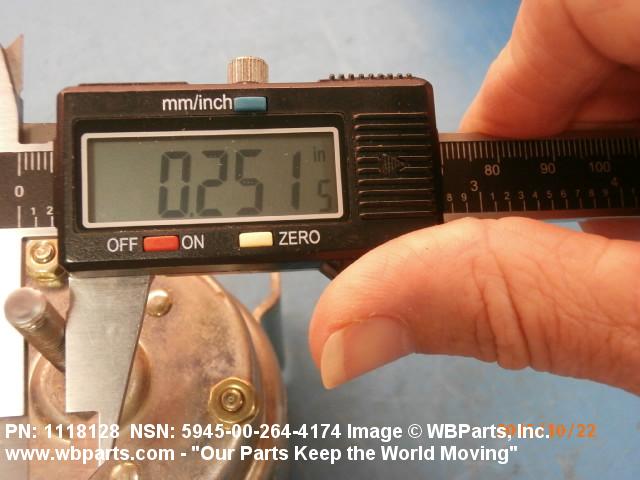

| NOMINAL THREAD SIZE | 0.250 INCHES POWER TAKEOFF FACILITY STUD |
| THREAD CLASS | 2A POWER TAKEOFF FACILITY STUD |
| THREAD QUANTITY PER INCH | 28 POWER TAKEOFF FACILITY STUD |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | PAINT |
| III FSC APPLICATION DATA | ELECTRICAL SYSTEM,ENGINE,NONAIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5945-00-264-4174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-264-4174
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
