NSN 5945-01-297-5913 MS24171D2, MS24171-D2, AN33701

Product Details | ELECTROMAGNETIC RELAY

5945-01-297-5913 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS24171D2, MS24171-D2, AN33701, AN3370-1, MILPRF6106, MIL-PRF-6106, MILR6106, MIL-R-6106, 10317251 , 6041H308, 825RL0287 , 5945-01-297-5913, 01-297-5913, 5945012975913, 012975913

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	04 APR 1989	01-297-5913	32512 ( RELAY, ELECTROMAGNETIC )

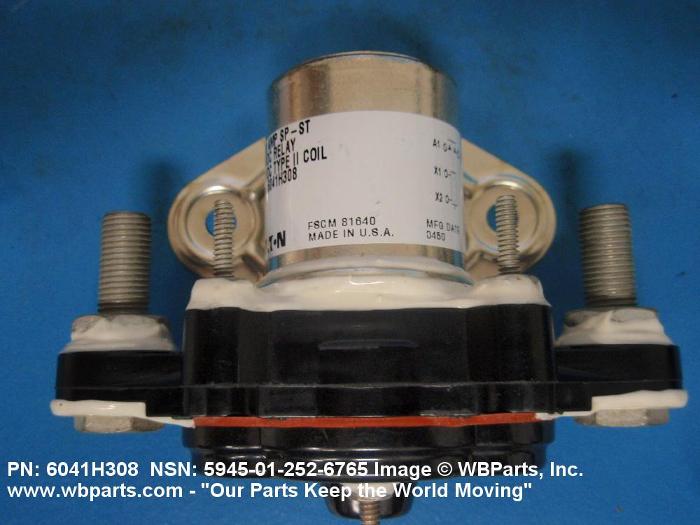

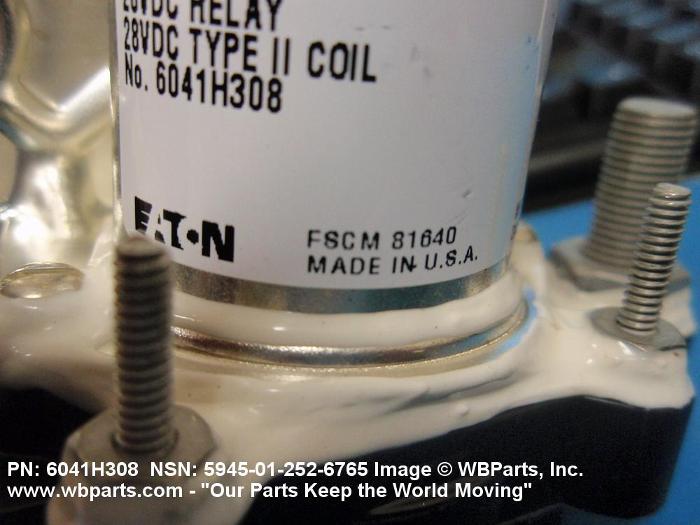

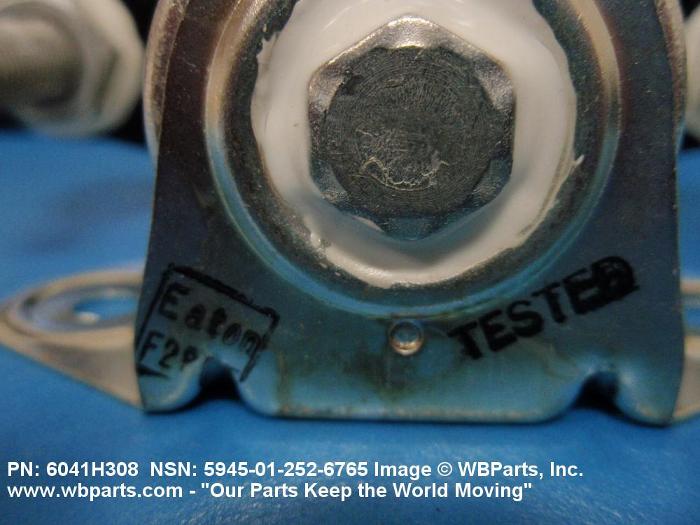

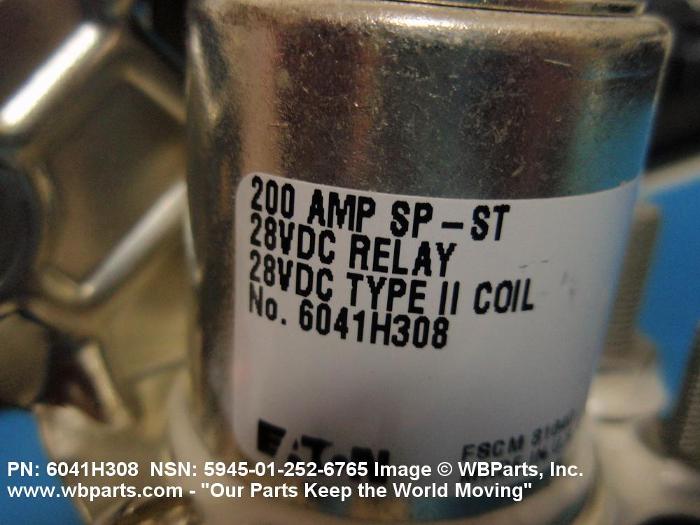

Drawings & Photos | NSN 5945-01-297-5913

Part Number	Request Date	QTY	Origin
5945-01-297-5913	2024-11-319	8	Greece
5945-01-297-5913	2024-08-225	43	DIBBS
5945-01-297-5913	2024-07-193	30	DIBBS
MS24171D2	2024-05-139	1	Philippines
5945-01-297-5913	2024-03-72	1	Greece
5945-01-297-5913	2023-10-279	8	GR
5945-01-297-5913	2023-05-138	20	DIBBS
MS24171D2	2021-04-117	18	US
MS24171D2	2021-03-70	2	Canada
5945-01-297-5913	2019-08-219	62	DIBBS
5945-01-297-5913	2019-03-67	7	MANUAL
5945-01-297-5913	2018-02-32	67	DIBBS
5945-01-297-5913	2017-09-258	24	DIBBS
5945-01-297-5913	2017-09-247	24	DIBBS
5945-01-297-5913	2015-06-174	226	DIBBS
5945-01-297-5913	2015-01-26	40	DIBBS
5945-01-297-5913	2014-11-311	198	DIBBS
5945-01-297-5913	2014-10-302	211	DIBBS
5945-01-297-5913	2014-04-91	51	DIBBS
MS24171D2	2014-03-87	2	United States
AN33701	2014-03-72	2	United States
6041H308	2011-03-87	2	United States
5945-01-297-5913	2009-12-338	28	DIBBS
AN33701	2009-05-126	1	US
5945-01-297-5913	2009-04-113	25	DIBBS
MS24171D2	2008-08-220	1	United Kingdom
5945-01-297-5913	2008-07-199	50	DIBBS
5945-01-297-5913	2008-07-199	82	DIBBS
5945-01-297-5913	2008-07-185	50	DIBBS
5945-01-297-5913	2008-05-152	82	DIBBS
5945-01-297-5913	2008-01-31	68	DIBBS
5945-01-297-5913	2007-11-309	100	DIBBS
5945-01-297-5913	2007-10-278	67	DIBBS
AN33701	2007-08-217	3	United States
5945-01-297-5913	2007-07-198	63	DIBBS
5945-01-297-5913	2007-07-193	63	DIBBS
5945-01-297-5913	2007-04-113	6	DIBBS
5945-01-297-5913	2007-04-113	24	DIBBS
5945-01-297-5913	2007-04-113	43	DIBBS
5945-01-297-5913	2007-04-113	50	DIBBS
5945-01-297-5913	2007-04-110	6	DIBBS
5945-01-297-5913	2007-04-110	24	DIBBS
5945-01-297-5913	2007-04-110	43	DIBBS
5945-01-297-5913	2007-04-110	50	DIBBS
5945-01-297-5913	2007-04-109	50	DIBBS
5945-01-297-5913	2007-04-102	6	DIBBS
5945-01-297-5913	2007-04-96	24	DIBBS
5945-01-297-5913	2007-03-74	33	DIBBS
5945-01-297-5913	2007-03-69	43	DIBBS
5945-01-297-5913	2007-02-53	29	DIBBS
5945-01-297-5913	2007-01-09	1	Canada
5945-01-297-5913	2006-10-278	1000	US

Cross Reference | NSN 5945-01-297-5913

Part Number	Cage Code	Manufacturer
6041H308	15605	EATON CORP OPNS & TECHNICAL CENTER
AN3370-1	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MIL-PRF-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILR6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24171-D2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-297-5913

Compare

Related Products | NSN 5945-01-297-5913

5945-01-297-5990, 5945-01-297-6793, 5945-01-297-6794, 5945-01-297-6976, 5945-01-297-7349

Technical Data | NSN 5945-01-297-5913

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	200.0 AMPERES DC RESISTIVE LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	4 THREADED STUD ALL FUNCTIONS
TIME DELAY	0.025 SECONDS MAXIMUM FIXED OPERATE TIME 0.01 SECONDS MAXIMUM FIXED RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	SHOCK RESISTANT
OVERALL LENGTH	4.500 INCHES MAXIMUM
OVERALL WIDTH	2.000 INCHES MAXIMUM
OVERALL HEIGHT	3.313 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	2 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	IN-LINE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	2.396 INCHES MINIMUM AND 2.416 INCHES MAXIMUM SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.256 INCHES MINIMUM AND 0.276 INCHES MAXIMUM SINGLE MOUNTING FACILITY
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS24171 GOVERNMENT STANDARD
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	29.800 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	21.3 GRAMS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-6106
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24171-D2

Restrictions/Controls & Freight Information | NSN 5945-01-297-5913

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-297-5913

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
