NSN 5945-01-282-6900 MS274001, MS27400-1, MS274005

Product Details | ELECTROMAGNETIC RELAY

5945-01-282-6900 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS274001, MS27400-1, MS274005, MS27400-5, MS274005M, MS27400-5M, MS274005U, MS27400-5U, MS274005X, MS27400-5X, MS274009, MS27400-9, M6106/6-001, M6106/6-001U, M61066001, M61066001U, M83536/15-021M, M8353615021M, MIL-PRF-83536/15, MILPRF8353615, MIL-R-6106/6, MILR61066, MIL-R-83536/15, MILR8353615, FCA4101521M, FCA-410-1521M , K2DA003, K-2DA-003, 72B7950001001, 72B795000-1001, 7916210-00, 917AS8995, 021-001021, 16177542, 1617754-2, 5945-01-282-6900, 01-282-6900, 5945012826900, 021001021, 012826900, 791621000

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 JUL 1988	01-282-6900	32512 ( RELAY, ELECTROMAGNETIC )

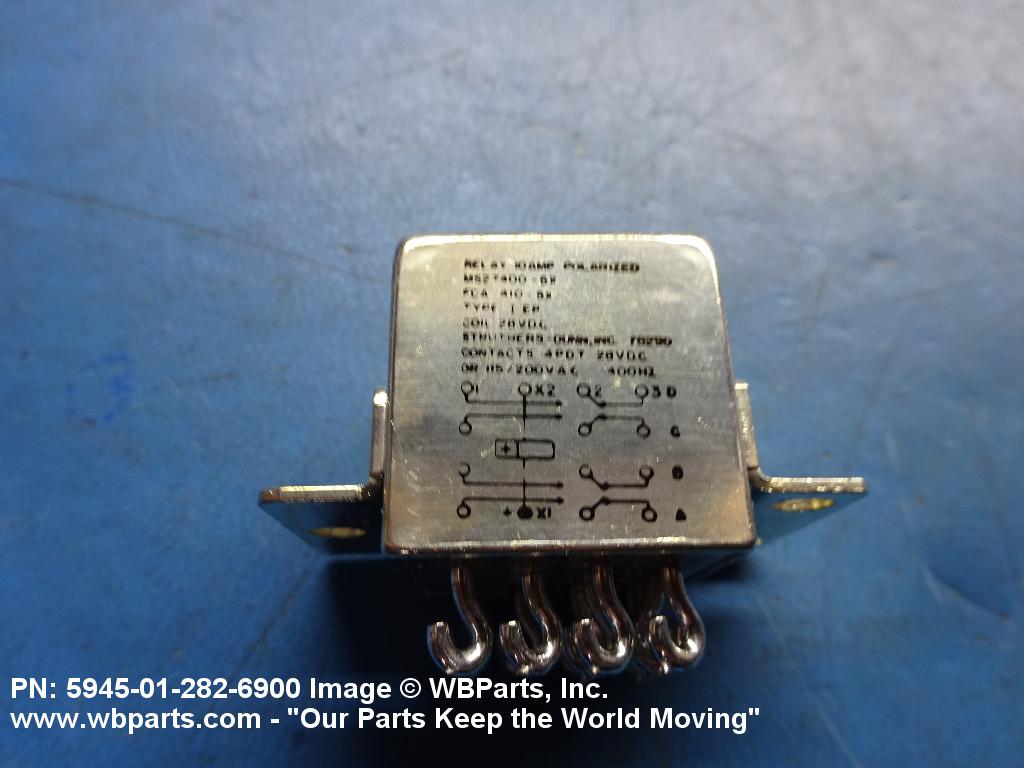

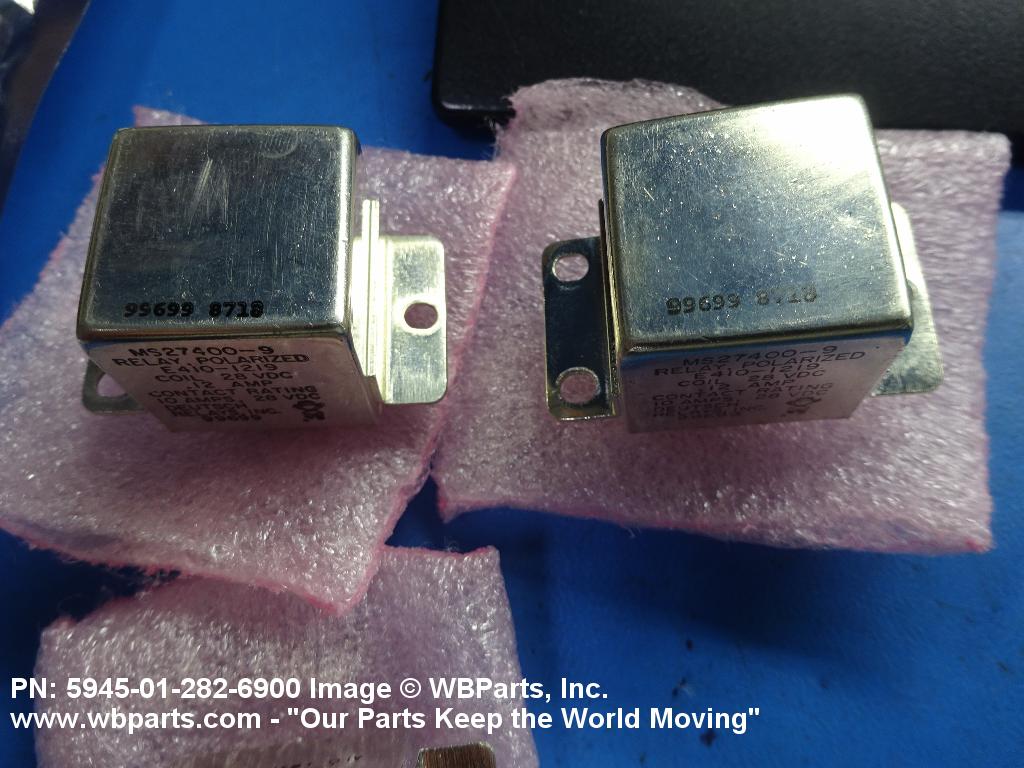

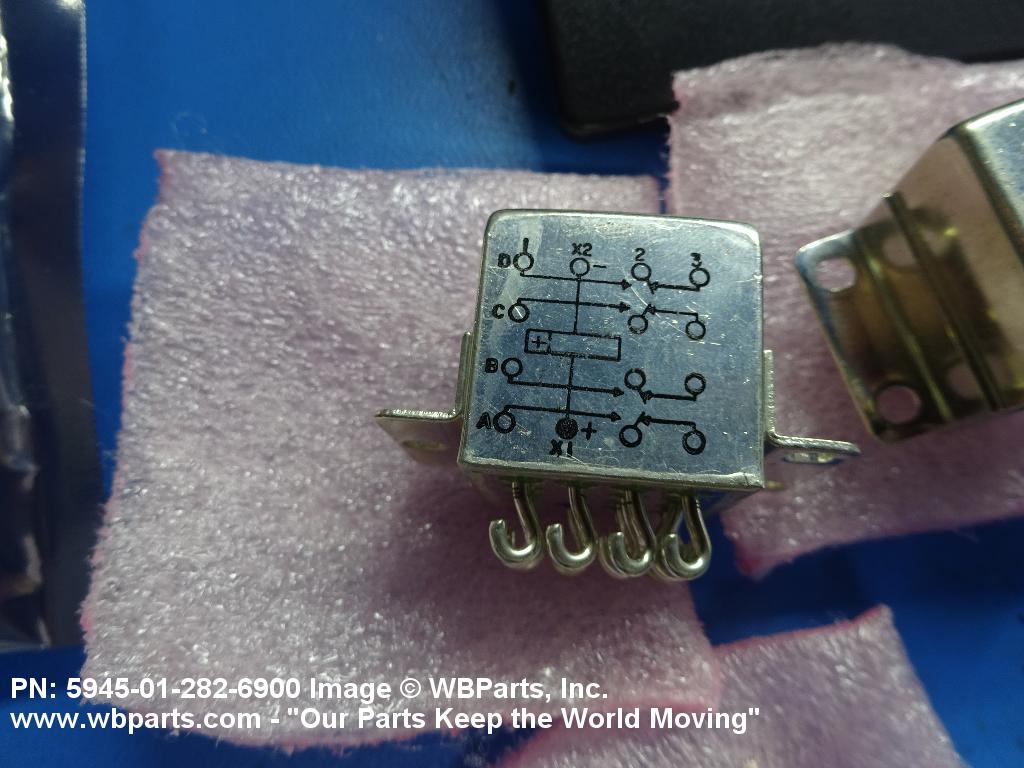

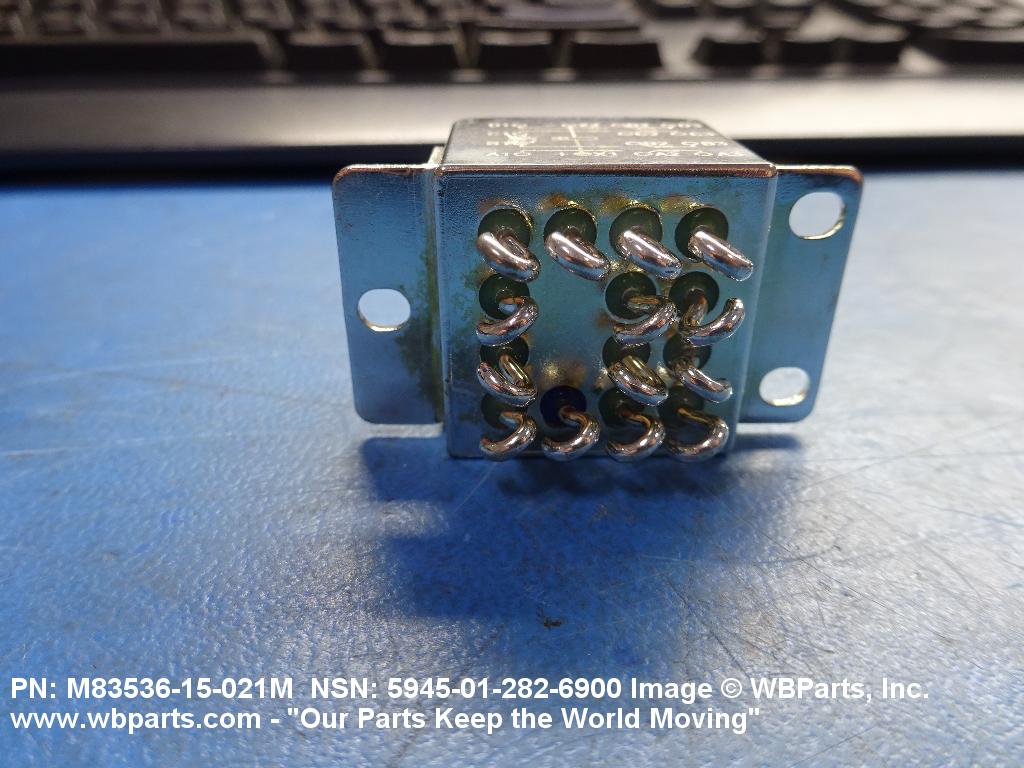

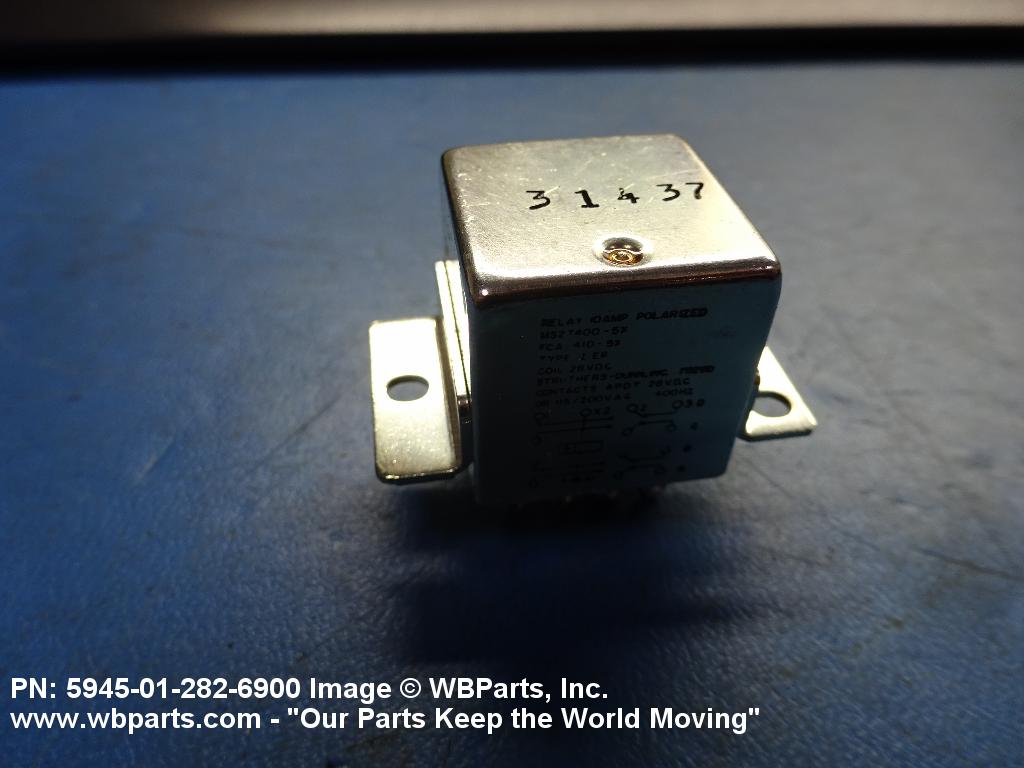

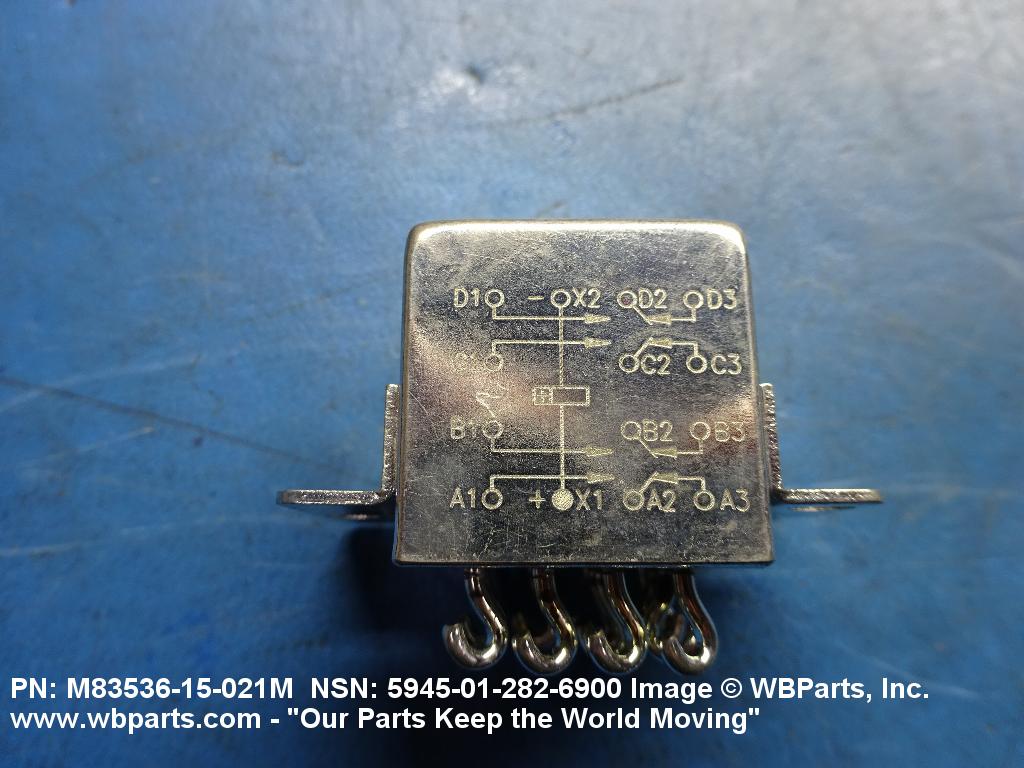

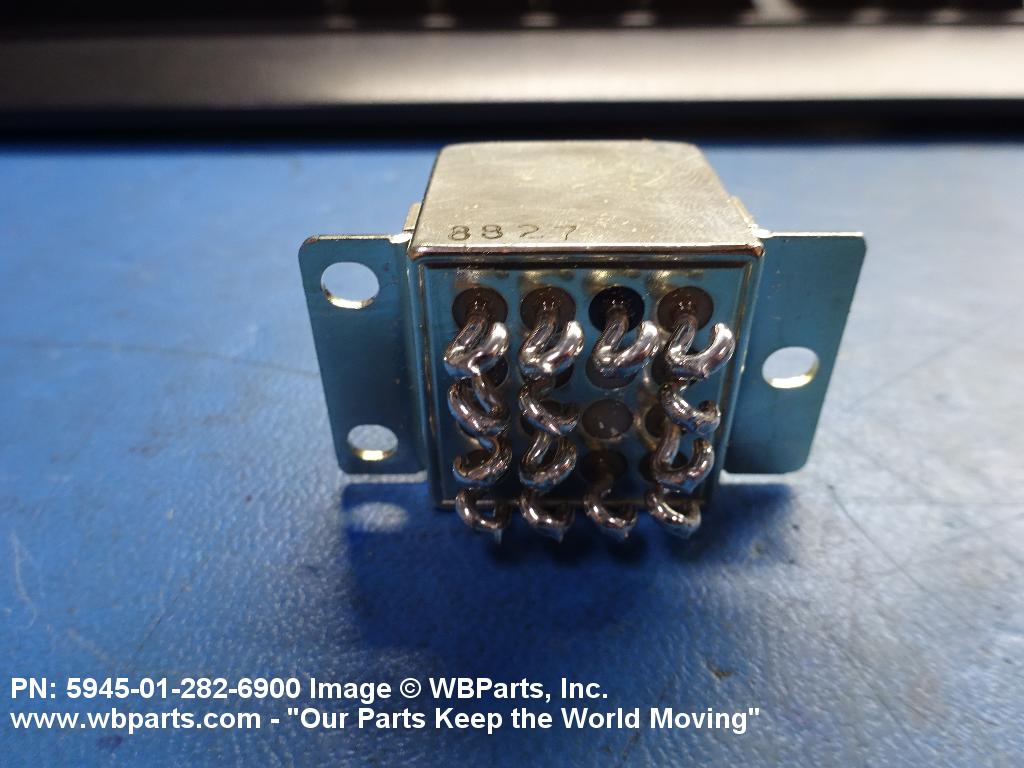

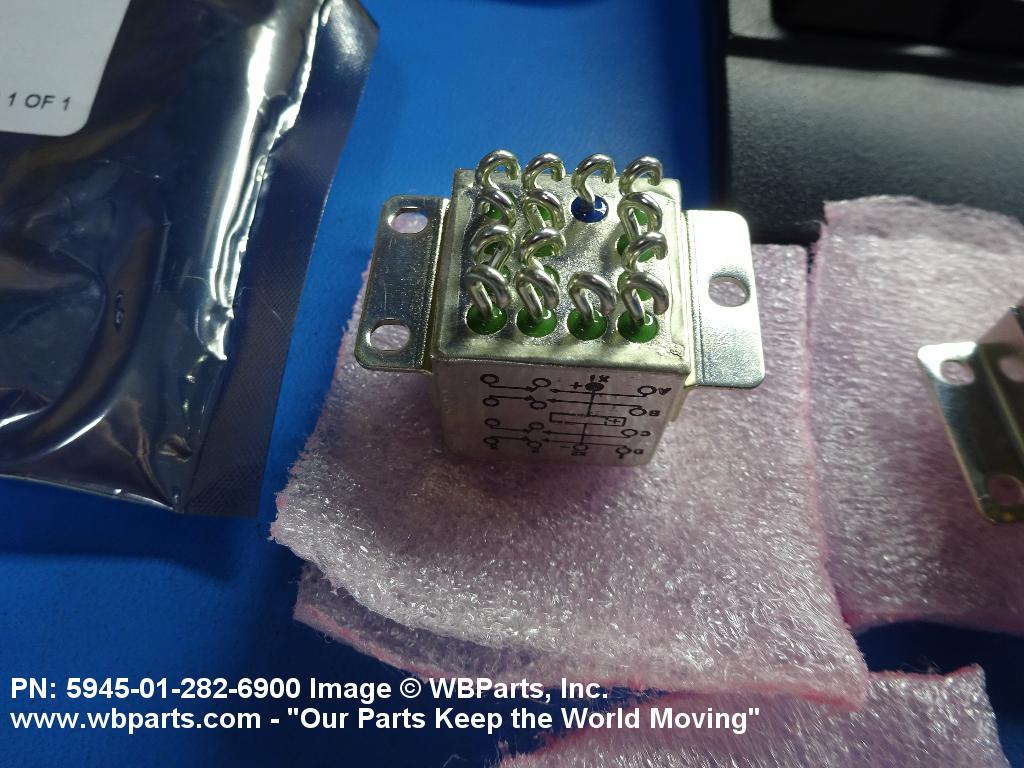

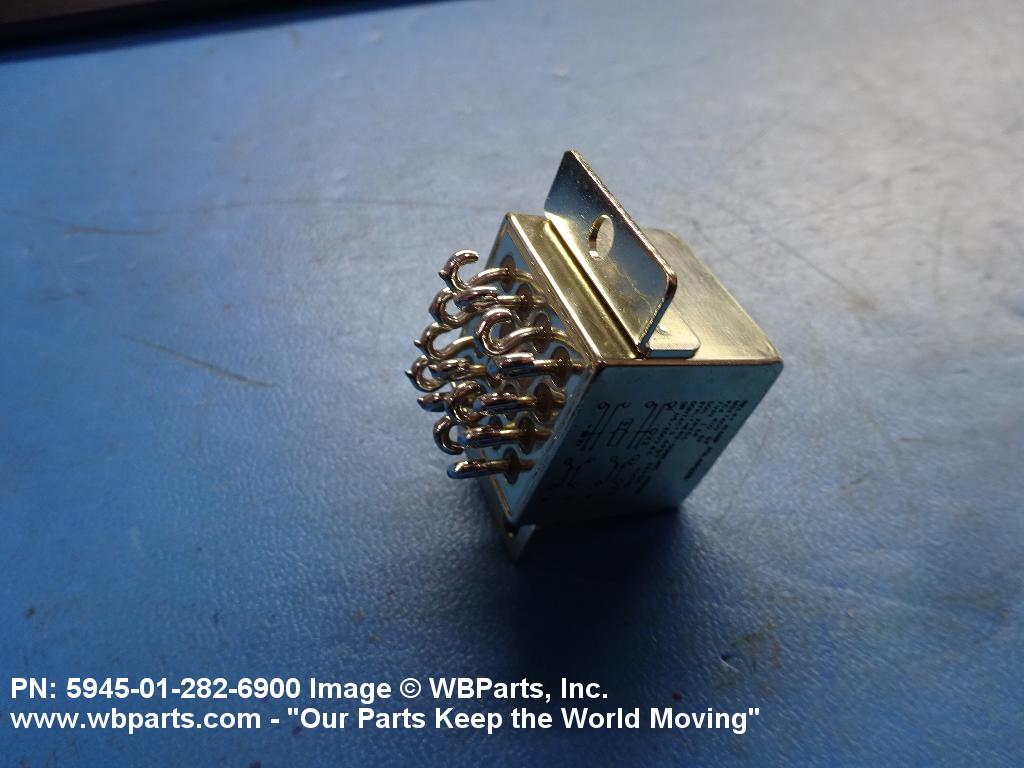

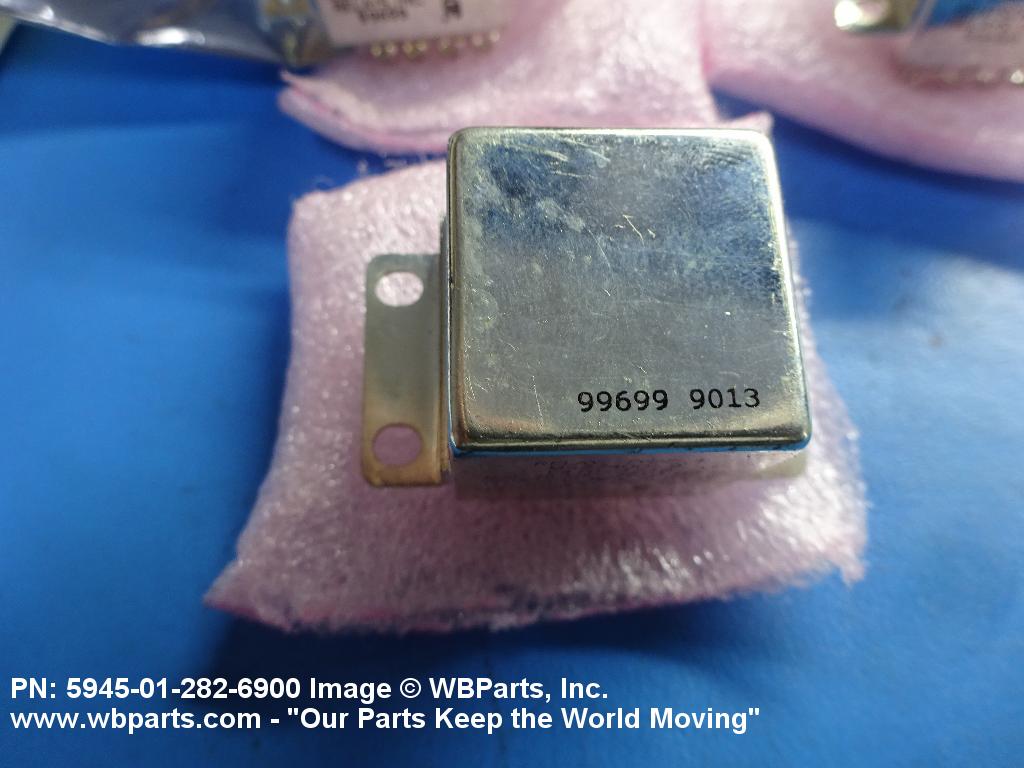

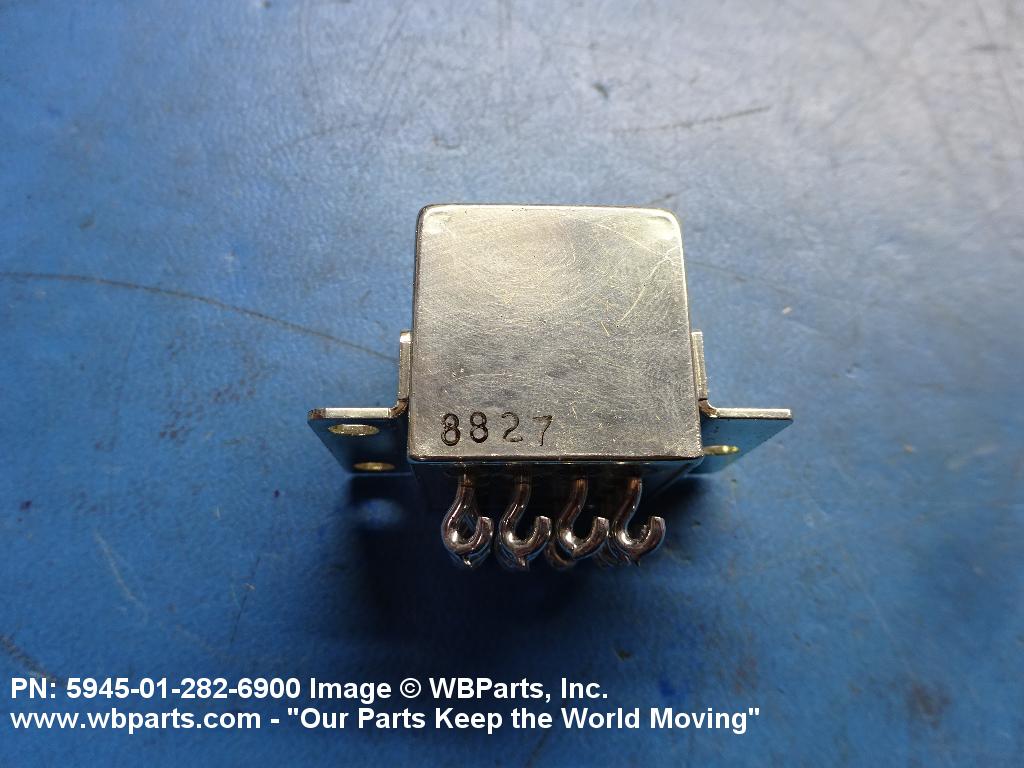

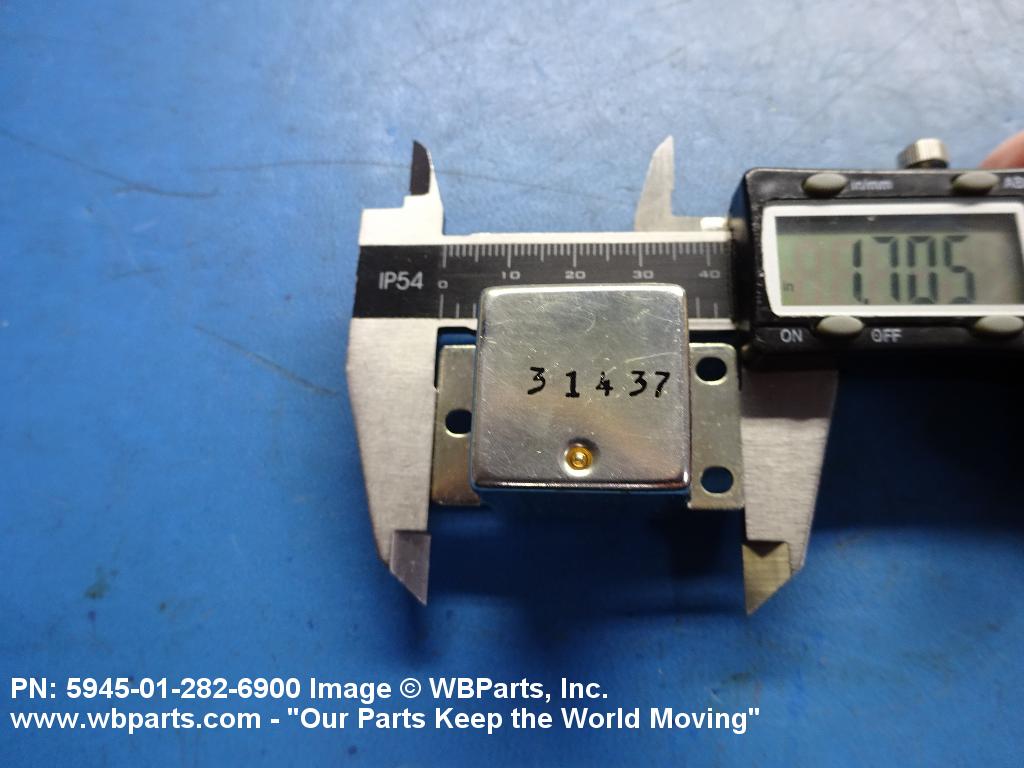

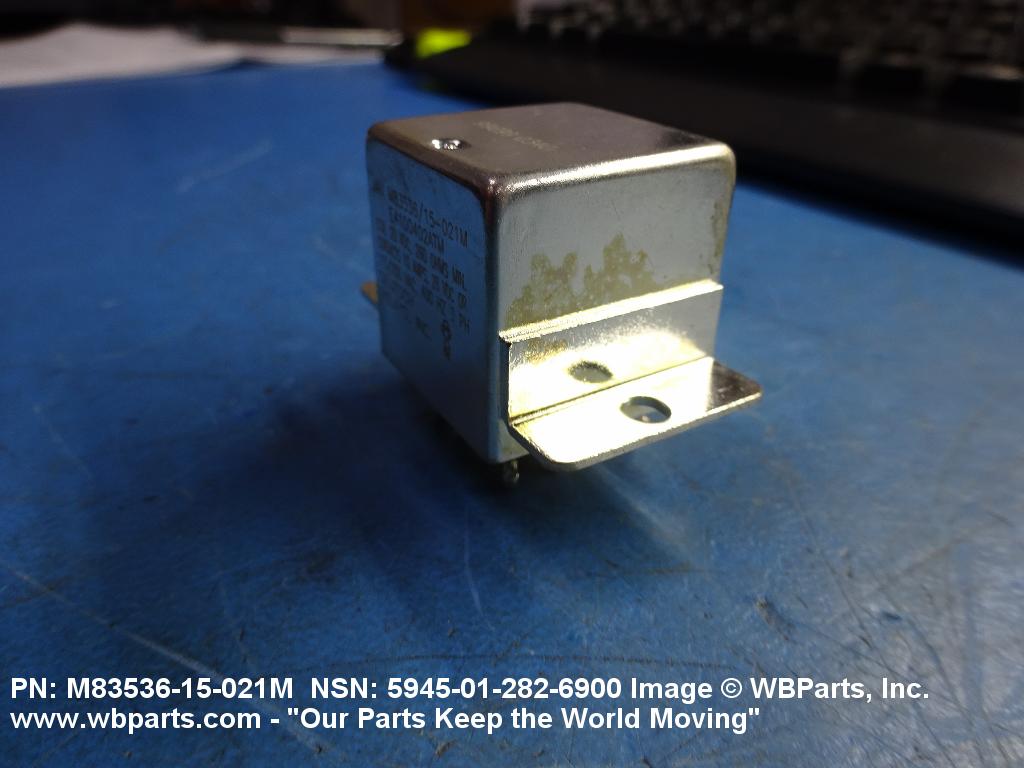

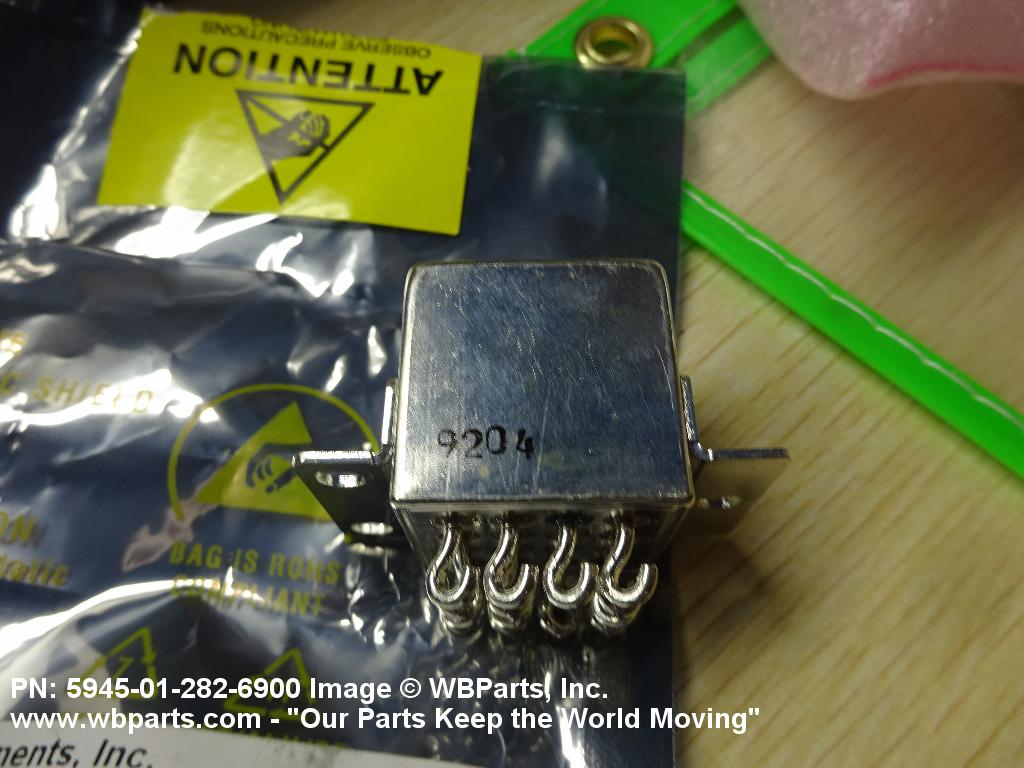

Drawings & Photos | NSN 5945-01-282-6900

Part Number	Request Date	QTY	Origin
MS274009	2024-11-323	1	United States
MS274001	2024-08-227	250	TR
5945-01-282-6900	2023-05-124	578	DIBBS
5945-01-282-6900	2022-12-346	100	DIBBS
5945-01-282-6900	2022-12-338	99	DIBBS
5945-01-282-6900	2022-11-334	100	DIBBS
MS274001	2022-11-314	186	Hong Kong
5945-01-282-6900	2022-09-261	72	DIBBS
5945-01-282-6900	2022-08-238	200	DE
16177542	2022-08-234	200	US
5945-01-282-6900	2022-06-167	80	DIBBS
5945-01-282-6900	2022-06-165	10	United States
5945-01-282-6900	2021-06-174	422	DIBBS
MS274009	2021-06-165	1	PH
M8353615021M	2021-02-56	3	United States
MS274001	2020-06-170	2	PH
5945-01-282-6900	2020-06-167	128	DIBBS
5945-01-282-6900	2020-05-152	128	DIBBS
5945-01-282-6900	2019-01-07	230	DIBBS
5945-01-282-6900	2018-12-337	222	DIBBS
5945-01-282-6900	2017-06-159	67	DIBBS
5945-01-282-6900	2017-05-145	352	DIBBS
5945-01-282-6900	2015-11-312	1	DIBBS
5945-01-282-6900	2015-10-300	1	DIBBS
5945-01-282-6900	2015-07-187	1	DIBBS
5945-01-282-6900	2015-07-182	1	DIBBS
5945-01-282-6900	2015-01-22	1	DIBBS
5945-01-282-6900	2014-12-353	1	DIBBS
5945-01-282-6900	2014-12-349	5	DIBBS
5945-01-282-6900	2014-12-346	1	DIBBS
5945-01-282-6900	2014-12-346	3	DIBBS
5945-01-282-6900	2014-12-337	1	DIBBS
5945-01-282-6900	2014-12-337	1	DIBBS
5945-01-282-6900	2014-10-280	2	DIBBS
5945-01-282-6900	2013-07-210	20	South Korea
M8353615021M	2012-09-272	10	Canada
5945-01-282-6900	2012-08-240	350	DIBBS
16177542	2012-04-117	1	US
MS27400-1	2012-02-46	2	Pakistan
5945-01-282-6900	2011-09-256	44	DIBBS
5945-01-282-6900	2011-08-213	73	DIBBS
5945-01-282-6900	2011-07-189	95	DIBBS
5945-01-282-6900	2011-02-40	114	DIBBS
5945-01-282-6900	2011-01-12	90	DIBBS
5945-01-282-6900	2011-01-07	92	DIBBS
5945-01-282-6900	2010-12-354	63	DIBBS
5945-01-282-6900	2010-11-322	97	DIBBS
5945-01-282-6900	2010-09-273	126	DIBBS
5945-01-282-6900	2010-08-229	82	DIBBS
5945-01-282-6900	2010-07-211	44	DIBBS
5945-01-282-6900	2010-07-204	20	US
5945-01-282-6900	2010-04-111	79	DIBBS
MS274009	2009-04-99	5	Canada
5945-01-282-6900	2009-01-02	26	DIBBS
5945-01-282-6900	2008-08-217	5	DIBBS
5945-01-282-6900	2008-07-200	2	DIBBS
5945-01-282-6900	2008-02-54	10	DIBBS
5945-01-282-6900	2008-02-54	20	DIBBS
5945-01-282-6900	2008-02-50	20	DIBBS
5945-01-282-6900	2008-01-16	25	DIBBS

Cross Reference | NSN 5945-01-282-6900

Part Number	Cage Code	Manufacturer
021-001021	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1617754-2	00779	TYCO ELECTRONICS CORPORATION
72B795000-1001	76301	BOEING COMPANY, THE DBA BOEING
7916210-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
917AS8995	30003	NAVAL AIR SYSTEMS COMMAND
FCA-410-1521M	00779	TYCO ELECTRONICS CORPORATION
K-2DA-003	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
M6106/6-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/6-001U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/15-021M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536/15	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/15	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27400-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-5M	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-5U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-5X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-282-6900

Compare

Related Products | NSN 5945-01-282-6900

5945-01-282-7039, 5945-01-282-7092, 5945-01-282-7136, 5945-01-282-7191, 5945-01-282-7201

Technical Data | NSN 5945-01-282-6900

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	280.0 OHMS MINIMUM AND 300.0 OHMS MAXIMUM SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
NOMINAL OPERATING CURRENT RATING AND TYPE	120.0 MILLIAMPERES DC SINGLE WINDING
TERMINAL TYPE AND QUANTITY	10 WIRE HOOK ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.718 INCHES MAXIMUM

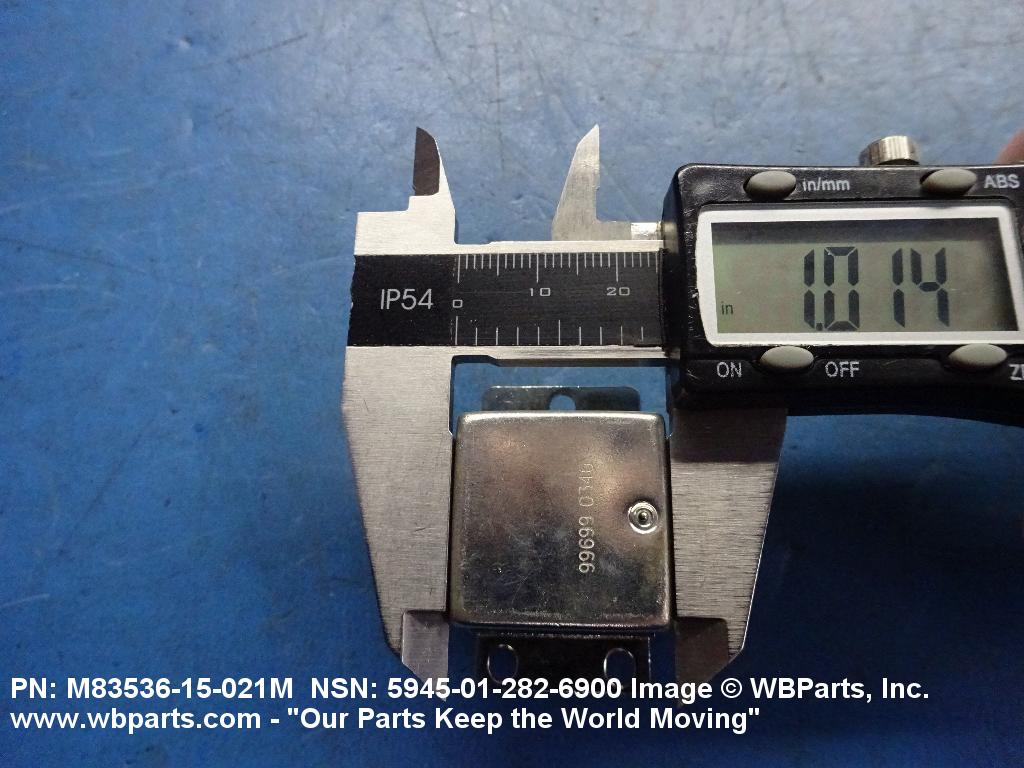

OVERALL WIDTH	1.025 INCHES MAXIMUM
OVERALL HEIGHT	1.320 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	TRIANGLE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE	1.396 INCHES MINIMUM AND 1.446 INCHES MAXIMUM SINGLE MOUNTING FACILITY

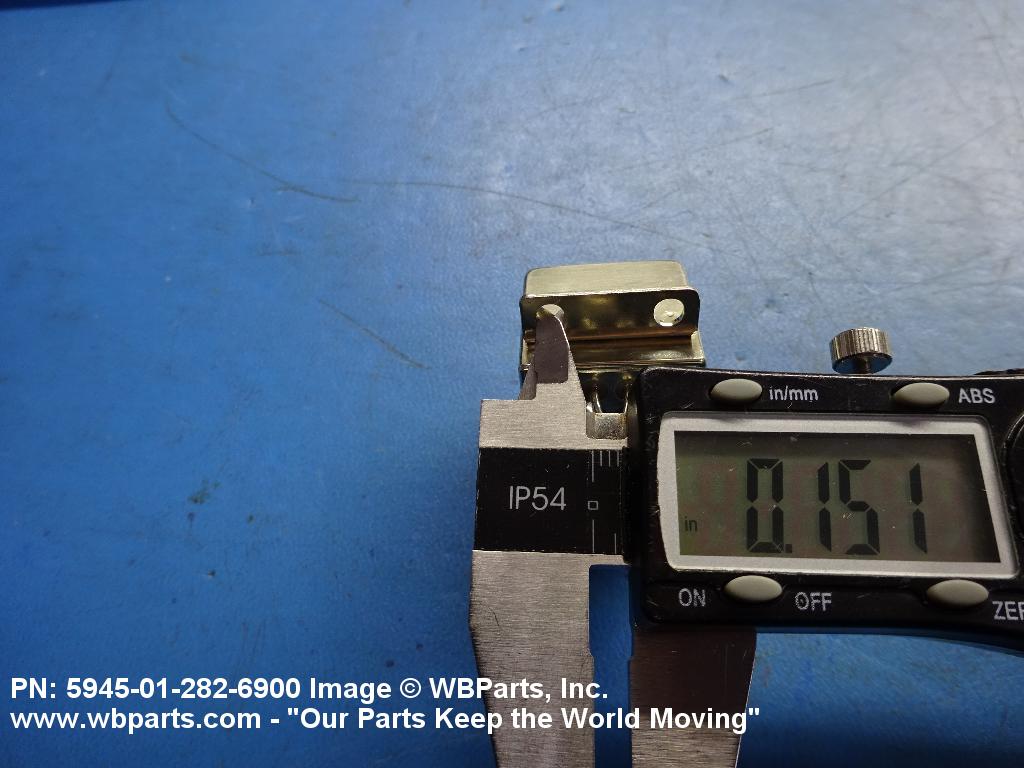

MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
SPECIAL FEATURES	FAILURE RATE 1.0 PERCENT PER 10,000 CYCLES
TEST DATA DOCUMENT	81349-MIL-R-83536 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-83536/15 GOVERNMENT SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536/15
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/15-021M

Restrictions/Controls & Freight Information | NSN 5945-01-282-6900

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-282-6900

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
