NSN 5945-01-277-6060 38613502, 38-613502, 01-277-6060
Product Details | ELECTRICAL SOLENOID
5945-01-277-6060 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 38613502, 38-613502, 5945-01-277-6060, 01-277-6060, 5945012776060, 012776060
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 APR 1988 | 01-277-6060 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-01-277-6060
Demand History | NSN 5945-01-277-6060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 38-613502 | 2024-05-123 | 8 | DIBBS |
| 38-613502 | 2023-03-82 | 4 | DIBBS |
| 38-613502 | 2022-04-100 | 5 | DIBBS |
| 38-613502 | 2022-03-83 | 2 | DIBBS |
| 38-613502 | 2022-02-55 | 1 | DIBBS |
| 38-613502 | 2022-01-30 | 2 | DIBBS |
| 38-613502 | 2021-04-95 | 2 | DIBBS |
| 5945-01-277-6060 | 2016-05-124 | 4 | DIBBS |
| 5945-01-277-6060 | 2012-11-310 | 2 | DIBBS |
| 5945-01-277-6060 | 2012-03-91 | 1 | DIBBS |
| 5945-01-277-6060 | 2006-06-179 | 3 | DIBBS |
| 5945-01-277-6060 | 2006-03-73 | 4 | DIBBS |
| 5945-01-277-6060 | 2005-12-357 | 16 | DIBBS |
| 5945-01-277-6060 | 2005-12-342 | 16 | DIBBS |
Cross Reference | NSN 5945-01-277-6060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 38-613502 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-277-6060
Related Products | NSN 5945-01-277-6060
Technical Data | NSN 5945-01-277-6060
| Characteristic | Specifications |
|---|---|

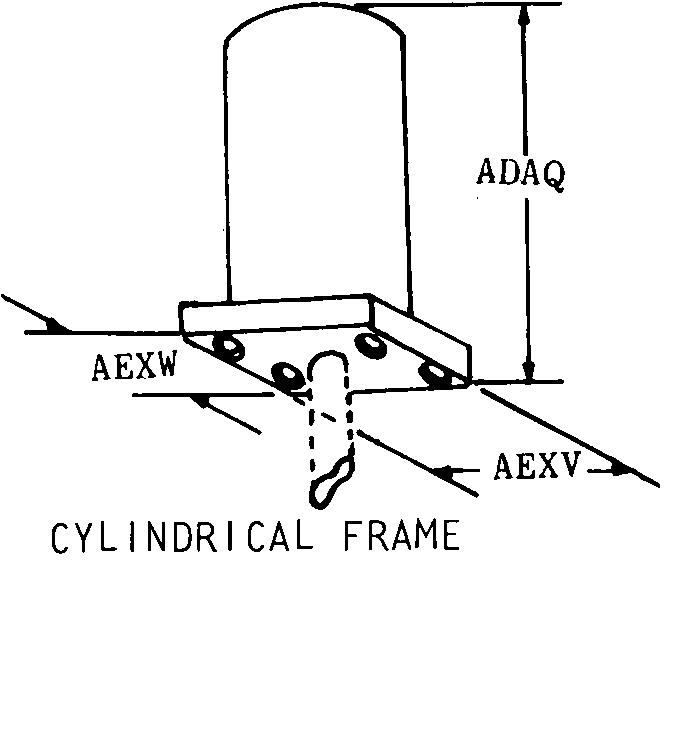

| BODY STYLE | 44 CYLINDRICAL FRAME |
| BODY LENGTH | 2.330 INCHES MINIMUM AND 2.530 INCHES MAXIMUM |
| MOUNTING BASE LENGTH | 1.428 INCHES MINIMUM AND 1.448 INCHES MAXIMUM |
| MOUNTING BASE WIDTH | 1.428 INCHES MINIMUM AND 1.448 INCHES MAXIMUM |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 217.0 DC NOMINAL |
| CURRENT RATING | 130.0 MILLIAMPERES MAXIMUM |
| ELECTRICAL RESISTANCE | 1.84 KILOHMS MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| LINEAR FORCE DELIVERED | 11.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.015 INCHES |
| POWER TAKEOFF CONNECTION TYPE | INTERNAL THREADS |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.020 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.020 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.185 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF POWER TAKEOFF FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.250 INCHES POWER TAKEOFF FACILITY HOLE |
| THREAD CLASS | 2B POWER TAKEOFF FACILITY HOLE |
| THREAD QUANTITY PER INCH | 28 POWER TAKEOFF FACILITY HOLE |
| THREAD DIRECTION | RIGHT-HAND POWER TAKEOFF FACILITY HOLE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | ACTUATOR END |
| INCLOSURE TYPE | FULLY INCLOSED |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III END ITEM IDENTIFICATION | B-1B AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5945-01-277-6060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-277-6060
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
