NSN 5945-01-274-6410 MS277455, MS27745-5, M6106/51-005

Product Details | ELECTROMAGNETIC RELAY

5945-01-274-6410 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS277455, MS27745-5, M6106/51-005, M610651005, M83536/19-008L, M8353619008L, MILPRF83536, MIL-PRF-83536, MIL-R-6106/51, MILR610651, MILR83536, MIL-R-83536, EL4102060, EL410-2060, KLD4N, 14102009, 14102-009, 5945-01-274-6410, 01-274-6410, 5945012746410, 012746410

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 MAR 1988	01-274-6410	32512 ( RELAY, ELECTROMAGNETIC )

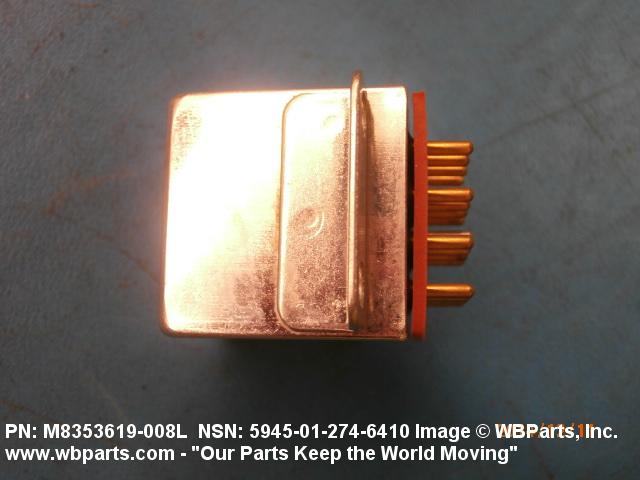

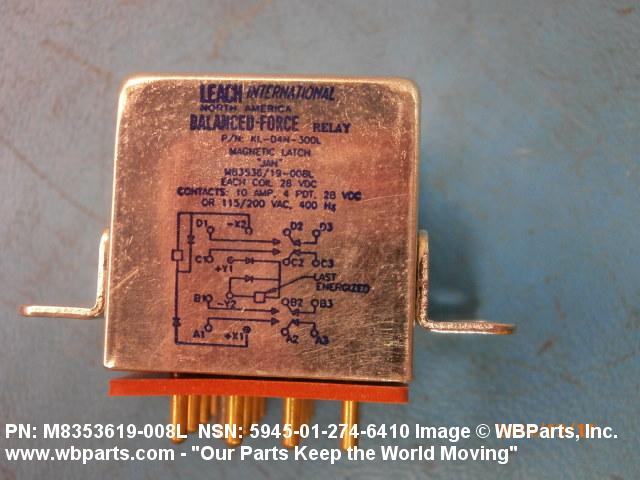

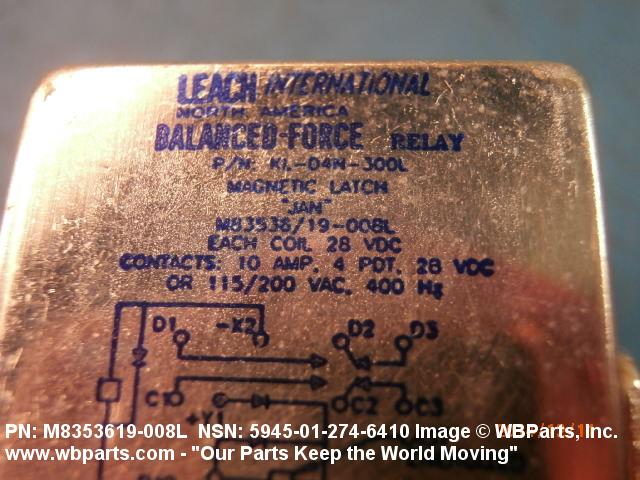

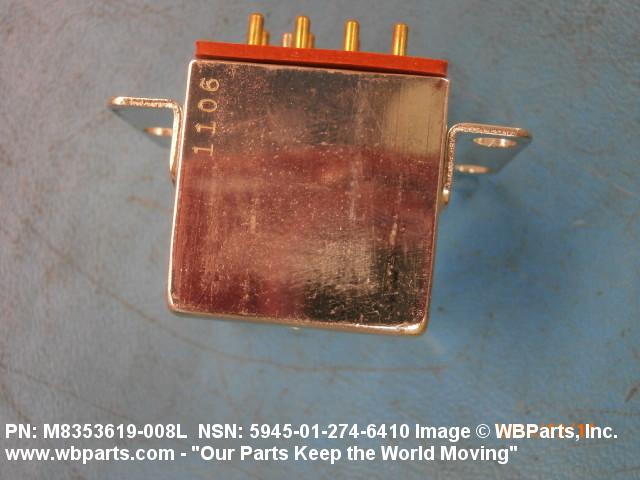

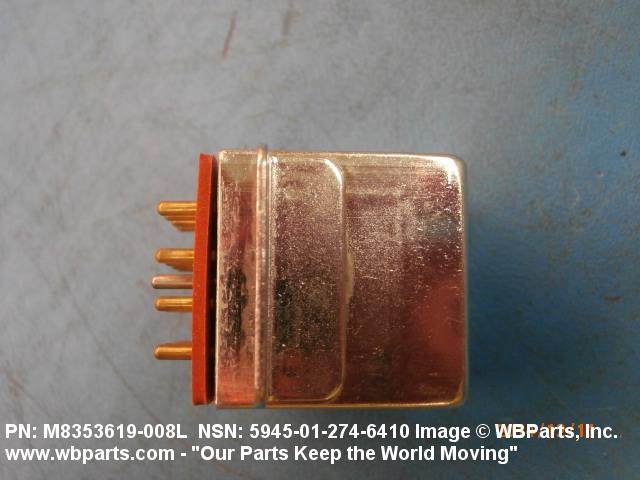

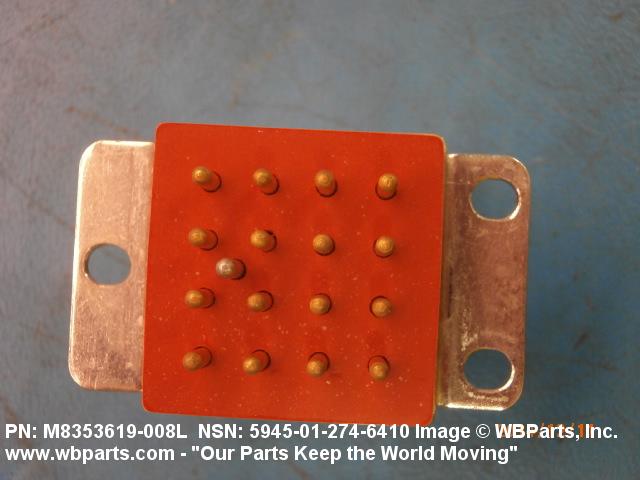

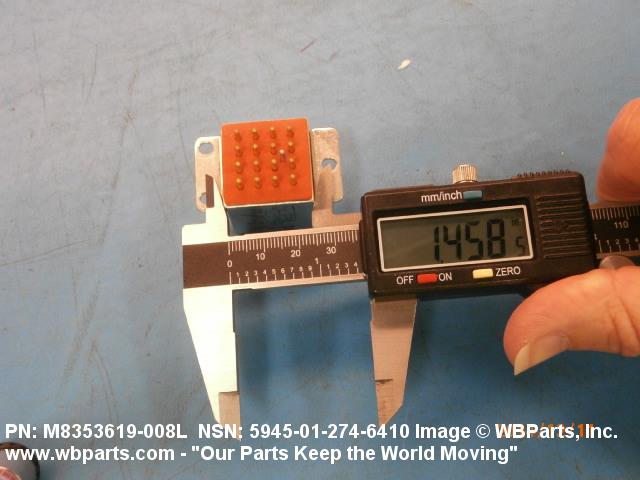

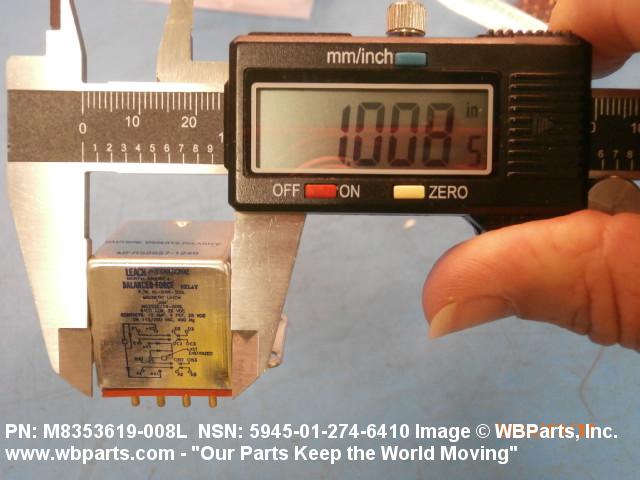

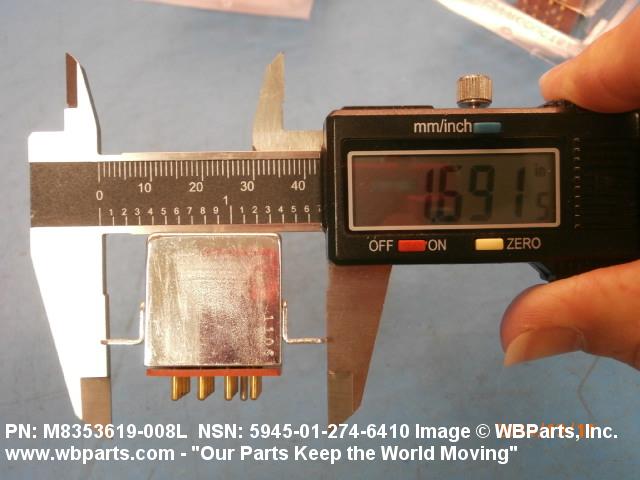

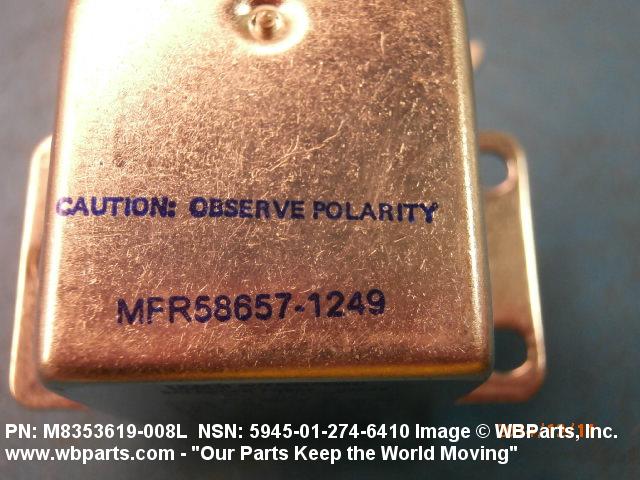

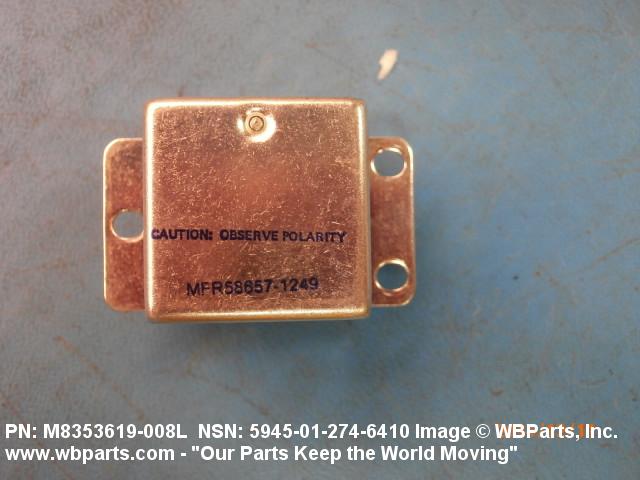

Drawings & Photos | NSN 5945-01-274-6410

Part Number	Request Date	QTY	Origin
5945-01-274-6410	2024-08-229	6	US
5945-01-274-6410	2024-03-67	117	DIBBS
5945-01-274-6410	2023-10-297	1	US
5945-01-274-6410	2023-08-223	25	DIBBS
5945-01-274-6410	2023-05-151	40	Singapore
5945-01-274-6410	2023-04-107	25	DIBBS
5945-01-274-6410	2023-02-32	43	DIBBS
5945-01-274-6410	2023-01-19	43	DIBBS
5945-01-274-6410	2022-11-307	2	MY
5945-01-274-6410	2022-10-299	204	DIBBS
5945-01-274-6410	2022-10-286	204	DIBBS
5945-01-274-6410	2021-11-327	154	DIBBS
KLD4N	2021-10-278	2	United States
5945-01-274-6410	2021-08-224	111	DIBBS
5945-01-274-6410	2021-06-180	297	DIBBS
M8353619008L	2021-03-90	10	US
5945-01-274-6410	2020-06-180	188	DIBBS
5945-01-274-6410	2019-07-182	129	DIBBS
5945-01-274-6410	2019-06-170	129	DIBBS
5945-01-274-6410	2019-05-143	314	DIBBS
5945-01-274-6410	2019-04-94	164	DIBBS
5945-01-274-6410	2018-10-298	93	DIBBS
5945-01-274-6410	2018-04-114	3	United States
5945012746410	2015-01-16	4	PL
M610651005	2014-11-323	4	Ecuador
5945-01-274-6410	2013-07-197	76	DIBBS
5945-01-274-6410	2013-01-22	54	DIBBS
5945-01-274-6410	2012-12-352	141	DIBBS
MS277455	2012-09-247	15	TR
MS27745-5	2012-07-199	15	United States
5945-01-274-6410	2012-05-130	64	DIBBS
5945-01-274-6410	2012-04-94	69	DIBBS
M610651005	2011-06-180	10	US
MS27745-5	2010-12-362	4	TW
MILR83536	2009-10-296	60	US
5945-01-274-6410	2007-03-68	100	DIBBS

Cross Reference | NSN 5945-01-274-6410

Part Number	Cage Code	Manufacturer
14102-009	12763	DYNALEC CORPORATION
EL410-2060	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
KLD4N	58657	LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH
M6106/51-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/19-008L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106/51	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27745-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-274-6410

Compare

Related Products | NSN 5945-01-274-6410

5945-01-274-6411, 5945-01-274-6412, 5945-01-274-6413, 5945-01-274-6461, 5945-01-274-6496

Technical Data | NSN 5945-01-274-6410

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	2
WINDING QUANTITY	2
WINDING DC RESISTANCE RATING	405.0 OHMS NOMINAL ALL WINDINGS
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS ALL WINDINGS
NOMINAL OPERATING CURRENT RATING AND TYPE	75.0 MILLIAMPERES DC ALL WINDINGS
TERMINAL TYPE AND QUANTITY	16 PIN ALL FUNCTIONS
TIME DELAY	0.015 SECONDS MAXIMUM FIXED OPERATE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.718 INCHES MAXIMUM
OVERALL WIDTH	1.025 INCHES MAXIMUM

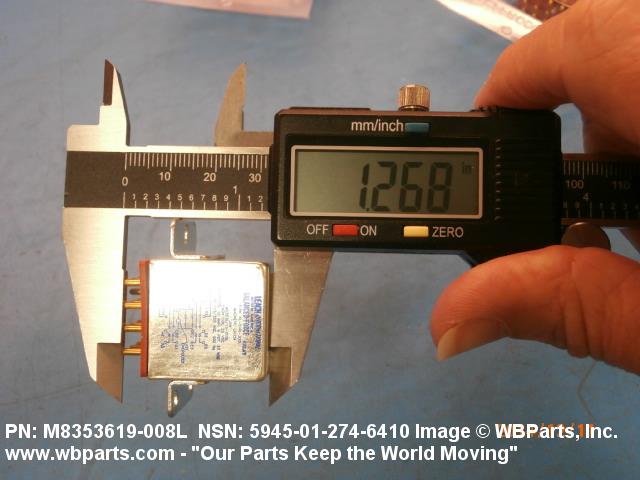

OVERALL HEIGHT	1.290 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	TRIANGLE SINGLE MOUNTING FACILITY

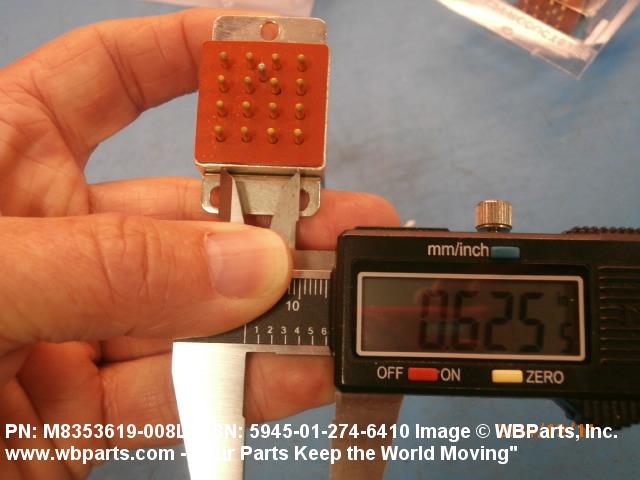

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE	1.396 INCHES MINIMUM AND 1.446 INCHES MAXIMUM SINGLE MOUNTING FACILITY

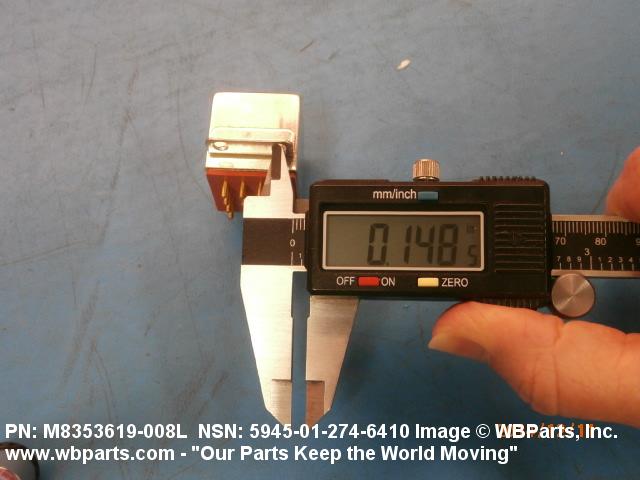

MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
FEATURES PROVIDED	POLARIZED AND LATCHING CONTACTS
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-6106/51 GOVERNMENT SPECIFICATION
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	2.272 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	2.720 OUNCES
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/19-008L

Restrictions/Controls & Freight Information | NSN 5945-01-274-6410

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-274-6410

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
