NSN 5945-01-235-6547 M6106/19-007, M6106/19-012, M6106/19-017
Product Details | ELECTROMAGNETIC RELAY
5945-01-235-6547 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: M6106/19-007, M6106/19-012, M6106/19-017, M6106/19-022, M610619007, M610619012, M610619017, M610619022, MIL-PRF-6106/19, MILPRF610619, MIL-R-6106/19, MILR610619, 5945-01-235-6547, 01-235-6547, 5945012356547, 012356547
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JUL 1986 | 01-235-6547 | 32512 ( RELAY, ELECTROMAGNETIC ) |

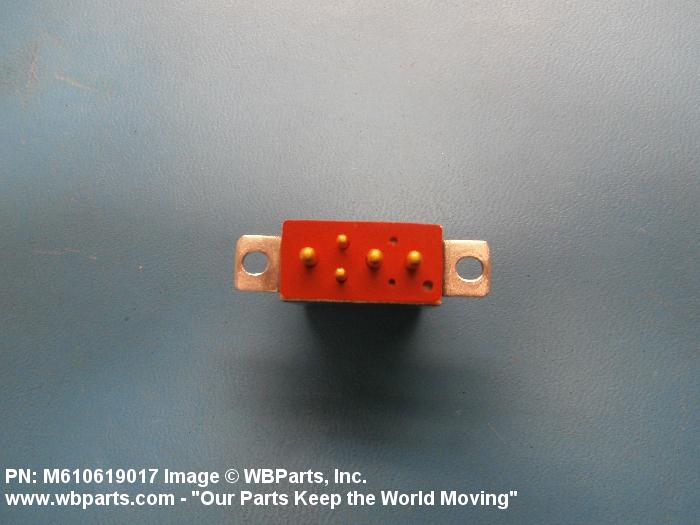

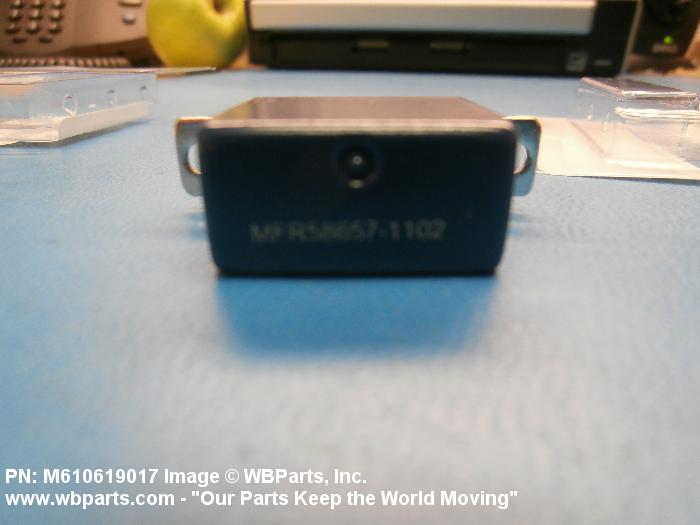

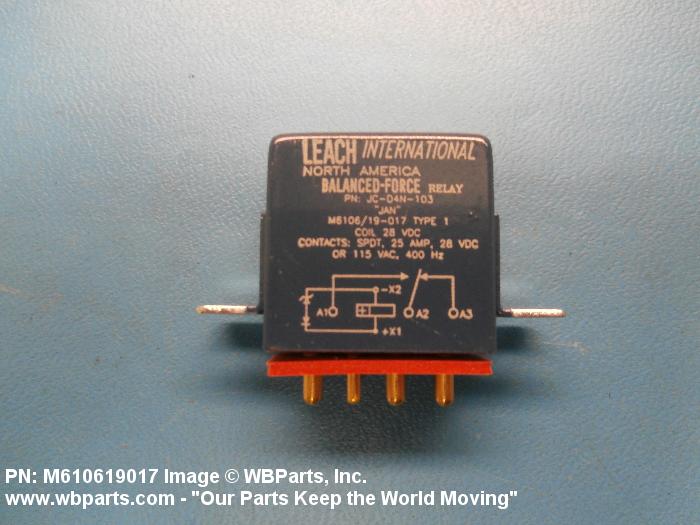

Drawings & Photos | NSN 5945-01-235-6547
Demand History | NSN 5945-01-235-6547
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-235-6547 | 2021-07-206 | 26 | DIBBS |
| 5945-01-235-6547 | 2020-08-217 | 21 | DIBBS |
| 5945-01-235-6547 | 2020-07-201 | 21 | DIBBS |
| 5945-01-235-6547 | 2019-10-276 | 85 | DIBBS |
| M610619012 | 2019-09-247 | 5 | US |
| 5945-01-235-6547 | 2016-01-14 | 103 | DIBBS |
| 5945-01-235-6547 | 2015-11-308 | 58 | DIBBS |
| 5945-01-235-6547 | 2015-09-273 | 53 | DIBBS |
| M6106/19-012 | 2015-08-224 | 1 | |
| M610619017 | 2014-11-323 | 1 | Ecuador |
| 5945-01-235-6547 | 2013-01-31 | 240 | DIBBS |
| 5945-01-235-6547 | 2013-01-22 | 114 | DIBBS |
| 5945-01-235-6547 | 2013-01-16 | 56 | DIBBS |
| M610619022 | 2010-08-214 | 4 | Canada |
| 5945-01-235-6547 | 2010-03-64 | 16 | DIBBS |
| 5945-01-235-6547 | 2010-02-36 | 92 | DIBBS |
| 5945-01-235-6547 | 2009-12-338 | 112 | DIBBS |
| 5945-01-235-6547 | 2008-05-134 | 128 | DIBBS |
| 5945-01-235-6547 | 2008-01-07 | 99 | DIBBS |
| 5945-01-235-6547 | 2007-09-248 | 90 | DIBBS |
| MILPRF610619 | 2007-08-240 | 258 | US |
| 5945-01-235-6547 | 2007-08-218 | 115 | DIBBS |
| 5945-01-235-6547 | 2007-06-176 | 31 | DIBBS |
Cross Reference | NSN 5945-01-235-6547
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M6106/19-007 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M6106/19-012 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M6106/19-017 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M6106/19-022 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-6106/19 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106/19 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-235-6547
Related Products | NSN 5945-01-235-6547
Technical Data | NSN 5945-01-235-6547
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 25.0 AMPERES AC AND 25.0 AMPERES DC RESISTIVE LOAD 12.0 AMPERES AC AND 15.0 AMPERES DC INDUCTIVE LOAD 5.0 AMPERES AC AND 5.0 AMPERES DC LAMP LOAD 10.0 AMPERES AC AND 10.0 AMPERES DC MOTOR LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 320.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE ALL FUNCTIONS |
| TIME DELAY | 0.01 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 1.718 INCHES MAXIMUM |
| OVERALL WIDTH | 0.525 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.670 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOTTED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | IN-LINE SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.446 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-6106/19 GOVERNMENT SPECIFICATION |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III END ITEM IDENTIFICATION | T46A AIRCRAFT |
| (NON-CORE DATA) END ITEM SOURCE | 77751 |
| III CUBIC MEASURE | 1.506 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.090 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-6106/19 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M6106/19-022 |
Restrictions/Controls & Freight Information | NSN 5945-01-235-6547
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
