NSN 5945-01-226-3206 KU4684, 01-226-3206, 012263206
Product Details | ELECTROMAGNETIC RELAY
5945-01-226-3206 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: KU4684, 5945-01-226-3206, 01-226-3206, 5945012263206, 012263206
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 1986 | 01-226-3206 | 32512 ( RELAY, ELECTROMAGNETIC ) |
Drawings & Photos | NSN 5945-01-226-3206
Demand History | NSN 5945-01-226-3206
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-226-3206 | 2023-06-167 | 4 | US |
| KU4684 | 2019-06-163 | 1 | Germany |
| KU4684 | 2017-12-338 | 1 | Germany |
| 5945-01-226-3206 | 2017-11-332 | 1 | DE |
| KU4684 | 2010-10-281 | 15 | Germany |
Cross Reference | NSN 5945-01-226-3206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KU4684 | 77342 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-226-3206
Technical Data | NSN 5945-01-226-3206
| Characteristic | Specifications |
|---|---|
| PILE-UP MAIN CONTACT FORM ARRANGEMENT | 2C |

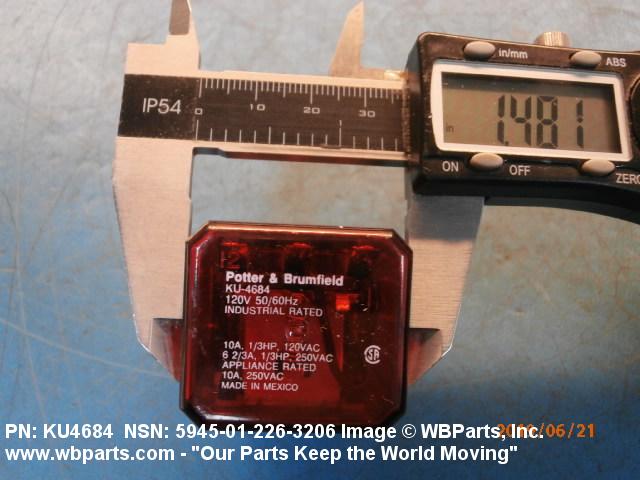

| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES AC RESISTIVE LOAD |
| FREQUENCY IN HERTZ | 50.0 MINIMUM AND 60.0 MAXIMUM |

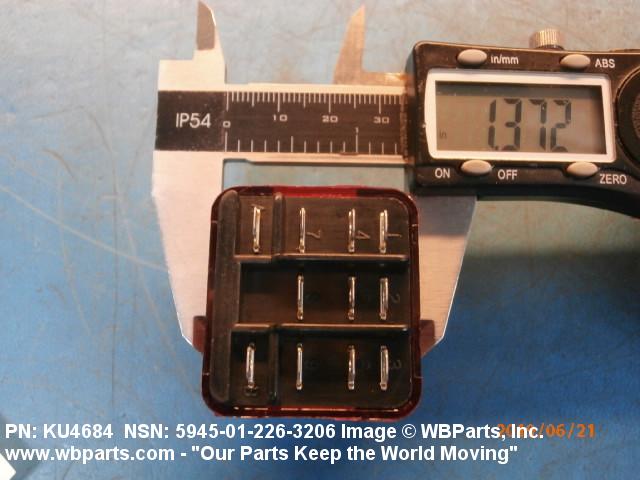

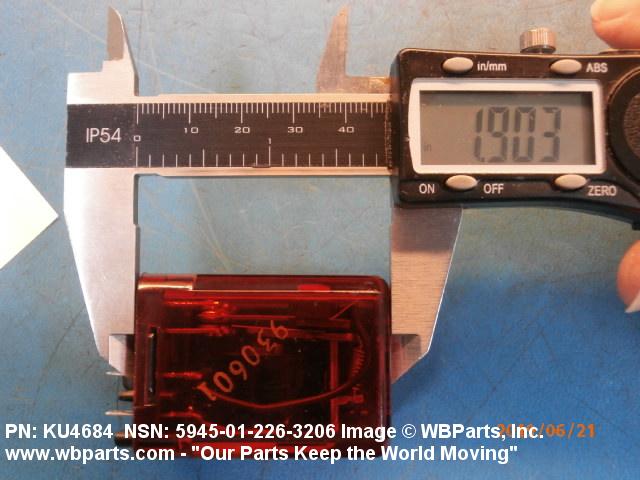

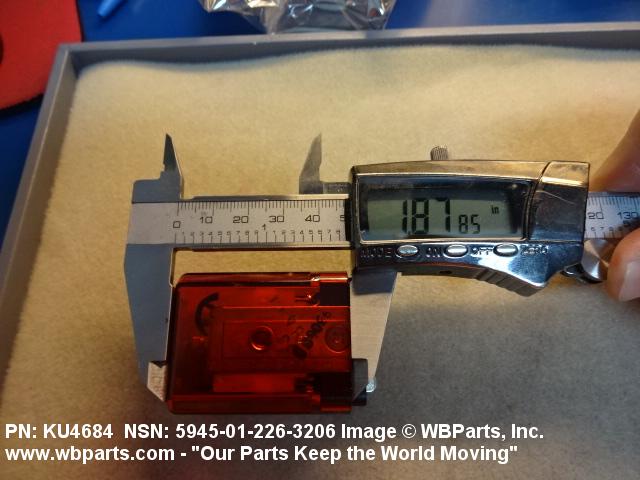

| OVERALL LENGTH | 1.906 INCHES MAXIMUM |

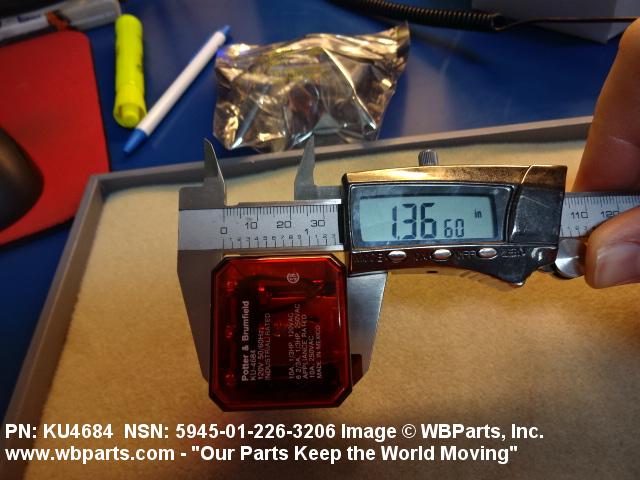

| OVERALL WIDTH | 1.531 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.406 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5945-01-226-3206
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
