NSN 5945-01-225-8872 MS2740017, MS27400-17, MS2740031

Product Details | ELECTROMAGNETIC RELAY

5945-01-225-8872 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MS2740017, MS27400-17, MS2740031, MS27400-31, MS2740031M, MS27400-31M, MS2740031U, MS27400-31U, MS2740031X, MS27400-31X, M83536/16-022M, M8353616022M, MIL-PRF-83536/16, MILPRF8353616, MILR6106, MIL-R-6106, MIL-R-83536/16, MILR8353616, 10129655 , 31503031A002M, 315-03-031-A002M, 5945-01-225-8872, 01-225-8872, 5945012258872, 012258872

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 FEB 1986	01-225-8872	32512 ( RELAY, ELECTROMAGNETIC )

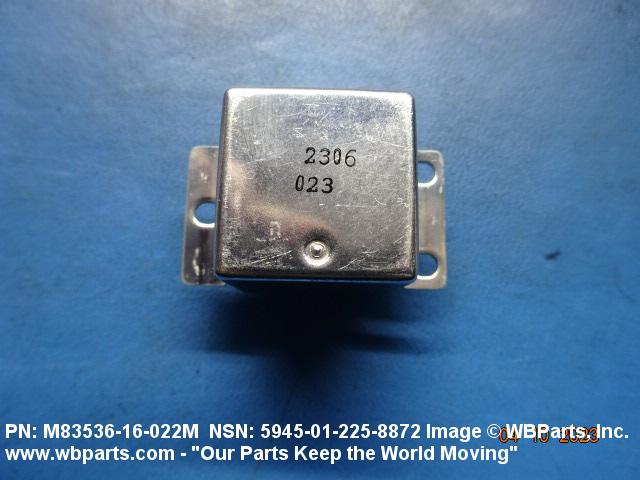

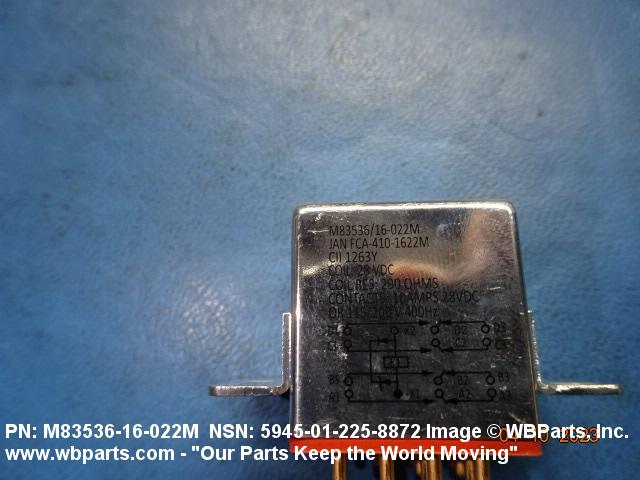

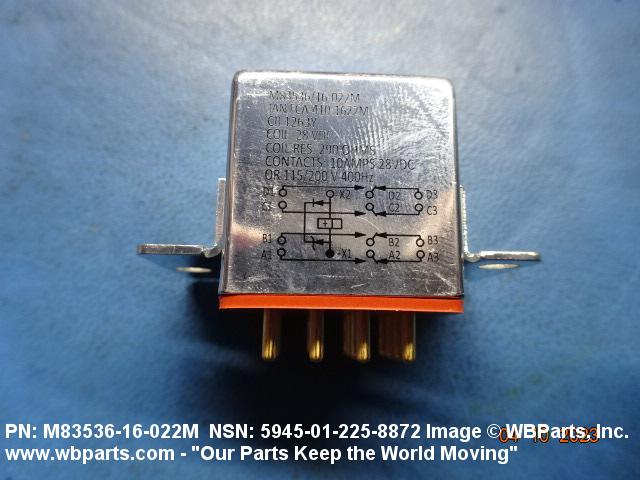

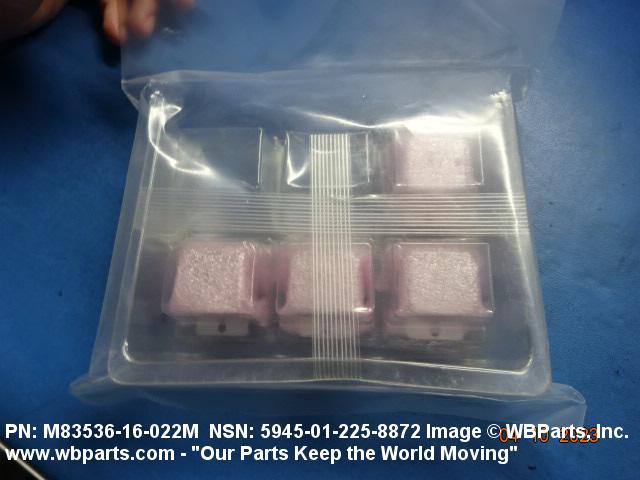

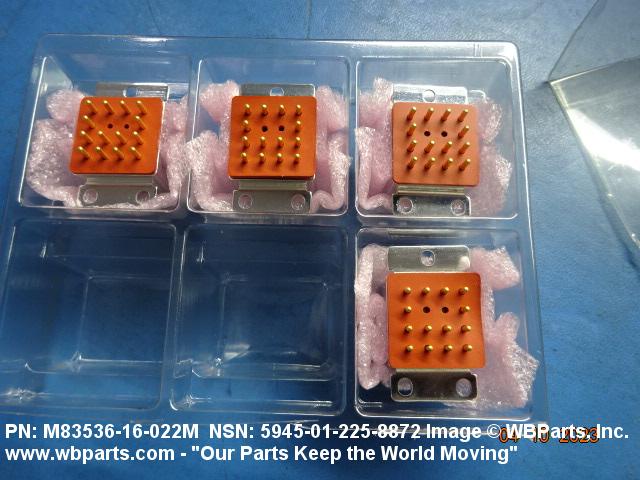

Drawings & Photos | NSN 5945-01-225-8872

Part Number	Request Date	QTY	Origin
5945-01-225-8872	2024-11-309	45	DIBBS
5945-01-225-8872	2024-10-305	112	DIBBS
5945-01-225-8872	2024-10-297	46	United States
M8353616022M	2024-10-297	46	United States
5945-01-225-8872	2024-10-284	10	DIBBS
5945-01-225-8872	2024-10-277	62	DIBBS
5945-01-225-8872	2024-09-248	46	United States
5945-01-225-8872	2024-08-228	306	DIBBS
M8353616022M	2023-12-340	24	United States
5945-01-225-8872	2023-03-89	4	United States
M8353616022M	2023-02-45	72	United States
M8353616022M	2022-07-198	16	KR
M8353616022M	2020-09-274	1	Saudi Arabia
5945-01-225-8872	2020-06-159	594	DIBBS
5945-01-225-8872	2020-02-49	1156	DIBBS
5945-01-225-8872	2020-02-43	1	Philippines
5945-01-225-8872	2020-02-37	1156	DIBBS
5945-01-225-8872	2019-11-325	1	United States
M8353616022M	2019-02-45	40	Canada
5945-01-225-8872	2018-12-338	499	DIBBS
5945-01-225-8872	2018-11-330	1021	DIBBS
5945-01-225-8872	2018-11-318	1021	DIBBS
5945-01-225-8872	2018-07-205	2	Philippines
5945-01-225-8872	2018-07-194	719	DIBBS
5945-01-225-8872	2018-07-183	719	DIBBS
5945-01-225-8872	2018-06-169	697	DIBBS
5945-01-225-8872	2018-06-156	697	DIBBS
5945-01-225-8872	2018-05-129	906	DIBBS
5945-01-225-8872	2018-04-120	300	DIBBS
5945-01-225-8872	2018-04-100	175	DIBBS
5945-01-225-8872	2018-03-70	205	DIBBS
5945-01-225-8872	2018-01-08	481	DIBBS
5945-01-225-8872	2017-12-341	63	DIBBS
5945-01-225-8872	2017-05-141	6	United Arab Emirates
5945-01-225-8872	2016-06-154	428	DIBBS
5945-01-225-8872	2016-03-66	402	DIBBS
5945-01-225-8872	2015-01-16	443	DIBBS
5945-01-225-8872	2014-10-276	526	DIBBS
5945-01-225-8872	2014-07-203	372	DIBBS
MS2740017	2014-04-117	4	BO
MS2740031	2013-11-325	11	US
M8353616022M	2012-05-138	36	United States
5945-01-225-8872	2012-03-76	2	TH
M8353616022M	2011-11-334	4	United Kingdom
5945-01-225-8872	2011-06-169	1	PK
M8353616022M	2010-07-196	10	US
5945-01-225-8872	2009-04-105	99	DIBBS
5945-01-225-8872	2008-11-316	356	DIBBS
5945-01-225-8872	2008-10-301	295	DIBBS
5945-01-225-8872	2008-03-91	256	DIBBS
5945-01-225-8872	2007-12-338	241	DIBBS
5945-01-225-8872	2007-10-292	543	DIBBS
5945-01-225-8872	2007-08-219	134	DIBBS
5945-01-225-8872	2007-06-157	453	DIBBS
5945-01-225-8872	2007-04-102	390	DIBBS
5945-01-225-8872	2007-03-71	99	DIBBS

Cross Reference | NSN 5945-01-225-8872

Part Number	Cage Code	Manufacturer
315-03-031-A002M	58475	WESTWOOD CORPORATION DBA NMP DIVISION
M83536/16-022M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27400-17	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-31M	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-31U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27400-31X	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27400-31X	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-225-8872

Compare

Related Products | NSN 5945-01-225-8872

5945-01-225-8873, 5945-01-225-9807, 5945-01-225-9808, 5945-01-225-9809, 5945-01-225-9939

Technical Data | NSN 5945-01-225-8872

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

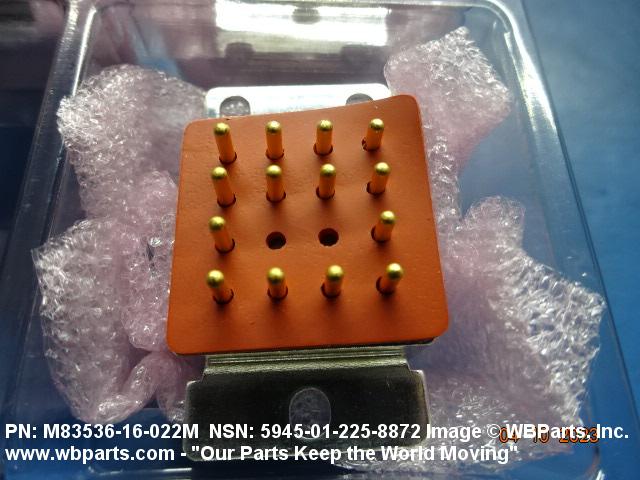

TERMINAL TYPE AND QUANTITY	14 PIN ALL FUNCTIONS
TIME DELAY	0.015 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC
OVERALL LENGTH	1.718 INCHES MAXIMUM
OVERALL WIDTH	1.025 INCHES MAXIMUM
OVERALL HEIGHT	1.320 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	3 SLOTTED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	TRIANGLE SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE	1.446 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING SLOT WIDTH	0.150 INCHES NOMINAL SINGLE MOUNTING FACILITY
SPECIAL FEATURES	FAILURE RATE LEVEL 1.O PERCENT
TEST DATA DOCUMENT	81349-MIL-R-83536 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-83536/16 GOVERNMENT SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
III PURPOSE FOR WHICH DESIGNED	GENERAL
III CUBIC MEASURE	2.324 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.170 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	TERMINAL SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536/16
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/16-022M

Restrictions/Controls & Freight Information | NSN 5945-01-225-8872

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-225-8872

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	7	An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
