NSN 5945-01-222-9847 EB70060212, EB700-60212, EB71092102
Product Details | ELECTRICAL SOLENOID
5945-01-222-9847 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: EB70060212, EB700-60212, EB71092102, EB710-92102, 5945-01-222-9847, 01-222-9847, 5945012229847, 012229847
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 DEC 1985 | 01-222-9847 | 00310 ( SOLENOID, ELECTRICAL ) |

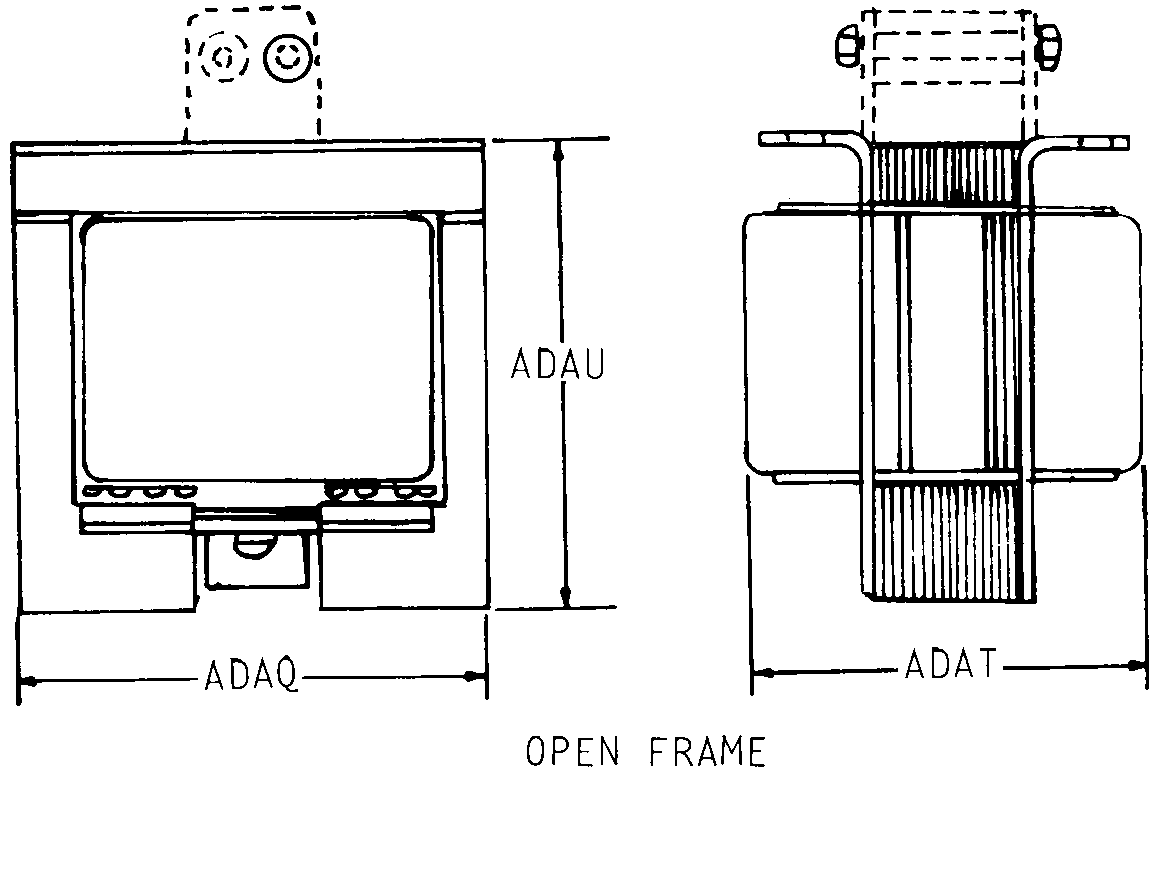

Drawings & Photos | NSN 5945-01-222-9847
Demand History | NSN 5945-01-222-9847
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-222-9847 | 2008-08-242 | 12 | DIBBS |
| 5945-01-222-9847 | 2007-12-338 | 15 | DIBBS |
| 5945-01-222-9847 | 2007-04-117 | 8 | DIBBS |
| 5945-01-222-9847 | 2006-02-44 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-222-9847
Technical Data | NSN 5945-01-222-9847
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 65 OPEN FRAME |
| BODY LENGTH | 4.190 INCHES NOMINAL |
| BODY WIDTH | 3.060 INCHES NOMINAL |
| BODY HEIGHT | 3.840 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 460.0 AC NOMINAL |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 30.50 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 1.000 INCHES |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.440 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.280 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | ONE SIDE |
| INCLOSURE TYPE | UNINCLOSED |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| III FREQUENCY IN HERTZ | 60.0 NOMINAL |
| III CUBIC MEASURE | 49.234 CUBIC INCHES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III END ITEM IDENTIFICATION | POWER CARGO DOOR |
