NSN 5945-01-212-0942 2722984, 6284, 01-212-0942
Product Details | ELECTRICAL SOLENOID
5945-01-212-0942 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: 2722984, 6284, 5945-01-212-0942, 01-212-0942, 5945012120942, 012120942
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JUL 1985 | 01-212-0942 | 00310 ( SOLENOID, ELECTRICAL ) |

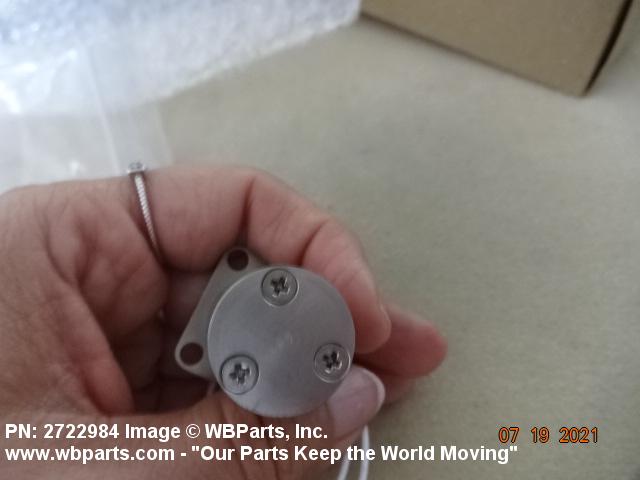

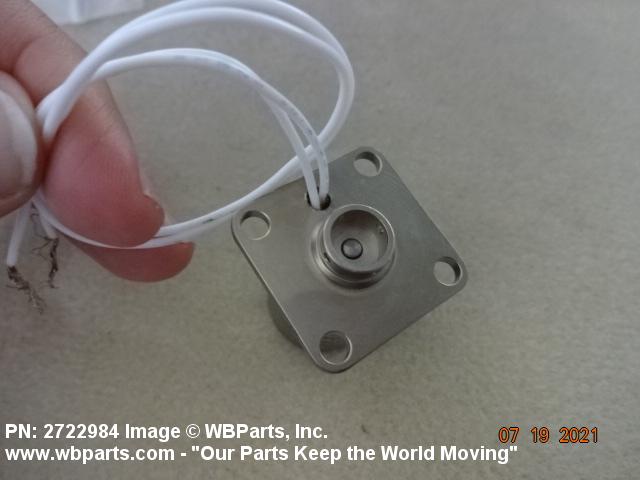

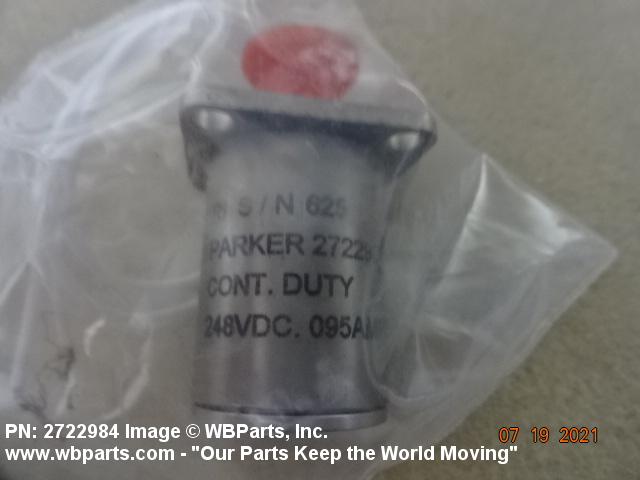

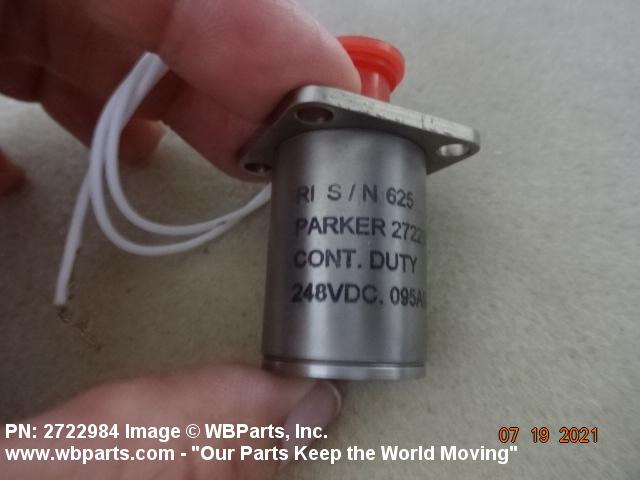

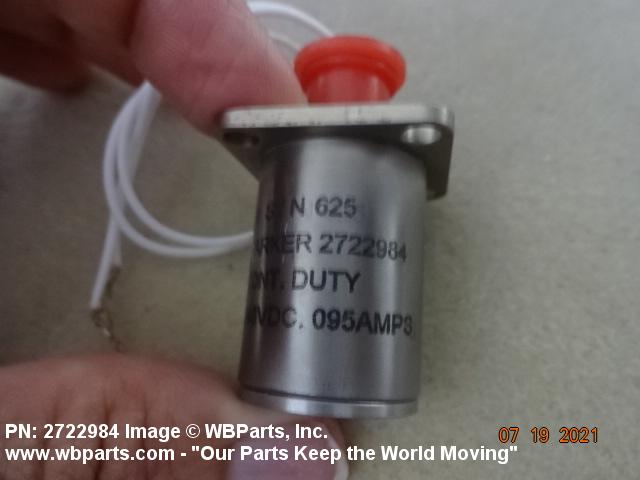

Drawings & Photos | NSN 5945-01-212-0942
Demand History | NSN 5945-01-212-0942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6284 | 2024-05-123 | 3 | DIBBS |
| 6284 | 2023-04-107 | 3 | DIBBS |
| 6284 | 2023-04-96 | 3 | DIBBS |
| 6284 | 2022-07-192 | 4 | DIBBS |
| 6284 | 2022-06-179 | 4 | DIBBS |
| 6284 | 2022-06-163 | 5 | DIBBS |
| 6284 | 2022-05-125 | 1 | DIBBS |
| 6284 | 2022-04-97 | 2 | DIBBS |
| 5945-01-212-0942 | 2021-07-189 | 1 | us |
| 6284 | 2021-04-98 | 1 | DIBBS |
| 6284 | 2021-03-60 | 2 | DIBBS |
| 6284 | 2020-07-210 | 10 | US |
| 6284 | 2013-11-323 | 6 | US |
| 5945-01-212-0942 | 2013-01-22 | 8 | DIBBS |
| 6284 | 2011-02-45 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-212-0942
Technical Data | NSN 5945-01-212-0942
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | B1B |
| MANUFACTURERS CODE | 92003 |
| MFR SOURCE CONTROLLING REFERENCE | 2722984 |
Restrictions/Controls & Freight Information | NSN 5945-01-212-0942
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-212-0942
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
