NSN 5945-01-211-9809 M6106/29-020U, M610629020U, M83536/22-021M
Product Details | ELECTROMAGNETIC RELAY
5945-01-211-9809 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: M6106/29-020U, M610629020U, M83536/22-021M, M8353622021M, MIL-PRF-83536/22, MILPRF8353622, MIL-R-6106/29, MILR610629, MIL-R-83536/22, MILR8353622, 5945-01-211-9809, 01-211-9809, 5945012119809, 012119809
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JUL 1985 | 01-211-9809 | 32512 ( RELAY, ELECTROMAGNETIC ) |

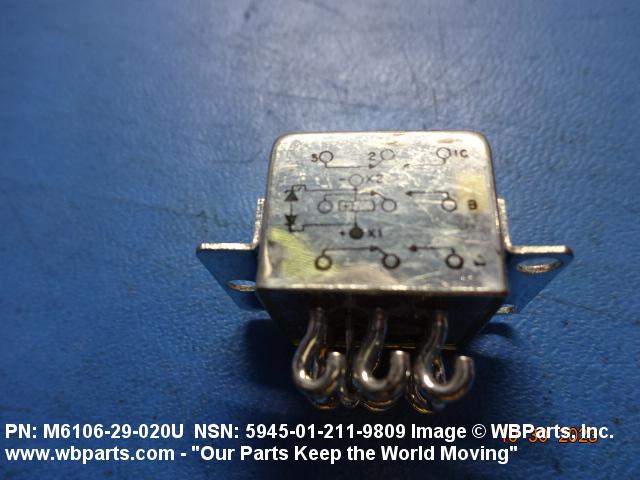

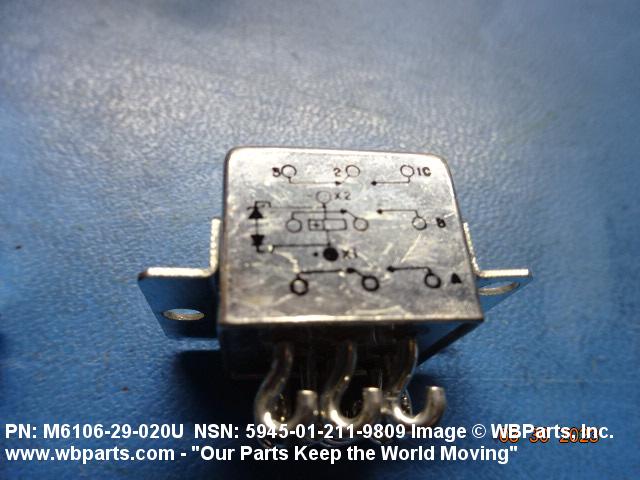

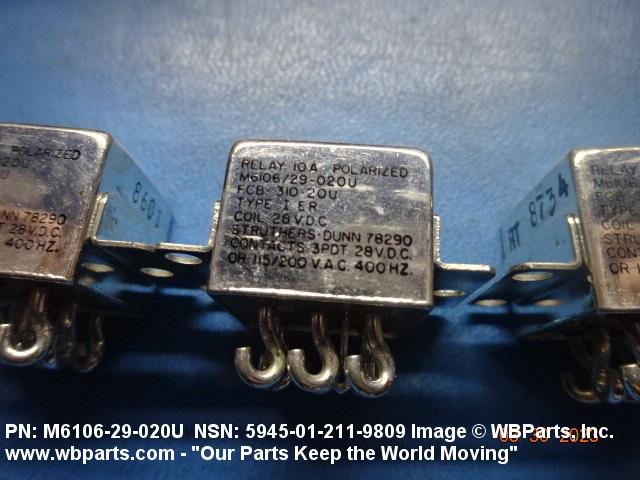

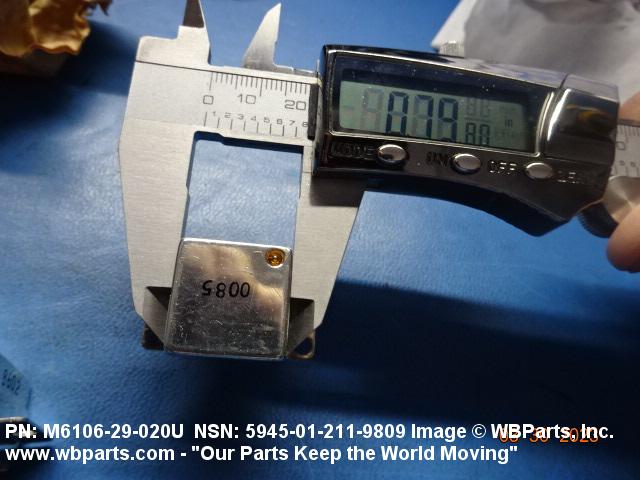

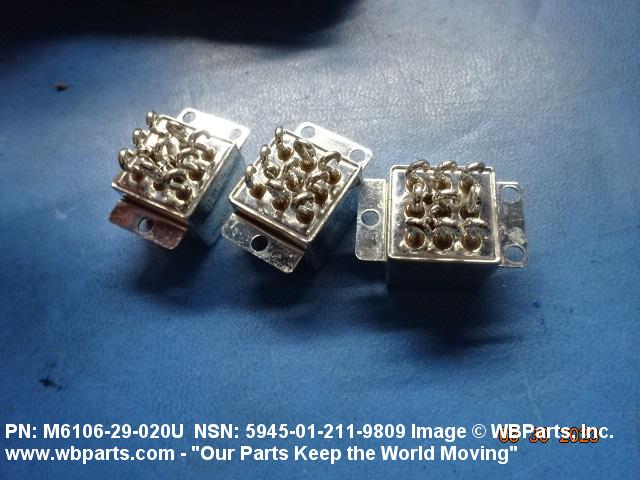

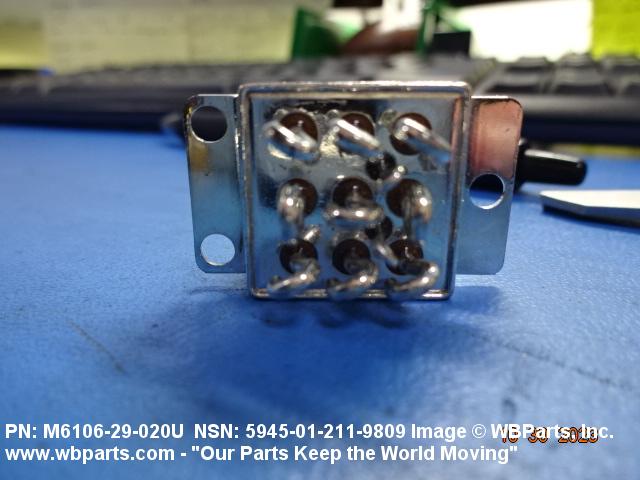

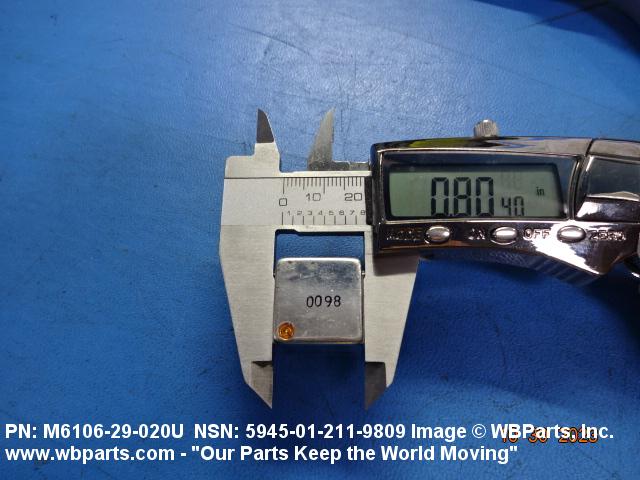

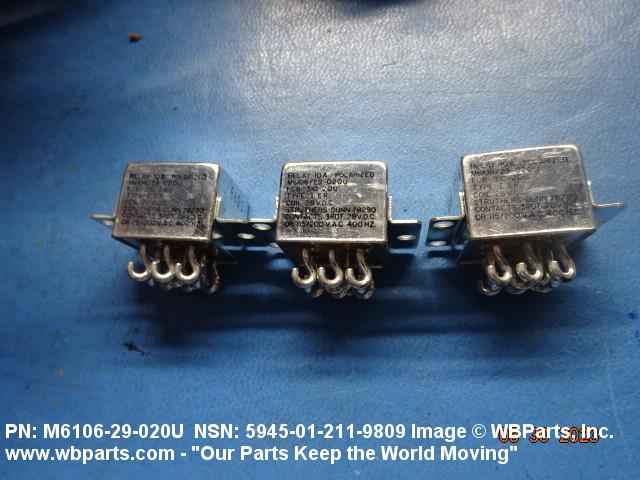

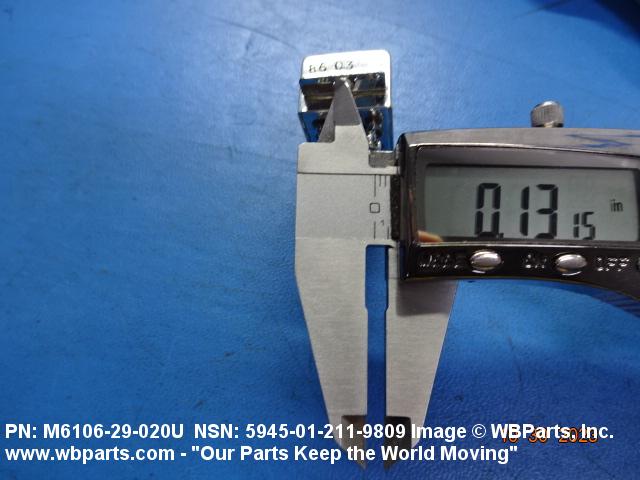

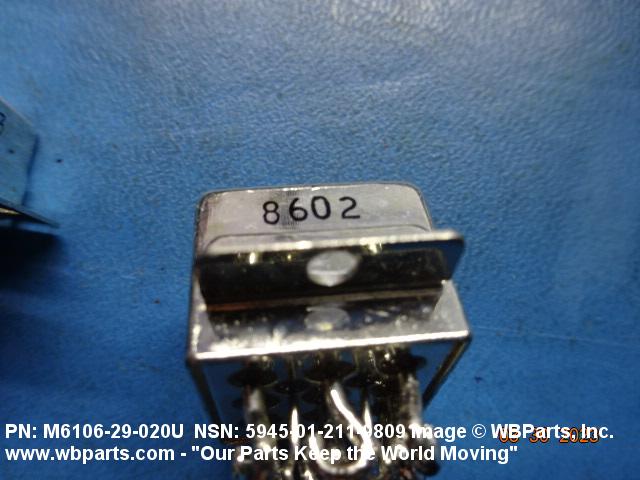

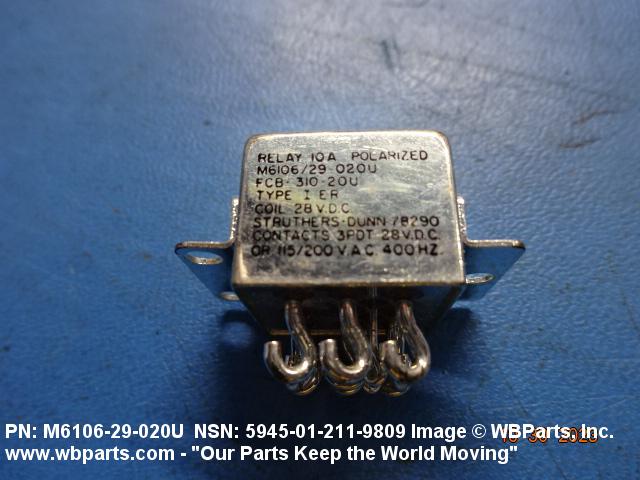

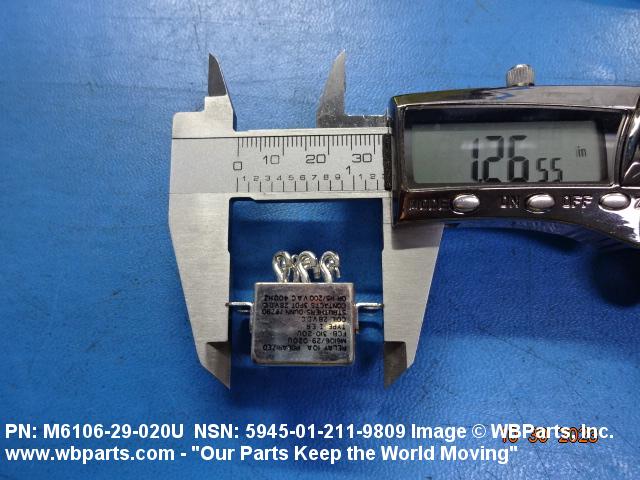

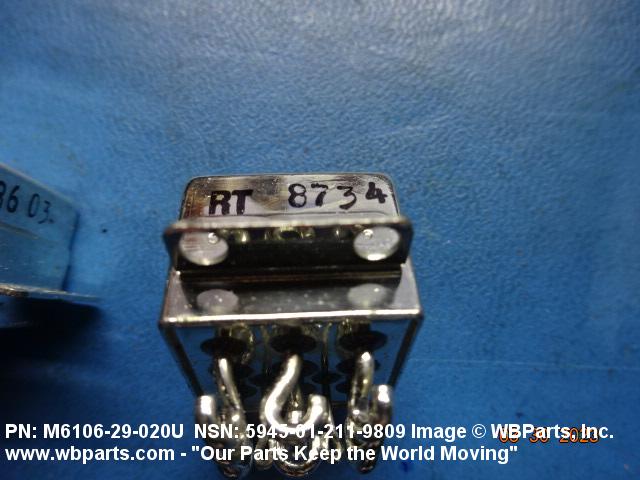

Drawings & Photos | NSN 5945-01-211-9809
Demand History | NSN 5945-01-211-9809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR8353622 | 2024-08-235 | 50 | TR |
| 5945-01-211-9809 | 2024-07-200 | 32 | DIBBS |
| 5945-01-211-9809 | 2023-12-348 | 32 | DIBBS |
| 5945-01-211-9809 | 2023-10-299 | 10 | United States |
| 5945-01-211-9809 | 2023-05-131 | 37 | DIBBS |
| 5945-01-211-9809 | 2023-03-83 | 3 | United States |
| 5945-01-211-9809 | 2022-09-255 | 11 | DIBBS |
| M8353622021M | 2022-06-166 | 100 | France |
| 5945-01-211-9809 | 2022-03-76 | 11 | DIBBS |
| 5945-01-211-9809 | 2019-10-276 | 14 | DIBBS |
| 5945-01-211-9809 | 2016-04-119 | 5 | DIBBS |
| 5945-01-211-9809 | 2016-03-63 | 11 | DIBBS |
| 5945-01-211-9809 | 2013-02-42 | 35 | DIBBS |
| M8353622021M | 2011-08-220 | 80 | US |
| 5945-01-211-9809 | 2010-10-279 | 2 | KW |
| 5945-01-211-9809 | 2010-10-275 | 2 | KW |
| 5945-01-211-9809 | 2007-06-172 | 12 | Canada |
Cross Reference | NSN 5945-01-211-9809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M6106/29-020U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83536/22-021M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-83536/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-6106/29 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83536/22 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-211-9809
Related Products | NSN 5945-01-211-9809
Technical Data | NSN 5945-01-211-9809
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 3 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 200.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD 8.0 AMPERES AC AND 8.0 AMPERES DC INDUCTIVE LOAD 2.0 AMPERES AC AND 2.0 AMPERES DC LAMP LOAD 4.0 AMPERES AC AND 4.0 AMPERES DC MOTOR LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 400.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 81.0 MILLIAMPERES DC SINGLE WINDING |

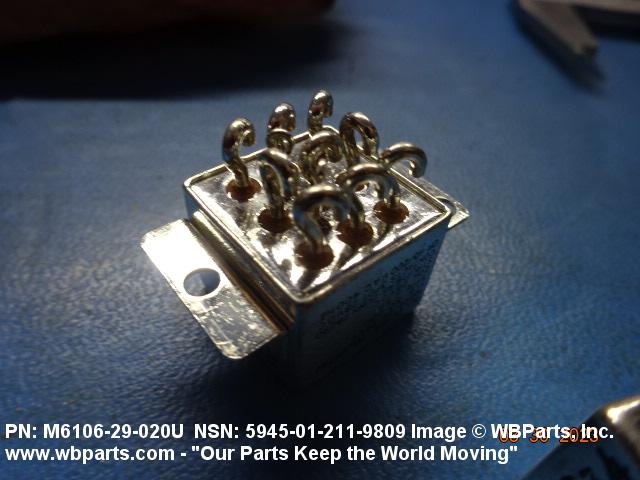

| TERMINAL TYPE AND QUANTITY | 11 WIRE HOOK ALL FUNCTIONS |
| TIME DELAY | 0.006 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

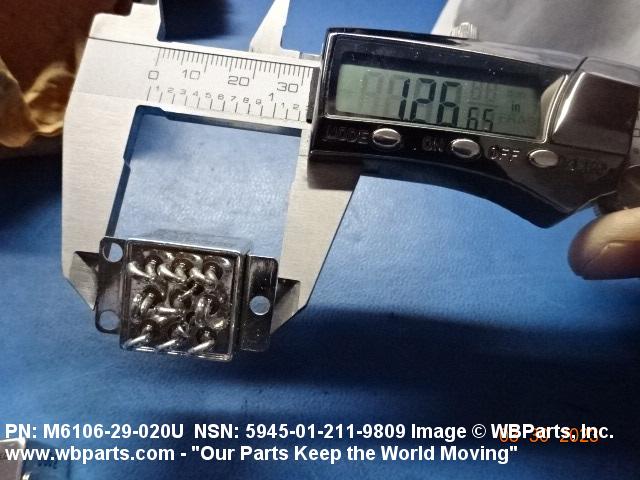

| OVERALL LENGTH | 1.280 INCHES MAXIMUM |

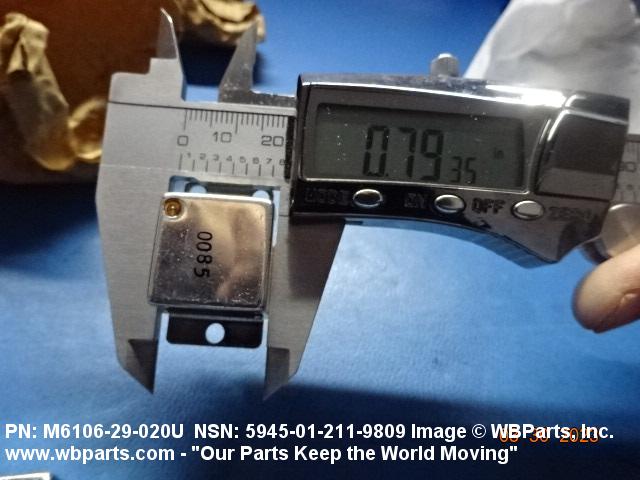

| OVERALL WIDTH | 0.810 INCHES MAXIMUM |

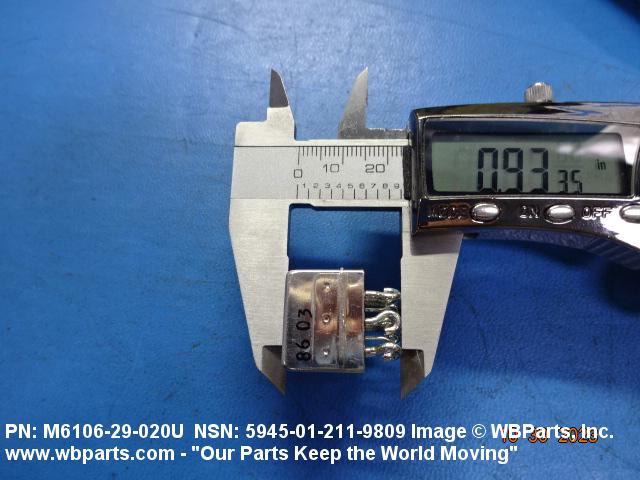

| OVERALL HEIGHT | 0.950 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 SLOTTED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TRIANGLE SINGLE MOUNTING FACILITY |

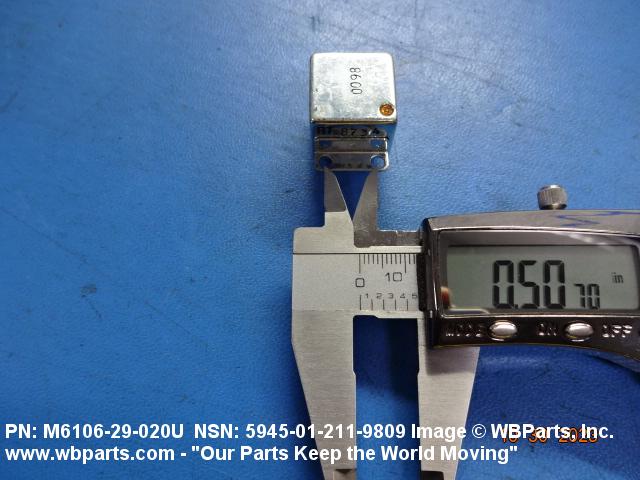

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.500 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE ALTITUDE OF AN ISOSCELES TRIANGLE | 1.062 INCHES MINIMUM AND 1.078 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| MOUNTING SLOT WIDTH | 0.133 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | POLARIZED |
| SPECIAL FEATURES | FAILURE RATE LEVEL 1.0 PERCENT 10000 OPERATIONS 81349-MIL-R-83536 SPECIFICATION 81349-MIL-R-83536/22 GOVERNMENT SPECIFICATION |
| TEST DATA DOCUMENT | 81349-MIL-R-6106 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-6106/29 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 0.985 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 0.062 POUNDS |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | METAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-83536/22 |
Restrictions/Controls & Freight Information | NSN 5945-01-211-9809
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
