NSN 5945-01-210-9831 M6106/21-001, M6106/21-003, M6106/21-003M

Product Details | ELECTROMAGNETIC RELAY

5945-01-210-9831 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: M6106/21-001, M6106/21-003, M6106/21-003M, M6106/21-003U, M6106/21-003X, M610621001, M610621003, M610621003M, M610621003U, M610621003X, M83536/2-028M, M835362028M, MIL-PRF-83536/2, MILPRF835362, MIL-R-6106/21, MILR610621, MIL-R-83536/2, MILR835362, 5945-01-210-9831, 01-210-9831, 5945012109831, 012109831

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	20 JUN 1985	01-210-9831	32512 ( RELAY, ELECTROMAGNETIC )

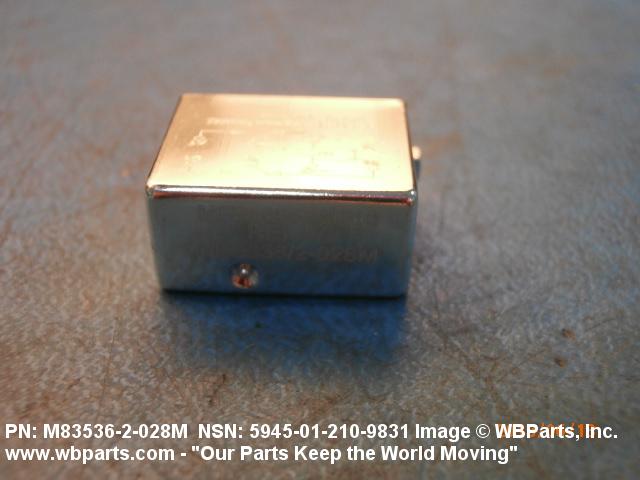

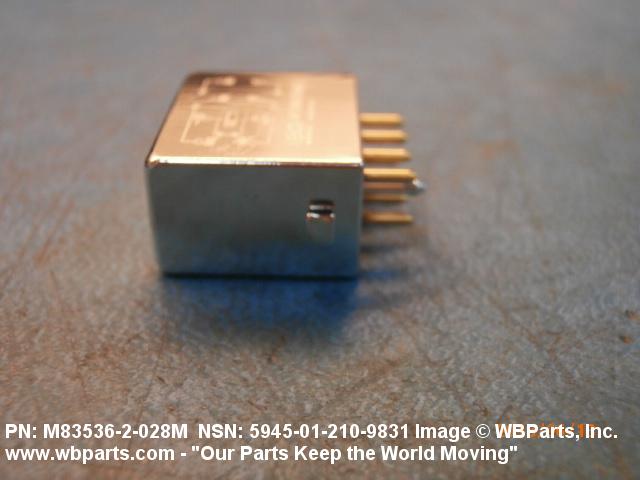

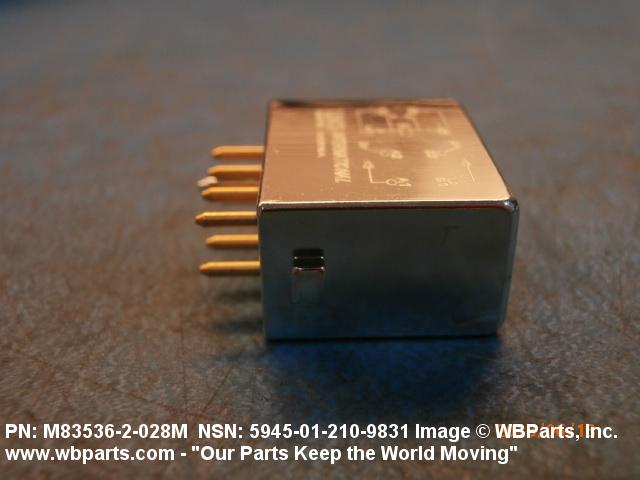

Drawings & Photos | NSN 5945-01-210-9831

Part Number	Request Date	QTY	Origin
5945-01-210-9831	2024-11-324	50	United States
5945-01-210-9831	2024-10-284	377	DIBBS
M835362028M	2024-08-240	250	United States
5945-01-210-9831	2024-08-228	393	DIBBS
M835362028M	2024-06-171	250	United States
5945-01-210-9831	2024-06-156	1693	DIBBS
5945-01-210-9831	2024-05-144	1693	DIBBS
5945-01-210-9831	2024-04-105	702	DIBBS
5945-01-210-9831	2024-03-78	327	DIBBS
5945-01-210-9831	2024-03-67	327	DIBBS
5945-01-210-9831	2023-09-271	498	DIBBS
5945-01-210-9831	2023-09-260	498	DIBBS
5945-01-210-9831	2023-09-245	24	Malaysia
5945-01-210-9831	2023-06-156	309	DIBBS
5945-01-210-9831	2023-05-145	309	DIBBS
5945-01-210-9831	2023-05-124	1721	DIBBS
5945-01-210-9831	2023-04-114	1721	DIBBS
5945-01-210-9831	2023-03-66	100	TW
5945-01-210-9831	2022-12-365	141	Taiwan
M835362028M	2022-06-171	2	Germany
5945-01-210-9831	2022-05-123	430	DIBBS
5945-01-210-9831	2021-08-218	30	United States
5945-01-210-9831	2021-06-175	250	Singapore
5945-01-210-9831	2021-05-137	1733	DIBBS
5945-01-210-9831	2020-11-315	7	US
5945-01-210-9831	2020-06-163	169	DIBBS
5945-01-210-9831	2020-05-152	1216	DIBBS
5945-01-210-9831	2019-05-143	948	DIBBS
5945-01-210-9831	2018-10-282	1312	DIBBS
5945-01-210-9831	2018-08-239	1	DIBBS-RFPs
M610621003M	2018-06-156	4	United States
5945-01-210-9831	2018-06-152	4	United States
5945-01-210-9831	2017-06-158	230	US
M610621003X	2015-03-68	16	United States
5945-01-210-9831	2013-07-190	350	US
M835362028M	2012-10-284	100	NL
M610621003X	2012-09-247	50	TR
M6106/21-003x	2012-07-199	50	United States
M835362028M	2012-07-185	11	United States
M835362028M	2011-12-356	5	United States
5945-01-210-9831	2011-12-350	624	DIBBS
5945-01-210-9831	2011-11-321	542	DIBBS
5945-01-210-9831	2011-11-320	433	DIBBS
5945-01-210-9831	2011-05-126	471	DIBBS
M835362028M	2011-03-69	24	Singapore
5945-01-210-9831	2011-02-34	547	DIBBS
M610621003X	2010-10-292	6	US
5945-01-210-9831	2010-08-215	629	DIBBS
M835362028M	2010-05-131	10	US
5945-01-210-9831	2010-05-124	525	DIBBS
M835362028M	2009-08-230	15	Taiwan
M835362028M	2009-05-140	1	CH
5945-01-210-9831	2009-04-111	632	DIBBS
5945-01-210-9831	2009-03-75	700	DIBBS
5945-01-210-9831	2009-03-75	116	DIBBS
5945-01-210-9831	2008-12-340	647	DIBBS
5945-01-210-9831	2008-10-284	945	DIBBS
5945-01-210-9831	2008-09-266	443	DIBBS
5945-01-210-9831	2008-09-246	317	DIBBS
5945-01-210-9831	2008-05-143	340	DIBBS
5945-01-210-9831	2008-04-116	5	us
M835362028M	2008-04-116	10	us
5945-01-210-9831	2008-02-53	1300	DIBBS
5945-01-210-9831	2007-12-353	301	DIBBS
5945-01-210-9831	2007-09-248	500	DIBBS
M610621001	2007-08-240	3	US
5945-01-210-9831	2007-08-215	97	DIBBS
5945-01-210-9831	2007-03-89	1354	DIBBS
5945-01-210-9831	2006-07-205	336	DIBBS
5945-01-210-9831	2006-07-194	654	DIBBS
5945-01-210-9831	2006-07-194	1120	DIBBS
5945-01-210-9831	2006-06-163	654	DIBBS
5945-01-210-9831	2006-06-159	1120	DIBBS
5945-01-210-9831	2006-05-144	654	DIBBS

Cross Reference | NSN 5945-01-210-9831

Part Number	Cage Code	Manufacturer
M6106/21-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/21-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/21-003M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/21-003U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M6106/21-003X	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83536/2-028M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-83536/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-6106/21	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83536/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-210-9831

Compare

Related Products | NSN 5945-01-210-9831

5945-01-210-9832, 5945-01-210-9833, 5945-01-210-9834, 5945-01-210-9835, 5945-01-210-9836

Technical Data | NSN 5945-01-210-9831

Characteristic	Specifications

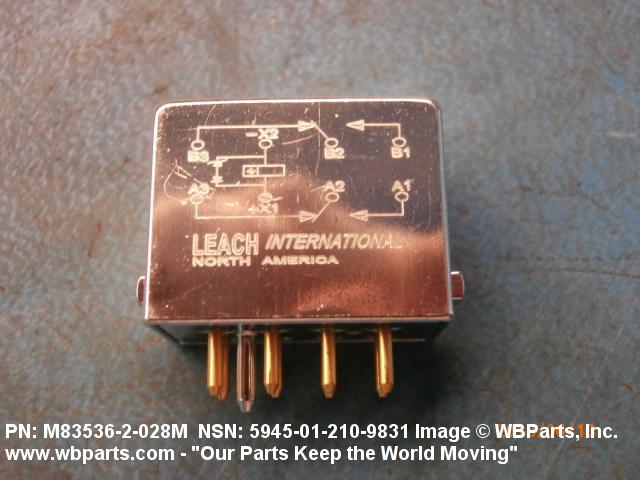

NONPILE-UP MAIN CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC AND 5.0 AMPERES DC RESISTIVE LOAD 5.0 AMPERES AC AND 3.0 AMPERES DC INDUCTIVE LOAD 1.0 AMPERES AC AND 1.0 AMPERES DC LAMP LOAD 3.0 AMPERES AC AND 2.0 AMPERES DC MOTOR LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
WINDING DC RESISTANCE RATING	500.0 OHMS NOMINAL SINGLE WINDING
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING

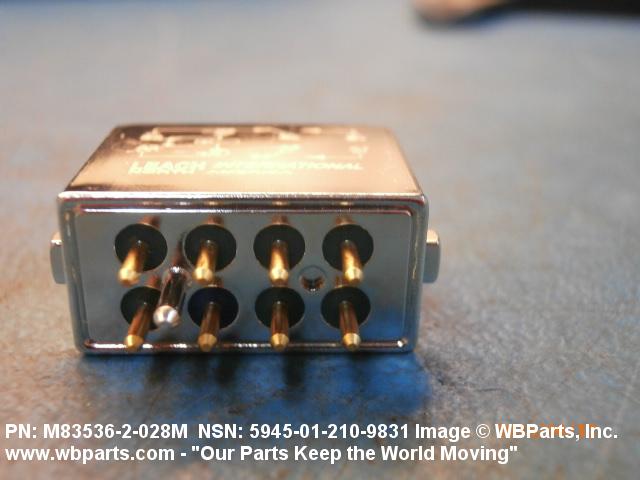

TERMINAL TYPE AND QUANTITY	1 PIN GROUND 8 PIN ENERGIZING ELEMENT AND CONTACTS
TIME DELAY	0.004 SECONDS MAXIMUM FIXED OPERATE AND RELEASE TIME
DUTY TYPE	CONTINUOUS
ENVIRONMENTAL PROTECTION	HERMETIC

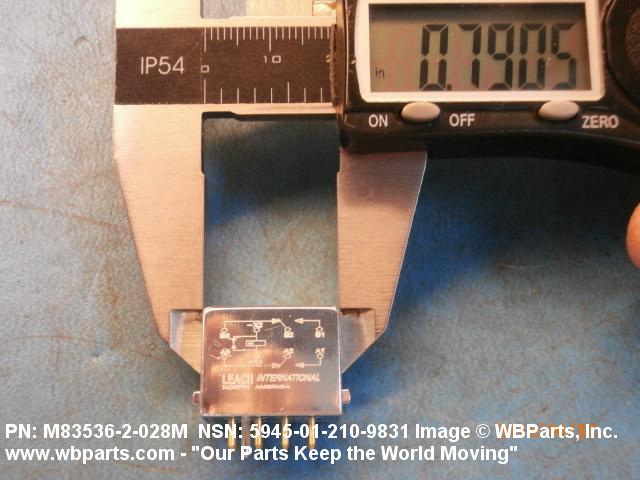

OVERALL LENGTH	0.810 INCHES MAXIMUM
OVERALL WIDTH	0.410 INCHES MAXIMUM
OVERALL HEIGHT	0.900 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY
FEATURES PROVIDED	POLARIZED AND COIL VOLTAGE SUPPRESSION
SPECIAL FEATURES	FAILURE RATE LEVEL 0.3 PERCENT
TEST DATA DOCUMENT	81349-MIL-R-6106 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-6106/21 GOVERNMENT SPECIFICATION
CRITICALITY CODE JUSTIFICATION	FEAT
III PURPOSE FOR WHICH DESIGNED	GENERAL
(NON-CORE DATA) END ITEM SOURCE	81755
III CUBIC MEASURE	0.299 CUBIC INCHES
III UNPACKAGED UNIT WEIGHT	0.033 POUNDS
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III CASE MATERIAL	METAL
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	TERMINAL SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-83536/2
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M83536/2-028M

Restrictions/Controls & Freight Information | NSN 5945-01-210-9831

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-210-9831

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
