NSN 5945-01-170-5826 ACM29050, 01-170-5826, 011705826
Product Details | ELECTRICAL SOLENOID
5945-01-170-5826 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: ACM29050, 5945-01-170-5826, 01-170-5826, 5945011705826, 011705826
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JAN 1984 | 01-170-5826 | 00310 ( SOLENOID, ELECTRICAL ) |
Drawings & Photos | NSN 5945-01-170-5826
Demand History | NSN 5945-01-170-5826
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ACM29050 | 2023-03-80 | 57 | DIBBS |
| ACM29050 | 2022-10-279 | 20 | DIBBS |
| ACM29050 | 2022-09-256 | 16 | DIBBS |
| ACM29050 | 2022-07-209 | 14 | DIBBS |
| ACM29050 | 2022-04-101 | 48 | DIBBS |
| 5945-01-170-5826 | 2022-04-91 | 48 | US |
| ACM29050 | 2022-03-90 | 48 | DIBBS |
| ACM29050 | 2020-10-289 | 14 | DIBBS |
| ACM29050 | 2020-03-86 | 8 | DIBBS |
| ACM29050 | 2020-01-30 | 27 | DIBBS |
| ACM29050 | 2019-12-335 | 10 | DIBBS |
| 5945-01-170-5826 | 2018-11-329 | 12 | DIBBS |
| 5945-01-170-5826 | 2018-09-263 | 9 | DIBBS |
| 5945-01-170-5826 | 2018-08-242 | 9 | DIBBS |
| 5945-01-170-5826 | 2018-04-94 | 10 | DIBBS |
| 5945-01-170-5826 | 2018-02-53 | 9 | DIBBS |
| 5945-01-170-5826 | 2017-10-276 | 14 | DIBBS |
| 5945-01-170-5826 | 2017-07-198 | 10 | DIBBS |
| 5945-01-170-5826 | 2017-06-170 | 12 | DIBBS |
| 5945-01-170-5826 | 2017-06-158 | 12 | DIBBS |
| 5945-01-170-5826 | 2017-03-78 | 3 | DIBBS |
| 5945-01-170-5826 | 2017-02-37 | 5 | DIBBS |
| 5945-01-170-5826 | 2017-01-17 | 3 | DIBBS |
| 5945-01-170-5826 | 2017-01-02 | 3 | DIBBS |
| 5945-01-170-5826 | 2015-12-364 | 9 | DIBBS |
| 5945-01-170-5826 | 2015-10-296 | 15 | DIBBS |
| 5945-01-170-5826 | 2015-10-285 | 15 | DIBBS |
| 5945-01-170-5826 | 2015-08-232 | 11 | DIBBS |
| 5945-01-170-5826 | 2015-02-50 | 16 | DIBBS |
| 5945-01-170-5826 | 2015-01-28 | 18 | DIBBS |
| 5945-01-170-5826 | 2013-03-71 | 25 | DIBBS |
| 5945-01-170-5826 | 2012-08-228 | 7 | DIBBS |
| 5945-01-170-5826 | 2012-05-151 | 2 | DIBBS |
| 5945-01-170-5826 | 2009-05-126 | 7 | DIBBS |
| 5945-01-170-5826 | 2009-03-89 | 32 | DIBBS |
| 5945-01-170-5826 | 2009-01-27 | 8 | DIBBS |
| 5945-01-170-5826 | 2009-01-12 | 11 | DIBBS |
| 5945-01-170-5826 | 2009-01-09 | 8 | DIBBS |
| 5945-01-170-5826 | 2008-08-217 | 8 | DIBBS |
| 5945-01-170-5826 | 2008-06-170 | 11 | DIBBS |
| 5945-01-170-5826 | 2008-04-94 | 16 | DIBBS |
| 5945-01-170-5826 | 2008-02-43 | 3 | DIBBS |
| 5945-01-170-5826 | 2006-07-185 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-170-5826
Related Products | NSN 5945-01-170-5826
Technical Data | NSN 5945-01-170-5826
| Characteristic | Specifications |
|---|---|

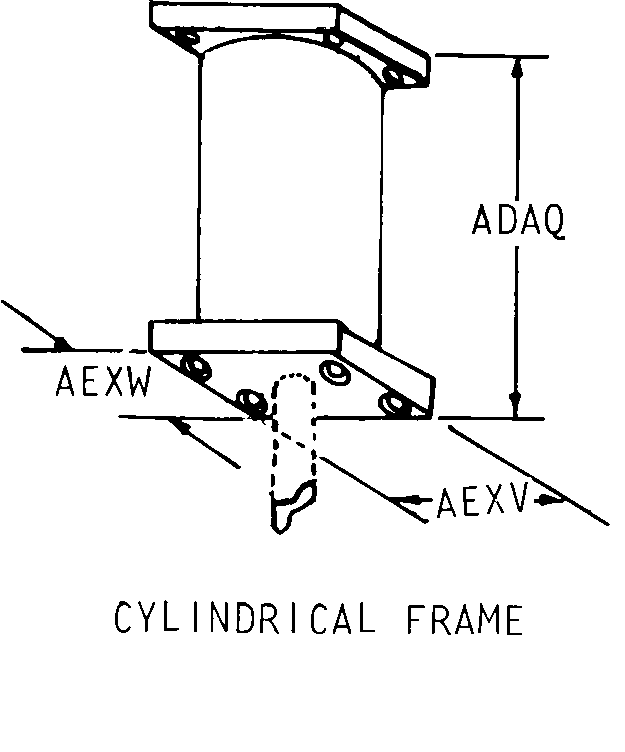

| BODY STYLE | 67 CYLINDRICAL FRAME |
