NSN 5945-01-128-1019 BR9S0107, BR9-S0107, BR9S107
Product Details | ELECTROMAGNETIC RELAY
5945-01-128-1019 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: BR9S0107, BR9-S0107, BR9S107, BR9-S107, 927A2834, 927A283-4, 94GB450037AX6001, 5945-01-128-1019, 01-128-1019, 5945011281019, 011281019
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1982 | 01-128-1019 | 32512 ( RELAY, ELECTROMAGNETIC ) |

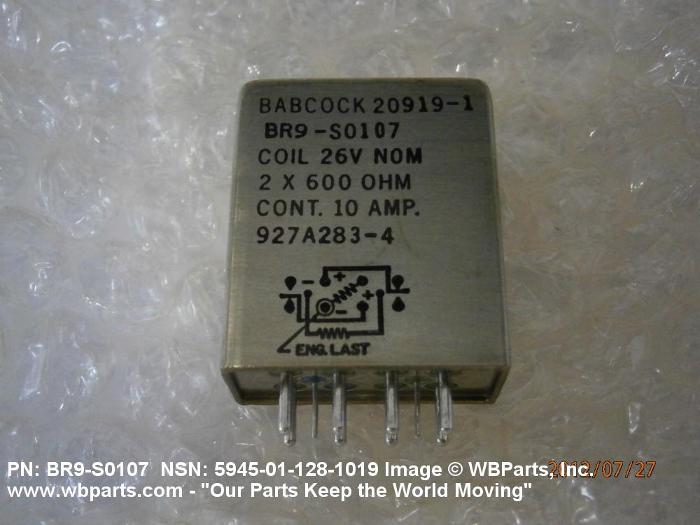

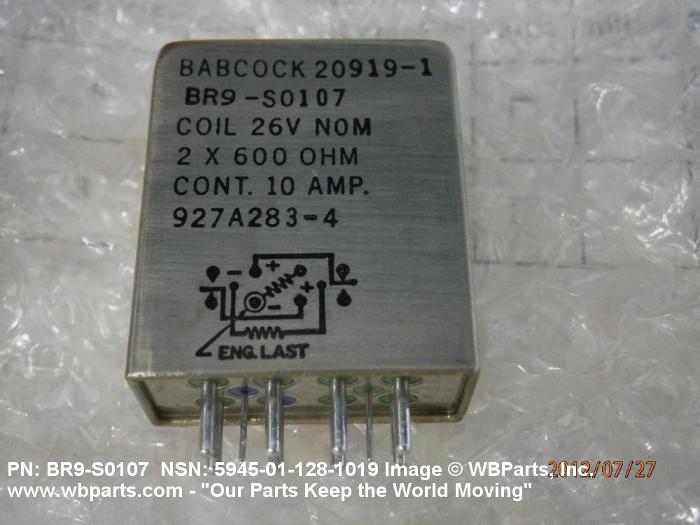

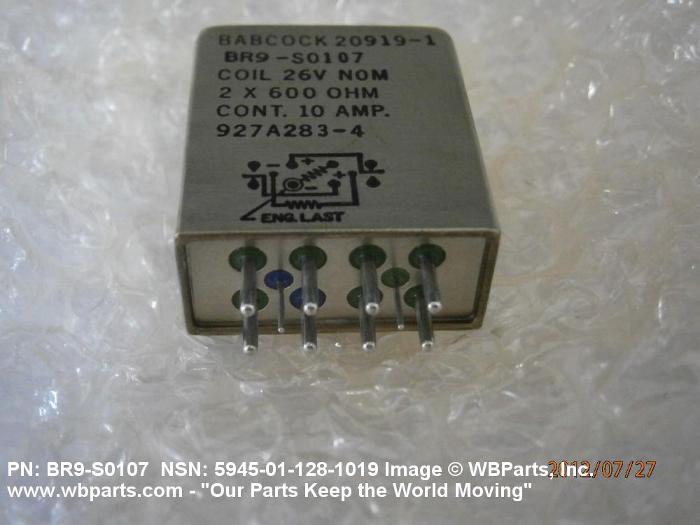

Drawings & Photos | NSN 5945-01-128-1019
Demand History | NSN 5945-01-128-1019
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-128-1019 | 2022-03-79 | 1 | KR |
| 5945-01-128-1019 | 2021-07-189 | 15 | United States |
| 5945-01-128-1019 | 2021-06-179 | 15 | United States |
| 927A283-4 | 2021-04-117 | 1 | DIBBS |
| BR9-S0107 | 2021-04-117 | 1 | DIBBS |
| 5945-01-128-1019 | 2019-01-04 | 1 | US |
| 5945-01-128-1019 | 2018-06-179 | 2 | US |
| BR9S0107 | 2012-06-177 | 3 | Korea |
| 927A2834 | 2012-06-167 | 2 | Korea |
| BR9S107 | 2012-06-164 | 3 | Korea |
| 5945-01-128-1019 | 2012-06-164 | 3 | Korea |
| BR9S107 | 2012-04-117 | 3 | Korea |
| BR9S107 | 2012-04-116 | 3 | Korea |
| 5945-01-128-1019 | 2009-12-348 | 116 | DIBBS |
Cross Reference | NSN 5945-01-128-1019
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 927A283-4 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 927A283-4 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 94GB4500-37-AX-600(1) | 98927 | ELECTRONIC SPECIALTY CORP RELAY DIV |
| BR9-S0107 | 56623 | MICROSEMI CORP.-POWER MANAGEMENT GROUP |
| BR9-S107 | 56623 | MICROSEMI CORP.-POWER MANAGEMENT GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-128-1019
Related Products | NSN 5945-01-128-1019
Technical Data | NSN 5945-01-128-1019
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES AC AND 10.0 AMPERES DC RESISTIVE LOAD |
| ARC QUENCHING METHOD | AIR |
| COIL QUANTITY | 2 |
| WINDING QUANTITY | 2 |
| WINDING DC RESISTANCE RATING | 600.0 OHMS NOMINAL ALL WINDINGS |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 26.0 VOLTS DC 25 DEG CELSIUS ALL WINDINGS |
| TERMINAL TYPE AND QUANTITY | 10 PIN ALL FUNCTIONS |
| TIME DELAY | 0.01 SECONDS MAXIMUM FIXED OPERATE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |
| OVERALL LENGTH | 1.065 INCHES MINIMUM AND 1.075 INCHES MAXIMUM |
| OVERALL WIDTH | 0.505 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.290 INCHES MINIMUM AND 1.300 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TERMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | LATCHING CONTACTS AND POLARIZED |
| III PURPOSE FOR WHICH DESIGNED | GENERAL |
| III CUBIC MEASURE | 0.720 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 1.700 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
| III CASE MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5945-01-128-1019
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-128-1019
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
