NSN 5945-01-124-0061 S2061, S-206-1 , ST5M1474002
Product Details | ELECTRICAL SOLENOID
5945-01-124-0061 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: S2061, S-206-1 , ST5M1474002, ST5M1474-002, E38600, E-38600, 10154385 , 13051, 13057, 5945-01-124-0061, 01-124-0061, 5945011240061, 011240061
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 DEC 1981 | 01-124-0061 | 00310 ( SOLENOID, ELECTRICAL ) |

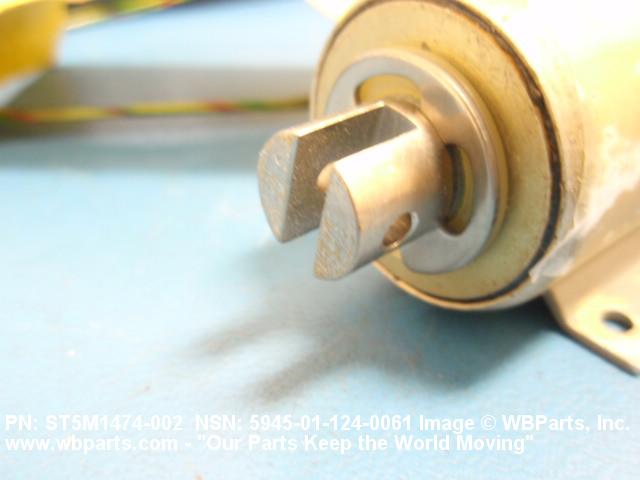

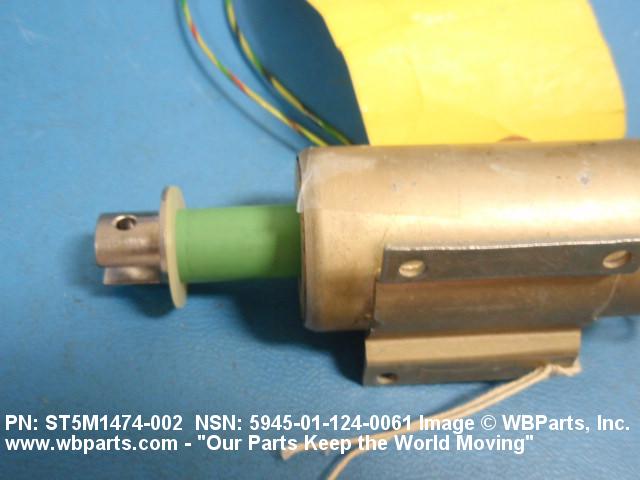

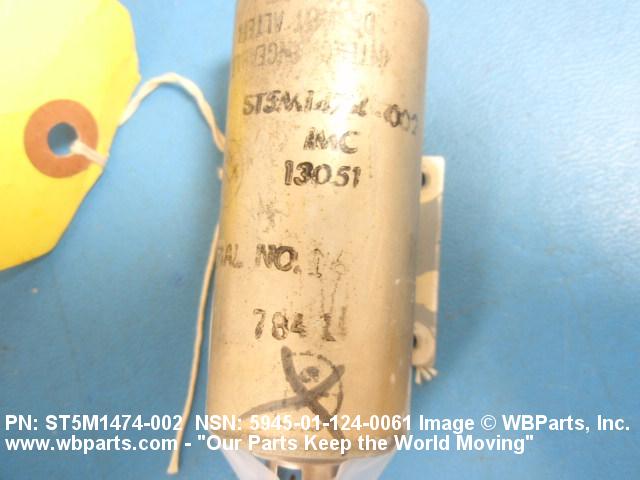

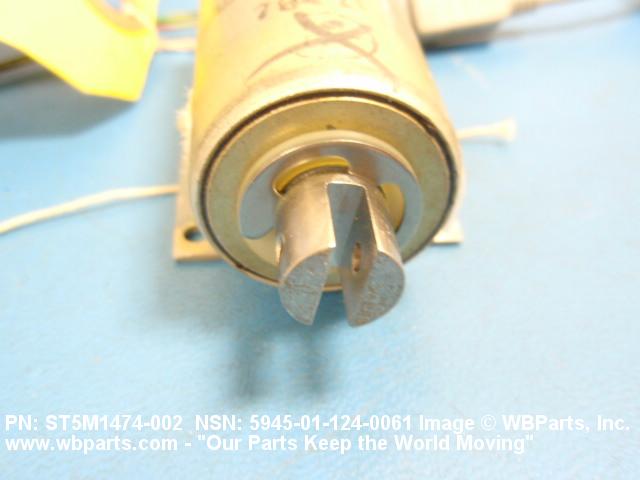

Drawings & Photos | NSN 5945-01-124-0061
Demand History | NSN 5945-01-124-0061
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST5M1474002 | 2020-03-64 | 10 | United States |
| 5945-01-124-0061 | 2018-04-93 | 89 | DIBBS |
| 5945-01-124-0061 | 2018-02-32 | 52 | DIBBS |
| 5945-01-124-0061 | 2016-10-300 | 316 | DIBBS |
| 5945-01-124-0061 | 2016-04-105 | 124 | DIBBS |
| 5945-01-124-0061 | 2015-09-264 | 39 | DIBBS |
| 5945-01-124-0061 | 2015-08-216 | 29 | DIBBS |
| 5945-01-124-0061 | 2014-09-245 | 73 | DIBBS |
| 5945-01-124-0061 | 2014-04-98 | 43 | DIBBS |
| 5945-01-124-0061 | 2014-04-97 | 41 | DIBBS |
| 5945-01-124-0061 | 2013-06-161 | 120 | IN |
| ST5M1474002 | 2013-06-158 | 120 | IN |
| ST5M1474002 | 2013-06-156 | 14 | IN |
| 5945-01-124-0061 | 2012-11-333 | 172 | DIBBS |
| 5945-01-124-0061 | 2012-02-47 | 170 | DIBBS |
| 5945-01-124-0061 | 2011-08-236 | 365 | DIBBS |
| 5945-01-124-0061 | 2010-11-334 | 49 | DIBBS |
| 5945-01-124-0061 | 2010-11-334 | 69 | DIBBS |
| ST5M1474002 | 2010-07-196 | 1 | United States |
| 5945-01-124-0061 | 2010-04-111 | 26 | DIBBS |
| 5945-01-124-0061 | 2009-05-149 | 73 | DIBBS |
| 5945-01-124-0061 | 2009-05-149 | 97 | DIBBS |
| 5945-01-124-0061 | 2008-11-318 | 42 | DIBBS |
| 5945-01-124-0061 | 2008-11-318 | 60 | DIBBS |
| 5945-01-124-0061 | 2008-07-200 | 1 | US |
| 5945-01-124-0061 | 2008-04-100 | 39 | DIBBS |
| 5945-01-124-0061 | 2008-04-100 | 70 | DIBBS |
| 5945-01-124-0061 | 2007-05-134 | 35 | DIBBS |
| 5945-01-124-0061 | 2007-05-134 | 46 | DIBBS |
Cross Reference | NSN 5945-01-124-0061
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-124-0061
Related Products | NSN 5945-01-124-0061
Technical Data | NSN 5945-01-124-0061
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 32 CYLINDRICAL FRAME |
| BODY DIAMETER | 1.250 INCHES NOMINAL |
| BODY LENGTH | 2.781 INCHES MAXIMUM |
| MOUNTING BASE WIDTH | 1.656 INCHES MAXIMUM |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| CURRENT RATING | 1.1 AMPERES MAXIMUM |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 0.86 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.440 INCHES |
| POWER TAKEOFF CONNECTION TYPE | SLOTTED-DRILLED |
| ACTUATOR DIAMETER | 0.500 INCHES NOMINAL |
| ACTUATOR LENGTH | 0.499 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.578 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.312 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| INCLOSURE TYPE | FULLY INCLOSED |
| CASE MATERIAL | METAL |
| CASE SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 1 MIL STD SINGLE TREATMENT RESPONSE |
| III MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT |
| III POWER TAKEOFF CONNECTION HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5945-01-124-0061
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-124-0061
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
