NSN 5945-01-123-5159 6957ED337C, 6957ED33-7C, 01-123-5159
Product Details | ELECTROMAGNETIC RELAY
5945-01-123-5159 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: 6957ED337C, 6957ED33-7C, 5945-01-123-5159, 01-123-5159, 5945011235159, 011235159
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1981 | 01-123-5159 | 32512 ( RELAY, ELECTROMAGNETIC ) |

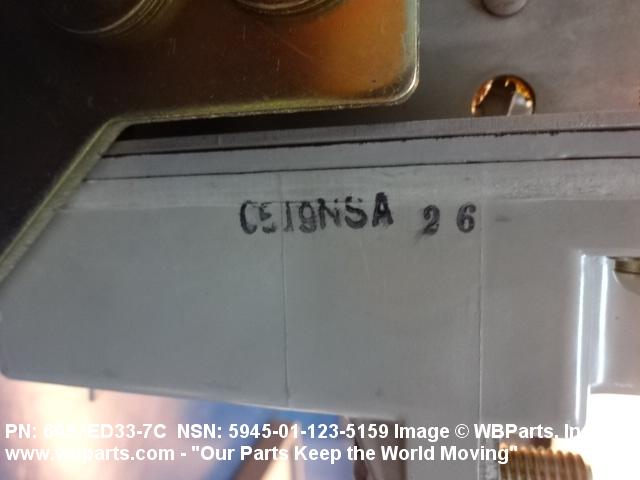

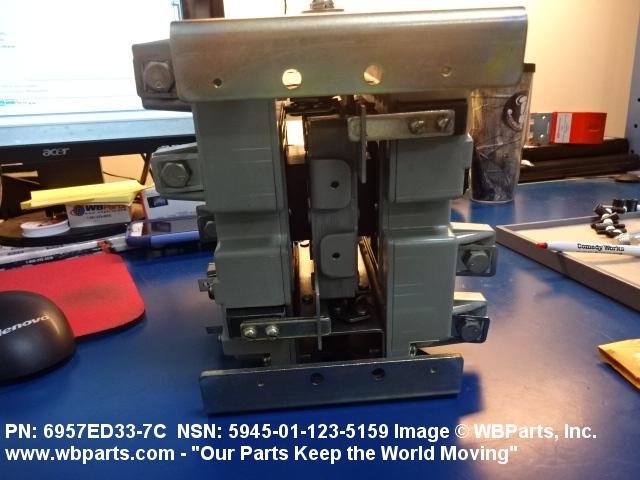

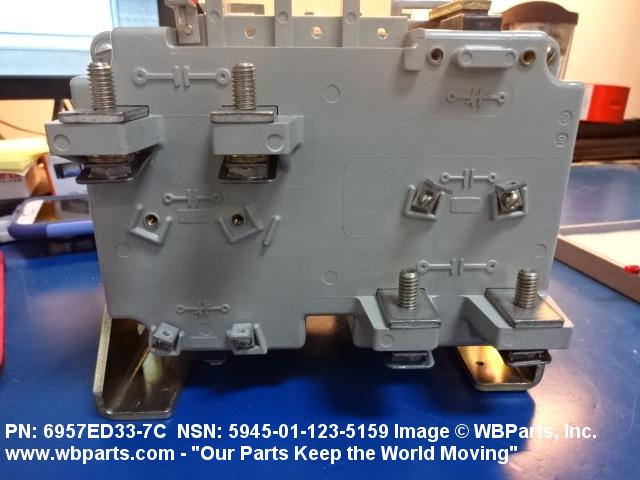

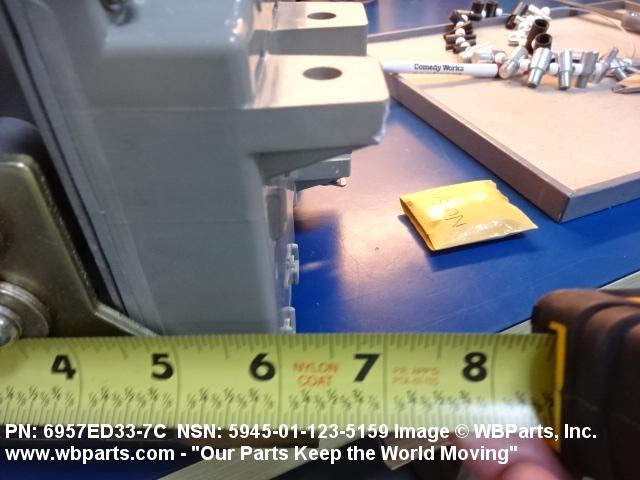

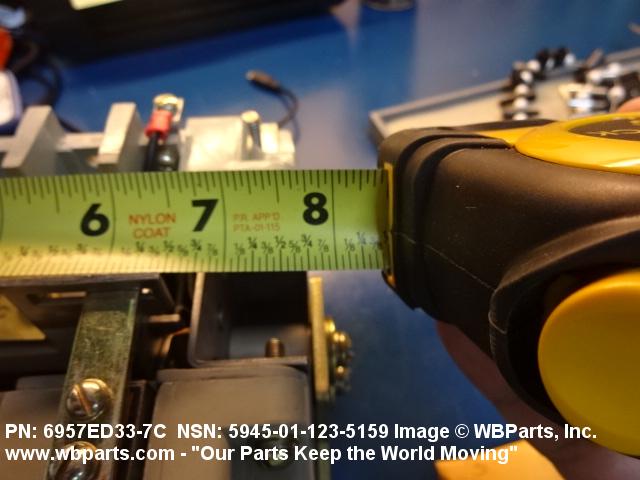

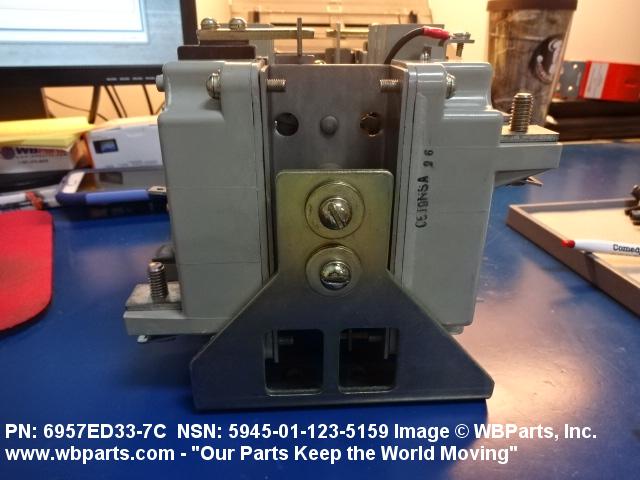

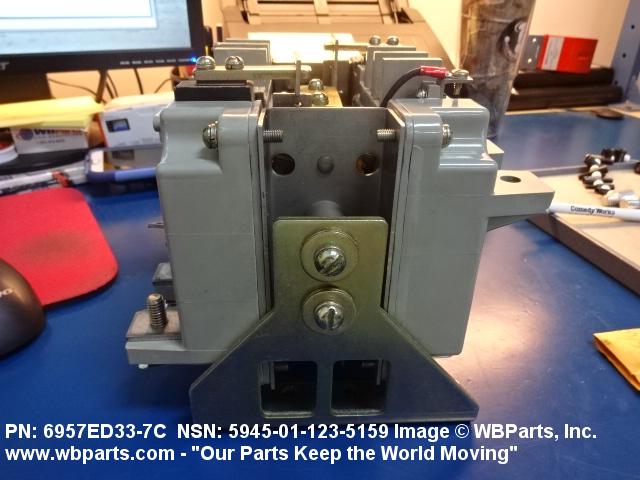

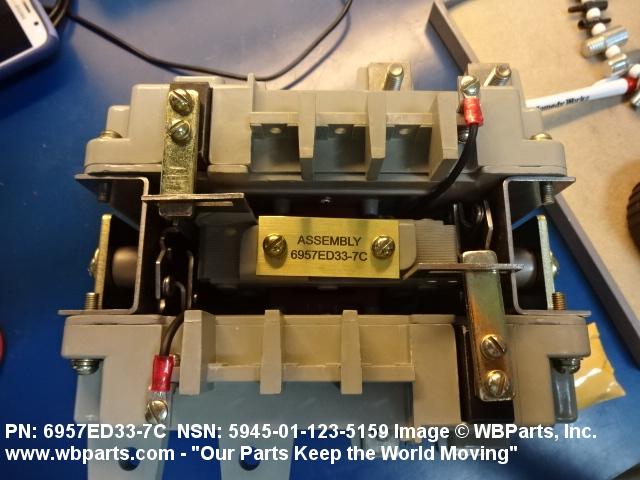

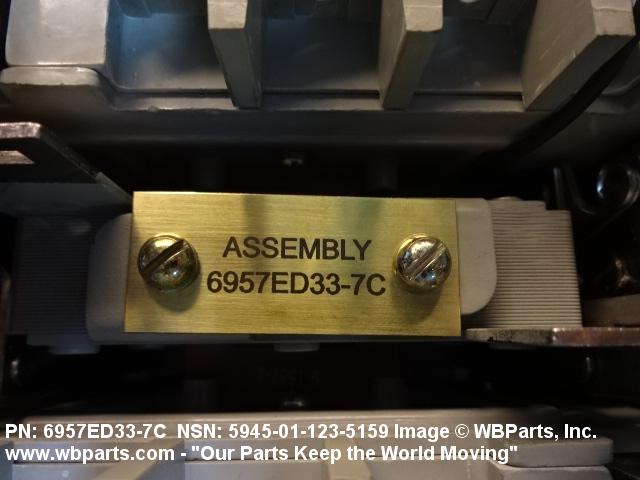

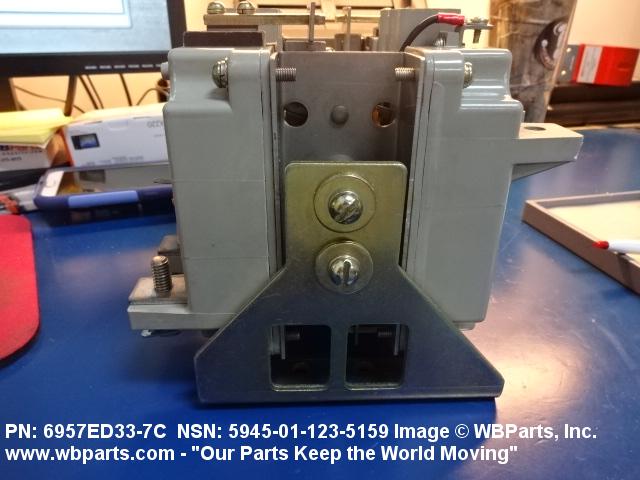

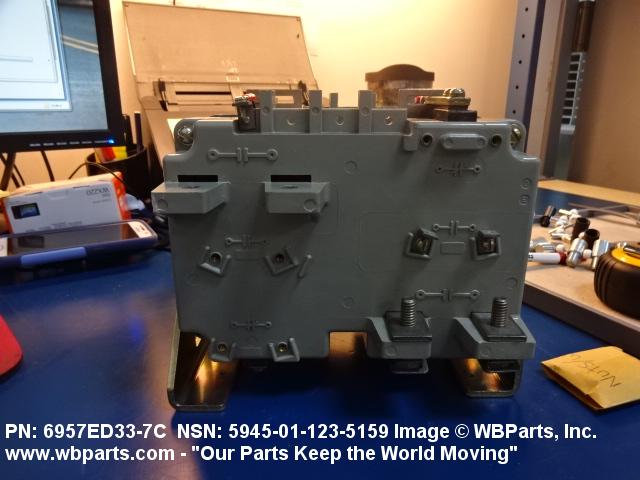

Drawings & Photos | NSN 5945-01-123-5159
Demand History | NSN 5945-01-123-5159
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6957ED33-7C | 2024-08-235 | 8 | DIBBS |
| 6957ED33-7C | 2023-09-250 | 4 | DIBBS |
| 6957ED33-7C | 2023-08-215 | 7 | DIBBS |
| 6957ED33-7C | 2023-03-61 | 2 | DIBBS |
| 6957ED33-7C | 2022-05-132 | 2 | DIBBS |
| 6957ED33-7C | 2020-10-287 | 6 | DIBBS |
| 6957ED33-7C | 2020-09-271 | 6 | DIBBS |
| 6957ED33-7C | 2020-09-259 | 3 | DIBBS |
| 6957ED33-7C | 2020-08-233 | 1 | DIBBS |
| 6957ED33-7C | 2020-05-142 | 1 | DIBBS |
| 6957ED33-7C | 2020-03-72 | 3 | DIBBS |
| 6957ED33-7C | 2019-12-335 | 2 | DIBBS |
| 6957ED33-7C | 2019-07-206 | 2 | DIBBS |
| 6957ED33-7C | 2019-04-101 | 2 | DIBBS |
| 5945-01-123-5159 | 2019-01-22 | 1 | France |
| 6957ED337C | 2015-01-13 | 1 | Taiwan |
| 5945-01-123-5159 | 2014-10-295 | 7 | DIBBS |
| 5945-01-123-5159 | 2013-08-231 | 9 | DIBBS |
| 5945-01-123-5159 | 2011-11-308 | 9 | DIBBS |
| 5945-01-123-5159 | 2011-09-269 | 4 | DIBBS |
| 5945-01-123-5159 | 2010-12-337 | 9 | DIBBS |
| 5945-01-123-5159 | 2010-09-263 | 5 | DIBBS |
| 5945-01-123-5159 | 2010-08-242 | 5 | DIBBS |
| 5945-01-123-5159 | 2010-06-160 | 2 | DIBBS |
| 5945-01-123-5159 | 2010-04-92 | 4 | DIBBS |
| 5945-01-123-5159 | 2010-03-63 | 3 | DIBBS |
| 5945-01-123-5159 | 2009-12-348 | 3 | DIBBS |
| 5945-01-123-5159 | 2009-10-292 | 1 | DIBBS |
| 5945-01-123-5159 | 2009-05-122 | 9 | DIBBS |
| 5945-01-123-5159 | 2008-09-246 | 6 | DIBBS |
| 5945-01-123-5159 | 2008-08-217 | 5 | DIBBS |
| 5945-01-123-5159 | 2008-08-217 | 7 | DIBBS |
| 5945-01-123-5159 | 2008-06-175 | 5 | DIBBS |
| 5945-01-123-5159 | 2007-12-338 | 7 | DIBBS |
| 5945-01-123-5159 | 2007-10-302 | 15 | DIBBS |
| 5945-01-123-5159 | 2007-10-290 | 5 | DIBBS |
| 5945-01-123-5159 | 2007-10-289 | 5 | DIBBS |
| 5945-01-123-5159 | 2007-08-233 | 5 | DIBBS |
| 5945-01-123-5159 | 2007-02-41 | 3 | DIBBS |
| 5945-01-123-5159 | 2006-03-79 | 7 | DIBBS |
Cross Reference | NSN 5945-01-123-5159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6957ED33-7C | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-123-5159
Related Products | NSN 5945-01-123-5159
Technical Data | NSN 5945-01-123-5159
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION AND 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 440.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 135.0 AMPERES AC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 110.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 SCREW ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| OVERALL LENGTH | 8.250 INCHES NOMINAL |
| OVERALL WIDTH | 6.688 INCHES NOMINAL |

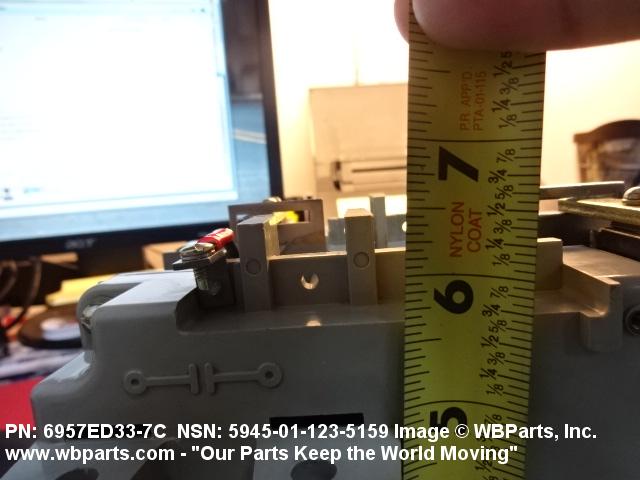

| OVERALL HEIGHT | 6.438 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | RECTANGULAR SINGLE MOUNTING FACILITY |

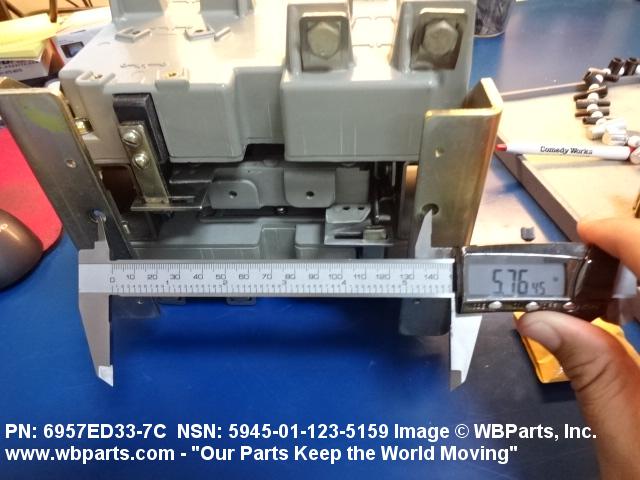

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 5.750 INCHES NOMINAL SINGLE MOUNTING FACILITY |

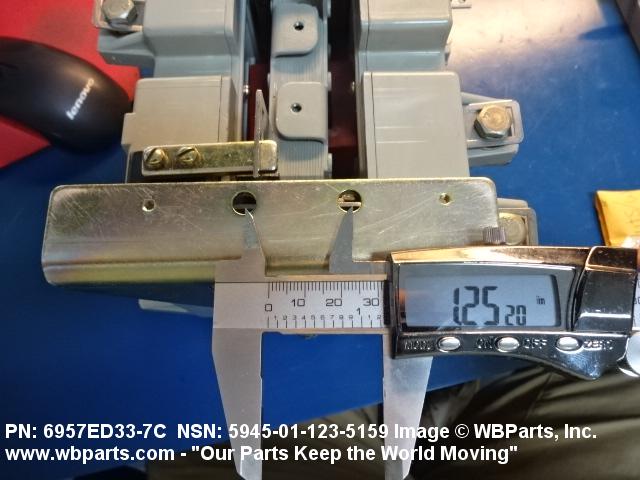

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |

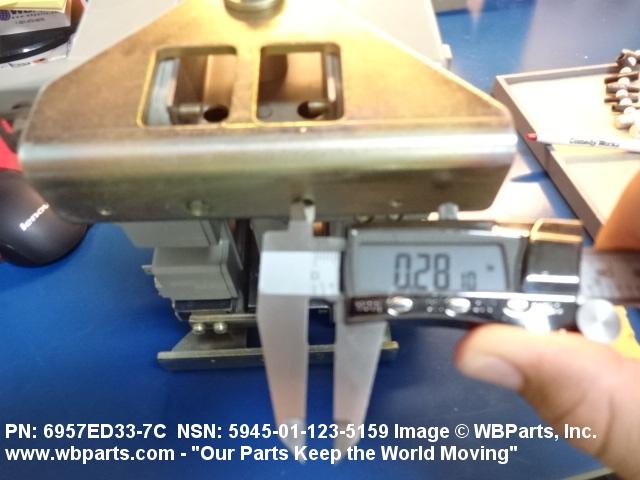

| UNTHREADED MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III CUBIC MEASURE | 355.223 CUBIC INCHES |
| III UNPACKAGED UNIT WEIGHT | 11.200 POUNDS |
Restrictions/Controls & Freight Information | NSN 5945-01-123-5159
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-123-5159
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
