NSN 5945-01-065-5570 EB20039143, EB200-39143, 1788144
Product Details | ELECTRICAL SOLENOID
5945-01-065-5570 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Part Alternates: EB20039143, EB200-39143, 1788144, 1788144 1001, 17881441001, 3K300DPR66, 3K300-DP-R-66, 5945-01-065-5570, 01-065-5570, 5945010655570, 010655570
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 SEP 1978 | 01-065-5570 | 00310 ( SOLENOID, ELECTRICAL ) |

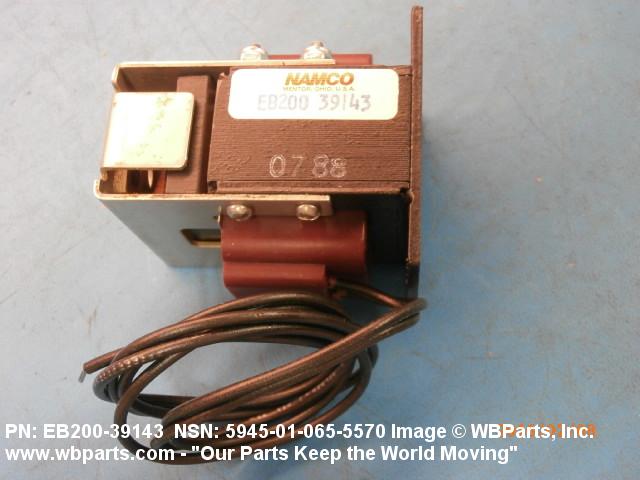

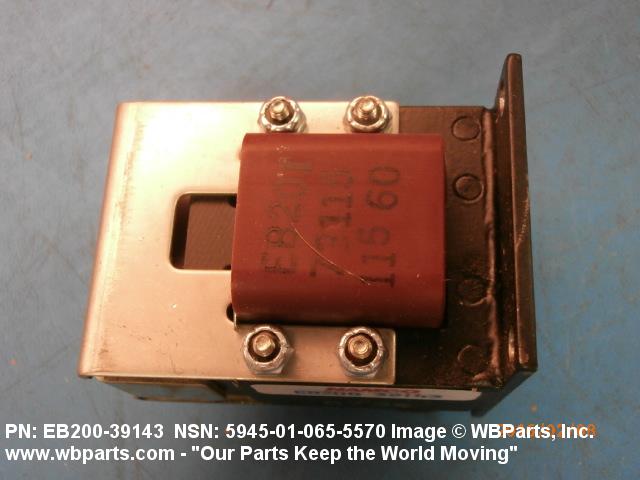

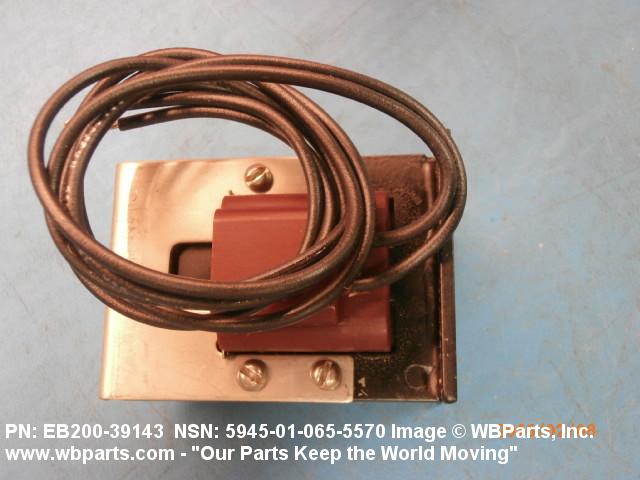

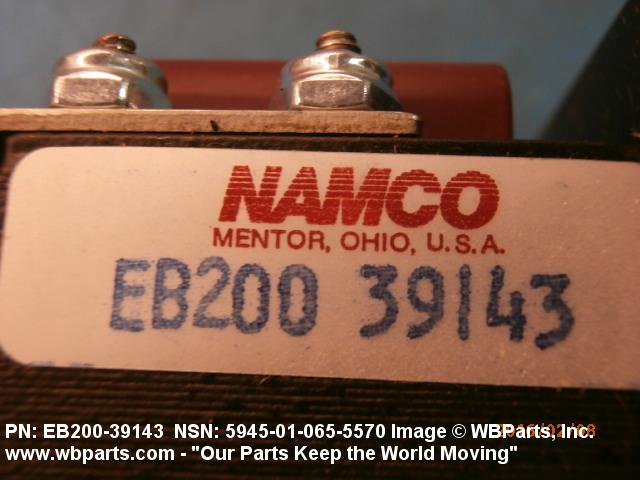

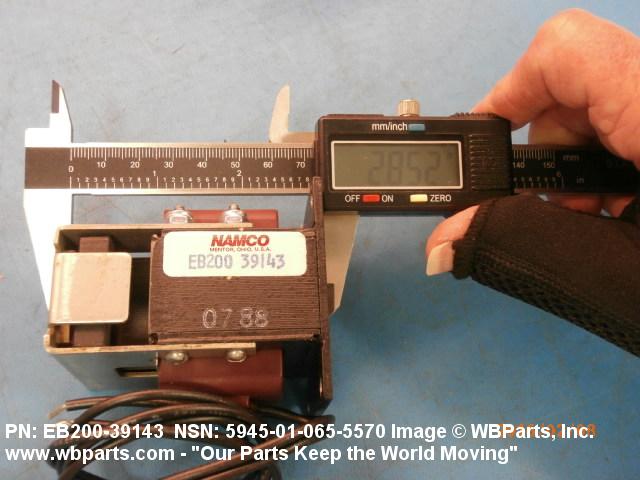

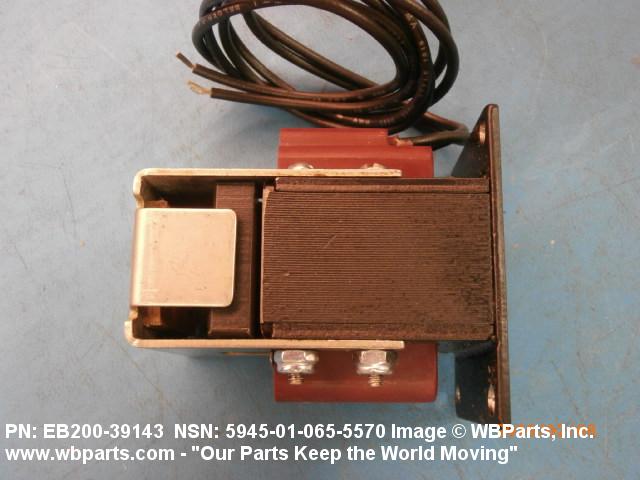

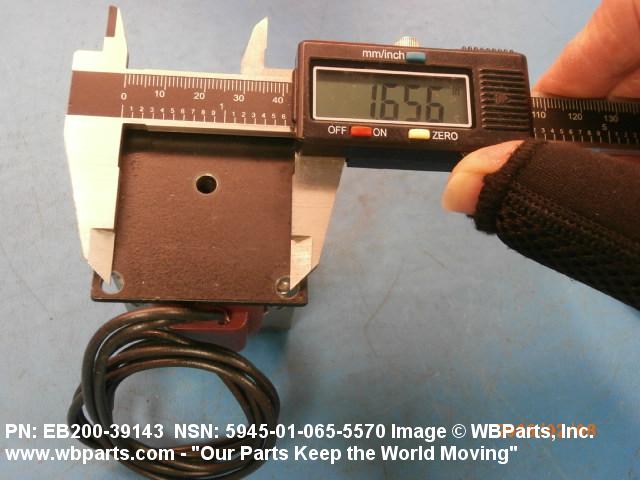

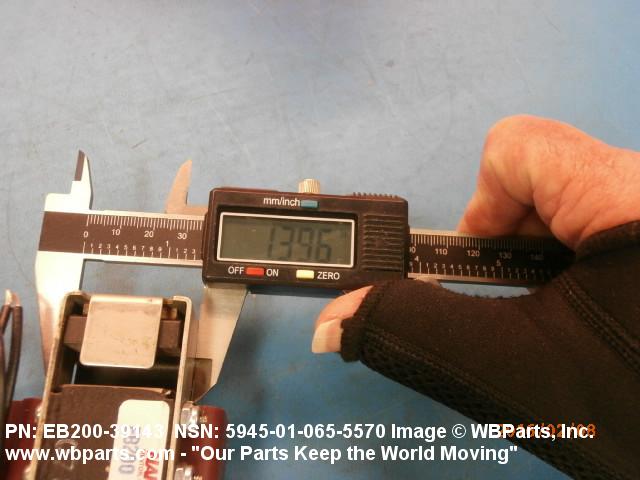

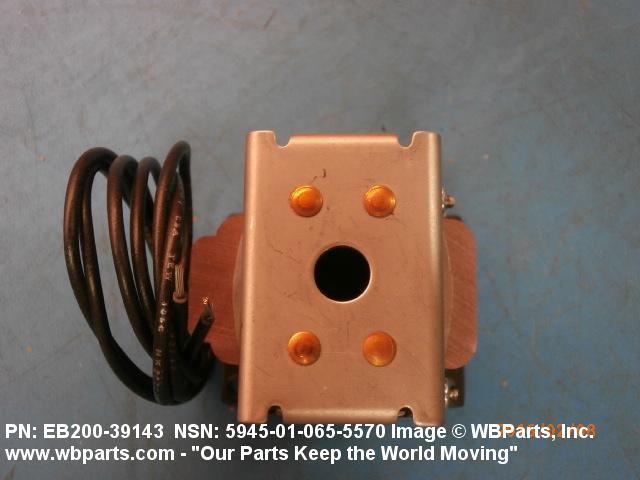

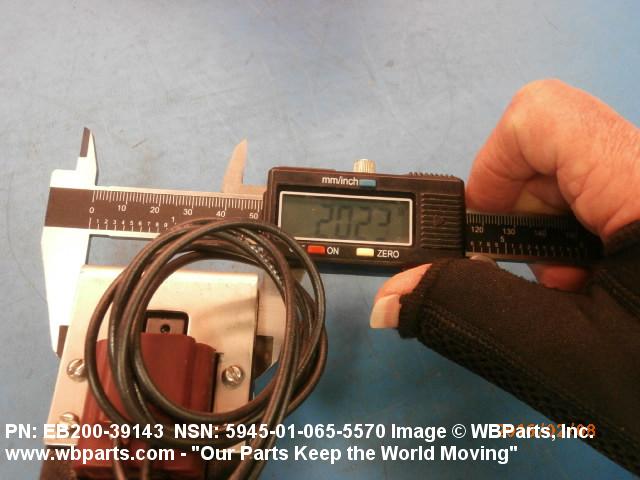

Drawings & Photos | NSN 5945-01-065-5570
Demand History | NSN 5945-01-065-5570
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-065-5570 | 2016-04-106 | 8 | Taiwan |
| 5945-01-065-5570 | 2016-01-27 | 6 | Taiwan |
| 5945-01-065-5570 | 2014-10-297 | 4 | Taiwan |
| 5945-01-065-5570 | 2012-02-40 | 18 | DIBBS |
| 5945-01-065-5570 | 2010-11-329 | 8 | DIBBS |
Cross Reference | NSN 5945-01-065-5570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1788144 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 1788144 1001 | 16236 | DLA LAND AND MARITIME |
| 3K300-DP-R-66 | 1R4E4 | DEVLIEG BULLARD II INC. |
| 3K300-DP-R-66 | 42337 | ACME-CLEVELAND CORP NATIONAL ACME DIV |
| EB200-39143 | 1R4E4 | DEVLIEG BULLARD II INC. |
| EB200-39143 | 42337 | ACME-CLEVELAND CORP NATIONAL ACME DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-065-5570
Technical Data | NSN 5945-01-065-5570
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 50 OPEN FRAME |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY WIDTH | 1.250 INCHES NOMINAL |
| BODY HEIGHT | 2.812 INCHES NOMINAL |
| MAGNETIC COIL QUANTITY | 1 |
| VOLTAGE RATING IN VOLTS | 115.0 AC MAXIMUM |
| ACTUATOR STROKE TYPE | PULL |
| LINEAR FORCE DELIVERED | 10.50 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.500 INCHES |
| POWER TAKEOFF CONNECTION TYPE | TEE SHAPE |

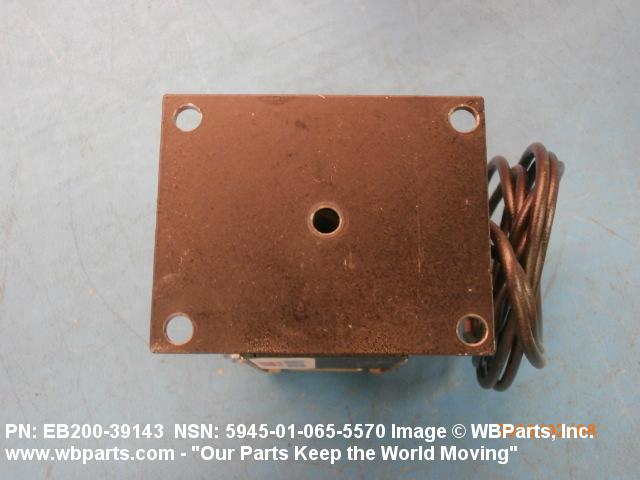

| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |

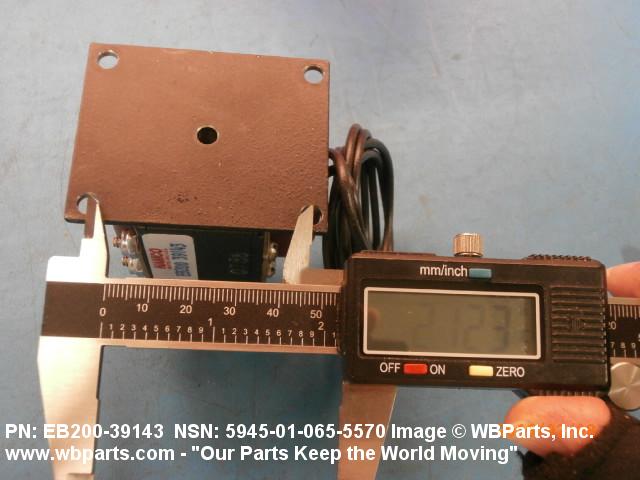

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.375 INCHES NOMINAL |

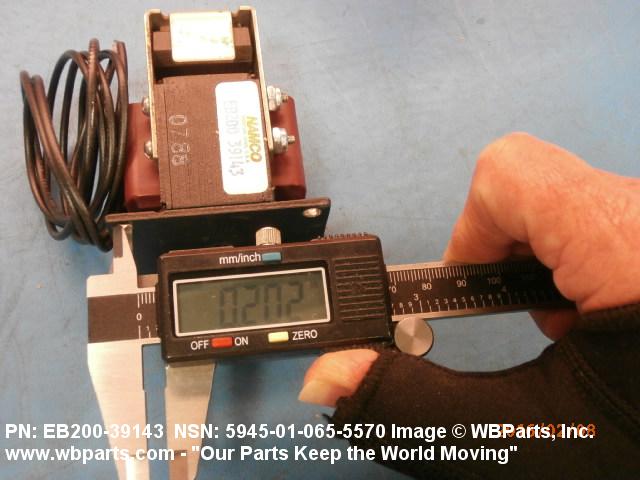

| UNTHREADED MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |

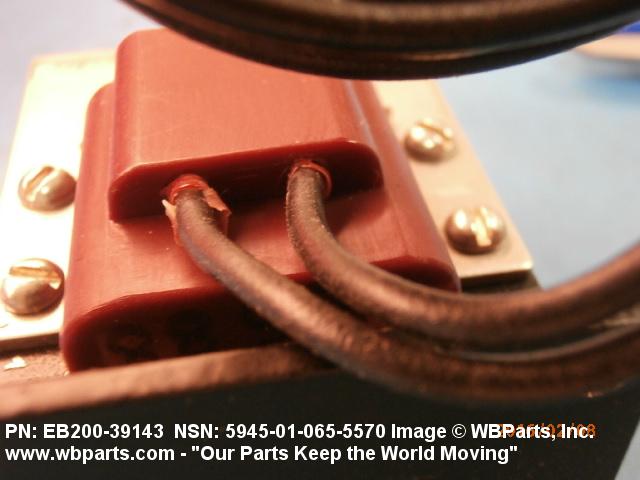

| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LOCATION | ONE SIDE |
| INCLOSURE TYPE | UNINCLOSED |
| III FREQUENCY IN HERTZ | 60.0 NOMINAL |
| MANUFACTURERS CODE | 16236 |
| MFR SOURCE CONTROLLING REFERENCE | 1788144 1001 |
Restrictions/Controls & Freight Information | NSN 5945-01-065-5570
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063100 | SOLENOIDS/PARTS W/WO ARMATURES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-01-065-5570
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
