NSN 5945-01-027-2258 A42006028301, A420-060283-01, SC19702

Product Details | ELECTRICAL SOLENOID

5945-01-027-2258 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.

Part Alternates: A42006028301, A420-060283-01, SC19702, SC-1970-2, G60283, G602831, G-60283-1, 5945-01-027-2258, 01-027-2258, 5945010272258, 010272258

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 SEP 1976	01-027-2258	00310 ( SOLENOID, ELECTRICAL )

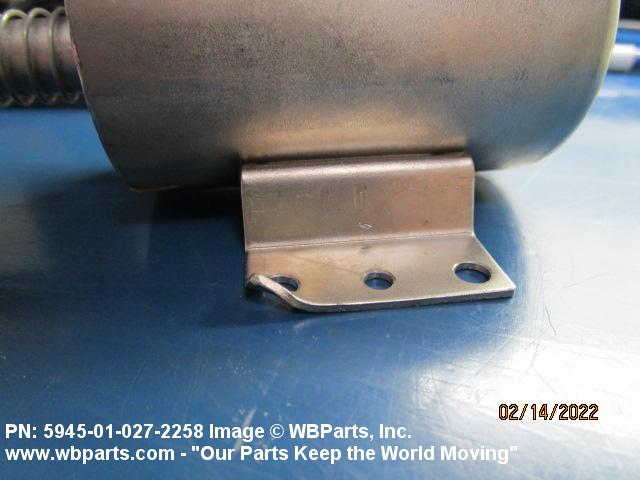

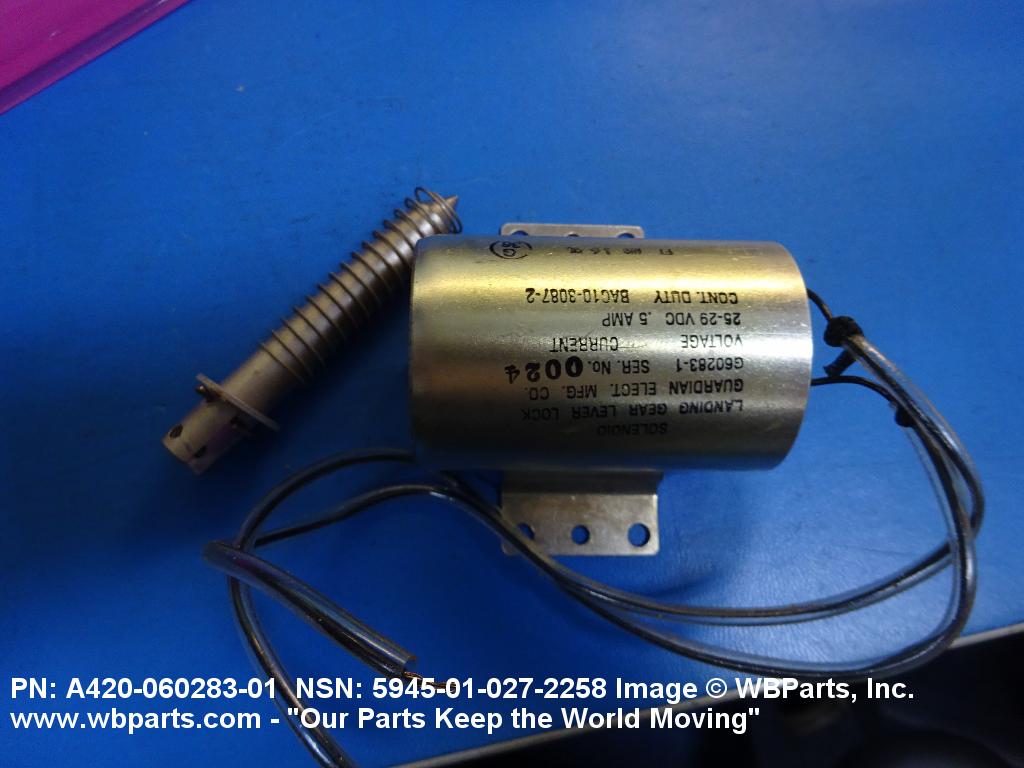

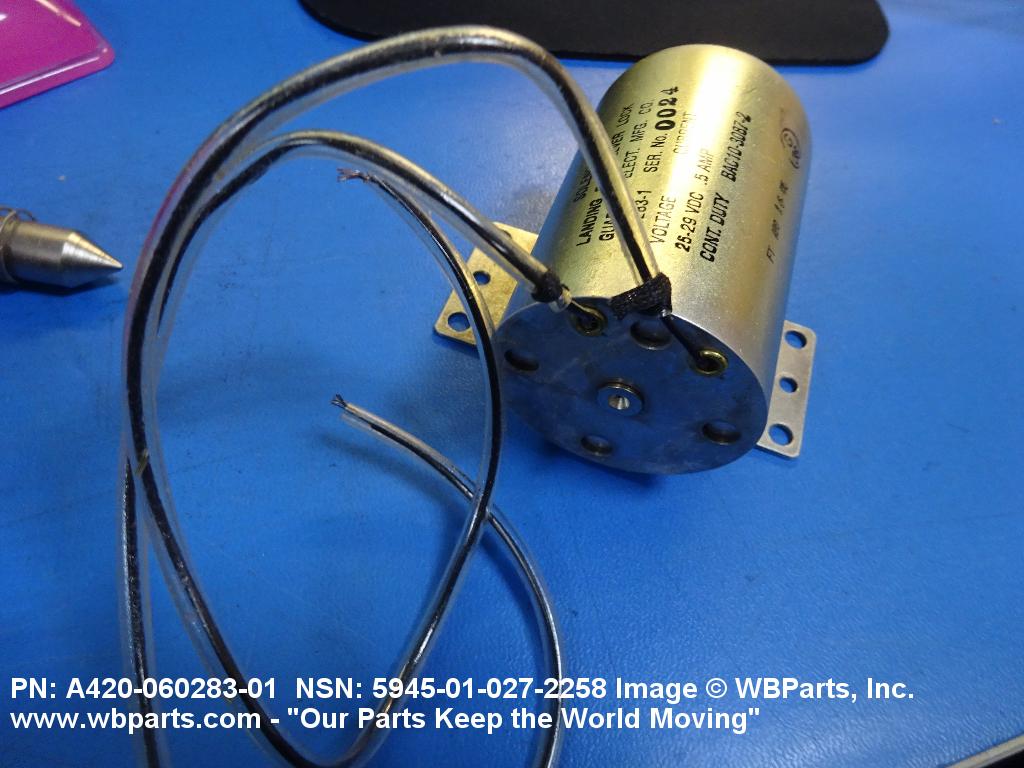

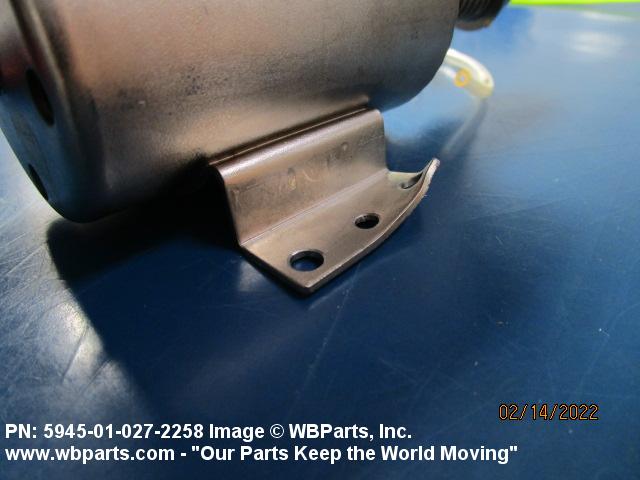

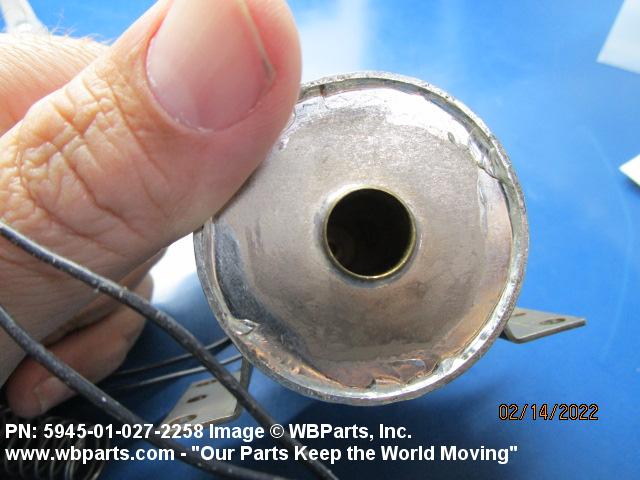

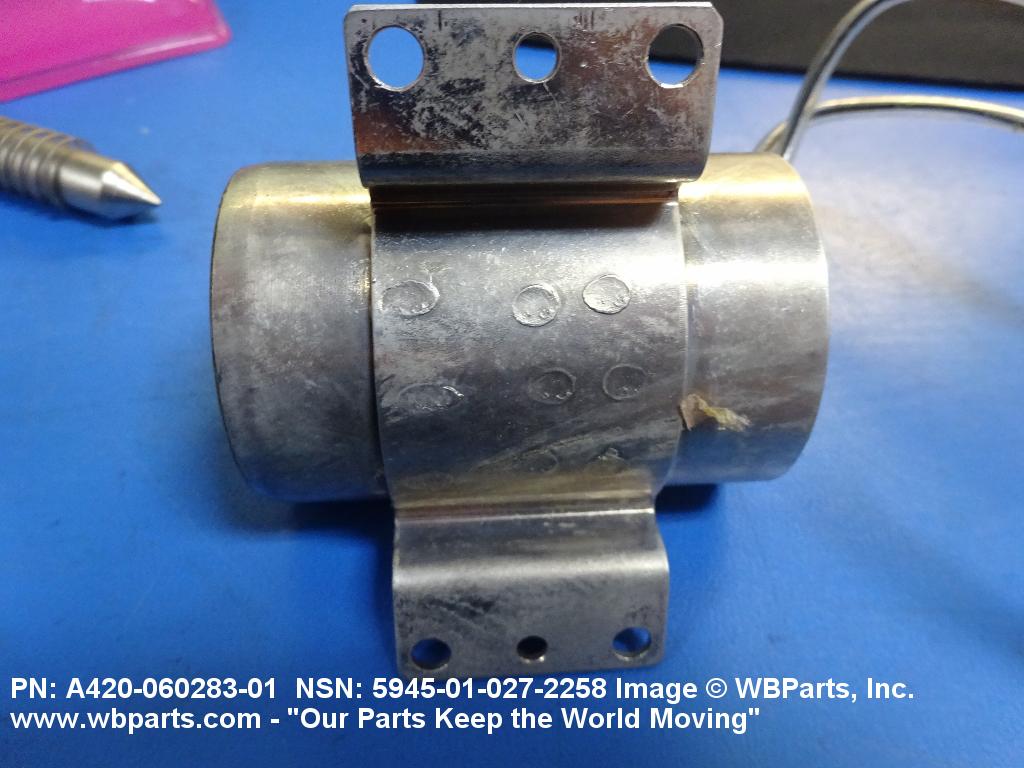

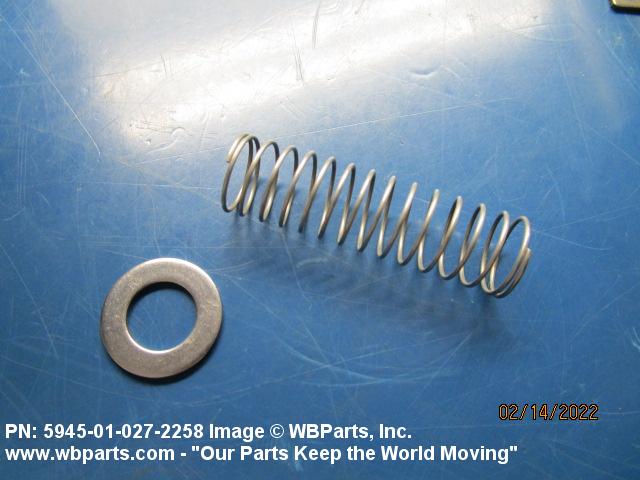

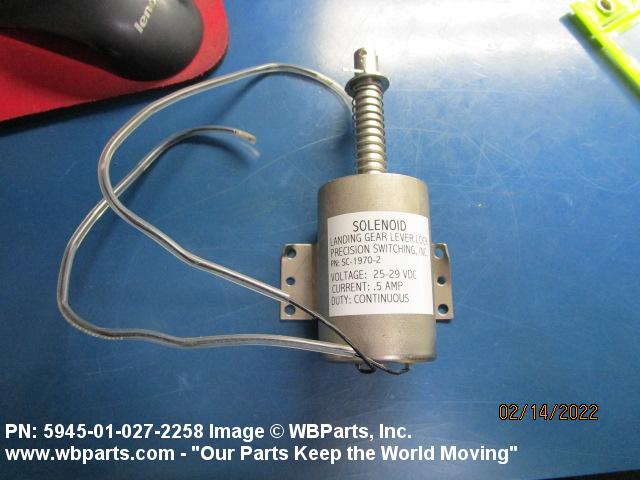

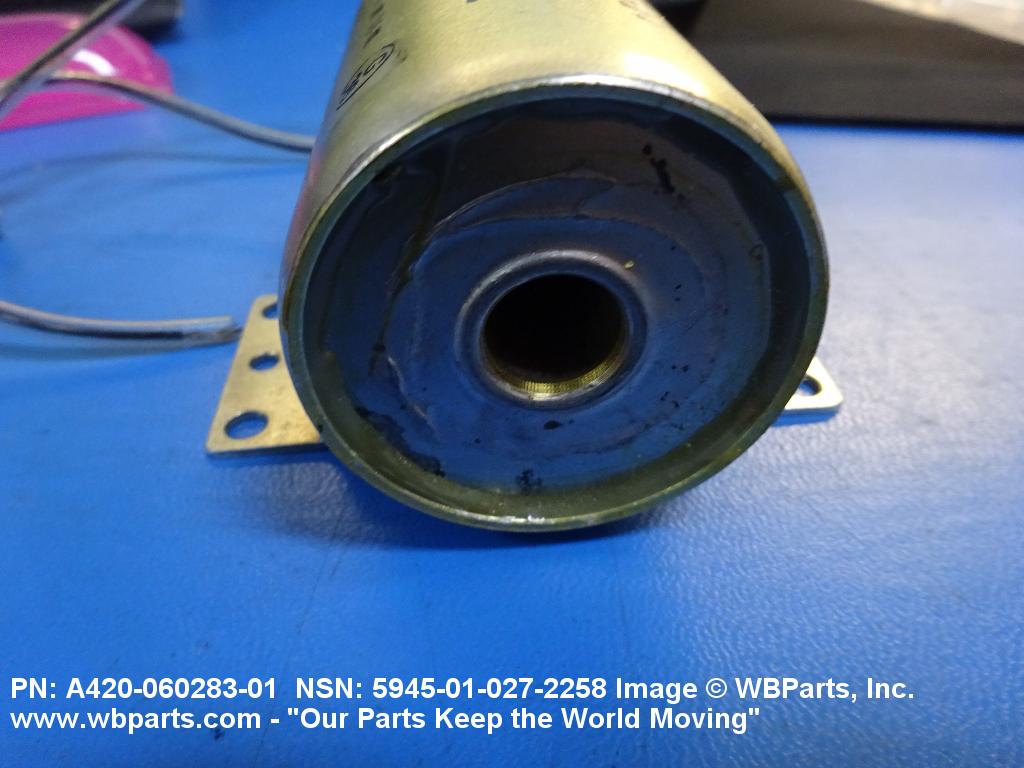

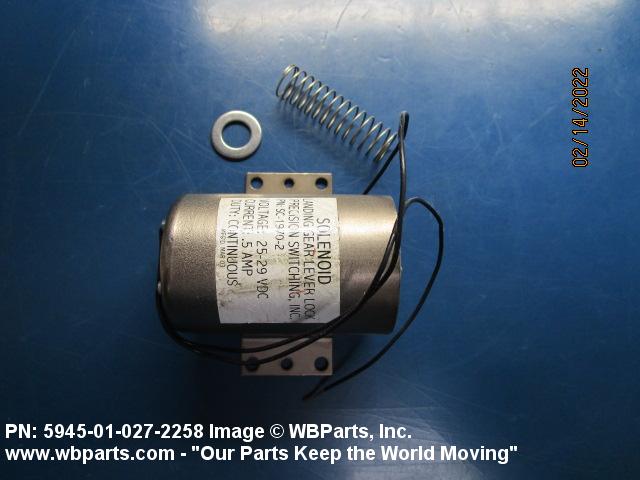

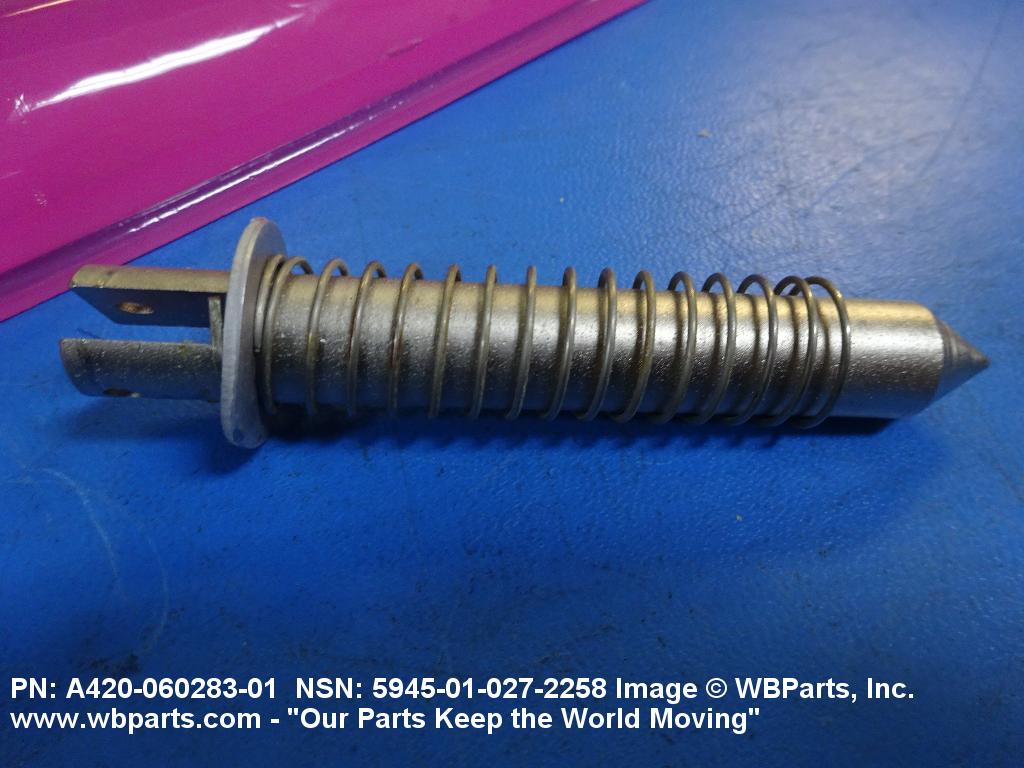

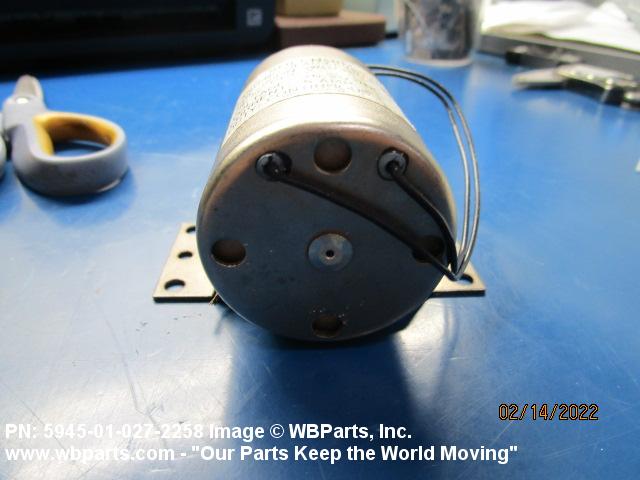

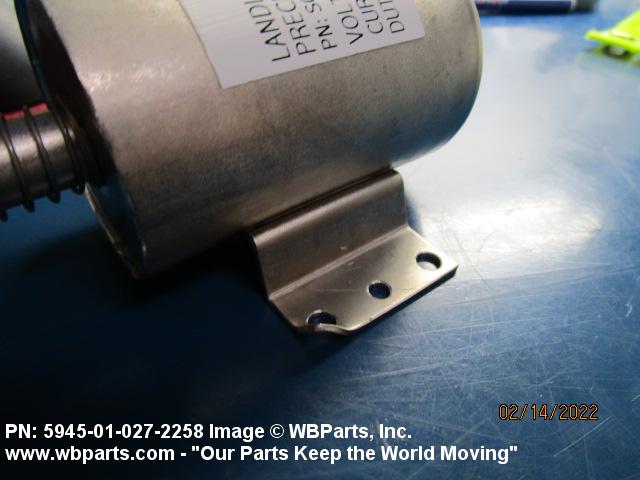

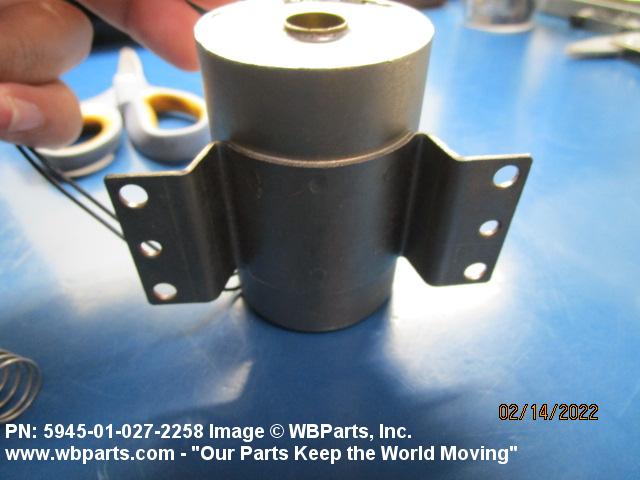

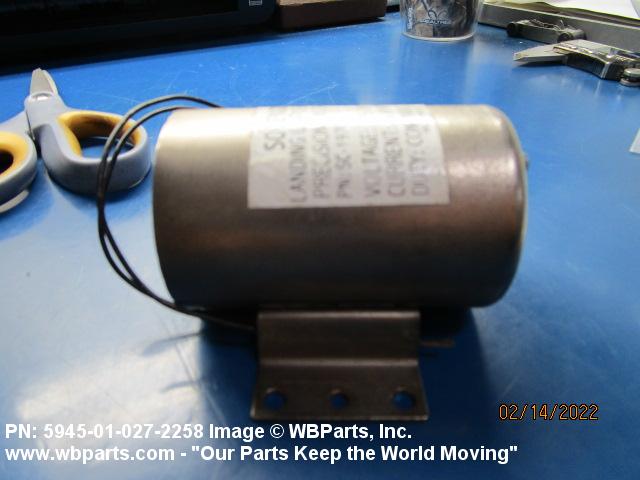

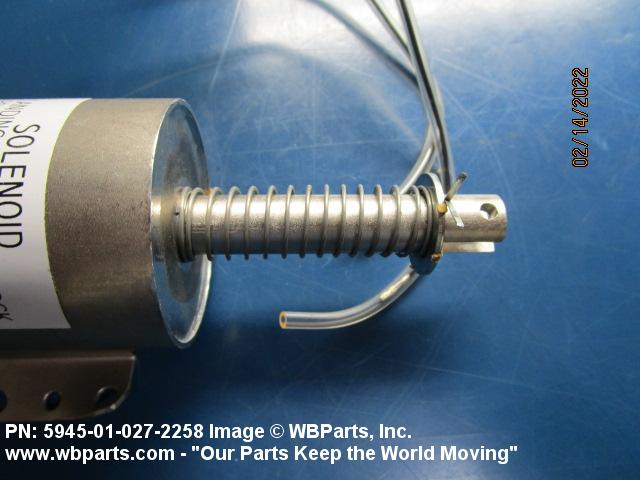

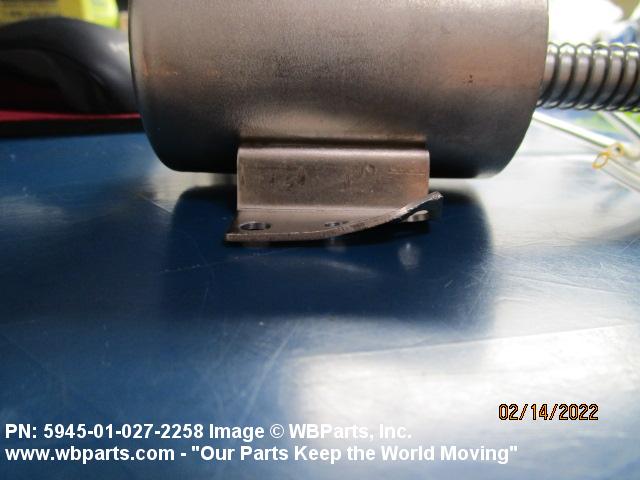

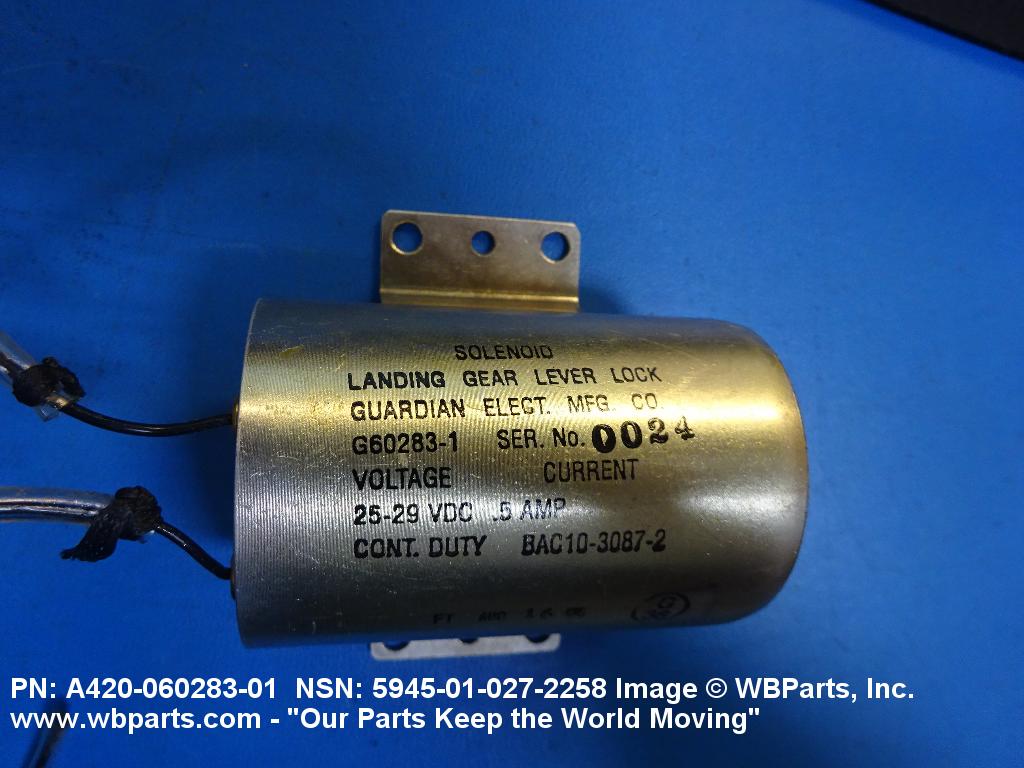

Drawings & Photos | NSN 5945-01-027-2258

Part Number	Request Date	QTY	Origin
A420-060283-01	2024-05-134	26	DIBBS
A420-060283-01	2024-05-123	26	DIBBS
A420-060283-01	2023-03-75	22	DIBBS
5945-01-027-2258	2022-02-33	2	United States
A420-060283-01	2021-07-187	21	DIBBS
A420-060283-01	2021-06-174	21	DIBBS
A420-060283-01	2021-03-81	21	DIBBS
A420-060283-01	2021-03-70	21	DIBBS
A420-060283-01	2021-02-39	24	DIBBS
A420-060283-01	2021-01-26	24	DIBBS
A420-060283-01	2021-01-13	8	DIBBS
A420-060283-01	2020-11-328	24	DIBBS
A420-060283-01	2020-11-316	8	DIBBS
A420-060283-01	2020-11-316	24	DIBBS
A420-060283-01	2019-10-301	43	DIBBS
A420-060283-01	2019-10-290	43	DIBBS
A420-060283-01	2019-03-78	36	DIBBS
A420-060283-01	2019-03-66	36	DIBBS
5945-01-027-2258	2017-07-185	27	DIBBS
5945-01-027-2258	2017-06-173	27	DIBBS
5945-01-027-2258	2017-03-73	42	DIBBS
5945-01-027-2258	2017-03-61	42	DIBBS
5945-01-027-2258	2017-01-24	56	DIBBS
5945-01-027-2258	2016-07-187	19	DIBBS
5945-01-027-2258	2016-06-165	19	DIBBS
5945-01-027-2258	2016-06-158	25	DIBBS
5945-01-027-2258	2015-07-182	11	DIBBS
5945-01-027-2258	2014-07-211	11	DIBBS
5945-01-027-2258	2013-07-190	7	DIBBS
5945-01-027-2258	2012-09-265	3	DIBBS
5945-01-027-2258	2010-11-309	5	DIBBS
5945-01-027-2258	2009-11-322	5	DIBBS
5945-01-027-2258	2009-09-273	3	DIBBS
5945-01-027-2258	2009-08-215	5	DIBBS
5945-01-027-2258	2009-02-44	8	DIBBS
5945-01-027-2258	2008-05-126	8	DIBBS

Cross Reference | NSN 5945-01-027-2258

Part Number	Cage Code	Manufacturer
A420-060283-01	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
G-60283-1	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
G60283	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
SC-1970-2	52401	PRECISION SWITCHING INC DBA CENTURY WHEELS RESEARCH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-027-2258

Compare

Related Products | NSN 5945-01-027-2258

5945-01-027-3846, 5945-01-027-3850, 5945-01-027-3852, 5945-01-027-3869, 5945-01-027-3871

Technical Data | NSN 5945-01-027-2258

Characteristic	Specifications
BODY STYLE	32 CYLINDRICAL FRAME
BODY DIAMETER	2.000 INCHES NOMINAL
BODY LENGTH	3.030 INCHES NOMINAL
MOUNTING BASE WIDTH	3.410 INCHES NOMINAL
MAGNETIC COIL QUANTITY	1
VOLTAGE RATING IN VOLTS	29.0 DC MAXIMUM
CURRENT RATING	0.500 AMPERES NOMINAL
ELECTRICAL RESISTANCE	60.00 OHMS MINIMUM AND 66.00 OHMS MAXIMUM
DUTY TYPE	CONTINUOUS
ACTUATOR STROKE TYPE	PULL
LINEAR FORCE DELIVERED	7.00 POUNDS
POWER TAKEOFF CONNECTION TYPE	INTERNAL PLUNGER
ACTUATOR DIAMETER	0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
ACTUATOR LENGTH	1.200 INCHES MINIMUM AND 1.700 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
MOUNTING FACILITY PATTERN	SIX POSITION RECTANGULAR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.120 INCHES MINIMUM AND 1.130 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	3.026 INCHES MINIMUM AND 3.036 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER	0.166 INCHES MINIMUM AND 0.171 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY	2 SOLDERLESS LUG
TERMINAL LOCATION	BASE
INCLOSURE TYPE	PARTIALLY INCLOSED, SHELL

Restrictions/Controls & Freight Information | NSN 5945-01-027-2258

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063100	SOLENOIDS/PARTS W/WO ARMATURES
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TA	Sacramento Air Logistics Center McClellan AFB, CA 95652-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-027-2258

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
