Product Details | ELECTROMAGNETIC RELAY
5945-01-026-6656 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: R40E00304, R40-E0030-4, R40E00305, R40-E0030-5, R40E00306, R40-E0030-6, 272716, 4504272716, 4504-272716, 5945-01-026-6656, 01-026-6656, 5945010266656, 010266656
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 AUG 1976 | 01-026-6656 | 32512 ( RELAY, ELECTROMAGNETIC ) |

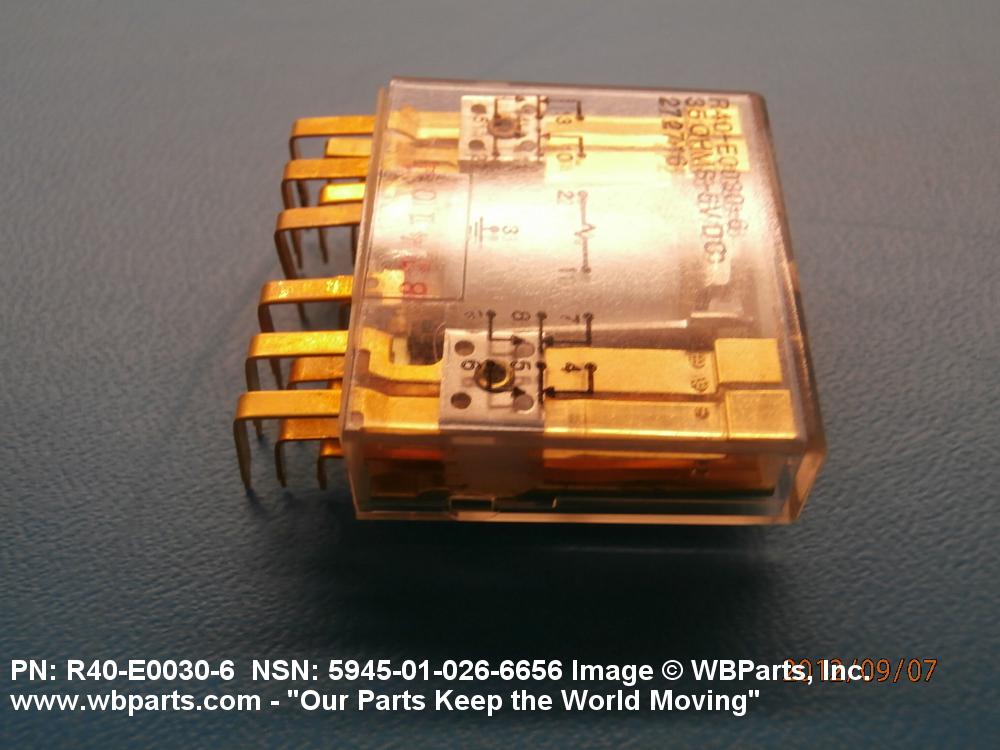

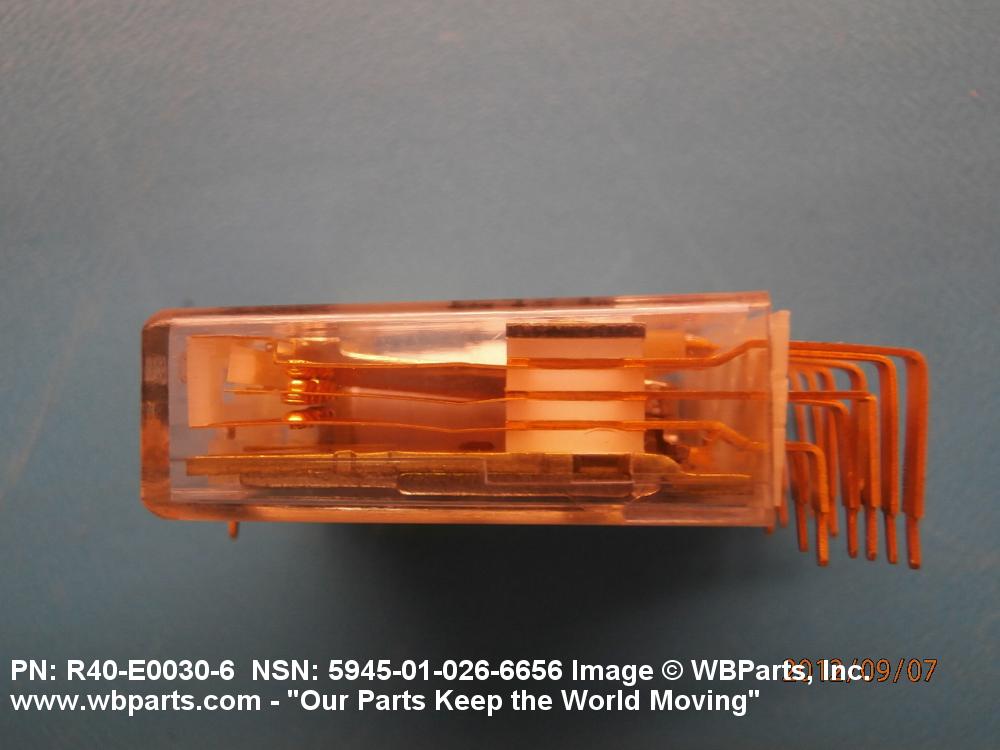

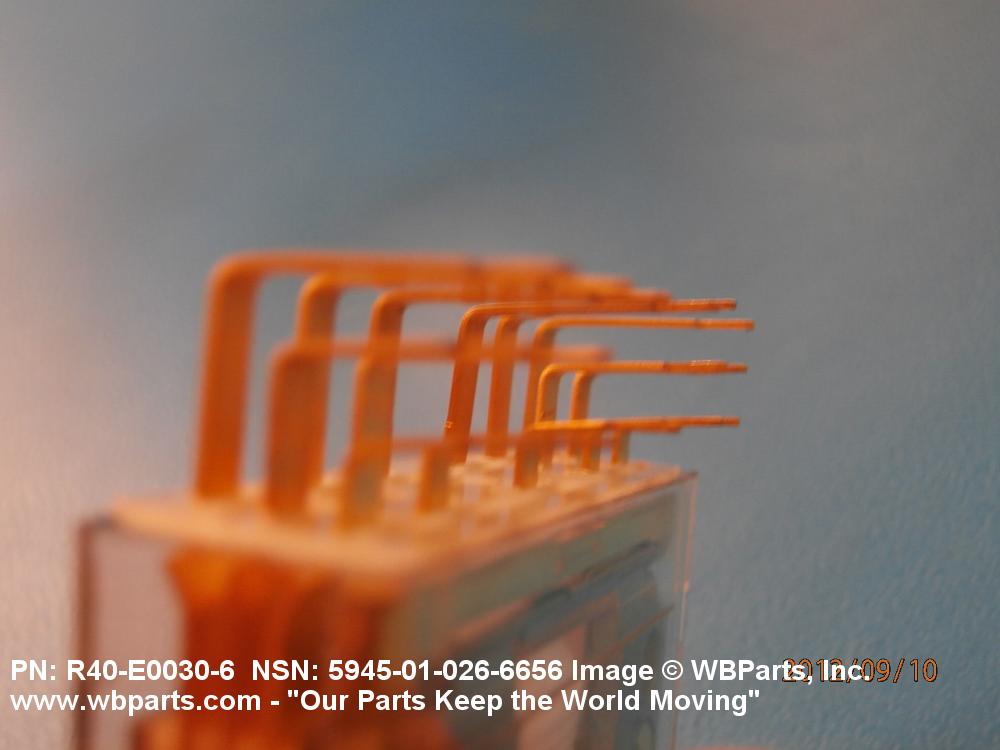

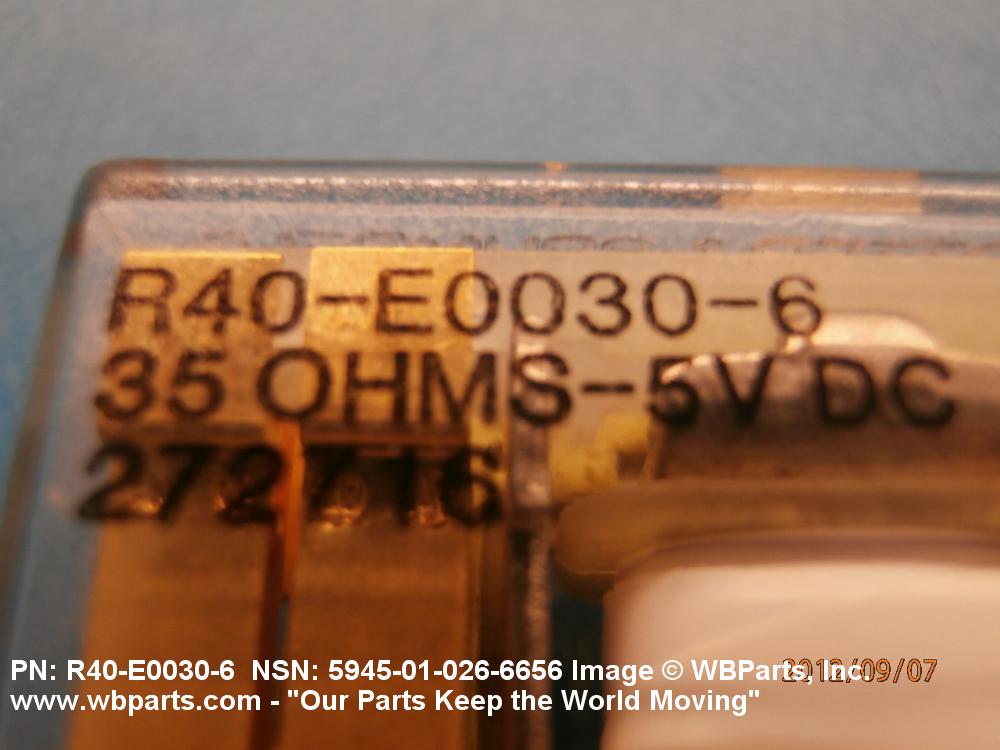

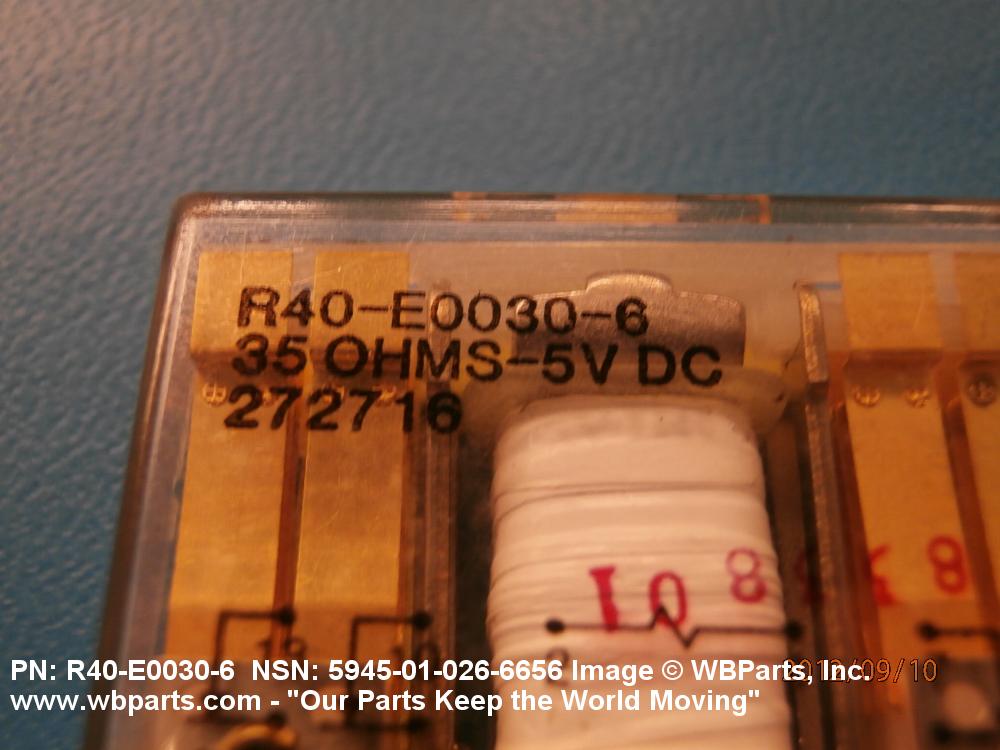

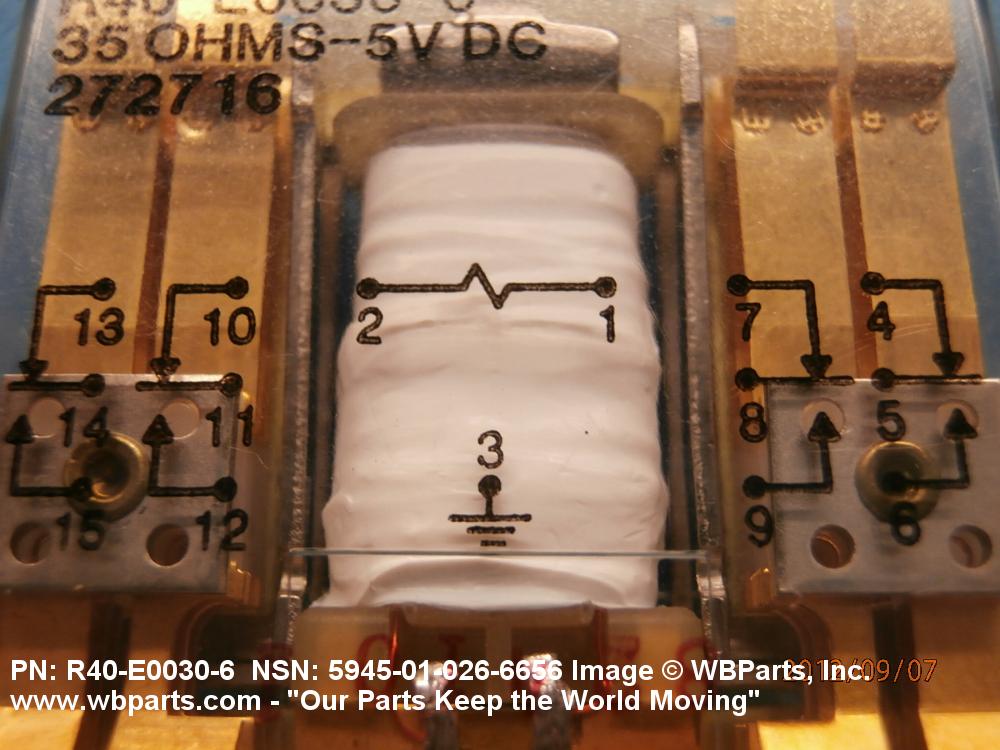

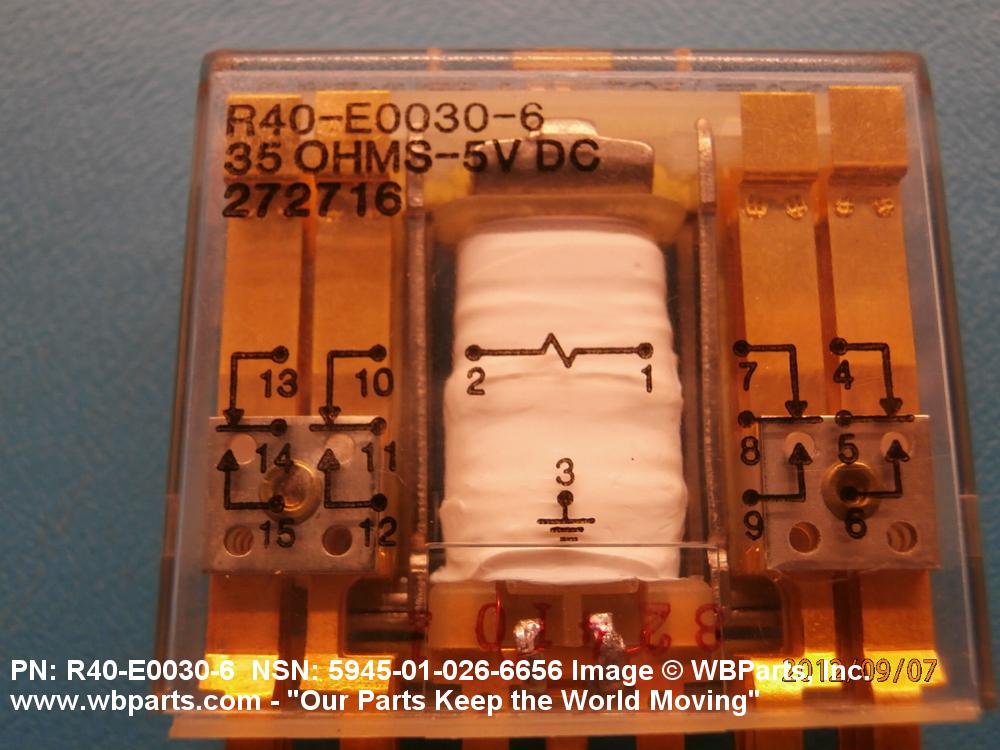

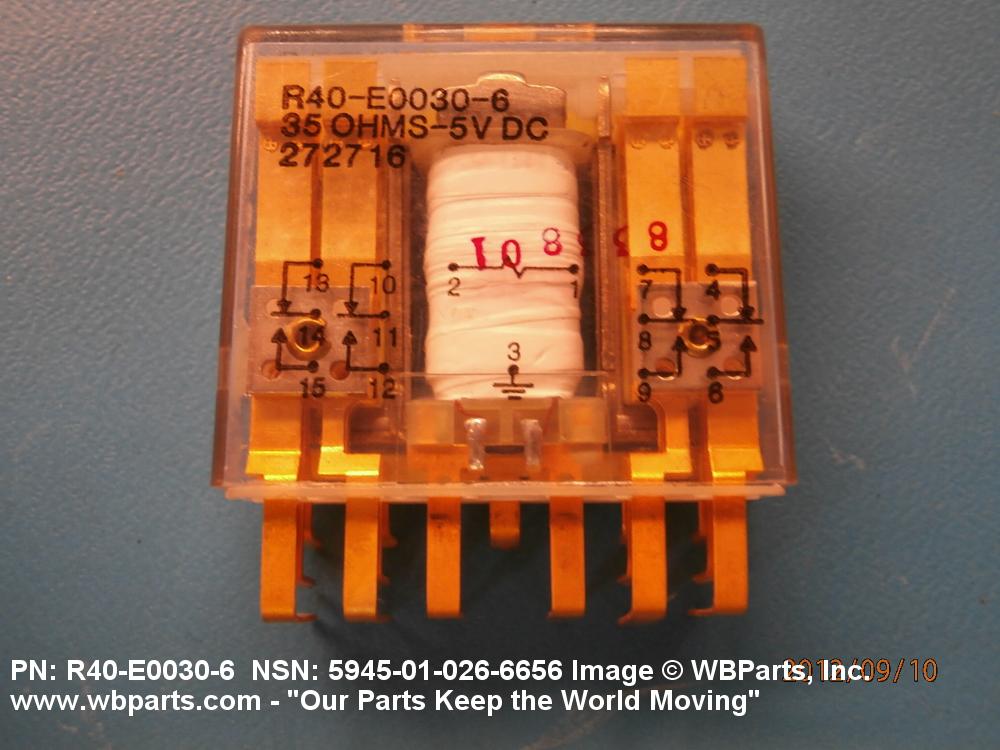

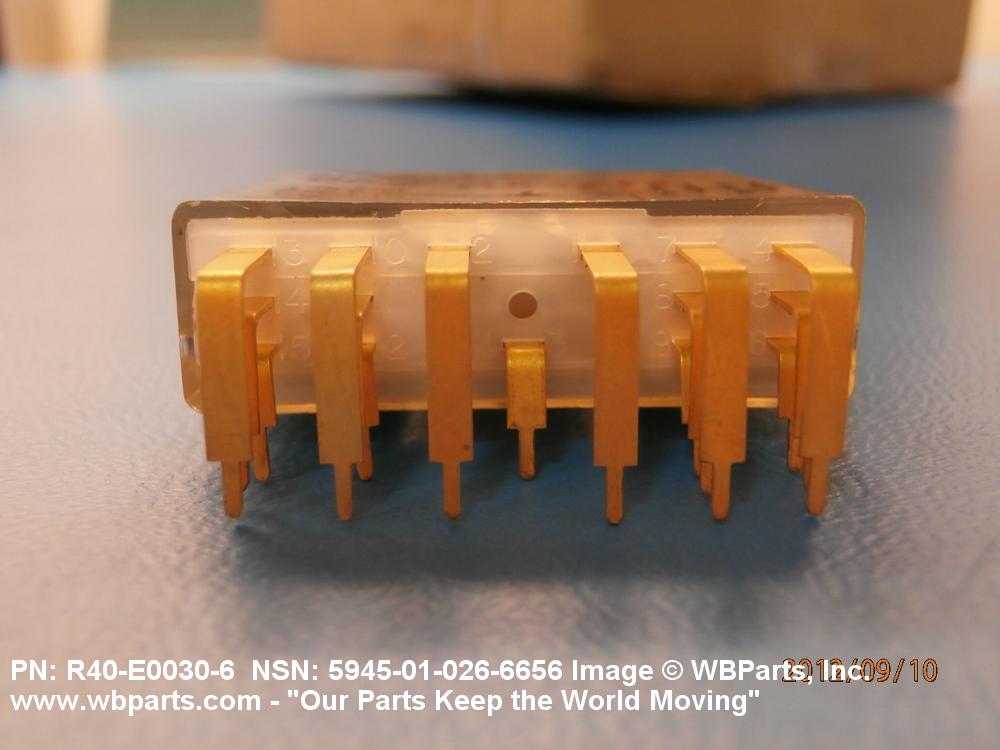

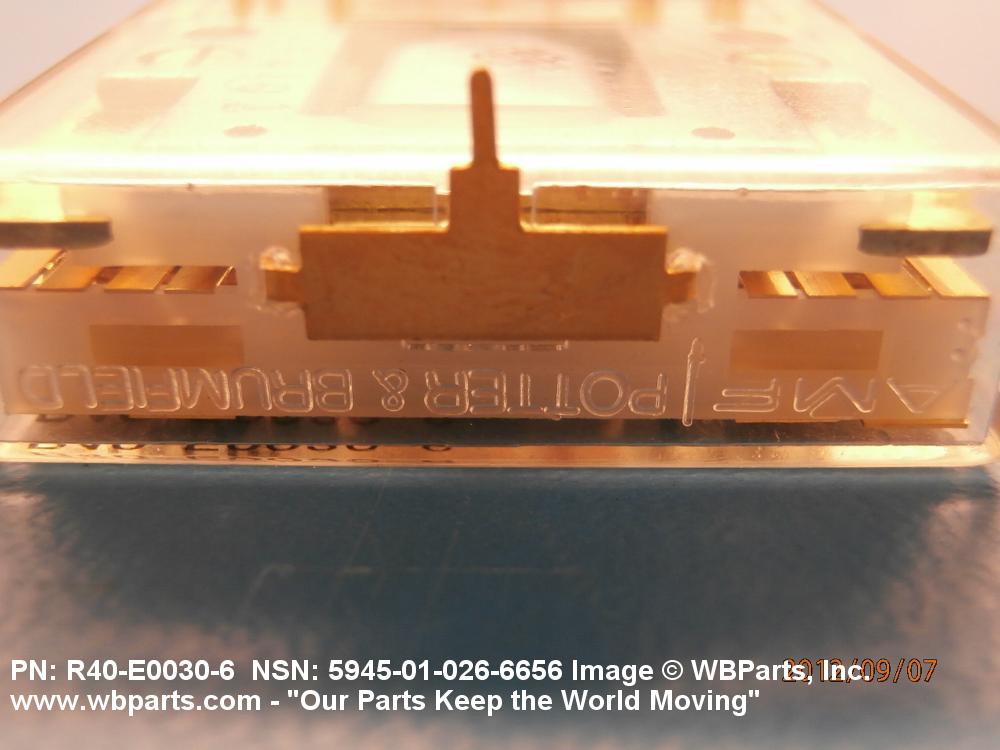

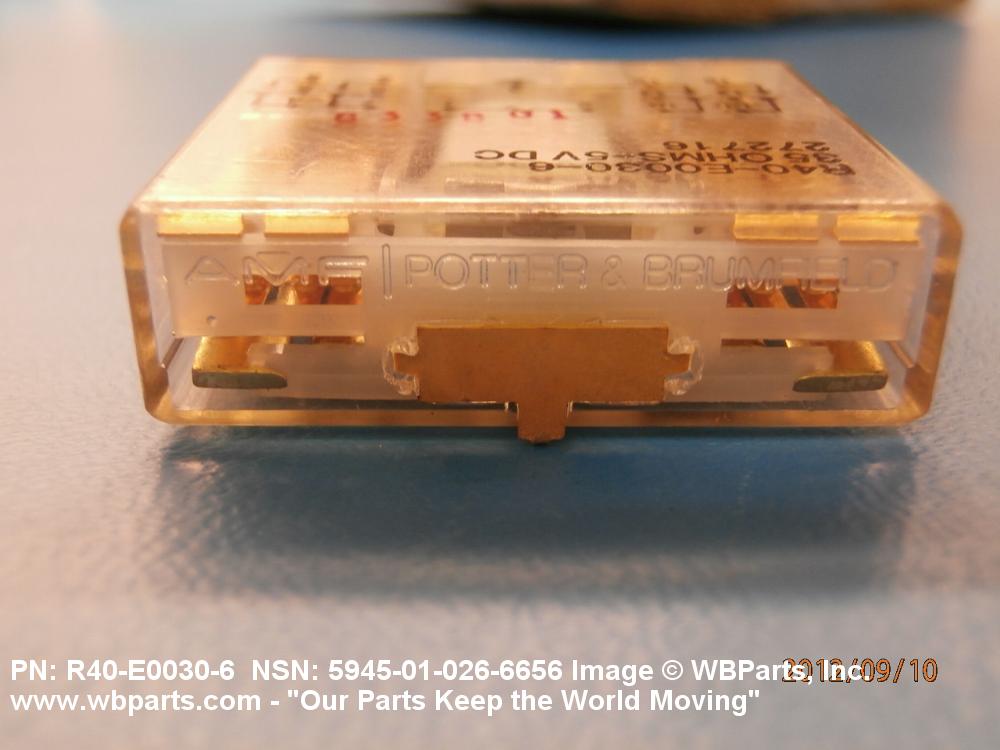

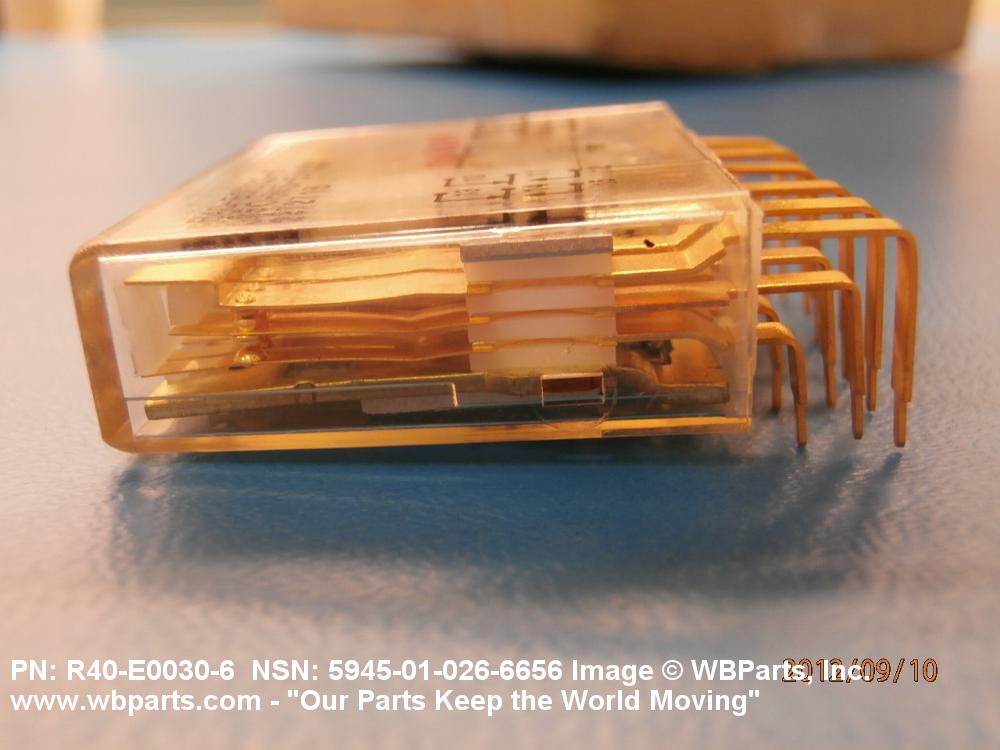

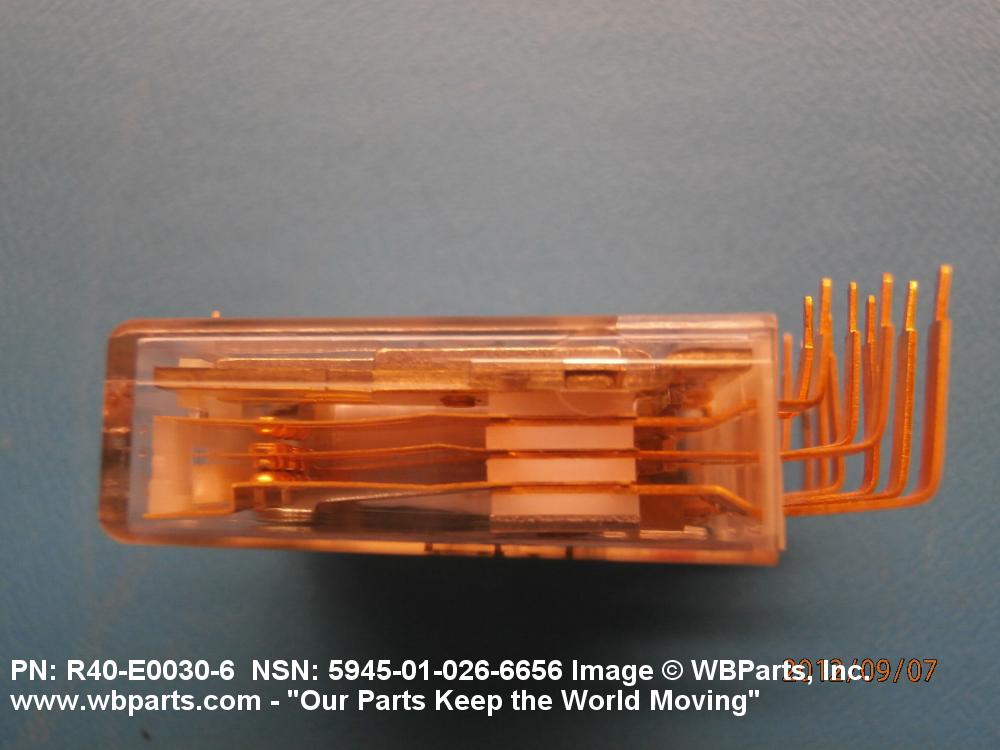

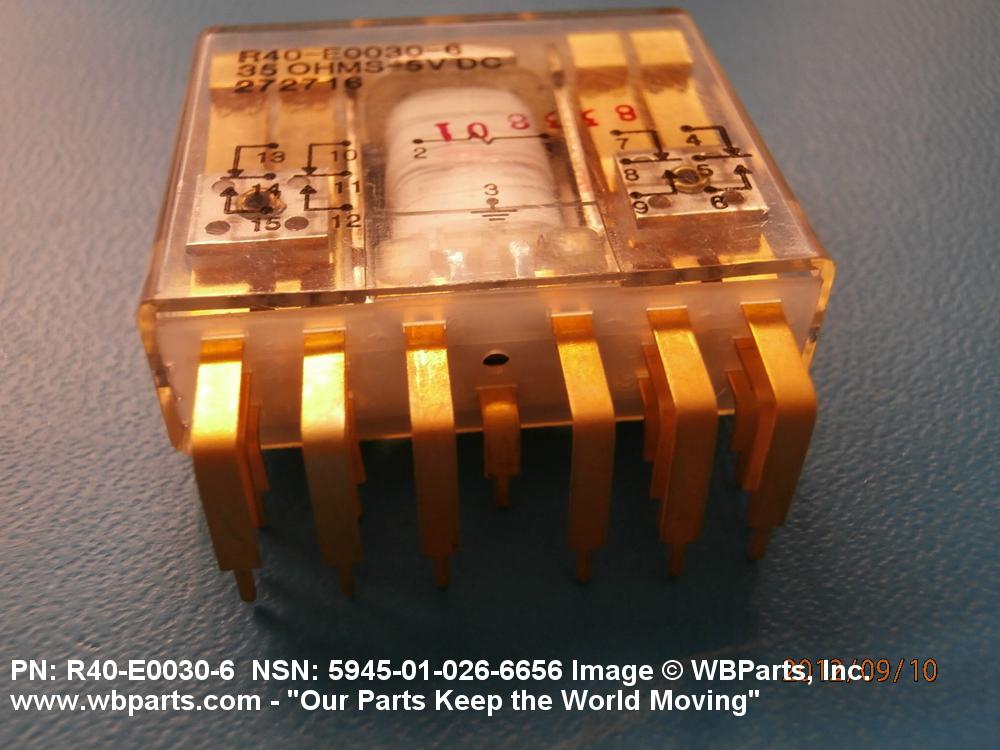

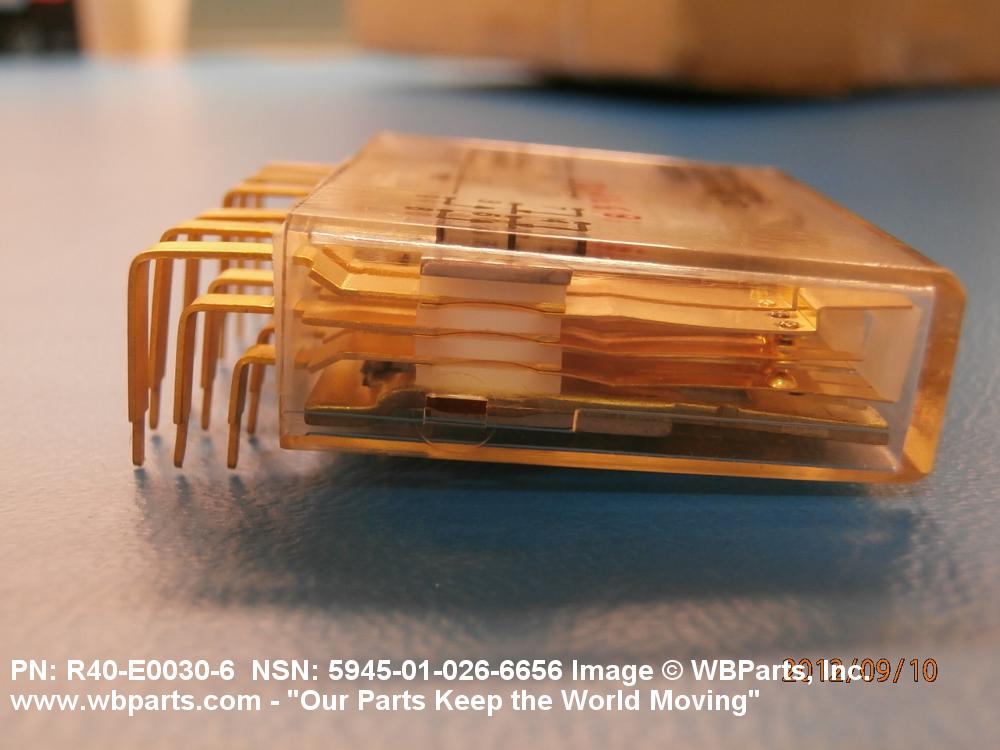

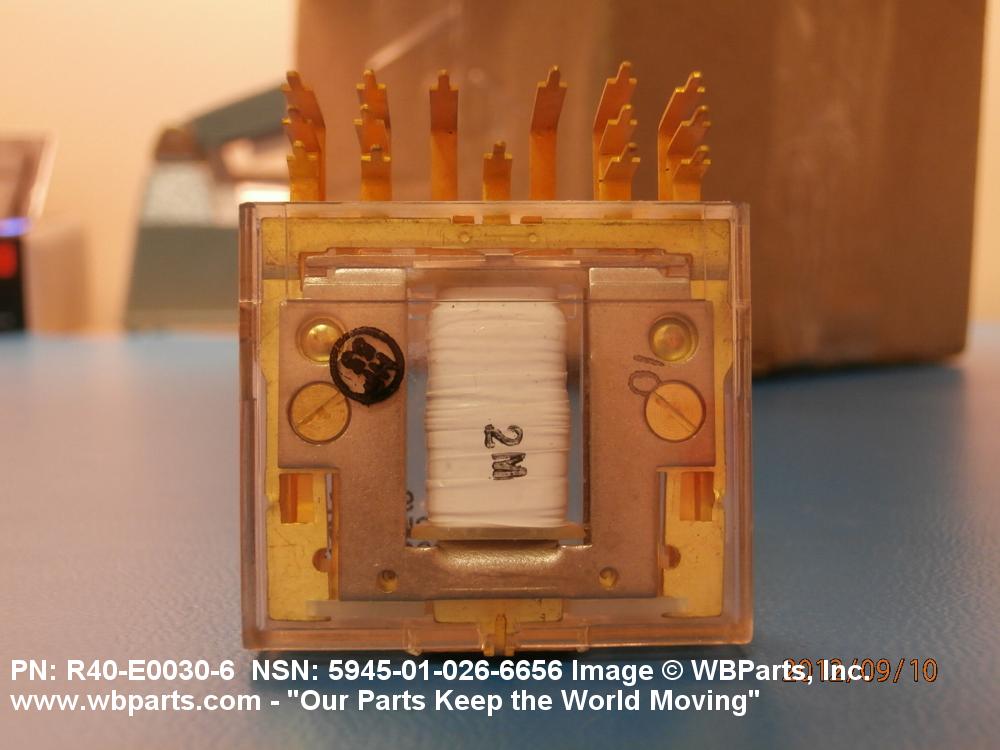

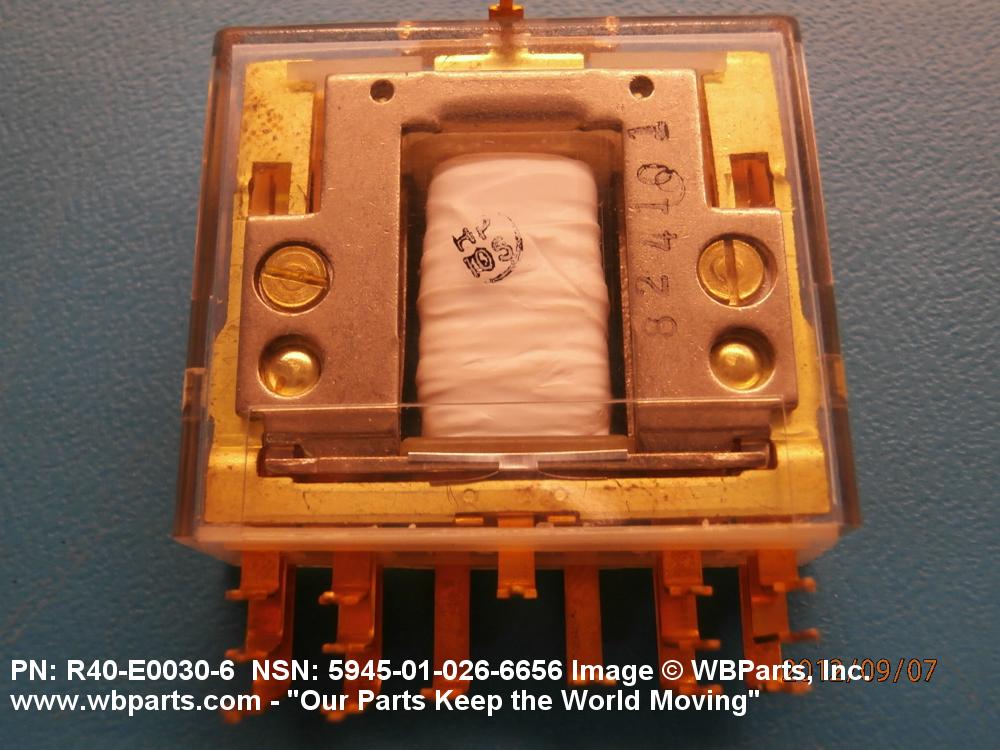

Drawings & Photos | NSN 5945-01-026-6656
Demand History | NSN 5945-01-026-6656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-026-6656 | 2013-05-140 | 2 | United States |
| 5945-01-026-6656 | 2012-08-229 | 2 | United States |
| 5945-01-026-6656 | 2012-07-213 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-026-6656
Related Products | NSN 5945-01-026-6656
Technical Data | NSN 5945-01-026-6656
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.0 MILLIAMPERES AC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 35.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 5.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| TERMINAL TYPE AND QUANTITY | 14 PIN ALL FUNCTIONS |
| TIME DELAY | 0.015 SECONDS NOMINAL FIXED OPERATE TIME 0.005 SECONDS NOMINAL FIXED RELEASE TIME |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |

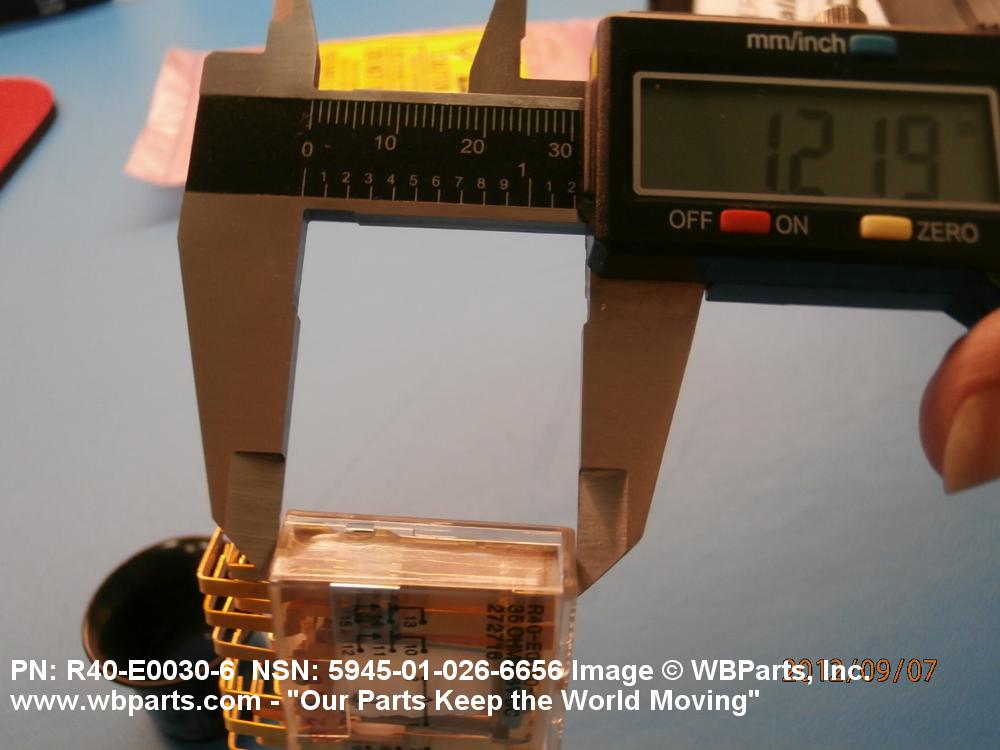

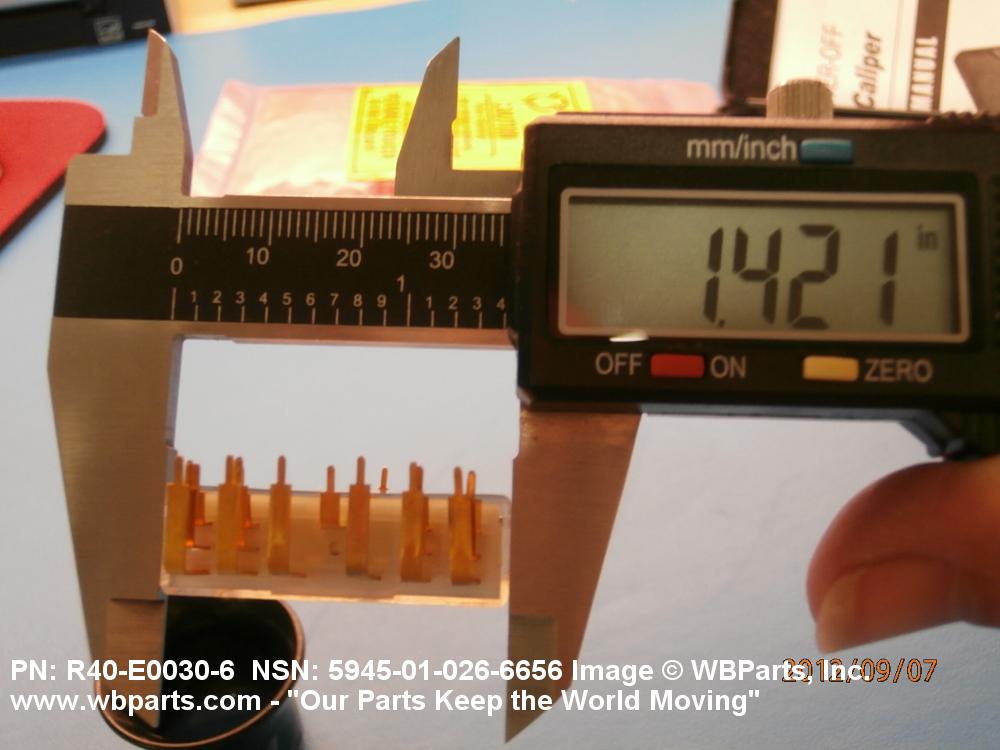

| OVERALL LENGTH | 1.400 INCHES MAXIMUM |
| OVERALL WIDTH | 0.430 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.200 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PLUG-IN TERMINAL SINGLE MOUNTING FACILITY |
