NSN 5945-01-024-1335 SA1509, SA150924, SA1509-24

Product Details | ELECTRICAL SOLENOID

5945-01-024-1335 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.

Part Alternates: SA1509, SA150924, SA1509-24, 750862, 75-0862, 466187C1, 5945-01-024-1335, 01-024-1335, 5945010241335, 010241335

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 JUL 1976	01-024-1335	00310 ( SOLENOID, ELECTRICAL )

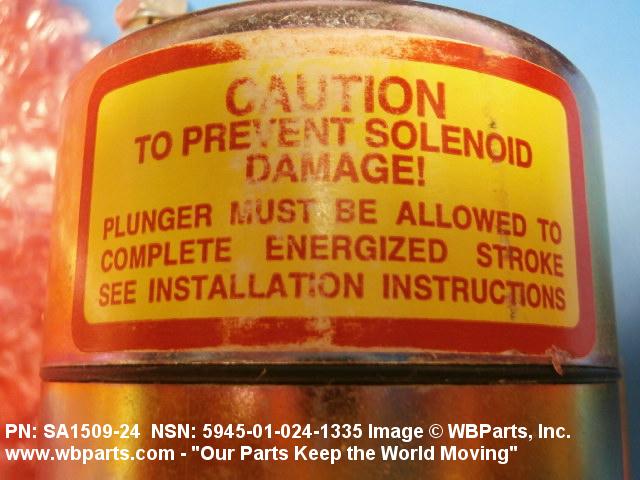

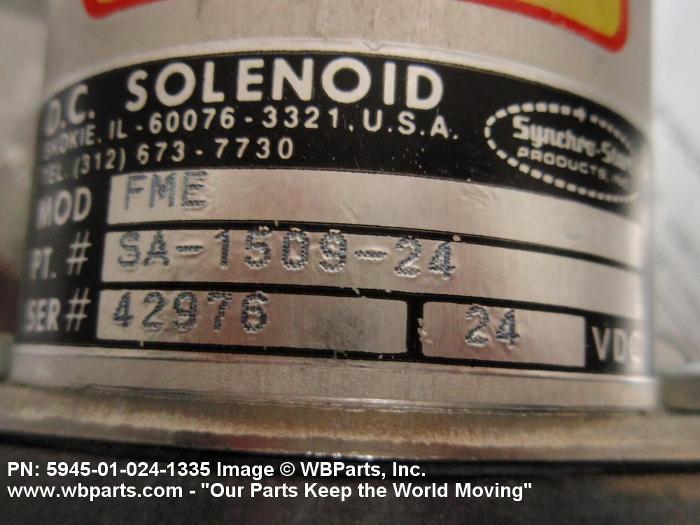

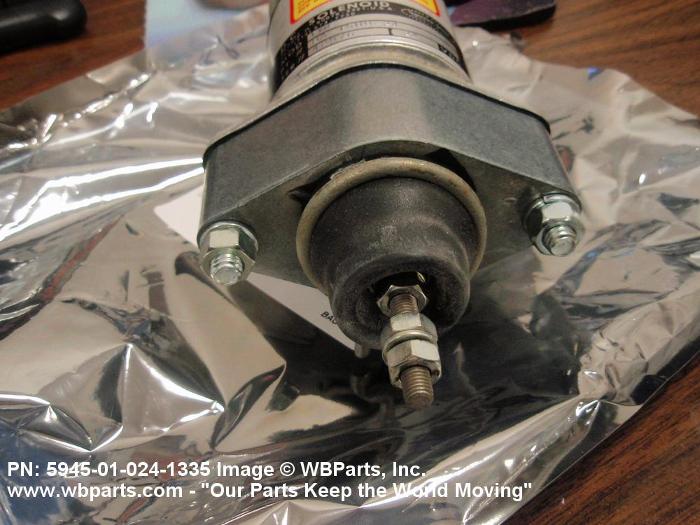

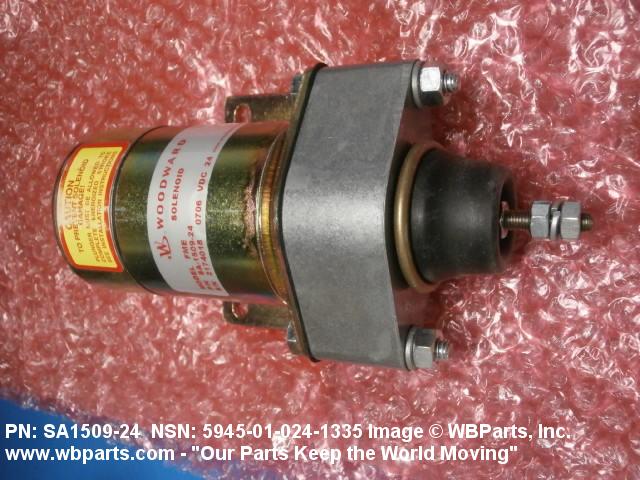

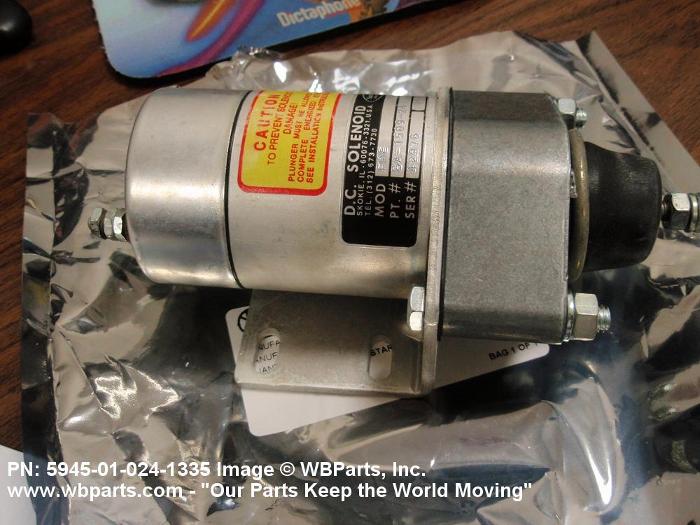

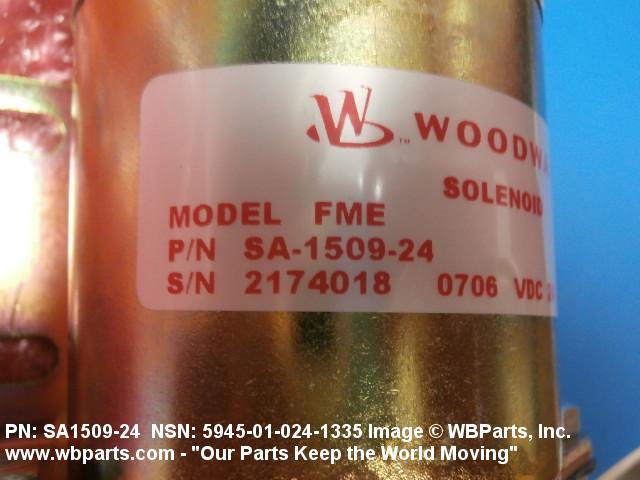

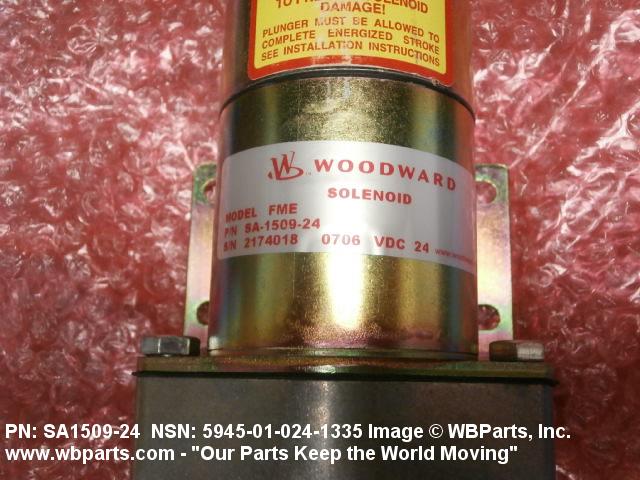

Drawings & Photos | NSN 5945-01-024-1335

Part Number	Request Date	QTY	Origin
5945-01-024-1335	2024-04-102	1	US
5945-01-024-1335	2021-03-70	1	US
5945-01-024-1335	2018-03-85	2	US
5945-01-024-1335	2015-11-320	1	United States
SA150924	2011-01-19	1	United States

Cross Reference | NSN 5945-01-024-1335

Part Number	Cage Code	Manufacturer
466187C1	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
75-0862	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
SA1509	78388	WOODWARD CONTROLS INC.
SA1509-24	78388	WOODWARD CONTROLS INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-024-1335

Compare

Related Products | NSN 5945-01-024-1335

5945-01-024-1720, 5945-01-024-1722, 5945-01-024-1723, 5945-01-024-1996, 5945-01-024-2124

Technical Data | NSN 5945-01-024-1335

Characteristic	Specifications
BODY DIAMETER	2.500 INCHES NOMINAL
BODY LENGTH	4.990 INCHES NOMINAL
MAGNETIC COIL QUANTITY	2
VOLTAGE RATING IN VOLTS	24.0 DC MAXIMUM
CURRENT RATING	14.000 AMPERES NOMINAL
DUTY TYPE	CONTINUOUS
ACTUATOR STROKE TYPE	PULL
LINEAR FORCE DELIVERED	16.00 POUNDS
ENERGIZING STROKE MAXIMUM LENGTH	1.000 INCHES
POWER TAKEOFF CONNECTION TYPE	EXTERNAL THREADS
ACTUATOR LENGTH	1.000 INCHES NOMINAL
MOUNTING FACILITY PATTERN	FOUR POSITION RECTANGULAR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	3.000 INCHES NOMINAL
MOUNTING SLOT WIDTH	0.281 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	2 THREADED STUD
TERMINAL LOCATION	END OPPOSITE ACTUATOR
INCLOSURE TYPE	HERMETICALLY SEALED
SPECIAL FEATURES	SLOT LENGTH 0.500 IN
III MAXIMUM OPERATING TEMP	73.0 DEG FAHRENHEIT

Restrictions/Controls & Freight Information | NSN 5945-01-024-1335

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063100	SOLENOIDS/PARTS W/WO ARMATURES
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-01-024-1335

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
