NSN 5945-00-914-2323 W103PCX2, 103PCX34, 103PCX-34
Product Details | ELECTROMAGNETIC RELAY
5945-00-914-2323 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: W103PCX2, 103PCX34, 103PCX-34, 20600007, 206-00007, 27110073P2, 271-10073P2, 5945-00-914-2323, 00-914-2323, 5945009142323, 009142323
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-914-2323 | 32512 ( RELAY, ELECTROMAGNETIC ) |

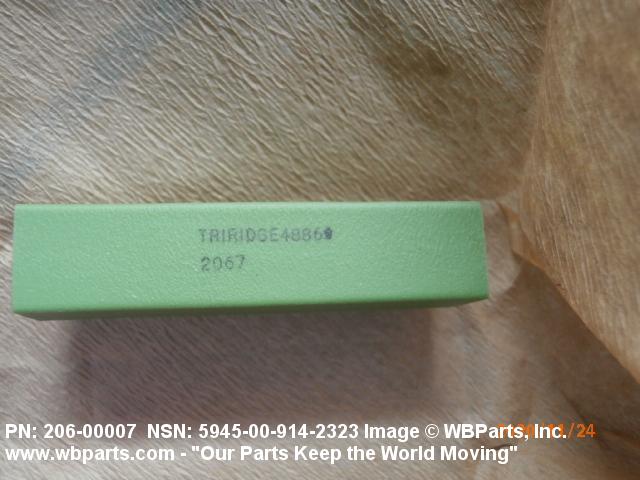

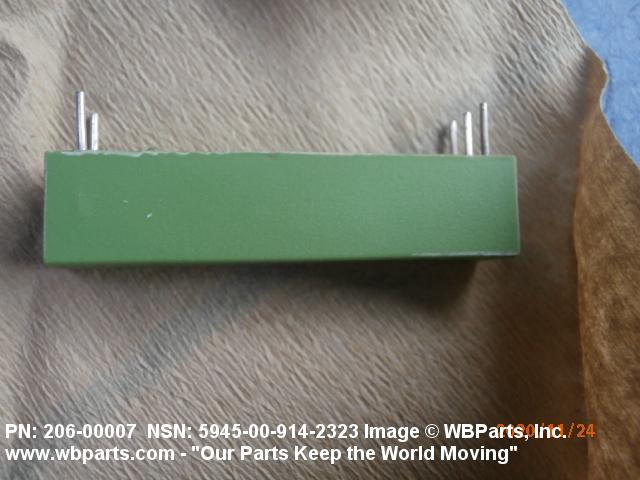

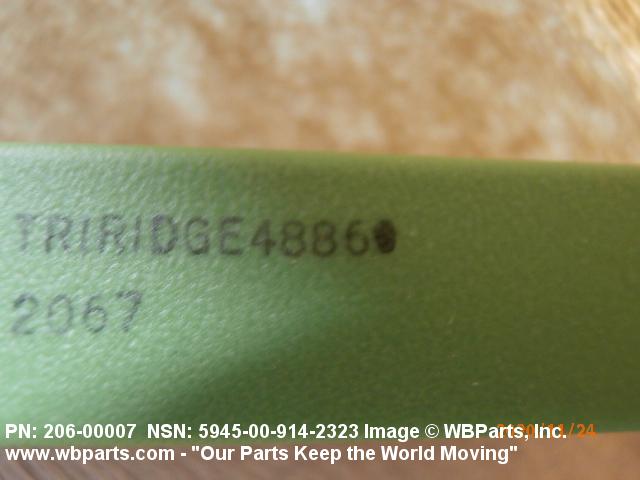

Drawings & Photos | NSN 5945-00-914-2323
Demand History | NSN 5945-00-914-2323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-914-2323 | 2021-02-11 | 3 | Denmark |
| 5945-00-914-2323 | 2020-11-09 | 2 | Denmark |
Cross Reference | NSN 5945-00-914-2323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103PCX-34 | 94696 | SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT |
| 206-00007 | 31951 | TRIRIDGE CORP |
| 271-10073P2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 271-10073P2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| W103PCX2 | 94696 | SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-914-2323
Related Products | NSN 5945-00-914-2323
Technical Data | NSN 5945-00-914-2323
| Characteristic | Specifications |
|---|---|
| NONPILE-UP MAIN CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 1.0 AMPERES AC RESISTIVE LOAD |
| ARC QUENCHING METHOD | INERT GAS |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| WINDING DC RESISTANCE RATING | 400.0 OHMS NOMINAL SINGLE WINDING |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 12.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |

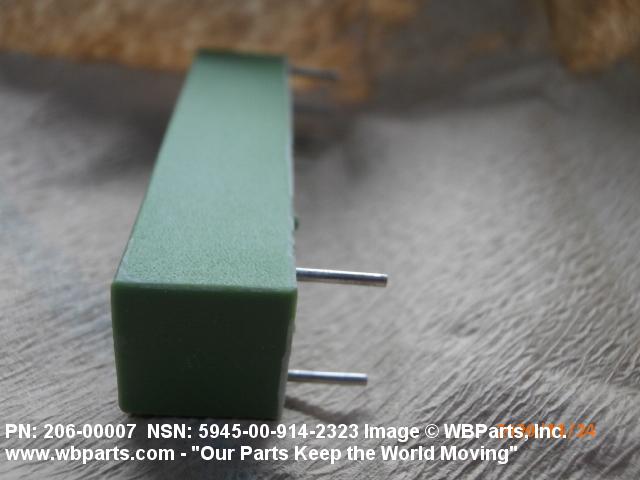

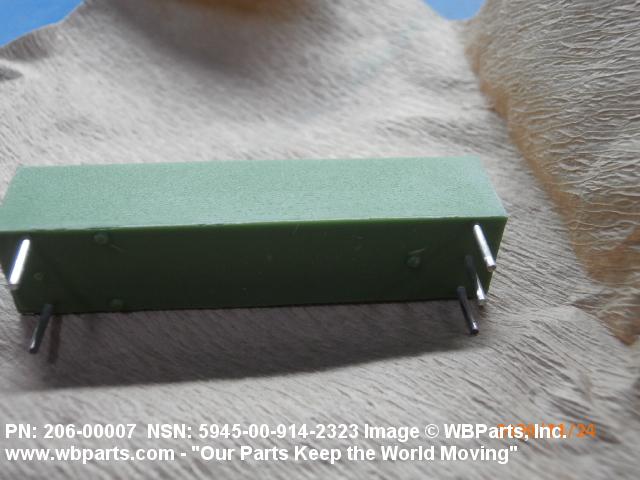

| TERMINAL TYPE AND QUANTITY | 4 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

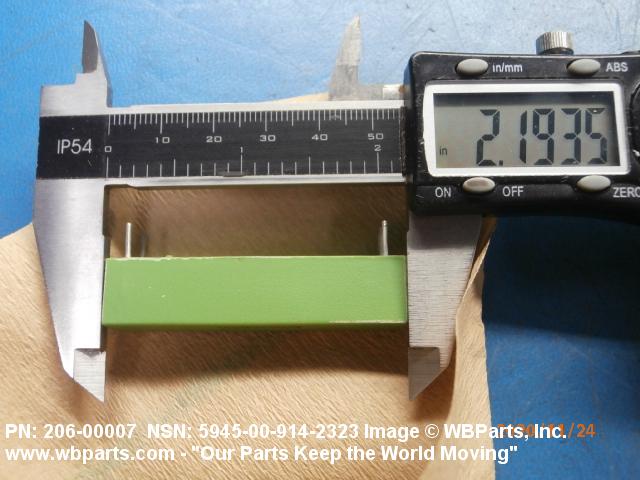

| OVERALL LENGTH | 2.250 INCHES NOMINAL |

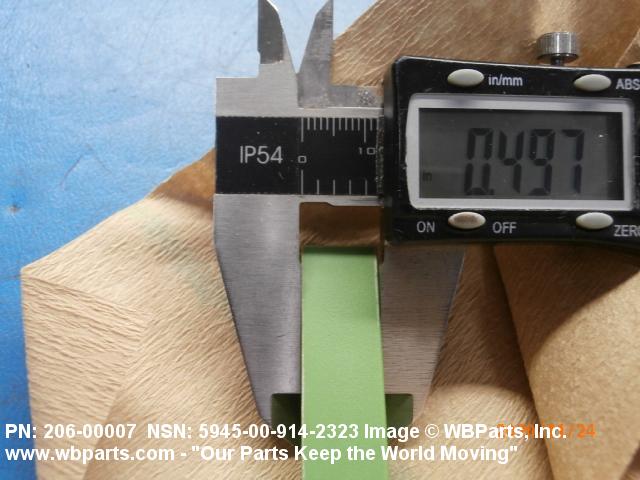

| OVERALL WIDTH | 0.650 INCHES NOMINAL |

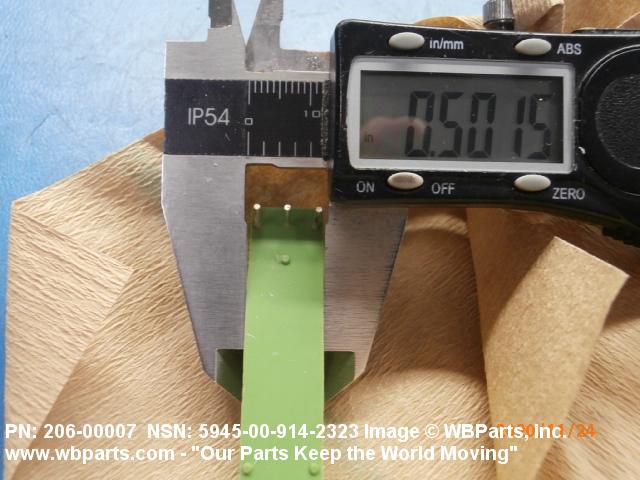

| OVERALL HEIGHT | 0.620 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PRINTED CIRCUIT TERMINAL SINGLE MOUNTING FACILITY |
