NSN 5945-00-787-3068 MKH2A115 , A41036213740, A410-362137-40

Product Details | ELECTROMAGNETIC RELAY

5945-00-787-3068 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: MKH2A115 , A41036213740, A410-362137-40, S1210156, S121-0156, SKP11AG110, SKP-11-AG-110, W88ANCPX2, W88ANCPX-2, R3500163, R350016-3, GHP2C115VAC, KAP11AY, KAP-11AY, KAP11AY 120VAC, KAP11AY120VAC, KPR11AG120V, KRP11A120, KRP-11A-120, KRP11A120VAC, KRP11AG, KRP-11AG, KRP11AG115V, KRP11AG-115V, KRP11AG120, KRP11AG-120, KRP11AG120V, KRP11AG-120V, KRP11AG120V5060HZ, KRP-11AG120V50-60HZ, KRP11AG120VDC, KRP11AN115V, KRP11AN120, KRP-11AN-120, KRP11AN120V, KRPA11AG, KRPA-11AG, KRPA11AG120, KRPA11AG120V, KRPA11AG120VAC, KRPA11AG-120VAC, KRPA11AN120VAC, LHP11A115, 8640-88001, 619975, 6-1-9975, 62191927166, 6-2-1919-27-166, 639AS10027, 663-0026-01 , 12102C115A, 1210-2C115A, 1274942503, 12-749425-03, 1R1210G115, 2011784, 20117-84, 221-6951669 ITEM 3, 2216951669ITEM3, 26D2C115AC, 314XBX48PL120VAC, 361085, 361-085, 36125100, 361-251-00, 416004, 416040, 47A529802P15, 5945-00-787-3068, 00-787-3068, 5945007873068, 007873068, 864088001, 663002601

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-787-3068	32512 ( RELAY, ELECTROMAGNETIC )

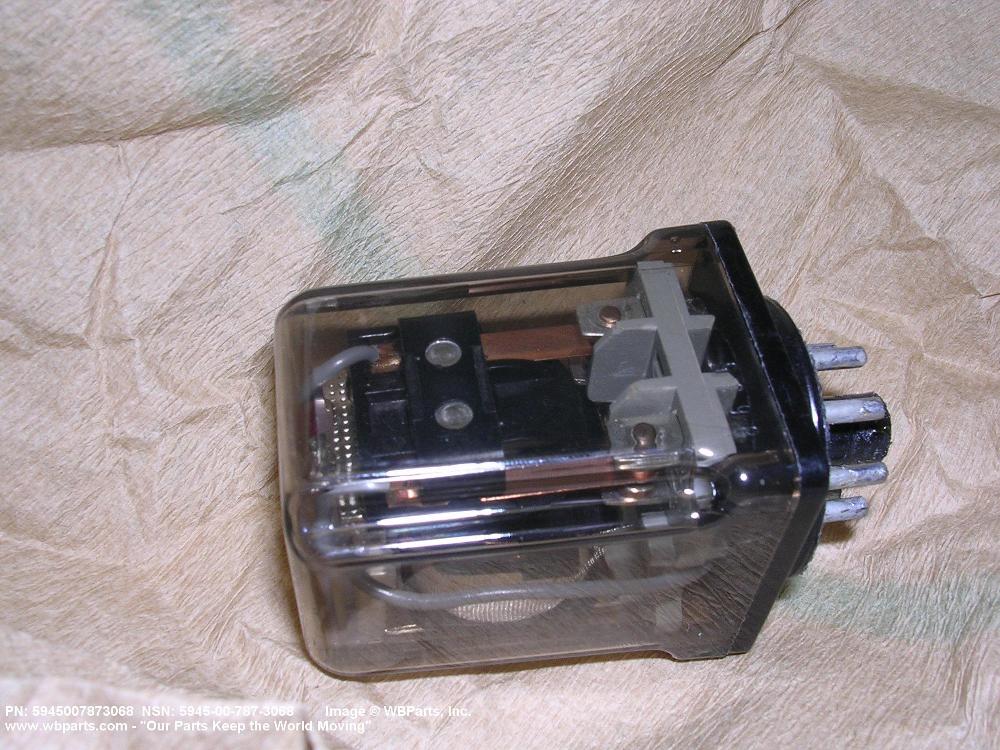

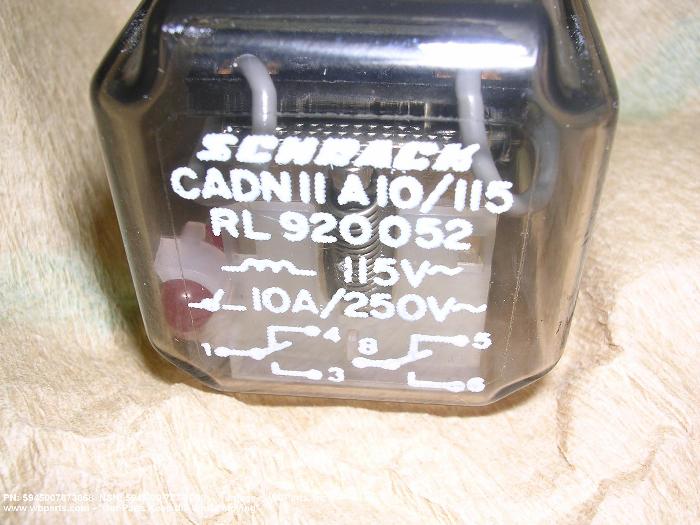

Drawings & Photos | NSN 5945-00-787-3068

Part Number	Request Date	QTY	Origin
5945-00-787-3068	2017-12-361	142	DIBBS
5945-00-787-3068	2017-01-11	5	DIBBS
5945-00-787-3068	2016-10-299	2	DIBBS
5945-00-787-3068	2016-04-94	158	DIBBS
5945-00-787-3068	2014-05-141	182	DIBBS
5945-00-787-3068	2012-08-226	199	DIBBS
KRP11AG120V	2011-03-73	1	US
5945-00-787-3068	2009-10-292	217	DIBBS
5945-00-787-3068	2009-07-204	162	DIBBS
S1210156	2007-08-222	2	United States
5945-00-787-3068	2007-04-114	124	DIBBS

Cross Reference | NSN 5945-00-787-3068

Part Number	Cage Code	Manufacturer
12-749425-03	52414	EMERSON ELECTRIC CO COMPUTER POWER DIV
1210-2C115A	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
1R1210G115	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
20117-84	28478	DELTROL CORP DELTROL CONTROLS DIV
221-6951669 ITEM 3	94421	MILITARY SEALIFT COMMAND
26D2C115AC	55469	ESSEX INDUSTRIES, INC.
314XBX48PL120VAC	00213	STRUTHERS-DUNN LLC
314XBX48PL120VAC	78290	STRUTHERS-DUNN INC
314XBX48PL120VAC	94696	SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT
361-085	05083	BACHARACH, INC.
361-251-00	05083	BACHARACH, INC.
416004	29892	AMERICAN PACKAGING CORP
416040	29892	AMERICAN PACKAGING CORP
47A529802P15	23991	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION
6-1-9975	81337	ARMY, UNITED STATES DEPARTMENT OF THE
6-2-1919-27-166	01551	EDRO CORPORATION, THE DBA DYNAWASH
639AS10027	30003	NAVAL AIR SYSTEMS COMMAND
663-0026-01	59426	BAYER CORP DIAGNOSTICS DIV
8640-88001	10023	CHROMALOX, INC. DIV CHROMALOX
A410-362137-40	73949	GUARDIAN ELECTRIC MANUFACTURING CO.
GHP2C115VAC	94696	SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT
KAP-11AY	77342	TYCO ELECTRONICS CORPORATION
KAP11AY 120VAC	77342	TYCO ELECTRONICS CORPORATION
KPR11AG120V	77342	TYCO ELECTRONICS CORPORATION
KRP-11A-120	77342	TYCO ELECTRONICS CORPORATION
KRP-11AG	77342	TYCO ELECTRONICS CORPORATION
KRP-11AG120V50-60HZ	77342	TYCO ELECTRONICS CORPORATION
KRP-11AN-120	77342	TYCO ELECTRONICS CORPORATION
KRP11A120VAC	77342	TYCO ELECTRONICS CORPORATION
KRP11AG	12300	POTTER AND BRUMFIELD DIV AMF CANADA LTD
KRP11AG-115V	77342	TYCO ELECTRONICS CORPORATION
KRP11AG-120	77342	TYCO ELECTRONICS CORPORATION
KRP11AG-120V	2N432	AMF INC POTTER AND BRUMFIELD DIV
KRP11AG120V	77342	TYCO ELECTRONICS CORPORATION
KRP11AG120VDC	77342	TYCO ELECTRONICS CORPORATION
KRP11AN115V	77342	TYCO ELECTRONICS CORPORATION
KRP11AN120V	77342	TYCO ELECTRONICS CORPORATION
KRPA-11AG	77342	TYCO ELECTRONICS CORPORATION
KRPA11AG-120VAC	77342	TYCO ELECTRONICS CORPORATION
KRPA11AG120	12300	POTTER AND BRUMFIELD DIV AMF CANADA LTD
KRPA11AG120V	77342	TYCO ELECTRONICS CORPORATION
KRPA11AN120VAC	77342	TYCO ELECTRONICS CORPORATION
LHP11A115	82415	AIRPAX CORP LLC
MKH2A115	07065	G GENERAL ELECTRO-COMPONENTS INC
R350016-3	04071	RAYTHEON COMPANY DBA RAYTHEON
S121-0156	93742	ENGINEERED ELECTRIC COMPANY DBA DRS FERMONT
SKP-11-AG-110	12300	POTTER AND BRUMFIELD DIV AMF CANADA LTD
W88ANCPX-2	94696	SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT
